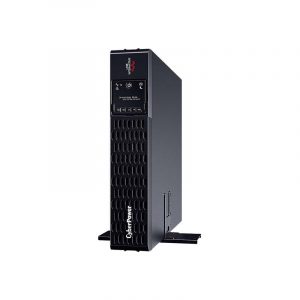

CyberPower Smart App PR2200ERTXL2U Line-interactive UPS – 2.20 kVA/2.20 kW – 2U Rack/Tower – AVR – 3 Hour Recharge – 3.20 Minute Stand-by – 230 V AC Input – 220 V AC, 230 V AC, 240 V AC Output – 6 x IEC 60320 C13, 2 x IEC 60320 C19
CyberPower PR2200ERTXL2U with rackmount design guarantees power backup protection for home theater systems, multimedia devices, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. The UPS adopts line-interactive topology with Automatic Voltage Regulation (AVR) function, and offers stabilized Pure Sine Wave output to ensure high power quality.
The UPS’s output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage. Two-phase battery charging can charge the battery quickly and safely. The hot-swappable battery packs allow for easy maintenance without power interruption. Its multi-functional matrix LCD supports intuitive operation and quick configuration. The LCD panel is also rotatable to meet installation requirements.
Features
- Line-interactive UPS Topology
- Energy Saving Technology
- Active PFC Compatible
- Pure Sine Wave Output
- Night Mode Design
- Tool-less Battery Replacement
- Battery Management Technology
- High Output Power Factor
- Automatic Voltage Regulation (AVR)
- Overload Protection
Specifications
Controls/Indicators
| Status Indicators | LCD Information Display:
Operation Type Power Status Battery Status Load Status Fault & Warning Other Information Event & Log LED Indicators: Power On Line Mode Battery Mode UPS Fault Night Mode |
Interfaces/Ports
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
Miscellaneous
| Package Contents | Smart App PR2200ERTXL2U 2200VA Rack/Tower UPS
Rackmount Rail Rackmount Ears 1 x USB Cable 1 x Serial Cable 1 x EPO Cable User’s Manual |
| Environmentally Friendly | Yes |
| Environmental Certification | GreenPower UPS |
| RoHS | |
| Energy Star | Yes |
Physical Characteristics
| Weight (Approximate) | 34.43 kg |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 86.4 mm |
| Width | 434.3 mm |
| Depth | 500.4 mm |
Technical Information
| Application/Usage | Telecommunication |
| Server Room | |
| Airport | |
| IT Equipment | |
| Home Theatre | |
| Multimedia Device | |
| Surveillance System | |
| Factory | |
| Network Device | |
| SOHO Office | |
| Workstation | |
| Computer | |
| Supermarket | |
| Train Station | |
| Storage Device | |
| Data Center | |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Plug/Connector Type | IEC 60320 C20 |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS Bypass Technology |
| Number of Battery & Surge Outlets | 8 |
| Number of Critical Load Outlets | 4 |
| Number of Surge-only Outlets | 4 |
| Transfer Time | 4 ms |
| Receptacle Detail | 6 x IEC 60320 C13 |
| 2 x IEC 60320 C19 |
Environmental Conditions
| Thermal Dissipation | 116 BTU/h |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3.05 km |
| Maximum Storage Elevation | 15.24 km |
| Storage Relative Humidity | 0% – 95% |
| Storage Temperature | -15°C – 45°C |
| Sound Emission (A-Weighted) | 57.5 dB(A) |
Management
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Overload |
| Over-charge | |
| On Battery | |
| Overheat | |
| Battery Mode | |
| Low Battery |
General Information
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | PR2200ERTXL2U |
| Manufacturer Website Address | http://www.cyberpower.com/au |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PR2200ERTXL2U |
| Product Name | Smart App PR2200ERTXL2U 2200VA Rack/Tower UPS |
| Product Line | Smart App |
| Brand Name | CyberPower |
Battery Information
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 4 |
| Backup/Run Time (Half Load) | 11.20 Minute |
| Backup/Run Time (Full Load) | 3.20 Minute |
| Battery Characteristics | Sealed |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 3 Hour |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 220 V AC |
| 240 V AC | |
| 230 V AC | |
| Load Capacity | 2.20 kVA/2.20 kW |
| Surge Energy Rating | 2430 J |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 159 V AC – 288 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
