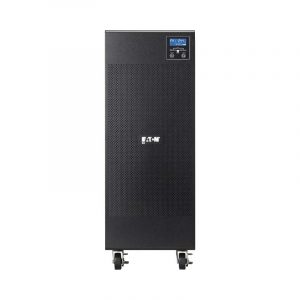

Eaton 9E Double Conversion Online UPS – 10 kVA – Tower – 220 V AC, 230 V AC, 240 V AC Input – 220 V AC, 230 V AC, 240 V AC Output
The Eaton® 9E UPS delivers superior power protection for ever-expanding loads in today’s space-constrained data centers. Facilitating a lower total cost of ownership (TCO) through three key features — energy efficiency, internal batteries, and compact footprint — the 9E is an ideal solution for small- to medium-sized data centers and other applications desiring highly reliable power protection.
Energy-efficient performance lowers operating costs
- Delivers up to 98% efficiency
- Up to 7% more efficient than competitive units
- Qualifies for local utility rebates and incentives
Internal batteries provide maximum runtime
- Delivers up to 21 minutes of runtime
- Pre-wired for easy installation
A compact footprint occupies minimal floor space
- Up to 35% smaller than similar competitive solutions
- Allows dedication of more floor space to revenue-producing equipment
Specifications
Warranty
| Limited Warranty | 1 Year |
Miscellaneous
| Environmentally Friendly | Yes |
| Environmental Certification | TÜV |
Technical Information
| Plug/Connector Type | Hardwired |
| Receptacle Type | Hardwired |
General Information
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | 9E10KIXL |
| Manufacturer Website Address | http://www.eatoncorp.com.au |
| Manufacturer | Eaton Corporation |
| Product Model | 9E |
| Product Name | 9E UPS |
| Brand Name | Eaton |
Physical Characteristics
| Weight (Approximate) | 28.90 kg |
| Form Factor | Tower |
| Height | 708.5 mm |
| Width | 262.4 mm |
| Depth | 612.9 mm |
Power Description
| Input Voltage | 220 V AC |
| 230 V AC | |
| 240 V AC | |
| Output Voltage | 220 V AC |
| 230 V AC | |
| 240 V AC | |
| Load Capacity | 10 kVA |
