Asus Prime Z890-P WIFI-CSM LGA 1851 ATX Motherboard (PRIME Z890-P WIFI-CSM)
$489.00 'inc. GST'
GIGABYTE (H810M S2H) Intel Core Ultra (Series 2) LGA 1851 Motherboard, mATX, DDR5, 1x M.2, PCIe 4.0, USB 3.2 Gen1, 1GbE LAN, EZ-Latch
Request For Price
GIGABYTE H810M S2H micro-ATX Motherboard supporting Intel LGA1851 Core Ultra Series 2, up to 128 GB DDR5, PCIe 4.0 M.2, 7.1 HD audio, Gigabit LAN, and HDMI/DP/D-Sub display outputs for versatile PC builds.
Vendor Code:
Description
GIGABYTE Intel Core Ultra (Series 2) LGA 1851 Motherboard, mATX, DDR5, 1x M.2, PCIe 4.0, USB 3.2 Gen1, 1GbE LAN, EZ-Latch

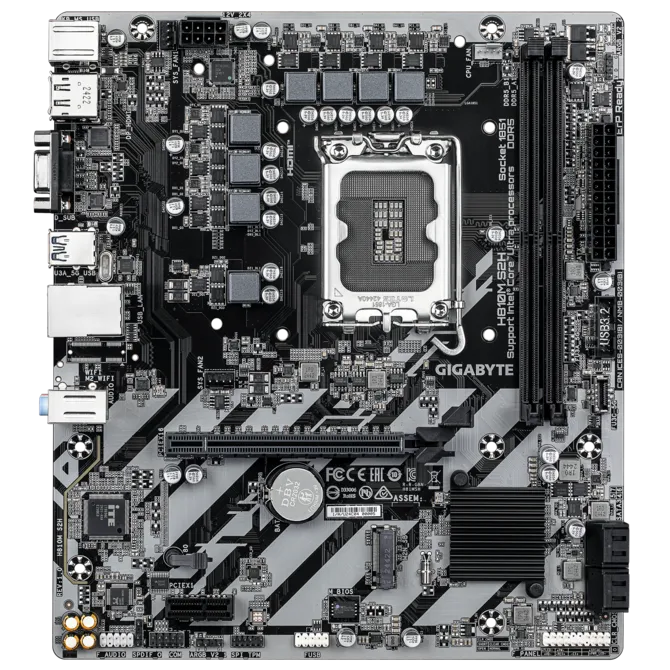

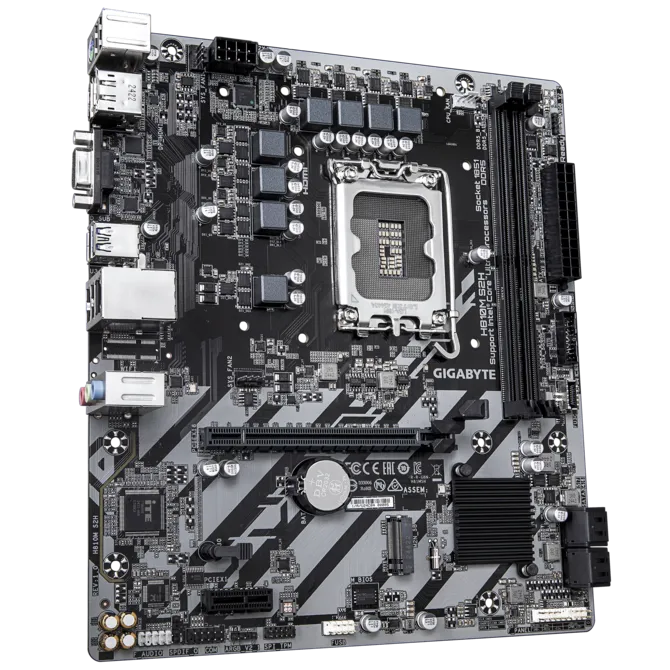

The GIGABYTE H810M S2H is a versatile Micro-ATX Motherboard built for Intel’s LGA1851 (Socket V1) platform, supporting Intel® Core™ Ultra Series 2 processors for modern desktop performance. Designed for everyday computing, productivity, and mild gaming builds, it features DDR5 memory support, multiple storage options with PCIe 4.0 M.2 and SATA, this board strikes a balance of performance, expandability, and reliability in a compact form factor.
- Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
- Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
- Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
Key Features:
- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid 4+1+2 phases VRM solution
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
- Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
- Fast Networking: GbE LAN
- Extended Connectivity: DisplayPort, HDMI, D-Sub
Specifications:
| CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| L3 cache varies with CPU | |
| Chipset | Intel® H810 Express Chipset |
| Memory Type | DDR5 |
| Memory Speed | DDR5 6400 / 5600 MT/s |
| Memory Slots | 2 × DDR5 DIMM |
| Maximum Memory | Up to 128 GB (64 GB single DIMM capacity) |
| Memory Architecture | Dual channel memory architecture |
| ECC Support | ECC Un-buffered DIMM 1Rx8/2Rx8 (operate in non-ECC mode) |
| Non-ECC Support | Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
| Memory Profiles | Extreme Memory Profile (XMP) |
| Onboard Graphics | Intel® HD Graphics (CPU dependent) |
| HDMI Output | 1 × HDMI, max. 4096 × 2160 @ 60 Hz, HDMI 2.1, HDCP 2.3 |
| DisplayPort Output | 1 × DisplayPort, max. 3840 × 2160 @ 60 Hz, DisplayPort 2.1 |
| VGA Output | 1 × D-Sub, max. 1920 × 1200 @ 60 Hz |
| Multi-Display Support | Up to triple-display support |
| Audio Codec | Realtek® Audio CODEC |
| Audio Channels | 2 / 4 / 5.1 / 7.1-channel High Definition Audio |
| Audio Features | S/PDIF Out support |
| LAN | Realtek® GbE LAN (1 Gbps / 100 Mbps / 10 Mbps) |
| Expansion Slot (CPU) | 1 × PCIe 4.0 x16 slot |
| Expansion Slot (Chipset) | 1 × PCIe 3.0 x1 slot |
| M.2 Slot | 1 × M.2 (Socket 3, M key, type 2280), PCIe 4.0 x4/x2 |
| SATA Ports | 4 × SATA 6Gb/s |
| USB Type-C (Internal) | 1 × USB Type-C® header, USB 3.2 Gen 1 |
| USB 3.2 Gen 1 | 3 ports (1 rear, 2 via internal header) |
| USB 2.0 / 1.1 | 7 ports total (5 rear, 2 via internal header) |
| Power Connector | 1 × 24-pin ATX main power |
| 1 × 8-pin ATX 12V power | |
| Fan Headers | 1 × CPU fan header |
| 2 × system fan headers | |
| RGB Headers Internal Storage Connectors | 2 × Addressable RGB Gen2 LED headers |
| 1 × M.2 Socket 3 | |
| 4 × SATA 6Gb/s | |
| Internal Headers | Front panel header |
| Front panel audio header | |
| S/PDIF Out header | |
| USB 3.2 Gen 1 header | |
| USB 2.0 / 1.1 header | |
| TPM header (GC-TPM2.0 SPI V2 only) | |
| Serial port header | |
| Clear CMOS jumper | |

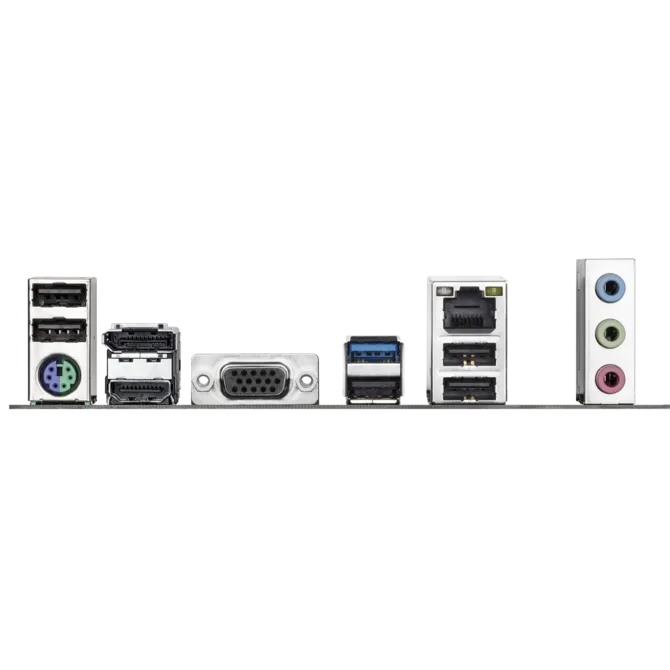

| Back Panel Ports | 1 × PS/2 keyboard/mouse |
| 1 × HDMI | |
| 1 × DisplayPort | |
| 1 × D-Sub | |
| 1 × USB 3.2 Gen 1 | |
| 5 × USB 2.0 / 1.1 | |
| 1 × RJ-45 LAN | |
| 3 × Audio jacks | |
| I/O Controller Hardware Monitoring | iTE® I/O Controller Chip |
| Voltage detection | |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| BIOS | 256 Mbit Flash ROM |
| AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0 | |
| SMBIOS 2.7, ACPI 5.0 | |
| Unique Features | GIGABYTE Control Center (GCC) |
| Q-Flash | |
| Smart Backup | |
| Bundled Software | Norton® Internet Security (OEM) |
| LAN bandwidth management software | |
| Operating System | Windows 11 64-bit |
| Windows 10 64-bit | |
| Form Factor </t |
Additional information
| Brand | |
|---|---|
| PC Components Type |
Motherboard |
| Memory Size |
128 GB |
| Memory Type |
DDR5 |
| Operating System |
Windows 10 64-bit ,Windows 11 64-bit |
