New
Acceltex 2.45GHz 13 dBi 4 Element IndoorOutdoor Antenna-ATS-01087
Request For Price
High-gain Acceltex 2.45 GHz 13 dBi 4-Element Indoor/Outdoor Antenna directional patch antenna with dual-band Wi-Fi support and durable mounting options for targeted coverage.
Vendor Code:
Description
Acceltex 2.45GHz 13 dBi 4 Element IndoorOutdoor Antenna
The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated mounting holes in the corners of the radome and leads exiting the bottom of the antenna for a flush wall mount. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
- Dual band patch antenna optimized for 2.4 and 5 GHz Wi-Fi
- Includes integrated mounting holes for flush wall installation
Specifications
General | |
| Antenna Gain | 13 dBi |
| Antenna Type | Patch |
| Beamwidth – Horizontal | 15° |
| Beamwidth – Vertical | 120° |
| Cable Type | RG402 Plen |
| Compatibility
| Aruba/HP AP-514 Aruba/HP AP-534 |
| Indoor/Outdoor | Indoor or Outdoor |
| Input Power – Max | 50 W per port |
| Installation Type
| Flush Mount to Wall or Articulating Wall/Pole Mount (included) |
| Isolation Loss | ˃30 dB |
| Material – Radome | ABS |

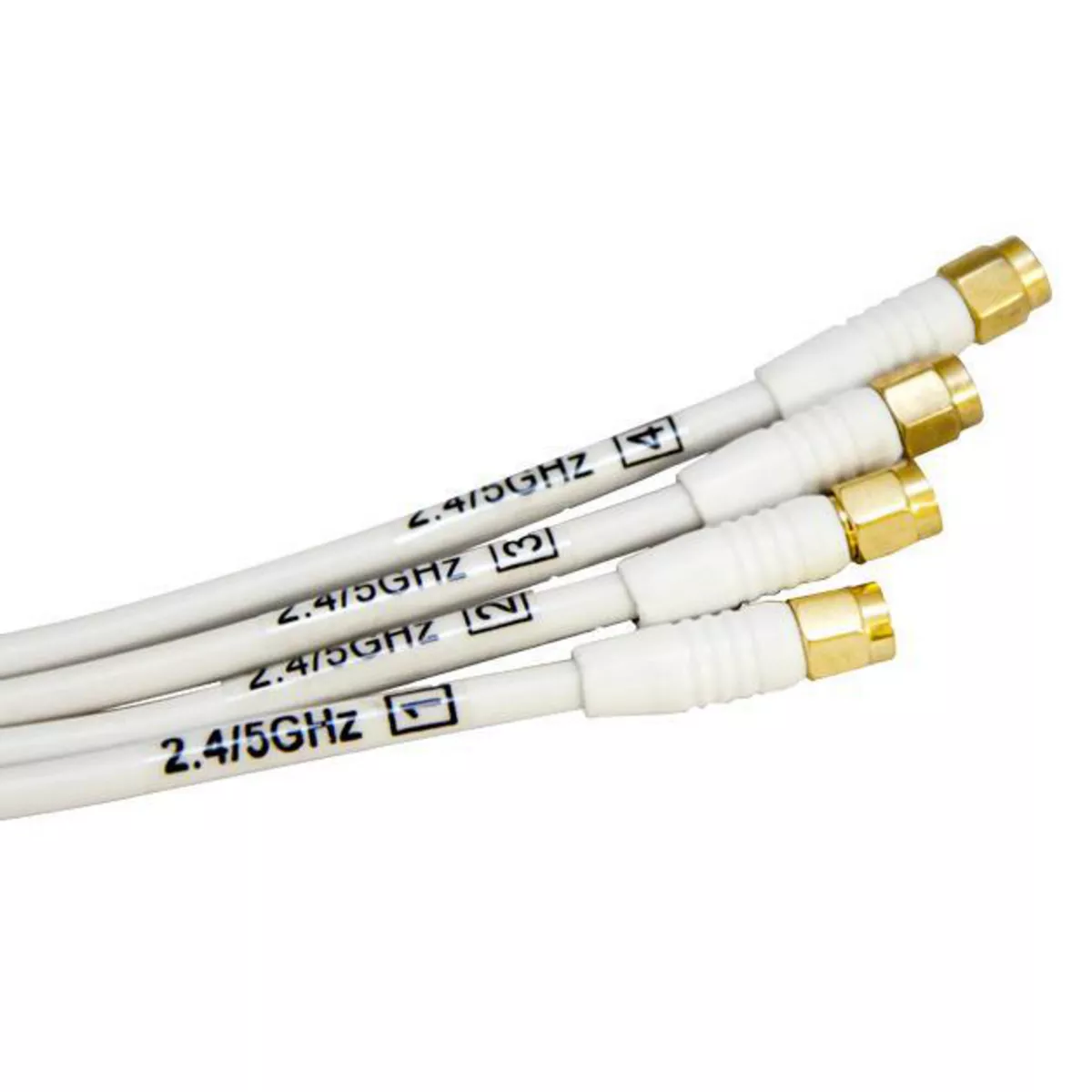

| Number of Leads | 4 |
| Polarization | Horizontal |
| Technology | 802.11ac, 802.11ax, 802.11n |
| UPC | 662620435855 |
| Windage | 134 mph (216 km/h) |
| Dimensions
| Height 1.4 in Length 13.8 in Width 13.8 in |
| Electrical Ratings
| Frequency Rating 2.4-2.485/5.15-5.85 GHz Impedance 50 Ohms Input Power – Max 50 W per port Voltage Ratio < 1.5:1, Max 2.0 |
Conductor Related | |
| Cable Type | RG402 Plen |
| Operational
| Compatibility Aruba/HP AP-514 Aruba/HP AP-534 Indoor/Outdoor Indoor or Outdoor Isolation Loss ˃30 dB |
Configuration | |
| Antenna Type | Patch |
| Number of Leads | 4 |
Logistics | |
| Carton Quantity | 4 |
| Pallet Quantity | 32 |
