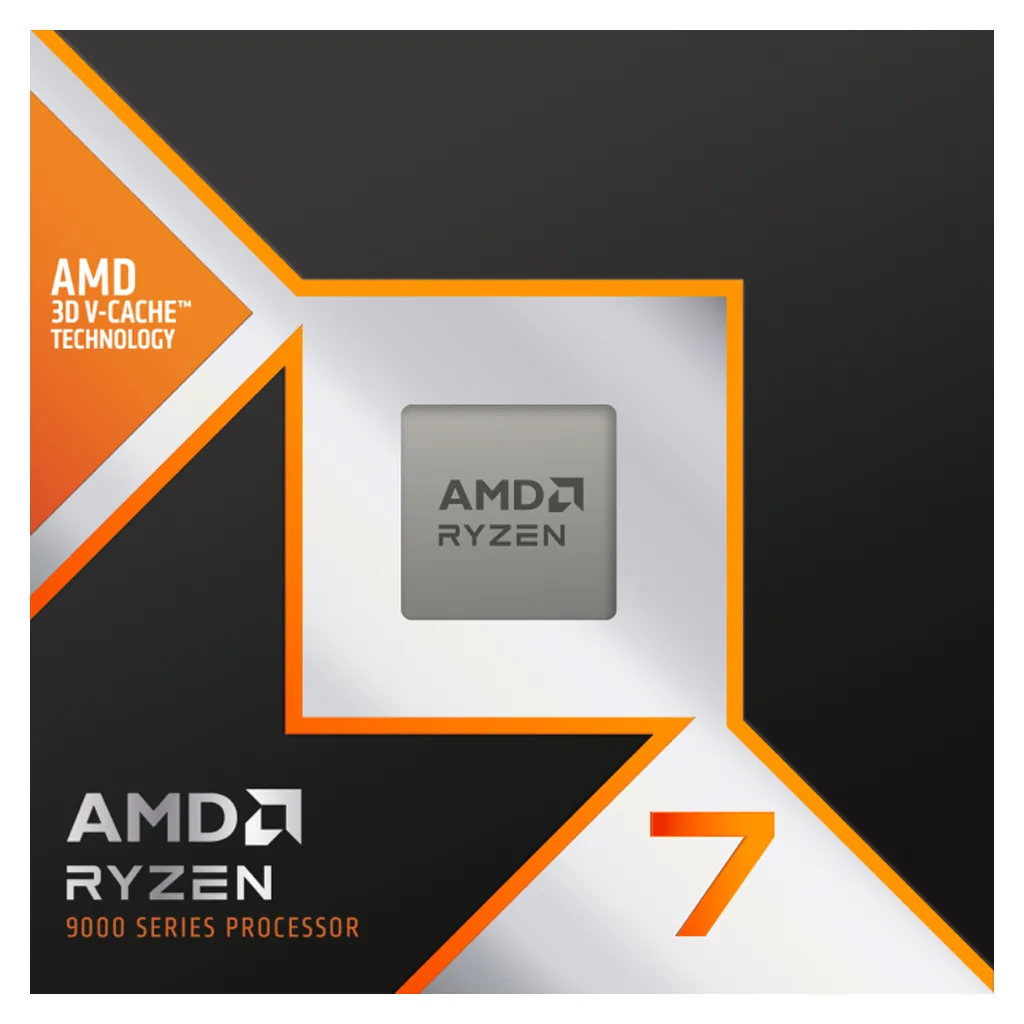

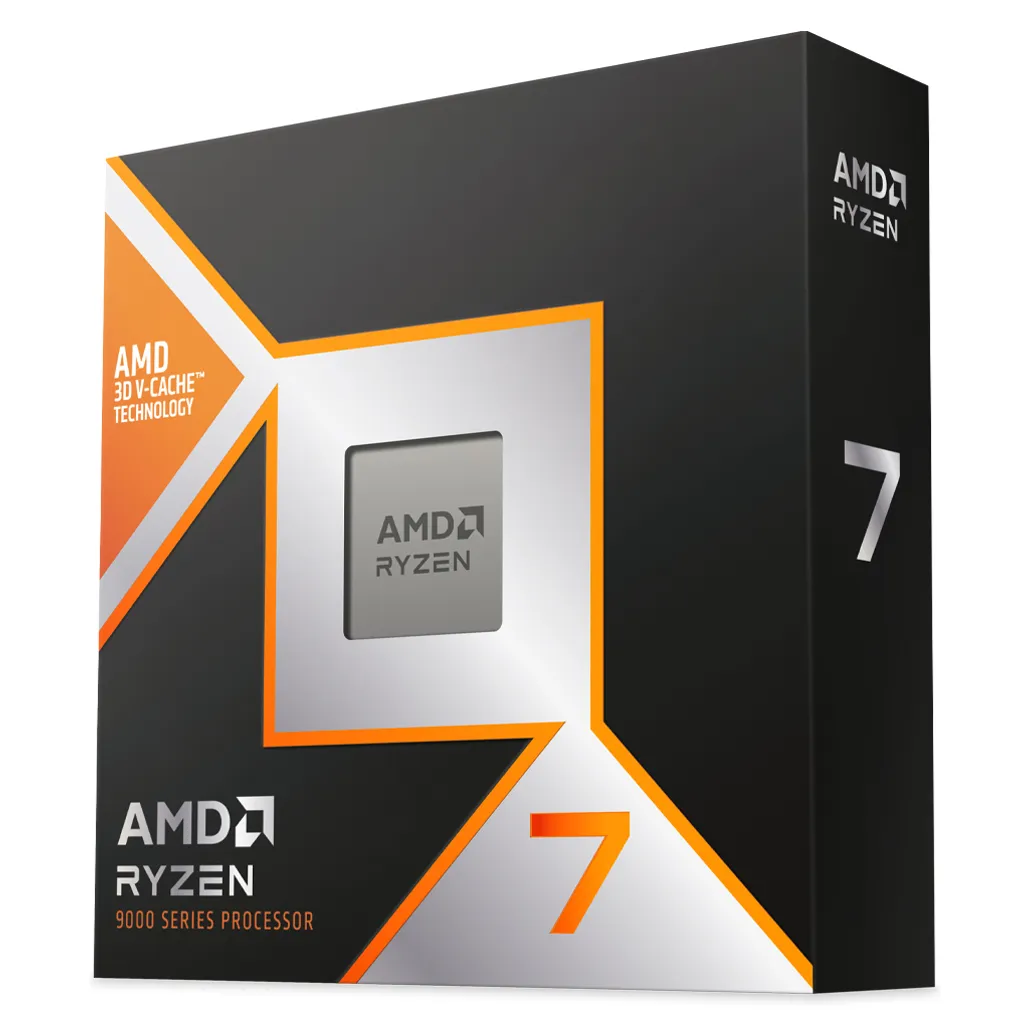

Name: AMD Ryzen 7 9800X3D 8 Core 16 Thread AM5 up to 5.2GHz AM5 Unlocked CPU Processor (100-100001084WOF)
Brand: AMD
SKU: 100-100001084WOF
Availability: InStock

AMD Ryzen 7 9800X3D 8 Core 16 Thread AM5 up to 5.2GHz AM5 Unlocked CPU Processor (100-100001084WOF)

$999.00 'inc. GST'

AMD Ryzen 7 9800X3D: 8-core/16-thread Zen 5 (4nm) CPU, 5.2 GHz boost, 96 MB L3 cache, 120 W TDP, unlocked for overclocking with Precision Boost Overdrive & Curve Optimizer, DDR5-5600, PCIe 5.0, Radeon graphics 2 cores @2.2 GHz, EXPO support.

In stock

Vendor Code:

SKU: 100-100001084WOF Categories: Computer Peripherals, PC Components, Processors

Supplier ID: LEA-100-100001084WOF

AMD Ryzen 7 9800X3D 8 Core 16 Thread AM5 up to 5.2GHz AM5 Unlocked CPU Processor (100-100001084WOF)

The AMD Ryzen 7 8700F is a high-performance desktop processor built on AMD’s advanced Zen 4 architecture. Designed for gaming and productivity systems using a dedicated graphics card, this F-series processor does not include integrated graphics, allowing more thermal and power headroom for CPU performance. With high boost clocks, DDR5 support, and PCI Express 5.0 connectivity, the Ryzen 7 8700F is ideal for modern gaming PCs and demanding workloads.

AMD Ryzen 7 9800X3D 8 Core AM5 up to 5.2GHz Unlocked CPU Processor

Key Features

Zen 4 Architecture

Delivers improved IPC, efficiency, and performance for gaming and multitasking.

8 Cores and 16 Threads

Handles gaming, streaming, content creation, and productivity workloads smoothly.

Unlocked Multiplier

Supports overclocking on compatible AM5 motherboards.

DDR5 and PCIe 5.0 Support

Provides next-generation memory speed and expansion bandwidth.

No Integrated Graphics

Optimized for systems using a discrete graphics card.

GENERAL SPECIFICATIONS
Name	AMD Ryzen™ 7 9800X3D
Family	Ryzen
Series	Ryzen 9000 Series
Form Factor	Desktops , Boxed Processor
AMD PRO Technologies	No
Former Codename	Granite Ridge AM5
Architecture	Zen 5
# of CPU Cores	8
Multithreading (SMT)	Yes
# of Threads	16
Max. Boost Clock	Up to 5.2 GHz
Base Clock	4.7 GHz
L1 Cache	640 KB
L2 Cache	8 MB
L3 Cache	96 MB
Default TDP	120W
Processor Technology for CPU Cores	TSMC 4nm FinFET
Processor Technology for I/O Die	TSMC 6nm FinFET
Package Die Count	2
Unlocked for Overclocking	Yes
AMD EXPO™ Memory Overclocking Technology	Yes
Precision Boost Overdrive	Yes
Curve Optimizer Voltage Offsets	Yes
AMD Ryzen™ Master Support	Yes
CPU Socket	AM5
Supporting Chipsets	A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology	Precision Boost 2
Instruction Set	x86-64
Supported Extensions	AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB)	Not Included
Recommended Cooler	Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax)	95°C
*OS Support	Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
CONNECTIVITY
Native USB 3.2 Gen 2 (10Gbps) Ports	4
Native USB 2.0 (480Mbps) Ports	1
PCI Express® Version	PCIe® 5.0
Native PCIe® Lanes (Total/Usable)	28 , 24
NVMe Support	Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type	DDR5
Memory Channels	2
Max. Memory	192 GB
System Memory Subtype	UDIMM
Max Memory Speed	2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600
ECC Support	Yes (Requires mobo support)
GRAPHICS CAPABILITIES
Graphics Model	AMD Radeon™ Graphics
Graphics Core Count	2
Graphics Frequency	2200 MHz
USB Type-C® DisplayPort™ Alternate Mode	Yes
KEY FEATURES
Supported Technologies	AMD EXPO™ Technology , AMD Ryzen™ Technologies
