APC Back-UPS 750VA 230V Line Interactive 3 Output -BX750MI-AZ
Original price was: $197.99.$173.00Current price is: $173.00. 'inc. GST'
APC Back-UPS 750VA line-interactive UPS with AVR, 410W capacity, 230V output, and battery backup with surge protection for home and office devices, 2year warranty.
In stock
Vendor Code:
Description

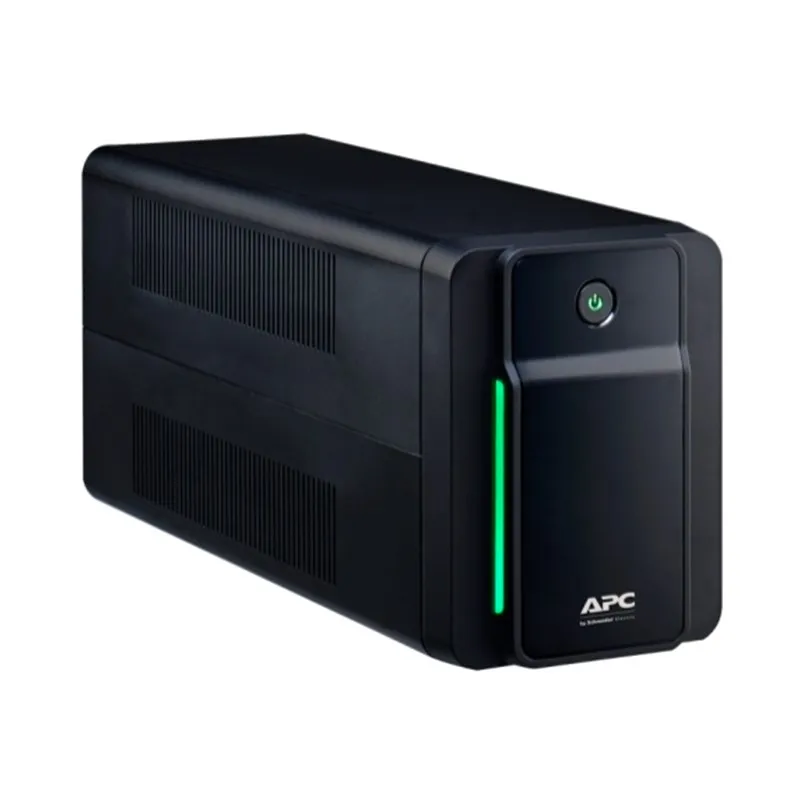

APC Back-UPS 750VA 230V Line Interactive 3 Output
The APC Back‑UPS 750VA Line‑Interactive UPS is a reliable power protection solution designed for home offices, networking devices, and small business electronics. With a 750VA / 410W power capacity, this UPS provides backup power and surge protection to keep critical equipment running during outages and voltage fluctuations.
Featuring Automatic Voltage Regulation (AVR), the unit stabilizes incoming voltage without draining the battery, ensuring consistent power delivery to connected devices. The line-interactive topology improves power reliability by correcting minor voltage variations automatically.
Key Features:
- Output power capacity: 410 Watts / 750VA

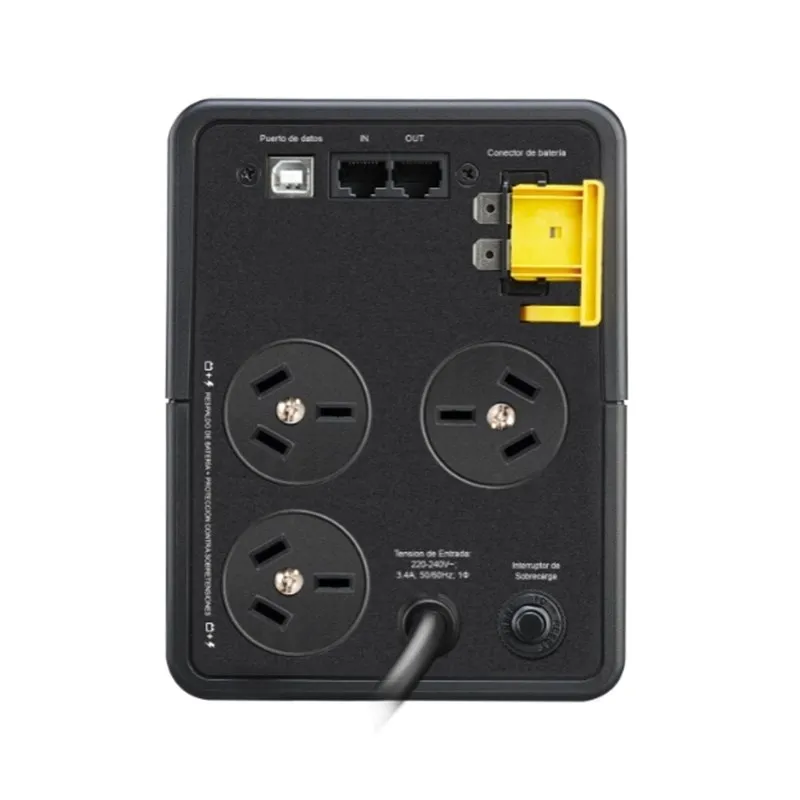

- Output Connections: (3) Australian (Battery Backup)
- Nominal Output Voltage: 230V
- Nominal Input Voltage: 230V
- Input Connections: IEC 60320 C14
BX Series devices maximise battery performance, life, and reliability through intelligent, precision charging. Periodic battery self-testing ensures early detection of a battery that needs to be replaced, while early-warning fault analysis on batteries enables timely preventive maintenance. |
BX Series devices automatically correct low/high voltage fluctuations and are Active Power Correction (PFC) compatible. Inclusive surge only outlets are designed to protect secondary electronics from surges without reducing battery power used to run primary electronics during an outage. |

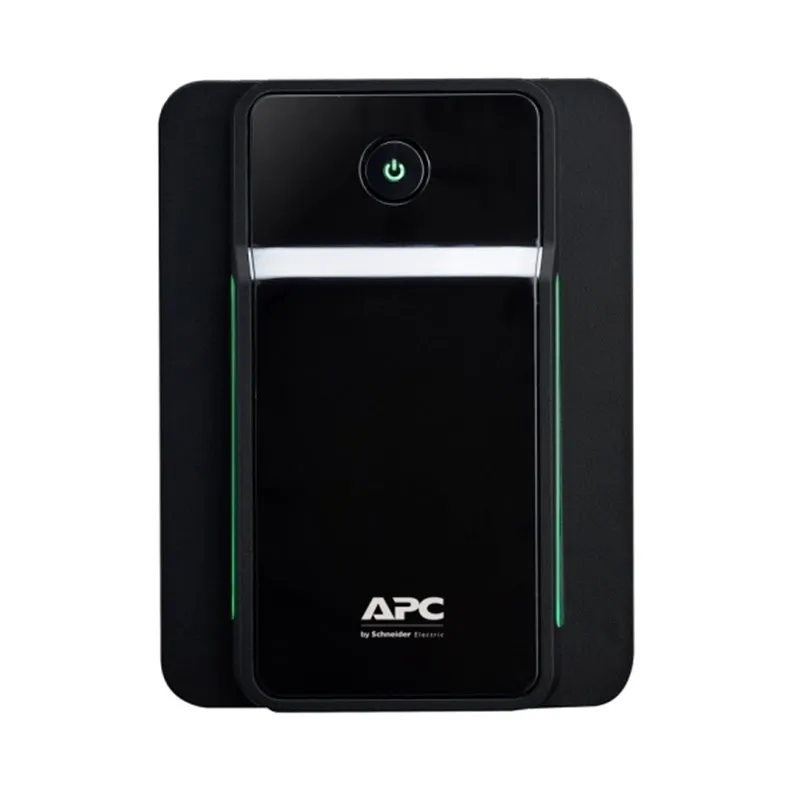

Quickly and easily determine the functional status of your UPS by checking the front LED lights. The onboard alarm system provides notification of changing utility power and UPS power conditions. |
In the event of an extended power outage, prevent potential data loss or corruption with PowerChute Personal Edition Software. |
Specifications:
OUTPUT | |
| Max Configurable Power (Watts) | 410 Watts / 750VA |
| Output Frequency (sync to mains) | 50/60 Hz +/- 1 Hz Sync to mains |
| Topology | Line interactive |
| Waveform type | Stepped approximation to a sinewave |
| Transfer Time | 6 ms typical : 10 ms maximum |
| Output Connections (Battery Backup) | 4 |
INPUT | |
| Input frequency | 50/60 Hz +/- 5 Hz Auto-sensing |
| Input voltage range for main operations | 140 – 300V |
| Number of Power Cords | 1 |
| Input Power Factor at Full Load | 0.63 |
BATTERIES AND RUN TIME | |
| Battery type | Lead-acid battery |
| Typical recharge time | 8 hours |
| Nominal Battery Voltage | 12 V |
| Expected Battery Life (years) | 3 – 5 |
| Battery Volt-Amp-Hour Capacity | 108 |
COMMUNICATIONS AND MANAGEMENTS | |
| Control panel | LED Status display with on line : on battery |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm |
SURGE PROTECTION AND FILTERING | |
| Surge energy rating | 273Joules |
| Data Line Protection | RJ45 10/100/1000 Base-T Ethernet protection |
PHYSICAL | |
| Maximum Height | 160MM, 16.0CM |
| Maximum Width | 120MM, 12.0CM |
| Maximum Depth | 355MM, 35.5CM |
| Net Weight | 5.4KG |
| Colour | Black |
ENVIRONMENTAL | |
| Operating Temperature | 0 – 40 °C |
| Operating Relative Humidity | 0 – 95 (Non-condensing) % |
| Operating Elevation | 0 – 3000metres |
| Storage Temperature | -15 – 40 °C |
| Storage Relative Humidity | 0 – 95 (Non-condensing) % |
| Storage Elevation | 0 – 3000metres |
| Audible noise at 1 metre from surface of unit | 40.0dBA |
| Protection Class | IP20 |
CONFORMANCE | |
| Approvals | CB , CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM |
| Equipment protection policy | Lifetime : 50000 euros |
SUSTAINABLE OFFER STATUS | |
| RoHS | Compliant |
