APC SMART-UPS (SRT), 10K VA, IEC(10), NETWORK, LCD, 6U RACK/TWR, 3YR
The APC SRT10KRMXLI is a smart uninterruptible power supply that serves as a protection on high density, true double-conversion on-line with scalable runtime which is ideal for servers, voice / data networks, medical labs, and light industrial applications. It is capable of supporting loads from 1 to 10kVA in a rack/tower convertible form.
The SRT10KRMXLI is capable of including an integrated network management card that can be used for remote management. It also protects your devices against damaging power surges and spikes that travel along utility, phone and networks lines.
It provides a wide range of features for smart-UPS such as LCD graphics display that shows text and mimic diagrams that display modes of operation, system parameters and alarms, auto-shutdown software, Automatic self-test, Adjustable voltage sensitivity, cold-start capable, Battery failure notification, and Hot-swappable batteries.
In addition, the SRT10KRMXLI has intelligent battery management that maximizes battery performance, life, and reliability through intelligent, precision charging, and data-line protection via ethernet, coaxial and phone lines which ensures complete protection of your equipment from surges.
Features
- 10/100 BaseT Connection: Connect the device to a network using a 10 or 100 BaseT connection
- Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Green mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

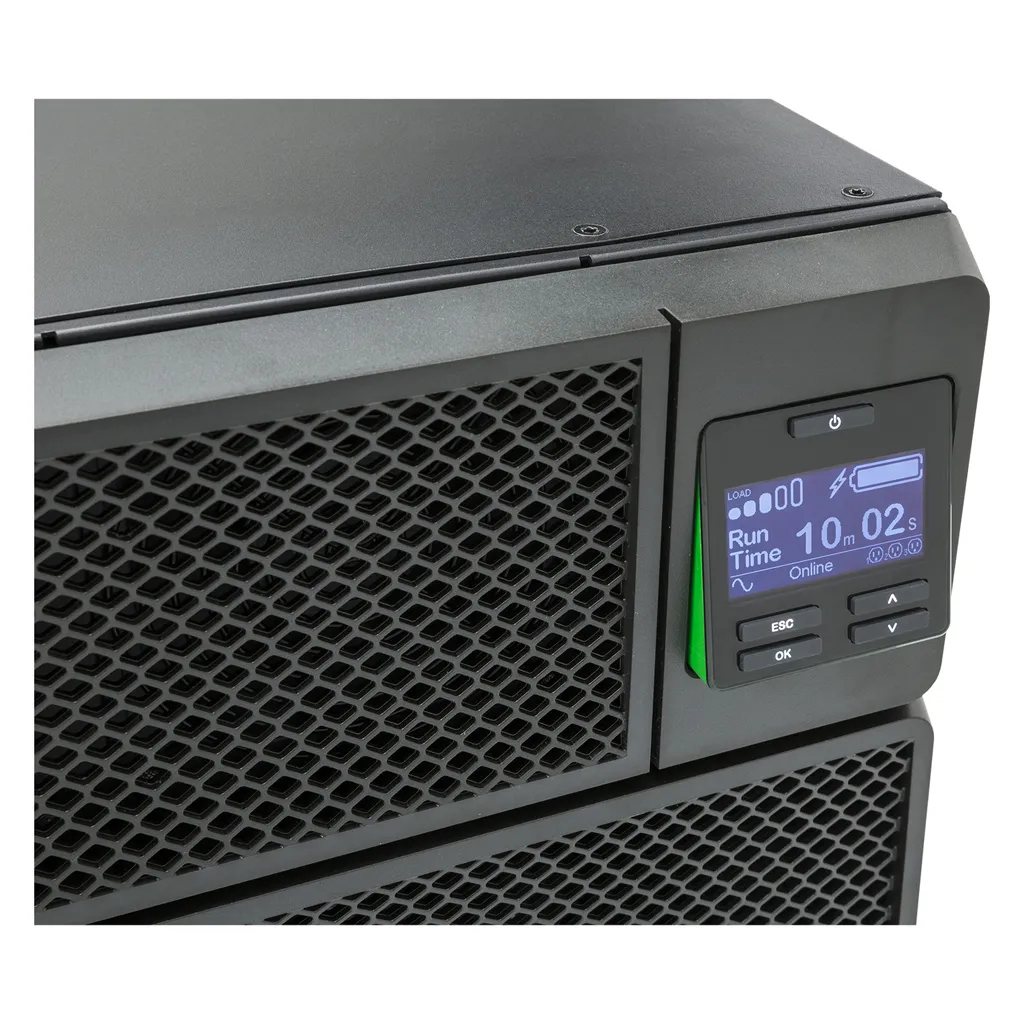

- LCD graphics display: Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Audible alarms: Provides notification of changing utility power and UPS power conditions

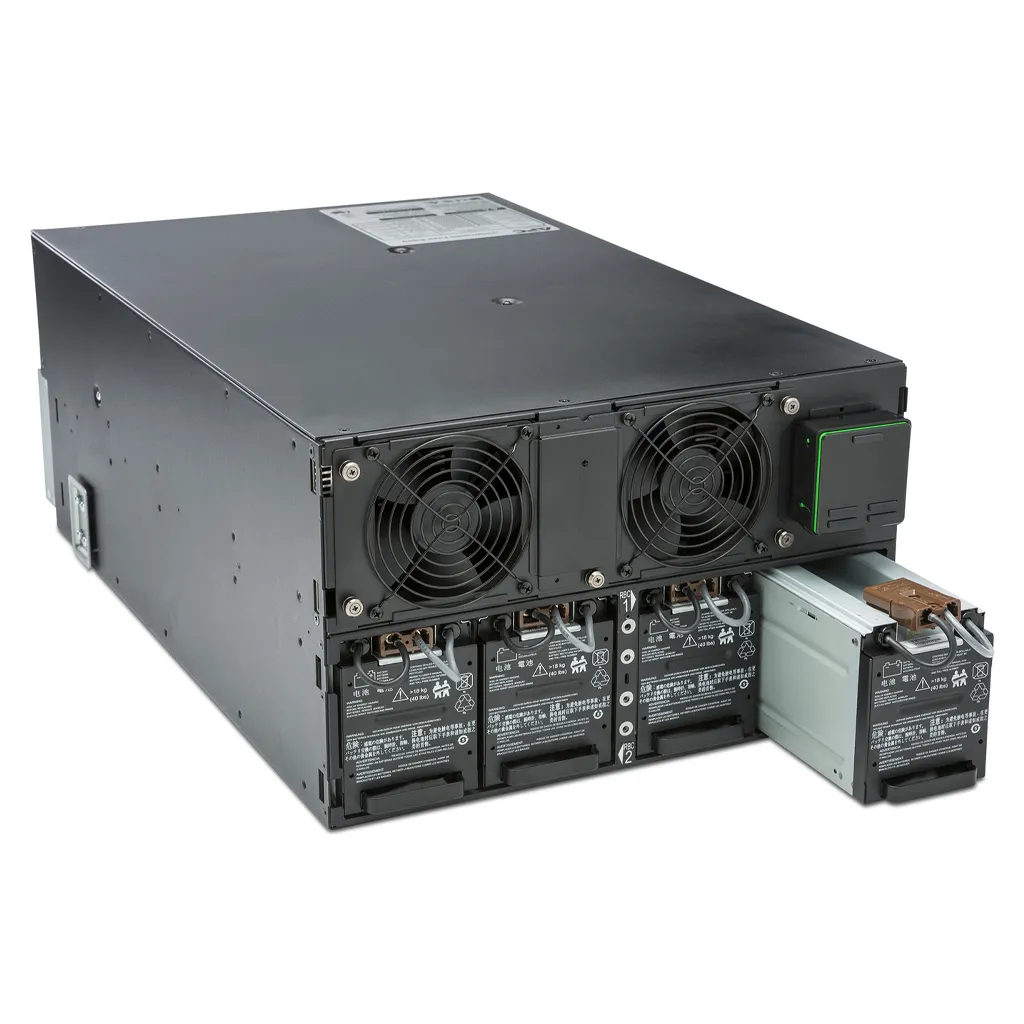

- User-replaceable batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Predictive failure notification: Provides early-warning fault analysis ensuring proactive component replacement.
- Plug-and-Play external batteries: Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
- Flash upgradeable firmware: Install maintenance releases of firmware remotely using FTP.
- Rack/Tower convertible: Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- SmartSlot: Customize UPS capabilities with management cards.
- InfraStruXure Manager Compatible: Enables centralized management via the APC InfraStruXure Manager.
- Serial connectivity: Provides management of the UPS via a serial port.
- Network manageable: Provides remote power management of the UPS over the network.
Specifications
| Product Description | APC Smart-UPS SRT 10000VA RM – UPS – 10 kW – 10000 VA |
| Device Type | UPS – rack-mountable |
| Rack Size | 6U |
| Weight | 111.82 kg |
| Input Voltage | AC 230 V |
| Output Voltage | AC 230 V 3% |
| Power Capacity | 10 kW / 10000 VA |

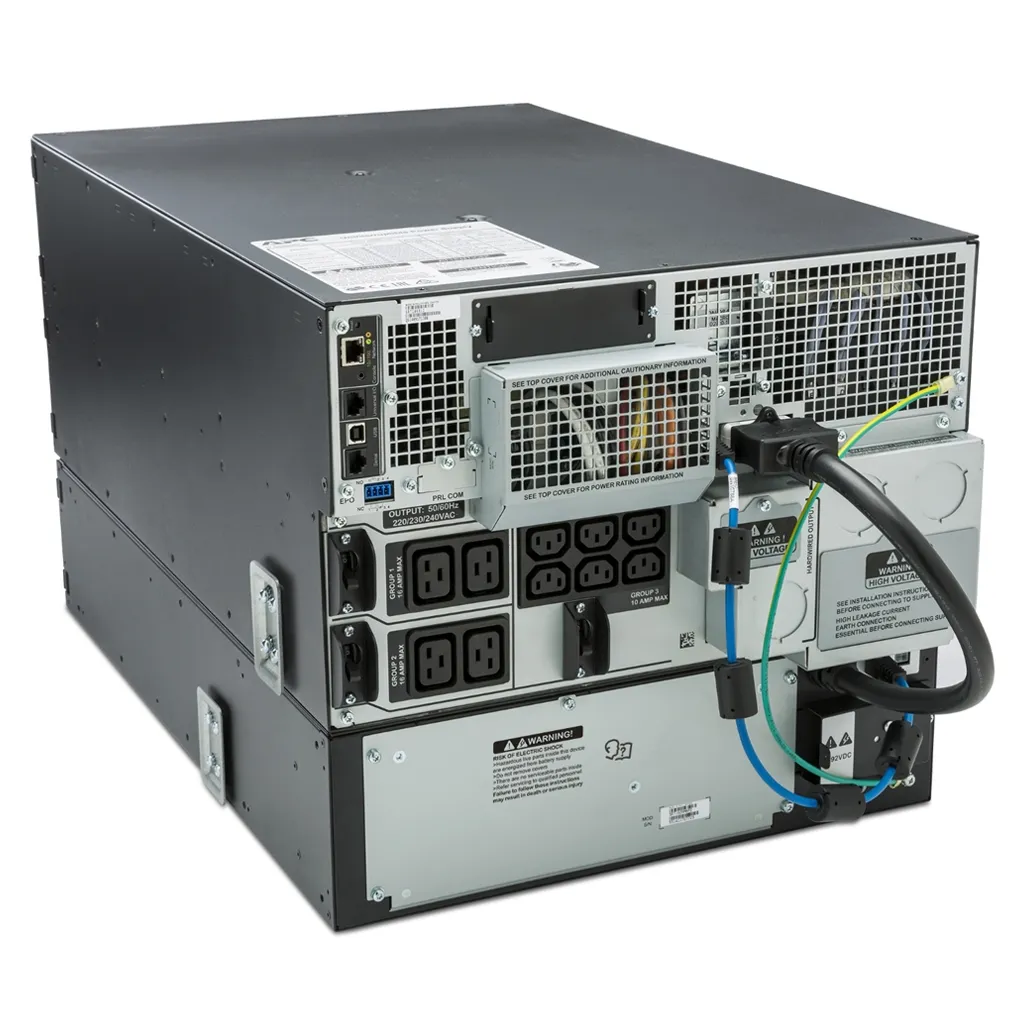

| Input Connectors | Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G) |

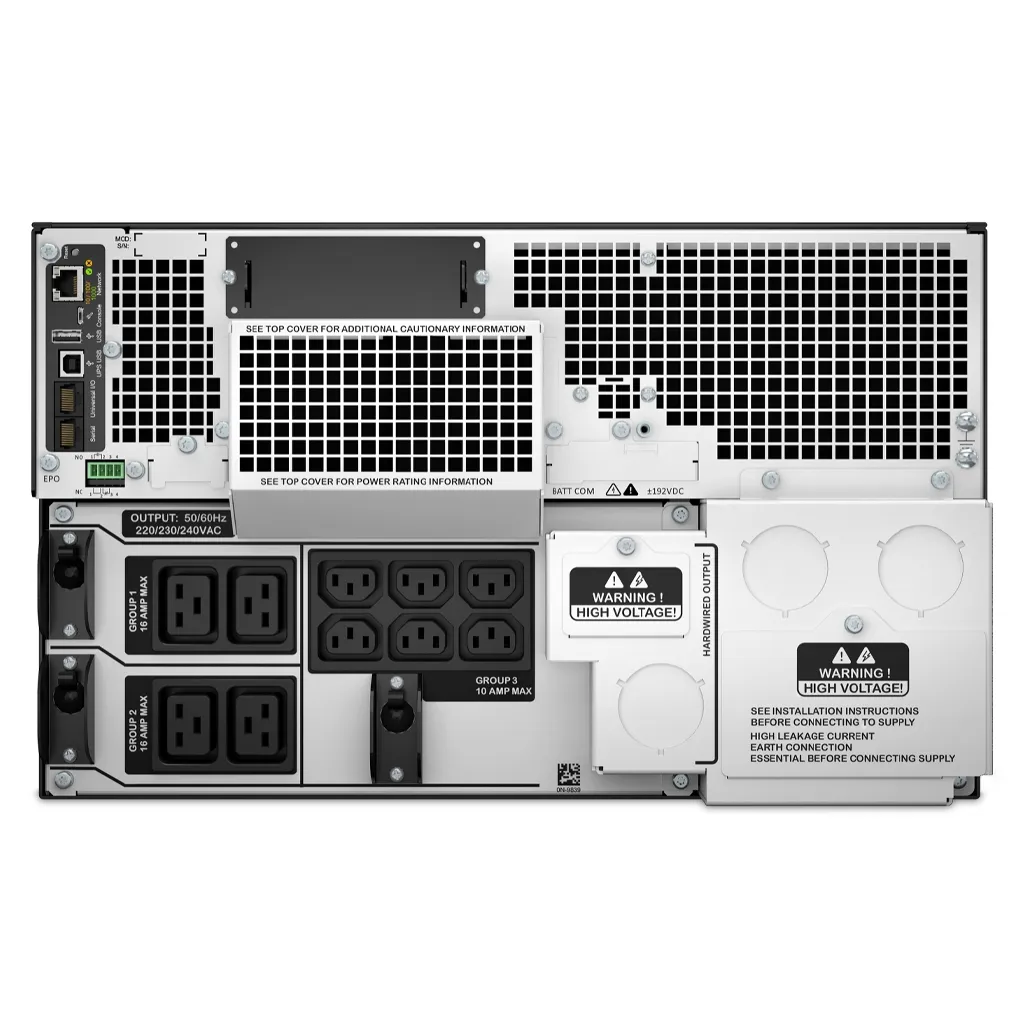

| Output connectors | 6 x power IEC 60320 C13 4 x power IEC 60320 C19 1 x hardwire 3-wire (HN + G) 3 x IEC connector |
| Battery | Lead Acid |
| Run Time (Up To) | 3.8 min at full load |
| Networking | Ethernet 10/100, USB |
| Colour | Black |
| Dimensions (WxDxH) | 43.2 cm x 71.5 cm x 26.3 cm |
| Manufacturer Warranty | 3-year warranty |
| Designed For | P/N: ACDC2513, AR2401, AR2487G, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3300G, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3350SP, AR3350W, AR3355SP, AR3355W, AR3357SP, NBWL0356A |
