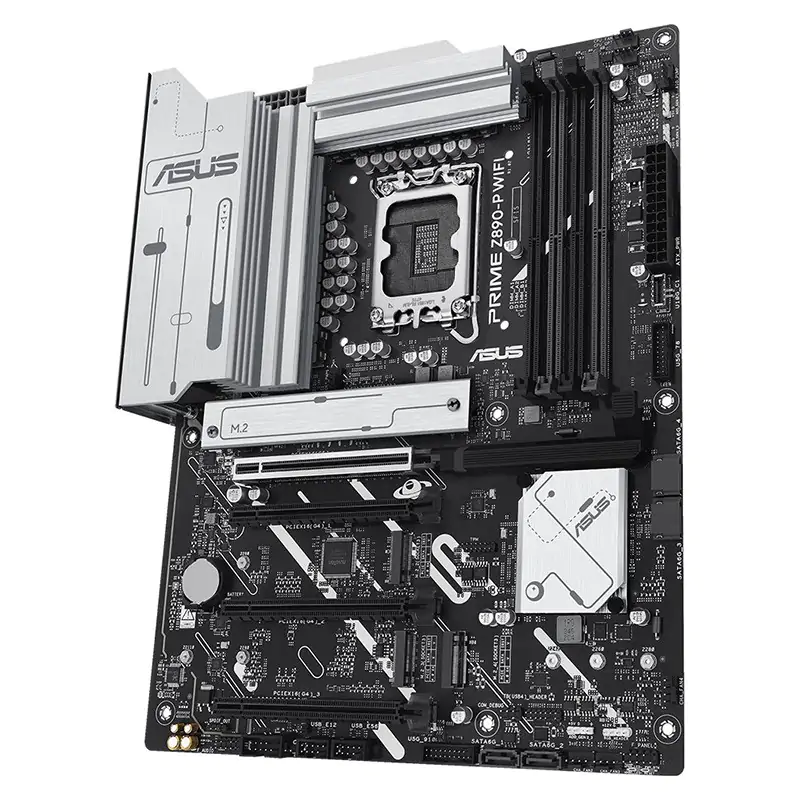

Asus Prime Z890-P WIFI-CSM LGA 1851 ATX Motherboard (PRIME Z890-P WIFI-CSM)

Support up to 7600+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*

Dual channel memory architecture

DIMM Fit

Supports Intel® Extreme Memory Profile (XMP) memory module

ASUS Enhanced Memory Profile III(AEMPIII)

*

** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

1 x HDMITM port***

1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs****

* Graphics specifications may vary between CPU types.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

**** In ThunderboltTM4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.

**** In DP alt mode, supports up to UHBR20.

***** VGA resolution support depends on processors’ or graphic cards’ resolution.

****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

1 x PCIe 5.0 x16 slot

Intel® Z890 Chipset

2 x PCIe 4.0 x16 slots (support x4 mode)

1 x PCIe 4.0 x16 slot (supports x1 mode)

– To ensure compatibility of the device installed, please refer to   https://www.asus.com/support/download-center/ for the list of supported peripherals.

Intel® Core™ Ultra Processors (Series 2)*

M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel® Z890 Chipset

M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

ASUS LANGuard

2×2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth® v5.4***

*Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will   require  24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor’s website for details.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

1 x Thunderbolt™ 4 port (1 x USB Type-C®)

1 x USB 10Gbps port (1 x Type-A)

2 x USB 5Gbps ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)**

Front USB (Total 9 ports)

1 x USB 10Gbps connector (supports USB Type-C®)

2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports**

* USB Type-C® power delivery output: max. 5V/3A

** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

** USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.

– Supports: Jack-detection,

Multi-streaming, Front Panel Jack-retasking

– Supports up to 24-Bit/192 kHz playback

Audio Features

– Audio Shielding

– Premium audio capacitors

– Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

1 x USB 10Gbps port (1 x Type-A)

2 x USB 5Gbps ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

1 x HDMITM port

1 x Wi-Fi module

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x BIOS FlashBack™ button

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connector

Storage related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 10Gbps connector (supports USB Type-C®)

2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (F_AUDIO)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin Front System Panel header

1 x Thunderbolt™ (USB4®) header

– DIGI+ VRM (- Digital power design with DrMOS)

– LANGuard

– Overvoltage Protection

– SafeSlot

– Stainless-Steel Back I/O

ASUS Q-Design

– M.2 Q-Latch

– PCIe Slot Q-Release

– Q-Antenna

– Q-Dashboard

– Q-DIMM

– Q-LED Core

– Q-Slot

ASUS Thermal Solution

– M.2 heatsink

– VRM heatsink design

ASUS EZ DIY

– BIOS FlashBack™ button

– BIOS FlashBack™ LED

– ProCool

– Pre-mounted I/O shield

Aura Sync

– Aura RGB header

– Addressable Gen2 headers

Armoury Crate

– Aura Creator

– Aura Sync

– Fan Xpert 4 (with AI Cooling II)

– Power Saving

ASUS DriverHub

ASUS GlideX

ASUS CPU-Z

TurboV Core

Norton 360 Deluxe (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash

– ASUS UEFI BIOS EZ Mode

– ASUS MyHotkey

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS WiFi Q-Antenna

1 x M.2 rubber package

2 x Screw packages for M.2 SSD

Documentation

1 x Quick start guide

12 inch x 9.6inch ( 30.5 cm x 24.4 cm )
