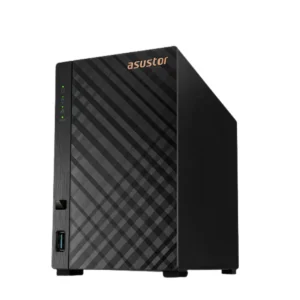

Asustor Drivestor 2 Gen2 AS1202T 2-Bay Diskless NAS Realtek RTD1619B 1GB DDR4

$356.40 'inc. GST'

ASUSTOR Drivestor 2 Gen2 2-Bay NAS with quadcore 1.7GHz CPU, 1GB DDR4, and 2.5GbE networking. Reliable home and small office storage solution, 3year warranty.

In stock

Vendor Code:
SKU: AS1202T Categories: , , Brand:
Supplier ID: DIC-AS1202T
Description

Asustor Drivestor 2 Gen2 AS1202T 2-Bay Diskless NAS Realtek RTD1619B 1GB DDR4

The ASUSTOR (Drivestor 2 Gen2) is a compact and energy-efficient 2-bay Network Attached Storage (NAS) device designed for home users and small offices. Powered by a Realtek RTD1619B quad-core 1.7 GHz processor and equipped with 1 GB DDR4 RAM, it delivers reliable performance for file sharing, backups, and multimedia streaming.

Key Features:

  • Equipped with Realtek RTD1619B 1.7GHz quad-core processor
  • Superfast 2.5-Gigabit Ethernet
  • 1 GB DDR4 RAM
  • Upgraded powerful internal display, smooth transcoding of 4K videos
  • Supports Wake on LAN and Wake on WAN
  • Tool-free installation

Specifications:

HARDWARE SPECIFICATION:

CPU

CPU Model Realtek RTD1619B
CPU Architecture ARM64 64-bit
CPU Frequency Quad-Core 1.7GHz

MEMORY

Memory 1GB DDR4
Memory Expandable up tonot expandable
Flash Memory 8GB eMMC

STORAGE

Drive Bays 2
Compatible Drive Type   3.5″ SATA HDD
Maximum Drive Bays with Expension Unit14

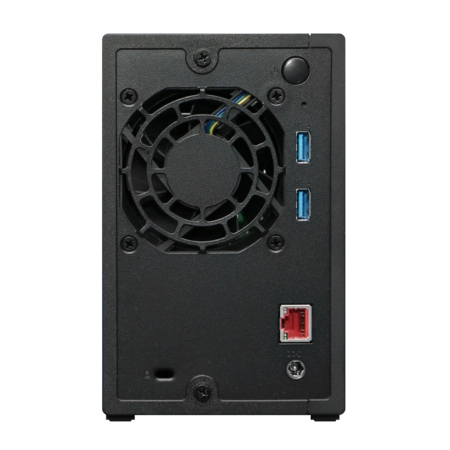

EXTERNAL PORT

Expansion  3 x USB 5Gbps Type-A
Network 1 x 2.5 Gigabit Ethernet (2.5G/1G/100M)
Multimedia Output  N/A

OTHERS

System Fan  1 x 70mm
Power Supply Unit / Adapter 65W x1
Input Power Voltage 100V to 240V AC
 Certification FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC

OPERATION

Power Consumption
  • 11.6W (Operation)
  • 5.97W (Disk Hibernation)
Noise Level 18.6dB (HDD idle)
 Operation Temperature  0°C~40°C (32°F~104°F)
Storage Temperature -20°C~70°C (-4°F~158°F)
Humidity 5% to 95% RH

SIZE AND WEIGHT

Size165(H) x 102(W) x 218(D) mm
Weight 1.14 kg / 2.5 lbs

SOFTWARE AND FEATURES:

GENERAL SPECIFICATIONS

Supported OS
  • Windows 10, 11, Server 2016, Server 2019, Server 2022
  • macOS
  • UNIX, Linux, and BSD
Supported Languages Deutsch, English, Français, Italiano, Nederlands, Русский, 日本語, 한글, 简体中文, 繁體中文, Česká, Polski, Svenska, Dansk, Norsk, Suomi, Português, Türkçe, Español, Magyar, ภาษาไทย
Supported Browsers
  • Firefox
  • Chrome
  • Safari
  • Microsoft Edge

NETWORK

Network Protocols CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Connection and transmission
  • TCP/IP (IPv4 & IPv6)
  • Jumbo Frame (MTU)
  • VLAN
  • EZ Connect
  • Wireless Network
  • DDNS and EZ-Router
  • Supports Wake-on-LAN (WOL)
  • Supports Wake-on-WAN (WOW)

FILE MANAGEMENT AND SHARING

File System
  • Internal Disk: EXT4 ,Btrfs
  • External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT
File Explorer
  • Web-based File Management
  • ISO File Mounting
  • Share Links
  • Task Monitor
  • Browse Files on Local PC
  • Thumbnail Previews
  • Data Access via External Optical Drive
  • Supports video playback
Network Recycle Bin
  • Share folder-based
  • Maintains original directory structure and file permission
  • On-click restore
  • Supports scheduled emptying

Filtering rules

  1. File size
  2. File extension

Deletion Settings

  1. File size
  2. File date

STORAGE MANAGEMENT

Supported RAID levels
  • Single
  • JBOD
  • RAID 0
  • RAID 1
Supported RAID migration methods
  • Single to RAID 1

VOLUME

RAID levels supporting storage expansion by complete drive replacement
  • RAID 1
RAID levels supporting storage expansion by drive addition       –
RAID spare drive support       –
iSCSI/IP-SAN
  • Maximum Targets: 256
  • Maximum LUNs: 265
  • Maximum Snapshot Versions of a Single LUN: 256
  • Target Masking
  • LUN Mapping
  • ISO File Mounting
  • Supports MPIO
  • Persistent (SCSI-3) Reservations
Disk Management
  • Scheduled Bad Block Scans
  • Scheduled S.M.A.R.T Scans

ACCESS AND SECURITY

Access Control
  • Maximum Number of Users: 4096
  • Maximum Number of Groups: 512
  • Maximum Number of Shared Folders: 512
  • Maximum Number of Concurrent Connections: 512
  • Supports Windows Active Directory
  • Supports Windows Active Directory / LDAP
ACL
  • Provides both Windows ACL and Linux ACL permission configuration methods
  • Can enable Windows ACL for specific shared folders
  • Comprehensive support for Windows’ 13 types of advanced permission settings
  • Can view Windows ACL permission settings from within ADM
  • Supports local users and groups
  • Exclusive permission reset function allows users to quickly restore default permissions
System Administration
  • Log Type: System Log, Connection Log, File Access Log
  • Real-time Online User Monitor
  • Real-time System Monitor
  • User Quota
  • Virtual Drive (ISO Mounting, Maximum 16)
  • UPS Support
Security
  • AES 256-Bit Encryption
  • Firewall: Prevent Unauthorized Access
  • Alert Notifications: E-mail, SMS
  • Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
  • Built-in Hardware Encryption Engine
Network Defender
  • Auto black list
  • Trusted list
  • Black/White list
  • Supports IP/IP range/geolocation

BACKUP

Backup Solutions
  • Rsync (Remote Sync) Backup
  • Cloud Backup
  • FTP Backup
  • External Backup
  • EZ Sync
  • SMB Backup
Snapshots
  • Btrfs Snapshots
  • 256 Snapshots
  • iSCSI LUNs

OTHERS

ASUSTOR Hightlight
  • System Migration
  • EZ Connect
  • Dr. ASUSTOR
  • 2-way Backup
  • Task Monitor
Eco-Friendly Design
  • Auto-Standby for Both Internal and External Disks
  • Auto Fan Control
  • LED Night Mode
  • Power Schedule: On, Off, Restart
Energy Control Configurable Disk Hibernation Wait Time
Additional information
Brand

Hard Drive Type

2-BAY NAS

Memory Size

1GB

Memory Type

DDR4

Warranty

3 Years
