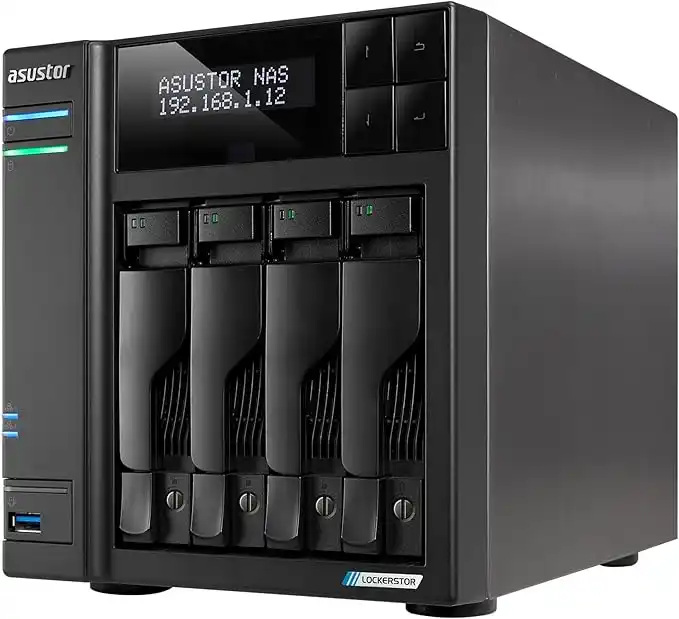

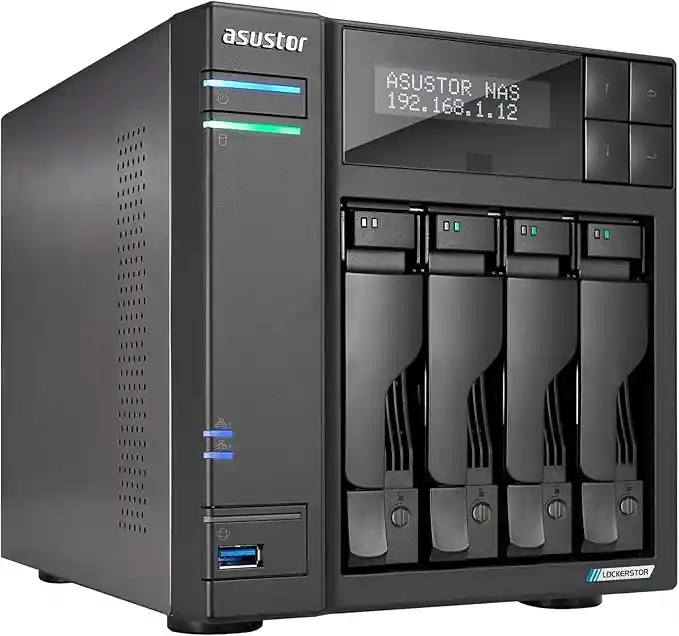

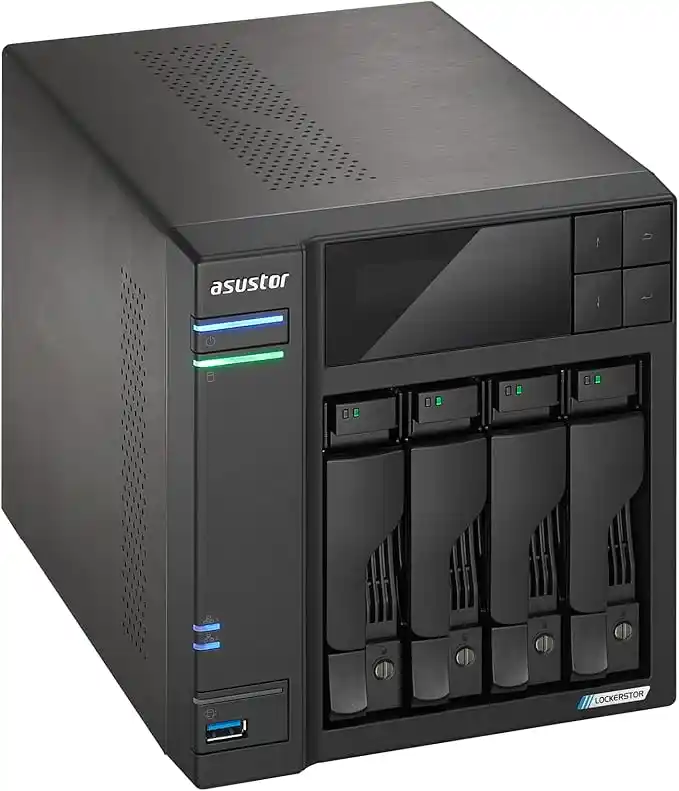

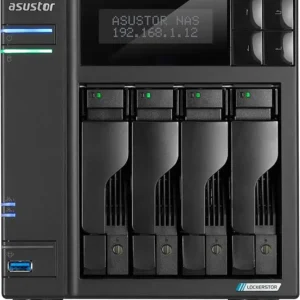

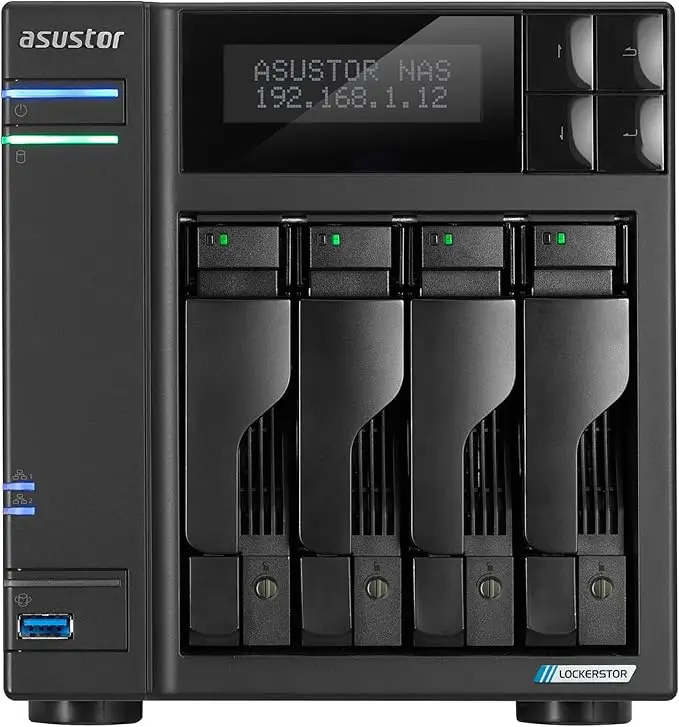

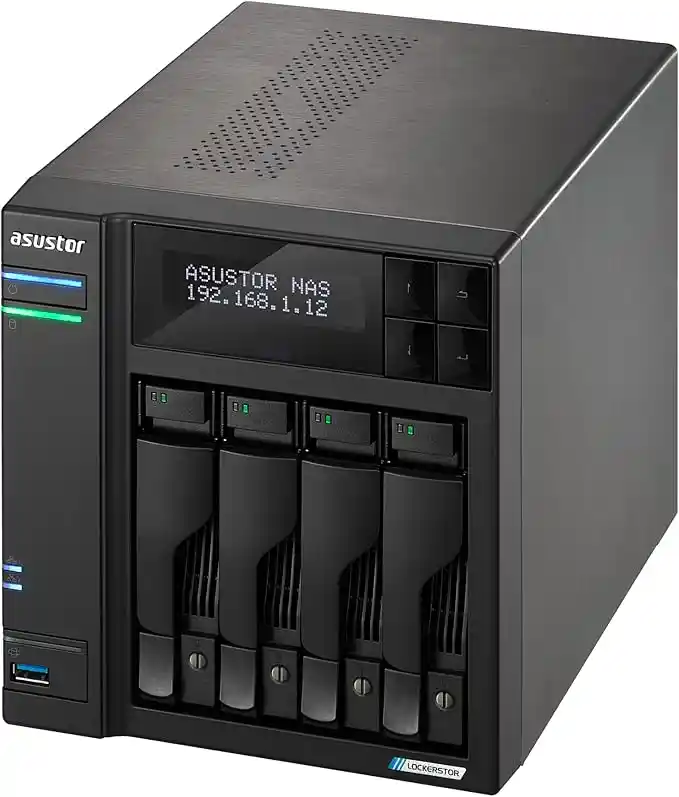

Asustor Lockerstor 4 Gen2+4-Bay Diskless NAS Intel Celeron N5105 4GB DDR4-AS6704T v2

Asustor Lockerstor 4 Gen2+4-Bay Diskless NAS Intel Celeron N5105 4GB DDR4

The ASUSTOR Lockerstor 4 Gen2+ is a high-performance 4-bay Network Attached Storage (NAS) designed for demanding home, creative professional, and small business environments. Powered by a quad-core Intel Celeron N5105 processor running at 2.0 GHz (up to 2.90 GHz) with 4 GB DDR4 RAM (expandable up to 16 GB), this NAS delivers fast, responsive performance for file storage, backups, media streaming, and collaborative workflows.

Key Features:

• Quad-Core 10 nm Intel Celeron N5105 CPUHelvetica
• Dual 5-Gigabit Ethernet ports
• 4x M.2 slots for NVMe SSDs
• 4 GB of DDR4-2933 RAM
• 2x USB 10Gbps
• Supports Wake on LAN and Wake on WAN

Four M.2 Slots – Have Your Cake and Eat it Too:

The Lockerstor Gen2+ series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs. Four M.2 SSD slots bring a number of custom scenarios to your NAS when it comes to accelerating your storage.

Keeping Cool:

With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2/Gen2+ ensures that all components in your NAS receive cooling..

Tool-Free M.2 SSD Installation:

Uses latches instead of screws for easier installation.

10-Gigabit Performance for 5-Gigabit Pricing:

The Lockerstor Gen2+ series comes equipped with dual 5-Gigabit Ethernet ports, effectively doubling your available bandwidth. With twice the speed using SMB Multichannel, the Lockerstor Gen2+ is the perfect NAS for creative studios and collaborative environments. Whether you’re editing 4K video, transferring large files, or supporting multiple users accessing data at the same time, dual 5GbE handles it all effortlessly, boosting both your digital lifestyle and professional productivity.

Also Supports 10-Gigabit Ethernet:

The PCIe slot in the Lockerstor Gen2+ series is no longer proprietary and now accepts 10-Gigabit Ethernet cards for maximum flexibility.

PCIe 3.0 – Doubled SSD Performance:

PCIe 3.0 is supported by the Lockerstor Gen2+ series of NAS devices which almost double the performance of M.2 SSDs installed in your NAS, ensuring a smoother SSD experience.

USB Ports for Versatility and Expansion:

Every Lockerstor Gen2+ model is equipped with two USB 10Gbps ports and one USB 2.0 port for low-speed devices like printers or UPS devices. With USB 10Gbps ports, data transfer speeds are twice as fast as USB 5Gbps ports. For example, transferring a 1 TB file now takes only 14 minutes, compared to the 29 minutes it would’ve taken before. This makes content creators using high-speed flash drives or external hard drives will find it easier and more efficient to make backups and transfer files to client devices or take projects on the go when they use the Lockerstor Gen2+. A USB 2.0 port has been added to allow for the connection of UPS devices, printers, audio output devices, as well as a keyboard or mouse without occupying the USB 10Gbps ports best used for high speed devices.

Removing your Storage Constraints:

Edit videos directly on your NAS with Adobe Premiere or Final Cut Pro. Both applications, as well as the full suite of Adobe software are supported on an ASUSTOR NAS ensuring that the SSD on your laptop is no longer a constraint.

Adobe and ASUSTOR – A Winning Combination:

Local Adobe Creative Cloud folders can be synchronized and backed up to and from your NAS. Take advantage of snapshots to increase protection of your data.

Creativity Knows no Bounds:

Your ASUSTOR NAS can work as a hybrid cloud that enables data accessibility both locally and through public cloud providers, ensuring easy collaboration regardless of location.

The Ultimate Live Streaming Tool:

ASUSTOR Live Your own streaming and backup center for YouTube and Twitch

Comprehensive Backup and Virtualization Solution:

• MyArchive cold storage backups
• Snapshot Center, Cloud Backup Center, DataSync Center
• Complete iSCSI/IP-SAN and NFS support
• VMware, Citrix and Hyper-V ready
• Supports Virtualization and Docker apps

More Efficient than Ever Before:

Easily Transcode 10-bit 4K H.265 media with hardware decoding with unbelievably smooth video playback in LooksGood for the ultimate in 4K enjoyment.

24/7 Reliability and Durability:

All ASUSTOR NAS are designed for and are suitable for 24/7 use. ASUSTOR NAS devices have also undergone rigorous tests, such as drop tests and burn tests to test durability in extreme conditions. Heatsinks were added to sensitive components to dissipate heat, helping to maintain the longevity of the device.

Protected From Ransomware:

The Lockerstor comes with the most up-to-date version of ADM to help protect against ransomware attacks. With Snapshot Center and Btrfs providing efficient snapshots to easily restore lost data. Other security features found on the Lockerstor are the ability to create one or more replacement administrator accounts, a firewall by ADM Defender that features black and white lists and the ability to change default ports, disable SSH and Terminal to prevent remote attacks. MyArchive cold storage hard drive security can also be increased by implementing AES 256bit encryption.

Protected From the Inside and Out:

Protect your data from loss, damage and attacks with the ASUSTOR NAS. An ASUSTOR NAS is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus, MyArchive and ADM’s various backup tools help protect ransomware even better.

Snapshot Center:

Snapshot Center is a new feature for ASUSTOR NAS devices to utilize Btrfs and iSCSI volumes to take snapshots of the information inside a NAS. Snapshot Center supports up to 256 snapshots of a volume and can be done every five minutes, creating a backup that can be restored easily if data is damaged or lost.
MyArchive now supports Btrfs and snapshots. Btrfs for MyArchive supports snapshots and version history to help protect against accidental deletions or modifications.

DataSync Center:

DataSync Center combines multiple cloud services into a single app. DataSync Center includes, but is not limited to Google Drive, Dropbox, OneDrive and Yandex and supports multitasking as well as multiple accounts. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.

Cloud Backup Center:

Cloud Backup Center brings support for various business cloud services including, but not limited to Amazon S3, Backblaze B2, Baidu Cloud, IBM Cloud, Rackspace Cloud Files, Microsoft Azure Blob Storage , Alibaba Cloud, SFTP and WebDAV. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.

Create the Ultimate Home Multimedia Center:

Enjoy electrifying digital entertainment on demand with ASUSTOR NAS. Through ASUSTOR’s App Central, you can install additional multimedia server Apps such as UPnP Media Server and OwnTone giving your NAS the ability to stream multimedia content to your computers, TVs and mobile devices.

Photo Gallery 3 + AiFoto 3:

The all new Photo Gallery 3 and AiFoto 3 have been revamped and brings a variety of new features to make photo organization easier than ever. New features for Photo Gallery 3 include, but not are limited to custom folder selection, timelines, smart albums, deduplication, and new photo modes. Easily blow up photos to up to twice their size, play songs on slideshows, performance enhancements and customized share links make for an even better photo viewing and sharing experience.

Portainer – Easy Docker Deployments:

Even more possibilities for ADM with Portainer for Docker images. With thousands of images, Portainer can download and deploy more types of programs than ever before. Portainer is incredibly user friendly and employs a graphical interface to make docker images easier to deploy than ever.

Virtual Applications with Linux Center:

ASUSTOR NAS users can now run the native Linux® system on their NAS, enjoying the rich variety of Linux® apps. Linux Center features easy installation without extra configurations. It effectively turns the NAS into a computer with unlimited possibilities.

File Editing and Project Collaboration:

Nextcloud and OnlyOffice make collaborating on projects easier than ever by creating a cloud office suite for offices to work on documents, spreadsheets, presentations and more.

Dr. ASUSTOR:

ASUSTOR provides a holistic solution for protecting your data against a variety of threats using Dr. ASUSTOR. Dr. ASUSTOR helps protect your data from a variety of threats, including, but not limited to ransomware attacks.

Mobile Apps:

ASUSTOR’s exclusive EZ-Connect technology allows you to connect to your NAS from anywhere with your Android or iOS device to securely access, download, upload and share files and information. ASUSTOR mobile apps securely protect your privacy and data by requiring passwords in order to protect your privacy and data. You can also make use of HTTPS connections for even more added security.

Comprehensive Surveillance System:

An ASUSTOR NAS provides optimal reliability for home and small business users looking to set up a surveillance system. Four free camera channels are offered, making it an extremely cost-effective surveillance solution for those looking to protect their home or small business. ASUSTOR provides each NAS with the capability to expand to more cameras for those with bigger demands. Up to 44 camera channels can be purchased through camera licenses. After installing Surveillance Center and its corresponding mobile app AiSecure, stream live surveillance feeds to virtually any internet-connected Android or iOS smartphone to keep an eye on your most valued assets from anywhere, inside or outside.

Specifications:
