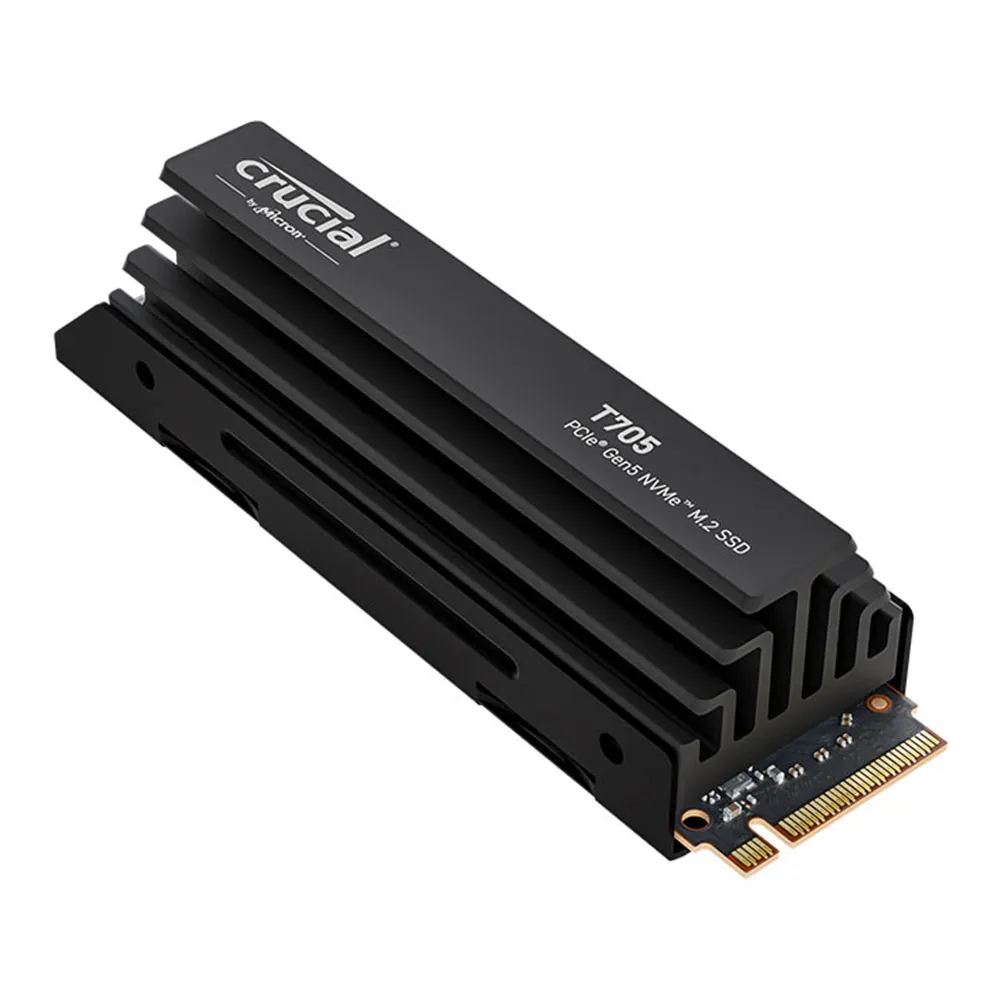

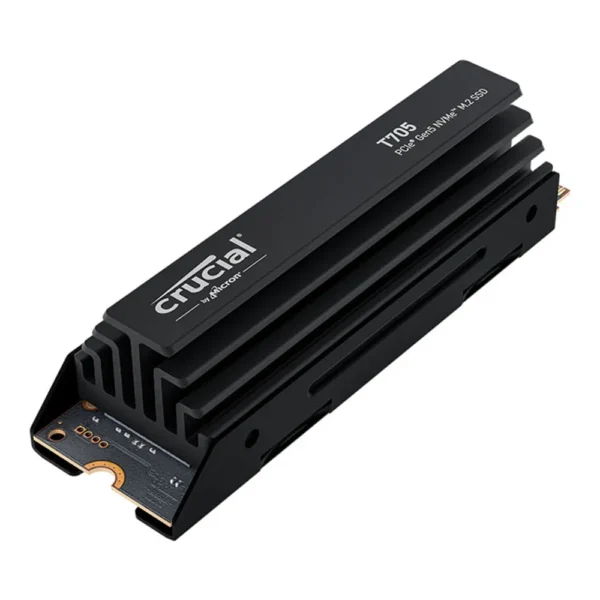

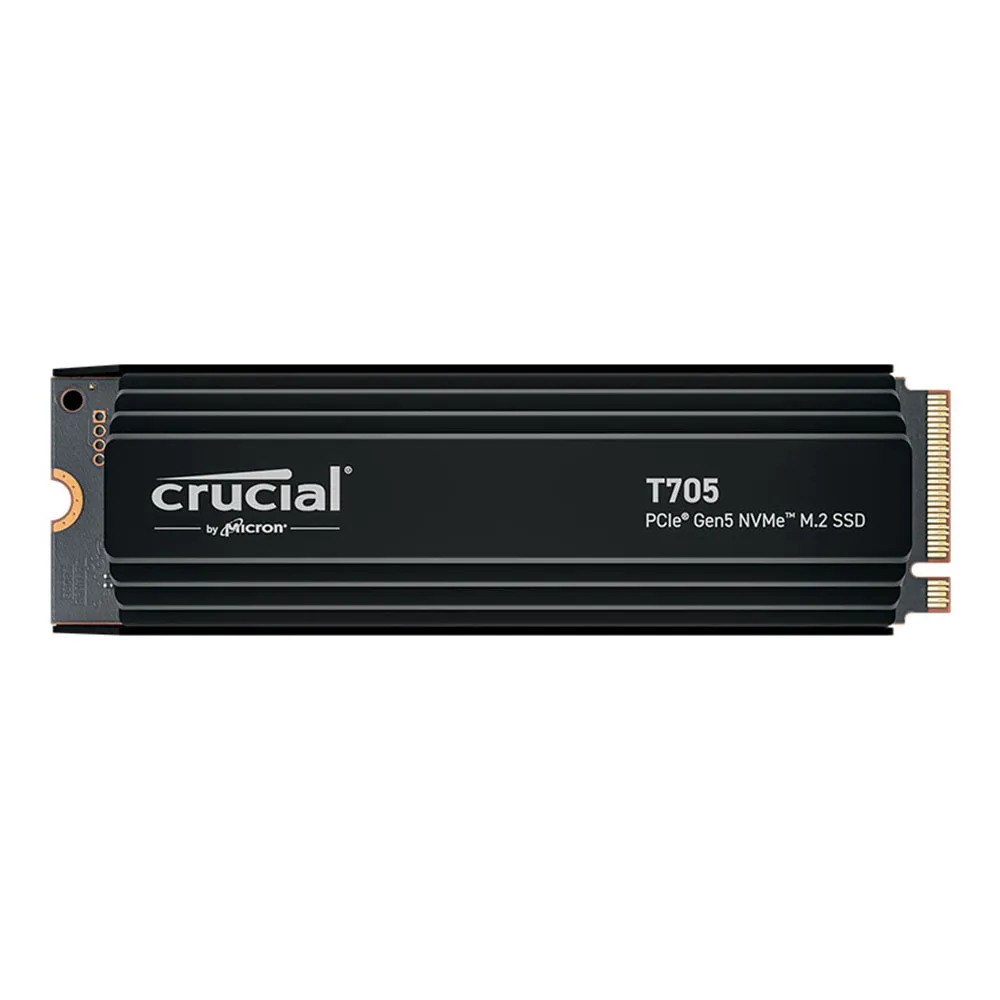

CRUCIAL T705 1TB + HEATSINK, M.2 INTERNAL NVMe PCIe5 NVMe SSD, 13600R/10200W MB/s, 5YR WTY

CRUCIAL T705 1TB + HEATSINK, M.2 INTERNAL NVMe PCIe5 NVMe SSD, 13600R/10200W MB/s, 5YR WTY

The Crucial T705 1 TB (CT1000T705SSD5) is a high-speed NVMe SSD that brings Gen 5 performance to your system, with an integrated premium aluminum + copper heatsink for efficient thermal management. According to Crucial, it supports PCIe 5.0 ×4 and delivers sequential read speeds up to 13,600 MB/s and write speeds up to 10,200 MB/s.

It is built using Micron’s 232-layer 3D TLC NAND, delivering strong endurance and performance.  The endurance rating is 600 TBW, per Crucial’s datasheet.

The heatsink helps maintain stable performance under load by dissipating heat effectively.The drive uses the Phison PS5026-E26 controller (common for T705 series) to deliver high random IOPS — about 1,400,000 IOPS read and 1,750,000 IOPS write.

It supports DirectStorage, making it ideal for gaming workloads by improving texture loading and reducing CPU usage.  The drive is also backward compatible with PCIe Gen 4 and Gen 3, so it can be used even on older motherboards.

Finally, Crucial backs it with a 5-year limited warranty.

Key Features & Explanations

• Gen-5 Performance: Up to 13,600 MB/s read and 10,200 MB/s write via PCIe 5.0 ×4.

• High IOPS: ~1,400K read / ~1,750K write for strong random performance.

• High Endurance: 600 TBW, suitable for heavy usage.

• Efficient Cooling: Built-in aluminum + copper heatsink for heat dissipation.

• Quality NAND: Uses 232-layer 3D TLC NAND from Micron.

• Backward Compatible: Works on PCIe 3.0 / 4.0 systems too.

• DirectStorage Ready: Optimized for gaming with Microsoft DirectStorage

• Warranty: 5-year limited warranty from Crucial.

Technical Specification
