CRUCIAL T705 1TB, M.2 INTERNAL NVMe PCIe5 NVMe SSD, 13600R/10200W MB/s, 5YR WTY

CRUCIAL T705 1TB, M.2 INTERNAL NVMe PCIe5 NVMe SSD, 13600R/10200W MB/s, 5YR WTY

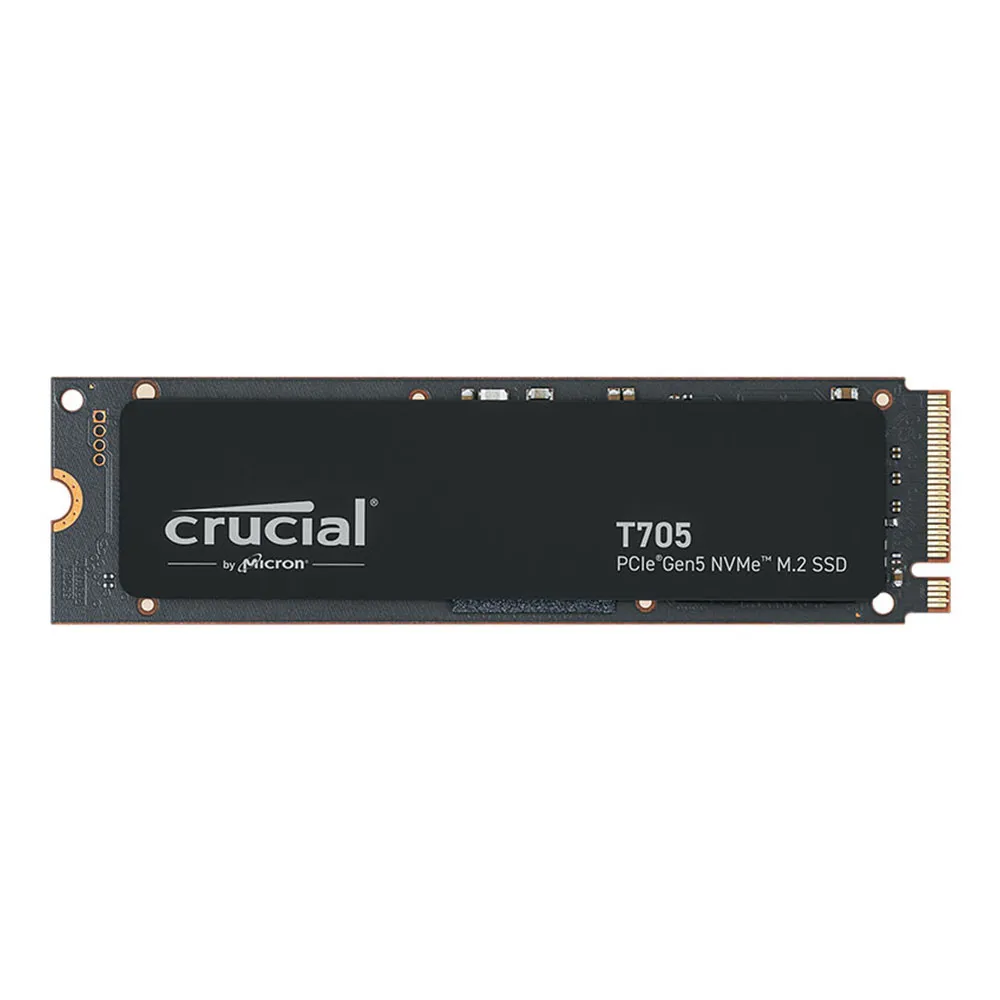

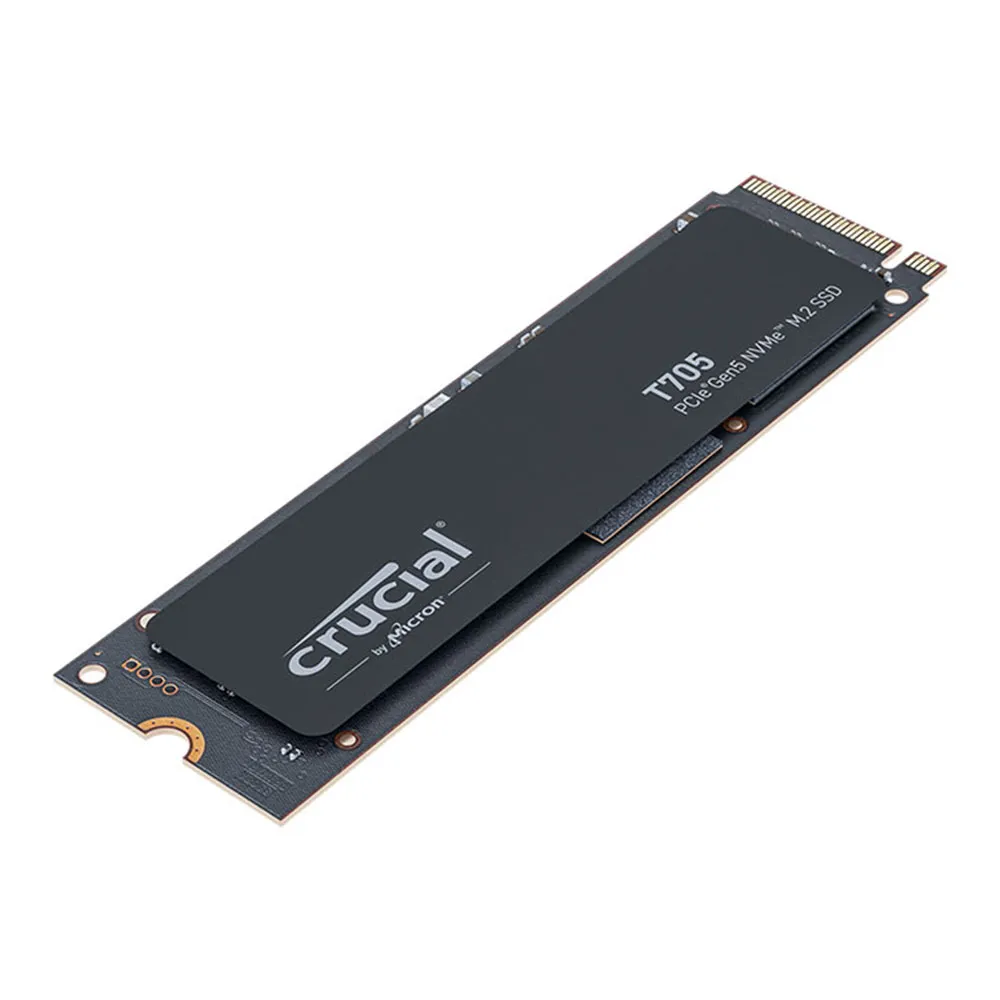

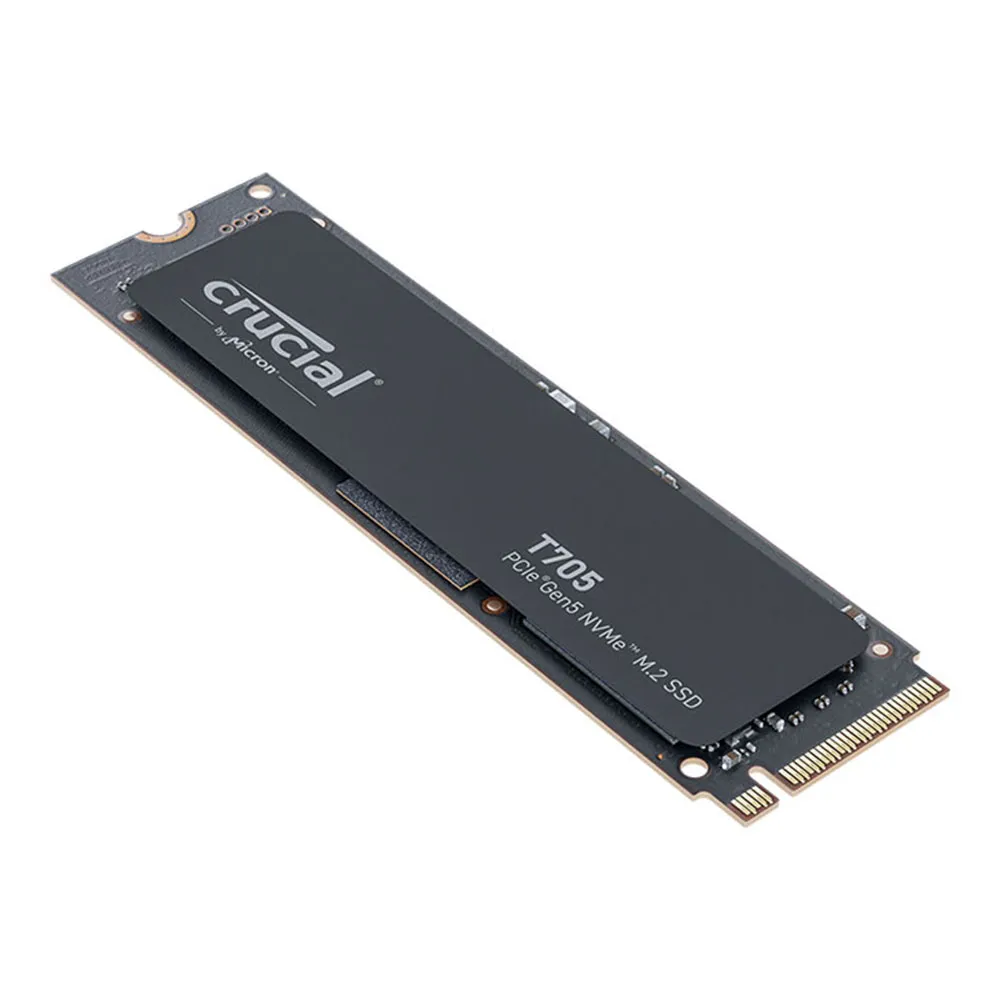

The Crucial T705 Gen5 1 TB SSD (CT1000T705SSD3) is a top-tier, high-performance NVMe drive built for next-generation storage. It uses PCIe 5.0 ×4 with NVMe to hit sequential read speeds up to 13,600 MB/s and write speeds of 10,200 MB/s, according to Crucial.

Powered by Micron’s 232-layer 3D TLC NAND, this drive packs very high random I/O performance — up to 1,400,000 IOPS for reads and 1,750,000 IOPS for writes. The endurance rating is 600 TBW, making it durable for heavy workloads

This model is the non-heatsink version, with a compact M.2 2280 (22 × 80 mm) form factor suitable for systems that provide their own cooling.  Despite being designed for Gen5, it’s also backward compatible with PCIe 3.0 and 4.0 motherboards.

Crucial supports the T705 series with a 5-year limited warranty, and the SSD is fully supported by Crucial’s Storage Executive software for monitoring, firmware, and optimizations.

Key Features

• Next-Generation Gen5 Performance
  Sequential read up to 13,600 MB/s / write up to 10,200 MB/s.

• High Random I/O
  Up to ~1.4 M IOPS (read) and ~1.75 M IOPS (write) for snappy responsiveness.

• High Endurance
  Rated at 600 TBW, suitable for sustained, high-intensity tasks.

• Premium NAND
  Uses Micron 232-layer TLC NAND, balancing performance and longevity.

• Backward Compatibility
  Works with PCIe Gen 3 and 4 systems even though it’s a Gen5 drive.

• Compact Design
  M.2 2280 (single-sided, no heatsink) — ideal for systems where space or cooling is constrained.

• 5-Year Warranty
  Covered by a 5-year limited warranty from Crucial.

• Software Support
  Compatible with Crucial Storage Executive for monitoring, firmware updates, and optimizations.

Technical Specification
