Name: Gigabyte A620I AX AM5 mini-ITX Motherboard (A620I AX)
Brand: Gigabyte
SKU: A620I AX
Availability: InStock

Gigabyte A620I AX AM5 mini-ITX Motherboard (A620I AX)

'inc. GST'

Mini‑ITX AMD AM5 Motherboard with A620 chipset, supports Ryzen 7000/8000/9000, DDR5‑6400 (OC) dual‑channel, integrated Radeon graphics (DP 4K@144 Hz, HDMI 4K@60 Hz), Wi‑Fi 6E, 2.5 Gb LAN, USB‑C, USB 3.2 Gen2, PCIe x16, M.2 & SATA.

In stock

Vendor Code:

SKU: A620I AX Categories: Computer Peripherals, Motherboards, PC Components

Supplier ID: LEA-A620I AX

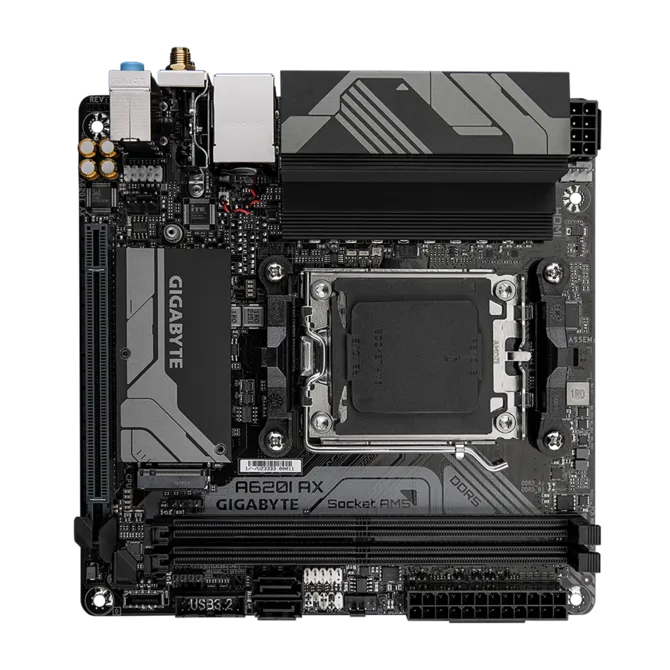

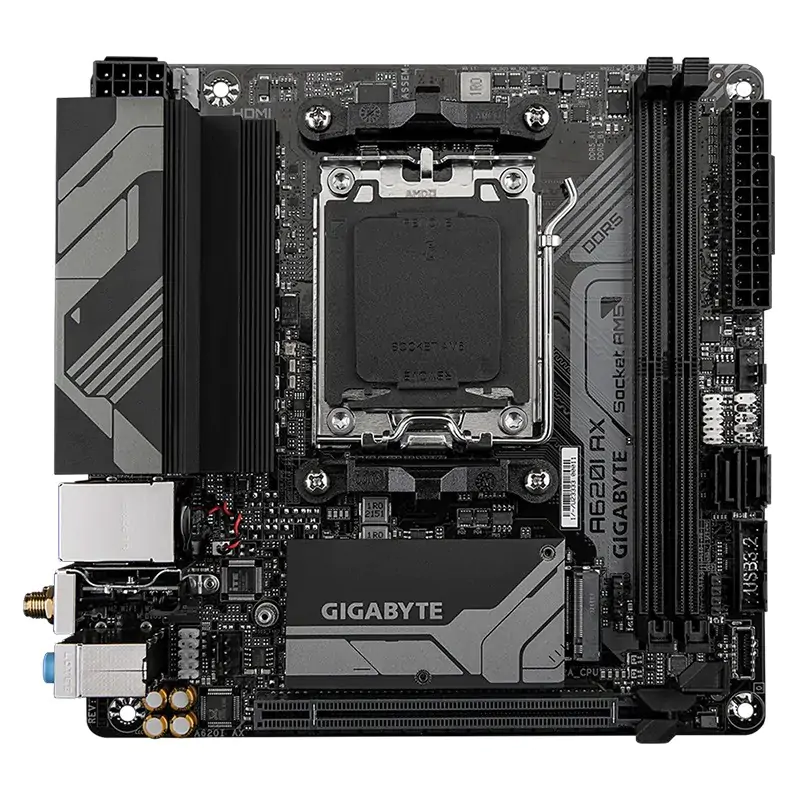

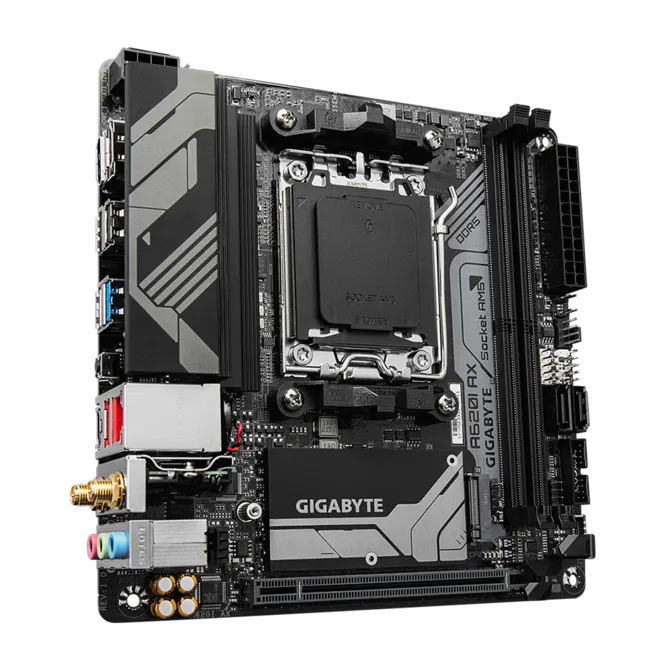

Gigabyte A620I AX AM5 mini-ITX Motherboard

Discover the Gigabyte A620I-AX DDR5 AM5 Mini-ITX Motherboard featuring AMD Socket AM5, ideal for high-performance setups. Supports Dual Channel DDR5 and includes PCIe 4.0 x4 M.2 Connector for rapid data transfer. Experience enhanced connectivity with Wi-Fi 6E 802.11ax and 2.5GbE LAN. Offering DP & HDMI ports for versatile display options and equipped with Smart Fan 6 for optimal cooling. Fast dispatch and delivery from local stock ensures quick setup.

SPECIFICATIONS:

CPU	AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Please refer “CPU Support List” for more information.)
Chipset	AMD A620
Memory	Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 1.4 version. – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Realtek® Wi-Fi 6E RTL8852CE – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.)
Expansion Slots	1 x PCI Express x16 slot, integrated in the CPU: – AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Storage Interface	1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key type 2280 SSDs: – AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs – AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x SATA 6Gb/s connectors RAID 0 and RAID 1 support for NVMe SSD storage devices RAID 0 and RAID 1 support for SATA storage devices
USB	CPU: – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel – 1 x USB 2.0/1.1 port on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Clear CMOS jumper 1 x chassis intrusion header

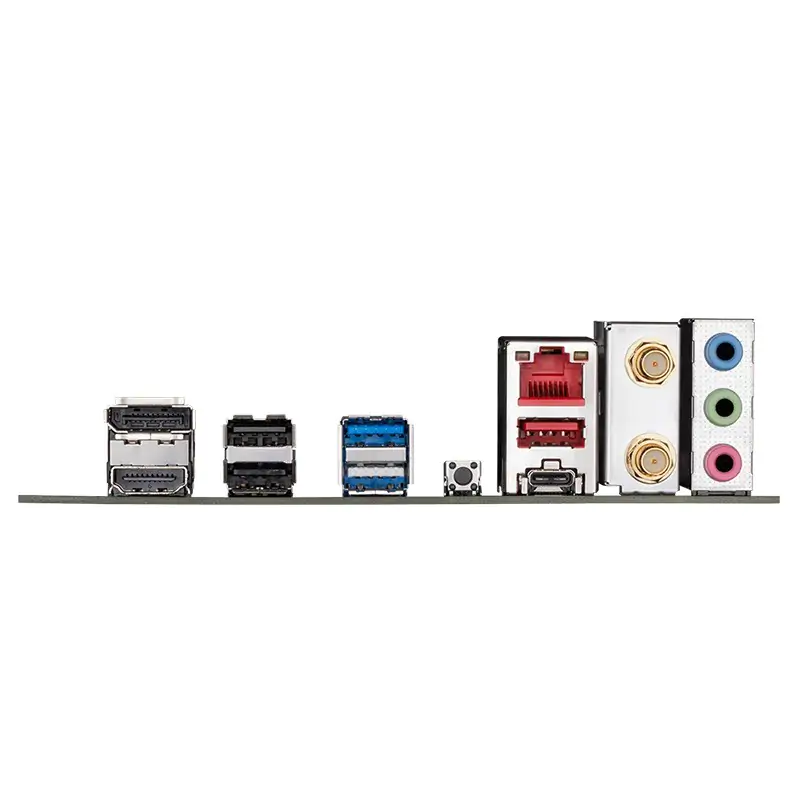

Back Panel Connectors	1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB 3.2 Gen 1 port 3 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm
