Gigabyte B650E AORUS STEALTH ICE AMD AM5 ATX Motherboard 4x DDR5~256GB,1x PCIe x16, 3x M.2, 4x SATA 6, 8x USB 3.2, 1x USB-C, 4x USB 2.0
Original price was: $678.00.$544.00Current price is: $544.00. 'inc. GST'
Gigabyte B650E A STEALTH ICE 1.0 ATX motherboard with AMD AM5 support, DDR5, PCIe 5.0, Wi‑Fi 7, 2.5Gb LAN, triple M.2 storage, and white stealth design for powerful gaming and performance builds.
In stock
Vendor Code:
Description
Gigabyte B650E AORUS STEALTH ICE AMD AM5 ATX Motherboard 4x DDR5~256GB,1x PCIe x16, 3x M.2, 4x SATA 6, 8x USB 3.2, 1x USB-C, 4x USB 2.0

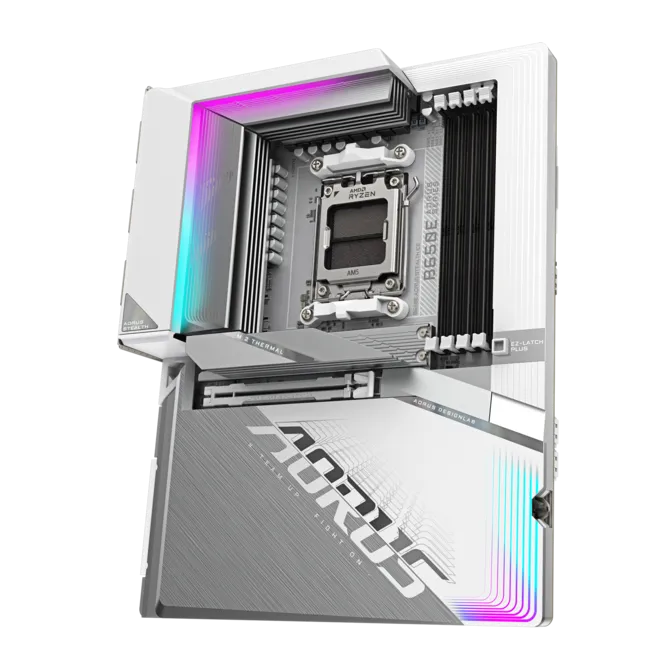

The B650E A STEALTH ICE 1.0 (also known as B650E AORUS STEALTH ICE) is a premium ATX AM5 motherboard from GIGABYTE designed for high‑performance AMD Ryzen systems. It supports the latest Ryzen 9000, 8000, and 7000 series processors, powerful DDR5 memory, next‑gen PCIe 5.0 graphics and storage, and advanced networking with Wi‑Fi 7.
Key Features:
- AMD Socket AM5：Supports AMD Ryzen™ 9000/8000/ 7000 Series Processors
- Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
- PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- M.2 EZ-Match: Magnetic alignment for easy installation of large heat sinks
- EZ-Latch Click：M.2 heatsinks with screwless design
- EZ-Latch Plus：M.2 slots with Quick Release & Screwless Design
- Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
- UC BIOS：User-Centred intuitive UX with Quick Access function

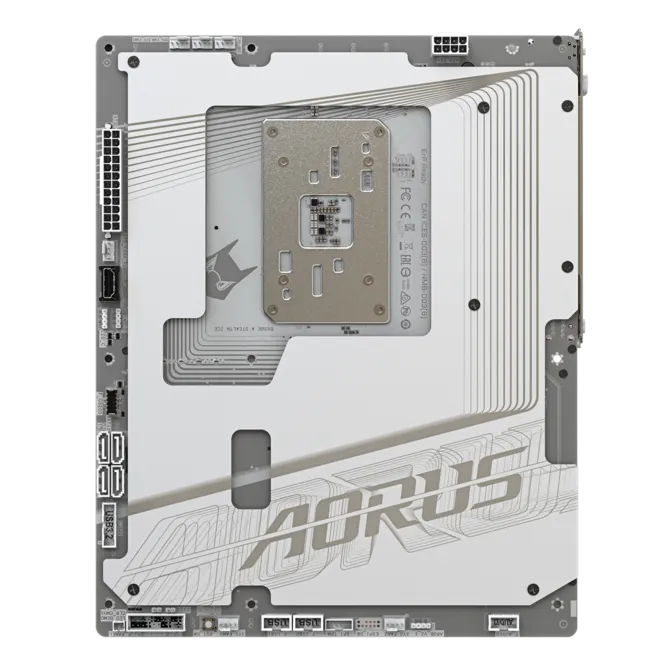

- Back Plate : With an iron base plate providing enhanced stability and support, this design not only boasts an attractive appearance but also excels in functionality.
- Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard XL
- Fast Networking：2.5GbE LAN & Wi-Fi 7 with Ultra-high gain directional antenna
- Extended Connectivity：HDMI, Onboard HDMI, USB-C with DP-Alt
- Reliable Audio：8-Ch HD Audio & Audiophile Grade Capacitors
Specification:
| Model | B650E A STEALTH ICE 1.0 |
| Form Factor | ATX, 30.5 cm × 24.4 cm |
| CPU Socket | AMD Socket AM5 |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD B650 |
| Memory Type | DDR5 |
| Memory Slots | 4 × DDR5 DIMM |
| Maximum Memory | Up to 256 GB (64 GB per DIMM) |
| Memory Speeds | 4800 / 5200 / 5600 / 6000 / 6200 / 6400 / 6600 / 6666 / 6800 / 7000 / 7200 / 7600 / 7800 / 8000 MT/s (OC) |
| Memory Architecture | Dual Channel, Non-ECC Un-buffered |
| Overclocking Support | AMD EXPO™, XMP |
| Integrated Graphics Outputs | 1 × USB Type-C® (DP 1.4, up to 3840×2160@144 Hz), 1 × HDMI 2.1 (4096×2160@60 Hz), 1 × Front HDMI 1.4 (1920×1080@30 Hz) |
| Audio | Realtek® HD Audio, 2/4/5.1/7.1-channel |
| LAN | Realtek® 2.5 GbE LAN |
| Wireless | MediaTek Wi-Fi 7 MT7925, Bluetooth 5.4, 2.4/5/6 GHz bands, 160 MHz support |
| Expansion Slots | 1 × PCIe x16 (PCIEX16, CPU integrated) – PCIe 5.0 x16 (Ryzen 9000/7000), PCIe 4.0 x8/x4 (Ryzen 8000 Phoenix) |
| M.2 Slots | M2A_CPU (PCIe 5.0/4.0 x4/x2), M2B_CPU (PCIe 4.0 x4/x2), M2C_SB (PCIe 4.0 x4/x2) |
| SATA Ports | 4 × SATA 6 Gb/s |
| RAID Support | RAID 0, 1, 10 (NVMe & SATA) |
| USB Rear I/O | 1 × USB Type-C® (up to 40 Gbps with Ryzen 8000, up to 10 Gbps Ryzen 9000/7000), 2 × USB 3.2 Gen2 Type-A, 5 × USB 3.2 Gen1, 4 × USB 2.0/1.1 |
| USB Internal Headers | 1 × USB Type-C® Gen2x2, 3 × USB 3.2 Gen1, 4 × USB 2.0/1.1 |
| Internal I/O Connectors | 1 × 24-pin ATX, 1 × 8-pin ATX 12V, 1 × CPU fan, 1 × CPU fan/water pump, 3 × system fan, 1 × system fan/water pump, 2 × ARGB Gen2 headers, 1 × RGB header, 3 × M.2 connectors, 4 × SATA 6 Gb/s, 1 × front panel, 1 × front panel audio, 1 × USB Type-C header, 1 × USB 3.2 Gen1 header, 2 × USB 2.0 headers, 1 × TPM header, 1 × HDMI port, 1 × reset button, 1 × reset jumper, 1 × Clear CMOS jumper |
| Back Panel Connectors | 1 × Q-Flash Plus, 2 × SMA antenna, 1 × HDMI, 1 × USB Type-C® (DP), 2 × USB 3.2 Gen2 Type-A, 5 × USB 3.2 Gen1, 4 × USB 2.0/1.1, 1 × RJ-45, 3 × audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water cooling flow rate, fan fail warning, fan speed control |
| BIOS | 1 × 256 Mbit flash, AMI UEFI BIOS |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management |
| Operating System | Windows 11 64-bit |
Additional information
| Brand | |
|---|---|
| PC Components Type |
Motherboard |
| Memory Size |
256 GB |
| Memory Type |
DDR5 |
| Operating System |
Windows 11 64-bit |
