Gigabyte B760M H DDR4Intel LGA 1700 m-ATX Motherboard, 2x DDR4 ~64GB, 1x PCI-E x16, 2x M.2, 4x SATA, 3x USB 3.2, 2x USB 2.0,
Original price was: $280.00.$182.00Current price is: $182.00. 'inc. GST'
GIGABYTE B760M H DDR4 Micro ATX motherboard with Intel B760 chipset, LGA1700 socket, dual DDR4 support up to 64 GB, PCIe 4.0 M.2 storage, Gigabit LAN, HDMI + D-Sub outputs — ideal for Intel 12th/13th/14th Gen desktop builds.
Out of stock
Vendor Code:
Description

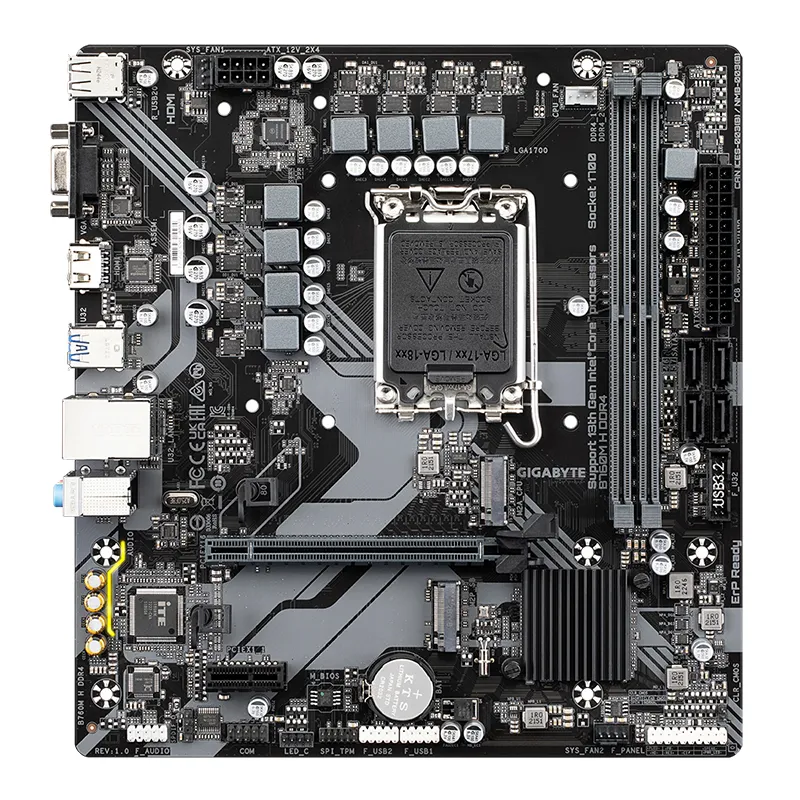

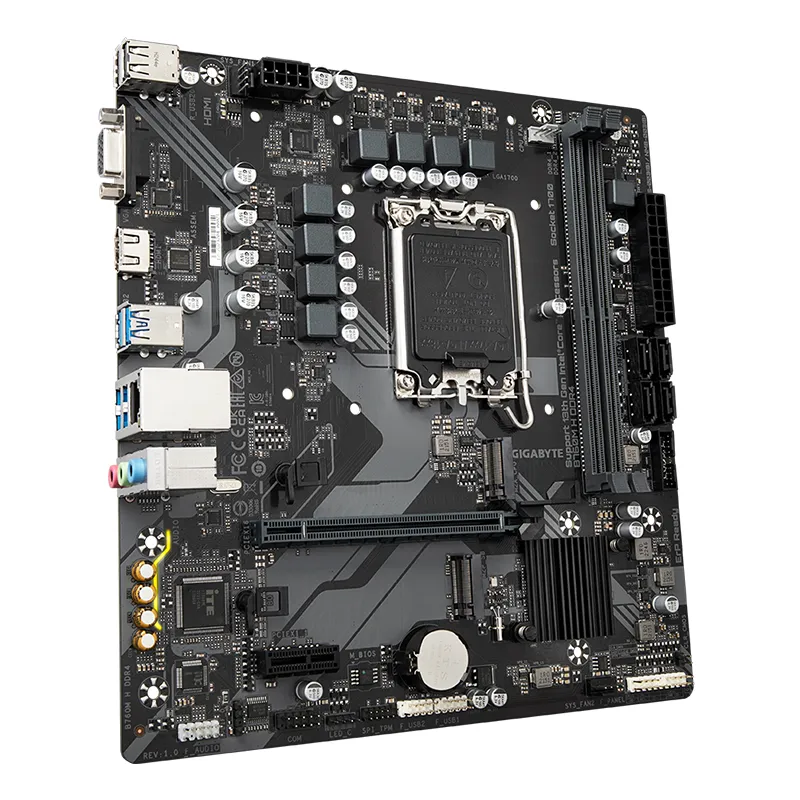

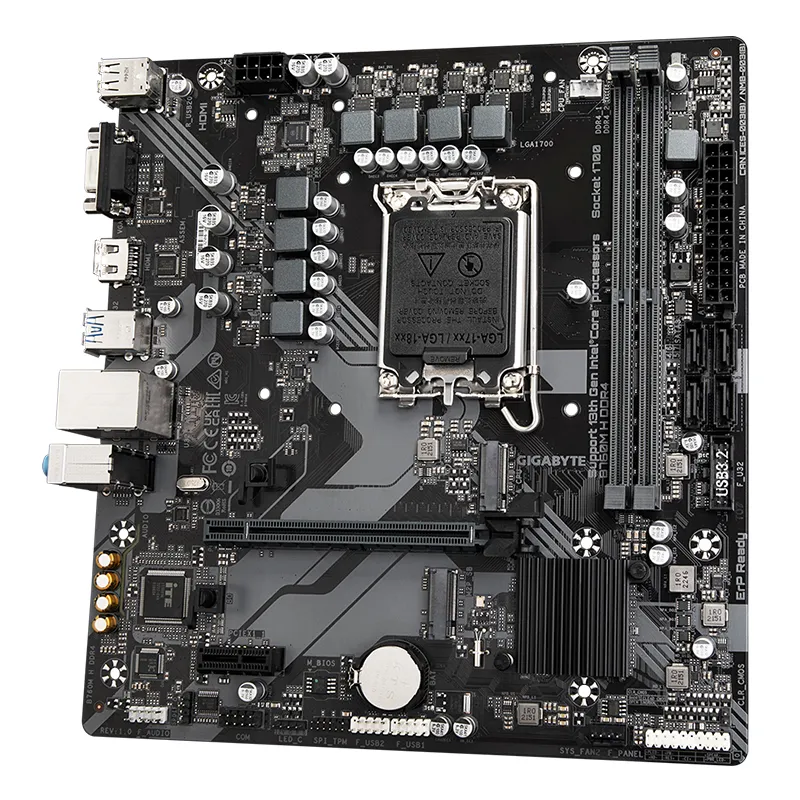

Gigabyte B760M H DDR4Intel LGA 1700 m-ATX Motherboard, 2x DDR4 ~64GB, 1x PCI-E x16, 2x M.2, 4x SATA, 3x USB 3.2, 2x USB 2.0,
The GIGABYTE B760M H DDR4 is a Micro-ATX motherboard built on the Intel® B760 Express chipset, offering broad compatibility with Intel 12th, 13th, and 14th Gen Core, Pentium® Gold, and Celeron® processors via the LGA1700 socket. It supports up to 64 GB of dual-channel DDR4 memory with XMP profiling and delivers modern connectivity with USB 3.2 Gen1, dual PCIe 4.0 M.2 slots, integrated 1 GbE LAN, and multiple display outputs (HDMI and D-Sub). The board’s compact footprint and solid expansion make it ideal for mainstream gaming, productivity, and home PC builds.
Key Features:
- Intel B760 Express Chipset
Designed for reliable performance and broad feature support with Intel CPUs on the LGA1700 platform.
- LGA1700 Socket for 12th/13th/14th Gen Intel CPUs
Compatible with the latest Intel Core processors as well as Pentium Gold and Celeron models.
- Dual-Channel DDR4 Memory Support
Two DIMM slots support up to 64 GB DDR4 memory with XMP profiles for easier performance tuning.
- Dual PCIe 4.0 M.2 Slots
Two high-speed M.2 sockets provide support for next-generation PCIe 4.0 NVMe SSDs for fast storage performance.
- PCIe Expansion
Includes a PCIe 4.0 x16 slot for graphics cards and a PCIe 3.0 x1 slot for additional expansion cards.
- Gigabit LAN Connectivity
Built-in 1 Gbps Ethernet ensures fast, stable wired network connections.
- Integrated Graphics Support
Supports integrated GPU output via HDMI and D-Sub ports when paired with a compatible Intel CPU.
- USB 3.2 Gen1 & USB 2.0 Ports
Multiple USB ports for high-speed peripherals and legacy devices.
- RAID & SATA Storage Support
Four SATA 6 Gb/s ports support RAID 0/1/5/10 for flexible storage configurations.
- RGB & System Headers
Includes internal headers for fans, RGB LED strips, and front-panel I/O for custom PC builds.
SPECIFICATIONS:
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU (Please refer to “CPU Support List” for more information.) |
| Chipset | Intel® B760 Express Chipset |
| Memory | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: – 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: – 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage Interface | CPU: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | Chipset: – 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) – 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |

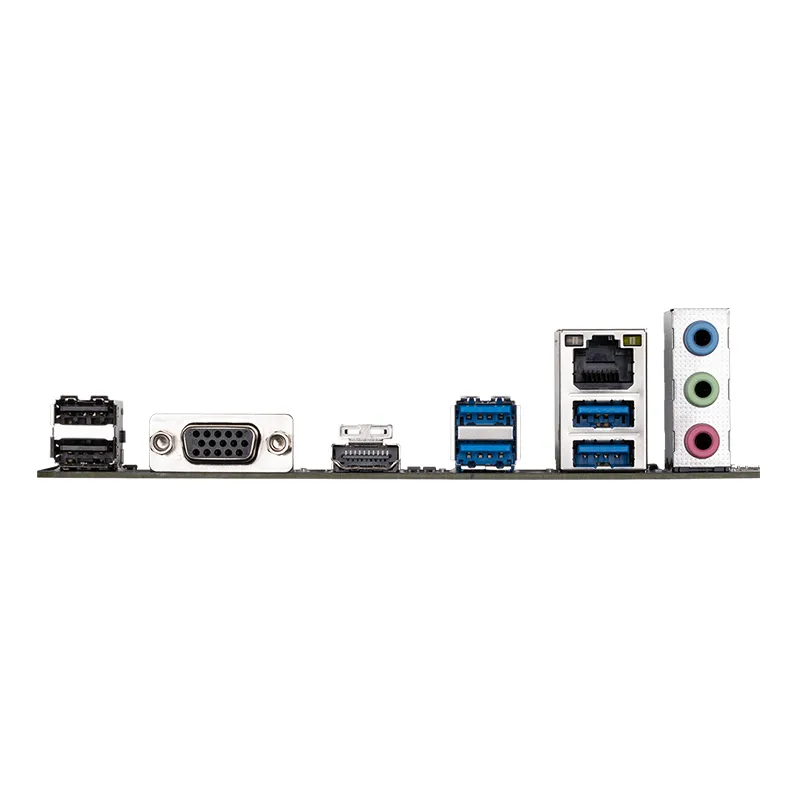

| Back Panel Connectors | 2 x USB 2.0/1.1 ports 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
Additional information
| Brand | |
|---|---|
| PC Components Type |
Motherboard |
| Memory Size |
64 GB |
| Memory Type |
DDR4 |
| Operating System |
Windows 10 ,Windows 11 |
| Interface |
1x PCI-E x16 |
