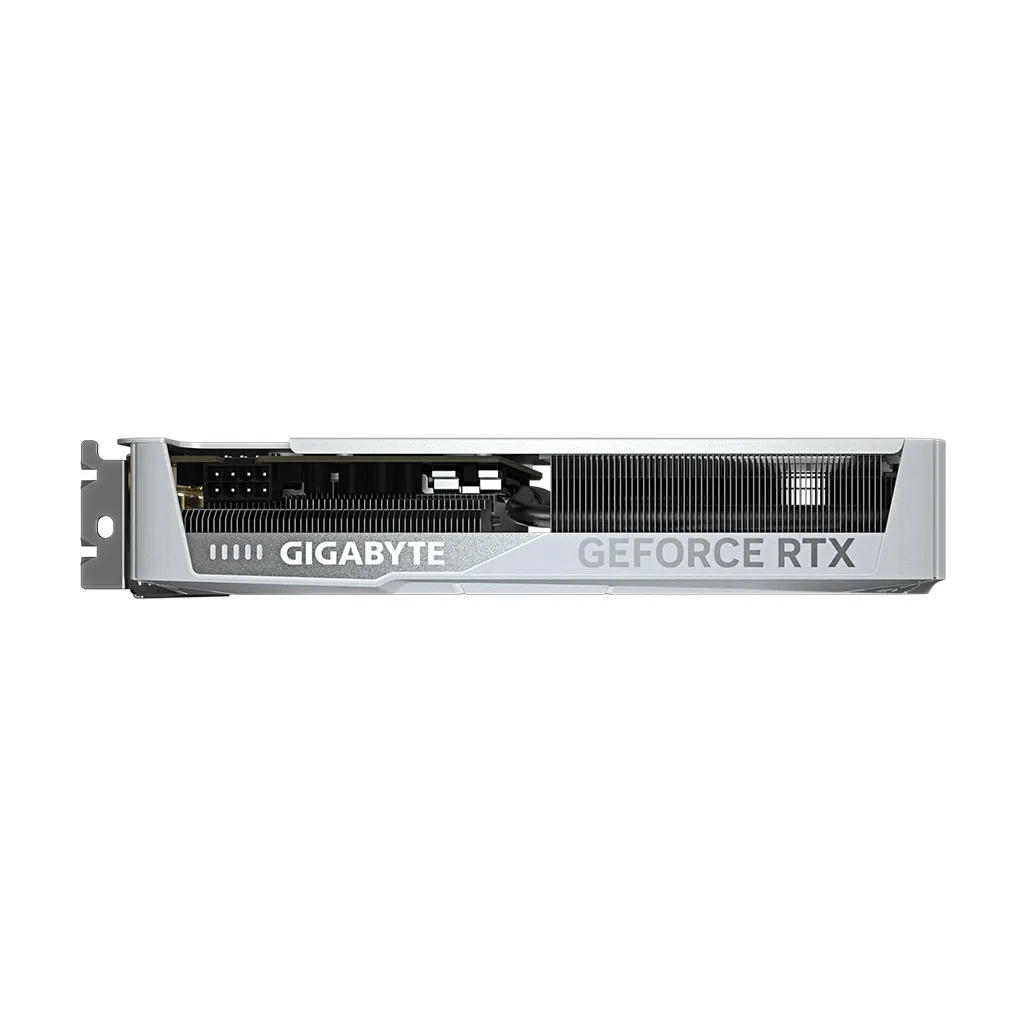

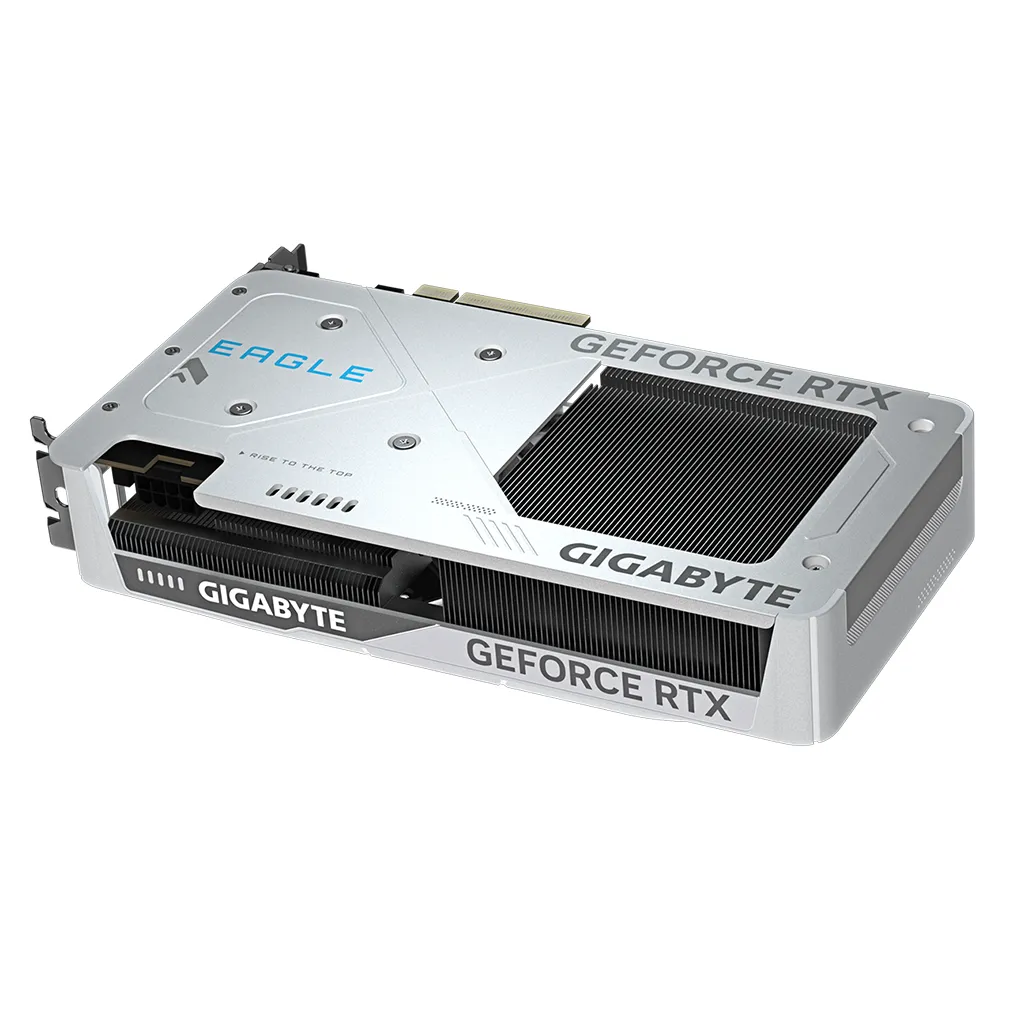

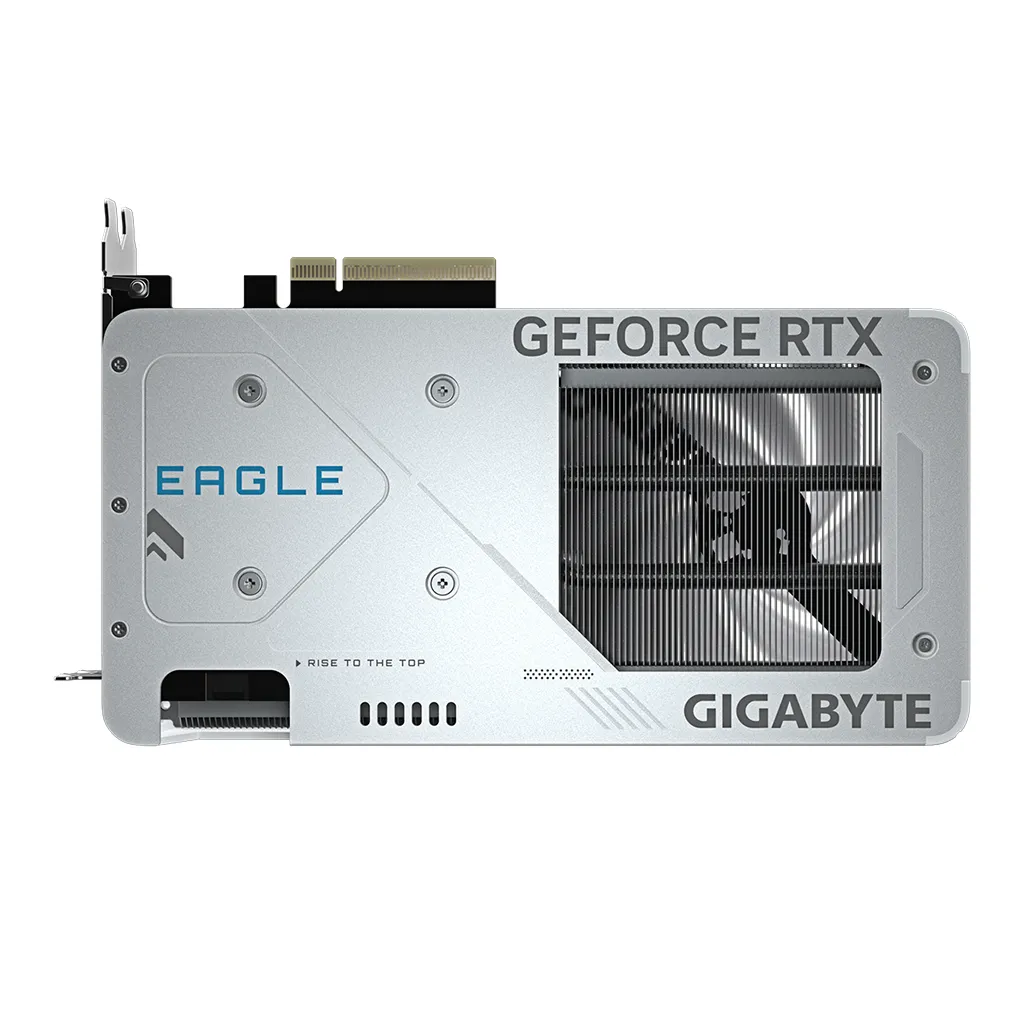

Gigabyte GeForce RTX 5060 Ti EAGLE OC ICE 8GB Video Card(GV-N506TEAGLEOC ICE-8GD)

The Gigabyte GeForce RTX 5060 Ti EAGLE OC ICE 8GB (GV-N506TEAGLEOC ICE-8GD) is a modern, mid-to-high-range graphics card built on the latest NVIDIA Blackwell architecture, optimized to deliver strong 1080p and 1440p gaming performance while staying power-efficient and compact. With 8 GB of GDDR7 memory, a boosted core clock, and a refined cooling system, this card is well-suited for gamers and creative users who want a balance of performance, efficiency, and affordability — good for AAA titles, esports, content creation, and GPU-accelerated workloads.

The “EAGLE OC ICE” variant brings factory overclocking, efficient cooling, and a clean design — making it a practical pick for builds where space, power consumption, or cost matter.

Key Features

Next-Gen Blackwell GPU & Solid Performance

• The card is powered by NVIDIA’s Blackwell-based GeForce RTX 5060 Ti GPU, offering a modern GPU architecture optimized for gaming and AI-aware workloads.

• With 4608 CUDA cores, the GPU delivers good parallel compute capability for modern games, rendering tasks, and GPU-accelerated software.

• The factory-boosted core clock of 2617 MHz ensures higher baseline performance out of the box compared with a reference card.

 8 GB GDDR7 Memory — Balanced & Efficient

• Equipped with 8 GB GDDR7 VRAM running on a 128-bit memory interface, the card offers modern memory bandwidth (≈ 448 GB/s) suitable for 1080p and 1440p gaming, video editing, and other GPU tasks.

• The use of GDDR7 ensures updated memory technology — more efficiency and performance per clock than older memory types — making the GPU more future-ready for new games and applications.

Efficient Cooling & Compact Design

• The EAGLE OC ICE uses a dual-slot, dual-fan WINDFORCE cooling system (some listings mention 2 fans, some “dual” or “dual-slot fansink”), which balances size and cooling efficiency, keeping temperatures reasonable even under load.

• Its compact dimensions (approx. 215 × 122 × 40 mm) make it suitable for mid-tower or smaller cases, while still delivering respectable performance.

Modern Connectivity & Feature Support

• Outputs: 1 × HDMI 2.1b and 3 × DisplayPort 2.1b — enough for high-resolution monitors and multi-monitor setups (up to 4 displays, max resolution 7680×4320).

• Interface: PCI Express 5.0 x8, offering modern bus bandwidth while preserving compatibility with newer motherboards.

• API / Feature Support: Compatible with DirectX 12 Ultimate, OpenGL 4.6, and includes support for modern features like real-time ray tracing, Tensor cores (for AI/DLSS-type tasks), and presumably hardware-accelerated video encode/decode — good for gaming, content creation, and AI-assisted workflows.

Balanced Power Consumption & Ease of Integration

• Uses a single 8-pin PCIe power connector, and typical power draw/Wattage is moderate (per vendor specification ~180 W TDP).

• Recommended PSU wattage is around 650 W, which is modest compared to high-end GPUs — making this card a good option for mid-range gaming rigs without overhauling the entire PSU.

• Its compact size and lower power draw make it suitable for typical ATX cases without requiring massive cooling or specialized power supplies.

Technical Specification
