Gigabyte GeForce RTX 5060 Ti Windforce 2X OC 16G Graphics Card (GV-N506TWF2OC-16GD)

Gigabyte GeForce RTXâ„¢ 5060 Ti WINDFORCE OC 16G, 2587 MHz, CUDA TBD, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b *3 HDMI 2.1b *1

The GIGABYTE GeForce RTX 5060 Ti WINDFORCE OC 16G is a high-performance graphics card built for modern AAA gaming, creative workloads, and 4K content playback. Powered by the latest NVIDIA Blackwell architecture and outfitted with 16 GB of speedy GDDR7 memory over a 128-bit bus, it delivers a powerful blend of raster and ray-traced rendering. The custom WINDFORCE 2X cooling system ensures efficient heat dissipation while keeping noise levels low, making it suitable for both gaming rigs and content-creation workstations. Its compact dual-slot form-factor and PCIe 5.0 compatibility also make it a straightforward upgrade for a wide variety of PC builds.

Key Features

• Ada / Blackwell Architecture + RTX 50 Series Core

Built on the NVIDIA Blackwell architecture, the card harnesses modern GPU design improvements — improved efficiency, higher compute density, and support for the latest rendering technologies, including 4th-gen Ray Tracing cores and 5th-gen Tensor cores. This ensures the card is ready for next-gen games and AI-enhanced workloads.

• 16 GB GDDR7 — Ample Memory for Gaming & Creative Work

With 16 gigabytes of GDDR7 memory running over a 128-bit bus, this GPU offers high memory bandwidth (around 448 GB/s), enough to handle high-resolution textures, large framebuffers, and complex 3D scenes. It’s particularly helpful for modern AAA titles, video editing, 3D modeling, and other memory-heavy workloads.

• Factory Overclock + High Core Clock

This “OC” (overclocked) model arrives from the factory with a boost clock around 2587 MHz (vs reference ~2572 MHz), giving a small but meaningful performance uplift in games and GPU-intensive applications.

• Advanced WINDFORCE Cooling System

The card’s dual-fan WINDFORCE 2X cooler uses aerodynamic “Hawk” fans, alternate spinning to reduce turbulence, a copper base plate + composite heatpipes, and server-grade thermal conductive gel to optimize heat transfer from GPU, VRAM, and VRMs. The design ensures stable temperatures under sustained workload while keeping noise levels low.

• Modern Connectivity & Display Capabilities

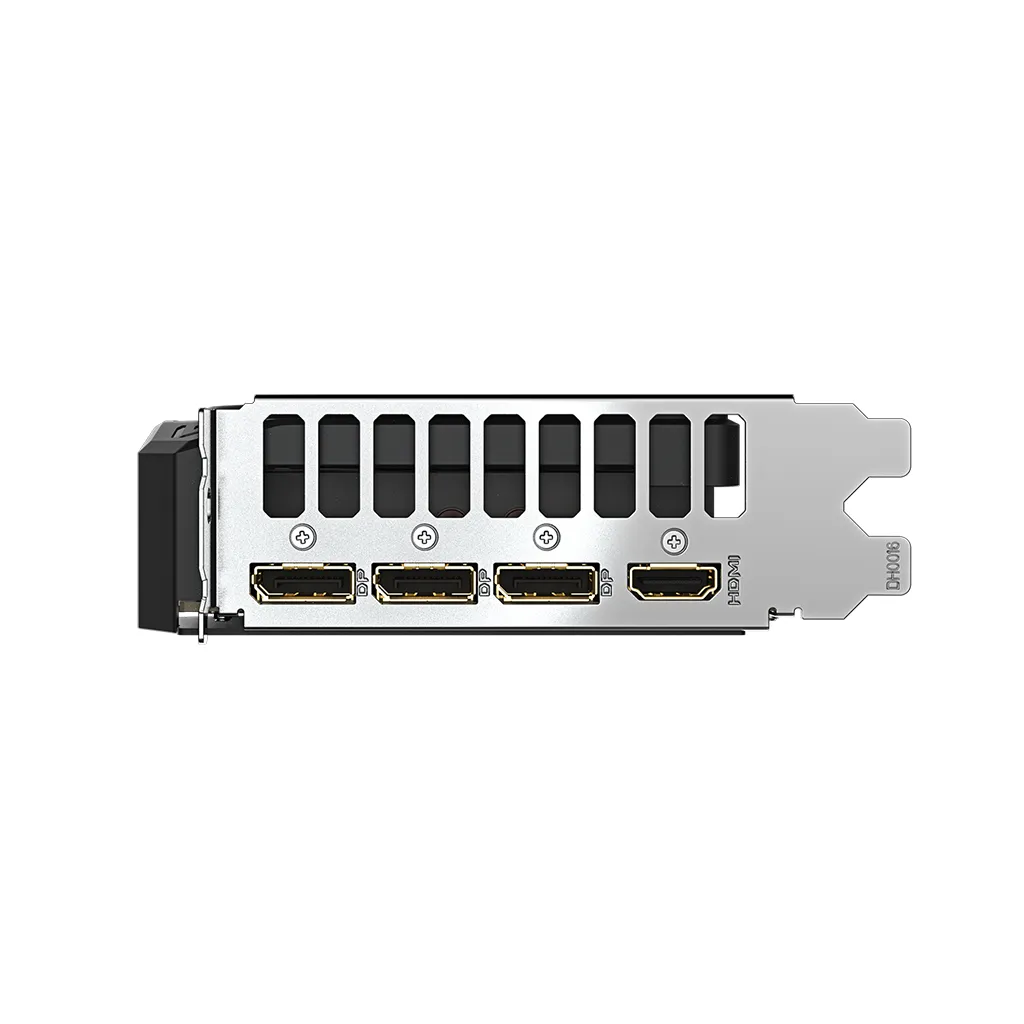

With PCIe 5.0 x16 interface, 3× DisplayPort 2.1b, 1× HDMI 2.1b, support for up to 4 displays and maximum digital resolution up to 7680 × 4320 (8K), the card is well-equipped for gaming, video editing, multi-monitor productivity, or 4K/8K media playback.

• Compact Dual-Slot 2-Slot Design

At approximately 208 mm length × 120 mm height × 40 mm thickness, the card fits a wide variety of mid-tower and compact PC cases, making it accessible for both full-size and smaller builds

Technical Specification
