Gigabyte Radeon RX 9070 XT GAMING OC 16GB Video Card (GV-R9070XTGAMING OC-16GD)

Gigabyte Radeonâ„¢ RX 9070 XT GAMING OC 16G, 20 Gbps, GDDR6, 256 bit, PCI-E 5.0, PSU 850W, 8 pin*3, DisplayPort 2.1a *2 HDMI 2.1b *2

The Gigabyte Radeon RX 9070 XT GAMING OC 16G (GV-R9070XTGAMING OC-16GD) is a high-end graphics card built for serious gamers, content creators, and PC enthusiasts. Powered by the latest AMD RDNA 4 architecture, it delivers powerful raster performance, efficient ray tracing, and modern rendering features. With 16 GB of GDDR6 VRAM, a 256-bit memory interface, and a robust WINDFORCE triple-fan cooler, the card is designed to handle AAA gaming at 1440p and 4K — and even 8K content — while remaining thermally stable and visually stunning with customizable RGB lighting and dual-BIOS flexibility. Ideal for high-refresh-rate gaming, video editing, 3D rendering, and future-proof PC builds.

Key Features & Explanations

• RDNA 4 Architecture & Radeon RX 9070 XT GPU

The card uses AMD’s RDNA 4 architecture with the Radeon RX 9070 XT GPU. This architecture improves computational efficiency, offers advanced ray tracing, and supports next-generation features like the AMD Radiance Display Engine, delivering a balance of high performance and efficiency for gaming and creative workloads.

• 16 GB GDDR6 Memory with 256-bit Bus

Equipped with 16 GB of GDDR6 VRAM on a 256-bit memory bus, the card provides ample memory capacity and bandwidth for high-resolution textures, large framebuffers, and intensive workloads (4K gaming, 4K/8K video editing, 3D rendering). This ensures smooth performance under demanding conditions.

• Factory Overclocked Performance (Boost Clock up to 3060 MHz)

The GAMING OC variant ships with a factory overclock — with a boost clock of up to ~3060 MHz (vs reference ~2970 MHz), and a “game clock” around 2520 MHz. This gives extra performance out-of-the-box for higher framerates and faster frame times in demanding titles.

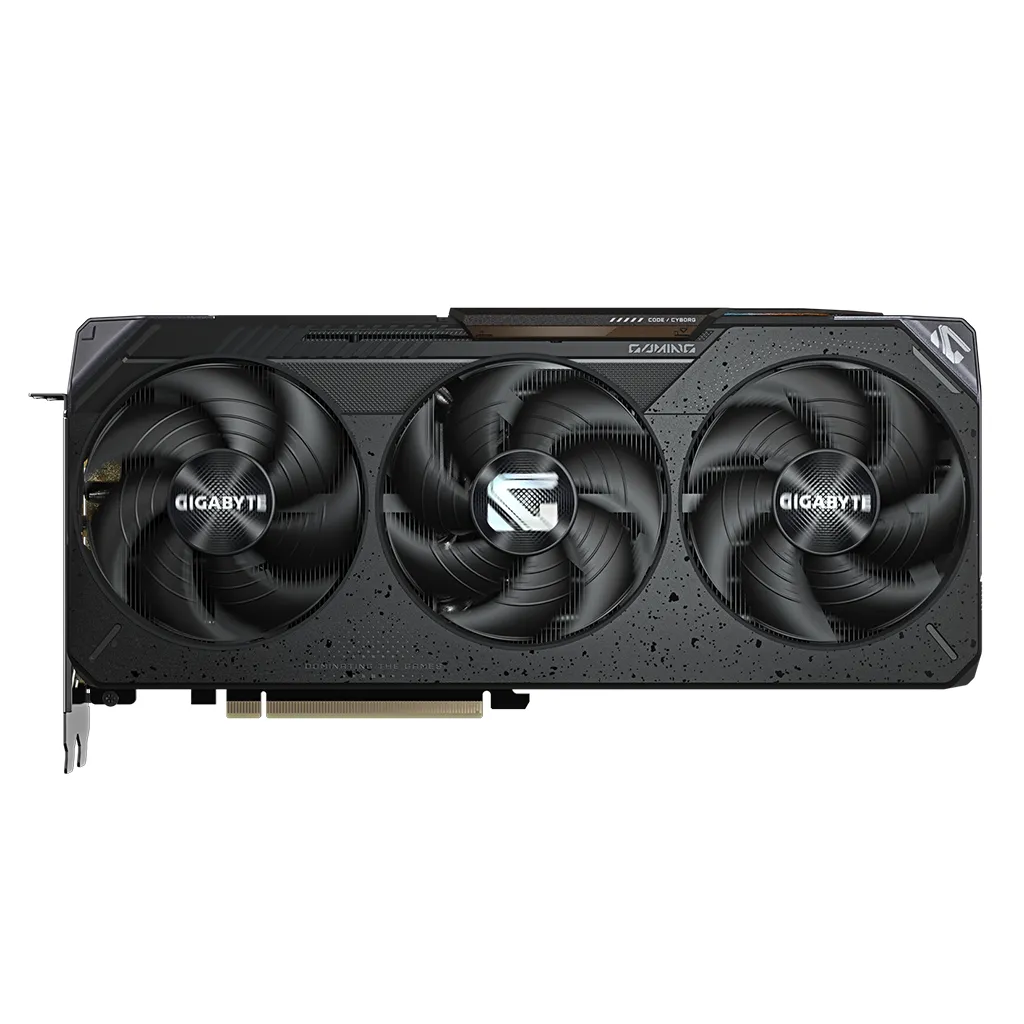

• Triple-Fan WINDFORCE Cooling System with High-Efficiency Thermal Design

To manage thermals under heavy load, the card uses Gigabyte’s WINDFORCE cooling: Hawk fans (alternate spinning), vapor chamber or composite copper heatpipes, server-grade thermal conductive gel, and extended heatsinks. This cooling design helps maintain stable temperatures and supports consistent high performance even during long gaming or rendering sessions. The card also has a reinforced structure, metal backplate, sliding side-plate design, and customizable RGB lighting — combining aesthetics with durability.

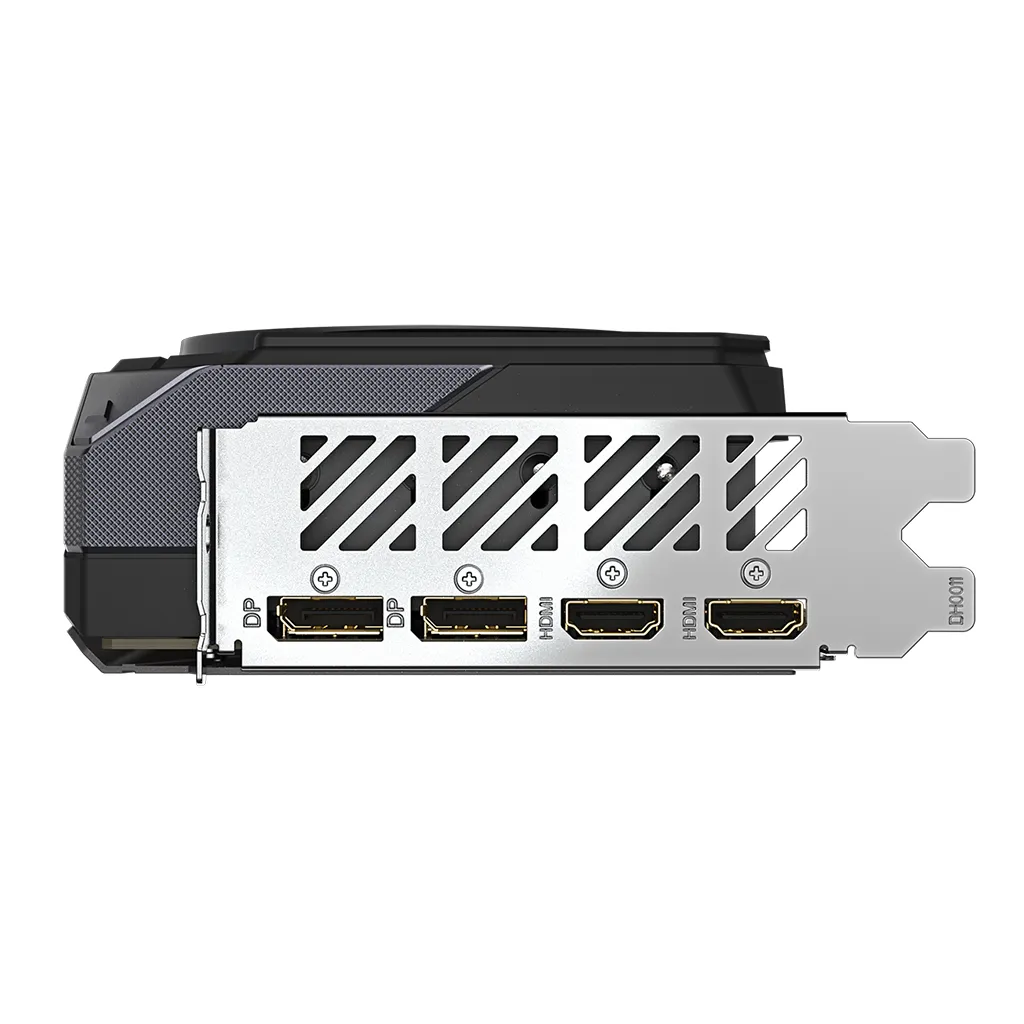

• Modern Connectivity & Display Support — 8K Output, Multi-Display, High Refresh

The card features 2 × DisplayPort 2.1a and 2 × HDMI 2.1b outputs, enabling support for up to 4 displays simultaneously and maximum digital resolution up to 7680 × 4320 (8K). DisplayPort 2.1 offers high bandwidth, supporting high-refresh 4K or 8K gaming on next-gen monitors. This makes the card suitable not only for gaming but for video editing, multi-monitor productivity, and content creation.

• Feature-Rich Software & Modern GPU Technologies

The RX 9070 XT supports modern APIs (DirectX 12 Ultimate, OpenGL 4.6, Vulkan), advanced features such as hardware ray tracing, AMD’s upscaling/AI-enhanced technologies (e.g. FSR, HYPR-RX, Radiance Display Engine, Fluid Motion Frames 2, Anti-Lag, Radeon Boost), HDCP, AV1 encode/decode (on supported driver versions), and full compatibility with modern motherboards via PCIe 5.0 x16.

 Technical Specifications
