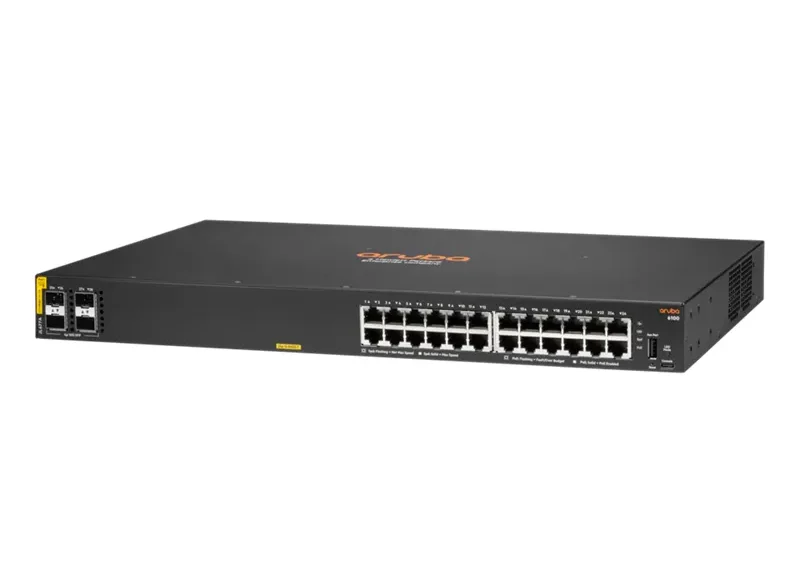

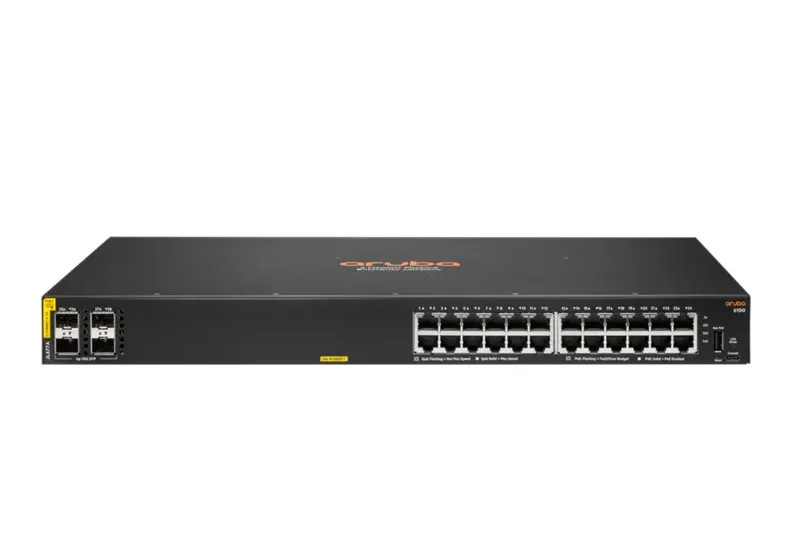

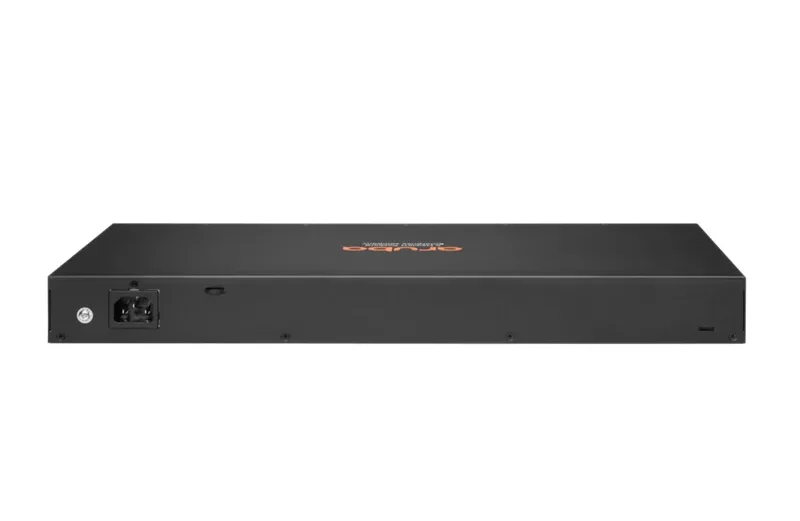

HPE Aruba 6100 24-Port Class4 PoE 4x SFP+ 370W Network Switch-JL677A

Request For Price

The HPE Aruba 6100 24-Port Class 4 PoE & 4× SFP+ 370 W Network Switch is a managed Layer-2 Gigabit Ethernet access switch delivering 24× PoE+ Gigabit ports and 4× 1 G/10 G SFP+ uplinks with a 370 W Class-4 PoE budget, ideal for powering wireless APs, IP phones, cameras, and other powered devices while supporting flexible high-speed uplinks.

HPE Aruba 6100 24-Port Class4 PoE 4x SFP+ 370W Network Switch

Simplify IT operations with next-gen Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity

Flexibility to manage and simplify configurations with Aruba Central, Aruba NetEdit, easy to use Web GUI, or industry standard CLI

Software defined ready with REST APIs

Layer 2 feature set with static routing and switch software embedded with no subscription required to enable

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the HPE CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications.

Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch

Prepare your network for tomorrow’s unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the HPE Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the HPE CX 6100 also simplifies ownership with no switch software licensing requirements.

Performance and Power

The HPE Aruba Networking CX 6100 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.

Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6100 switch models that support up to740W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port.

Four built-in wire speed 1/10GbE uplinks eliminate bottlenecks at the access layer where users and devices connect.

Simplified Configuration And Management

The HPE Aruba Networking CX 6100 Switch Series provides flexibility to manage and simplify configurations with Aruba Central, Aruba NetEdit, easy to use Web GUI, or industry standard CLI.

Aruba NetEdit introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.

Manage via single pane of glass with Aruba Central across wired, wireless, and WAN.

Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).

Software-defined ready with REST APIs for fine-grained programmability of network tasks.
