Logitech Rally Bar Mini 4K All-in-One Video Conference Camera – Graphite – 960-001343
Original price was: $5,059.95.$4,610.00Current price is: $4,610.00. 'inc. GST'
Logitech Rally Bar Mini All-In-One 4K Video Conferencing Bar with AI auto-framing, six microphones, integrated speakers, and USB or appliance-mode deployment, Graphite, 2year warranty.
In stock
Vendor Code:
Description

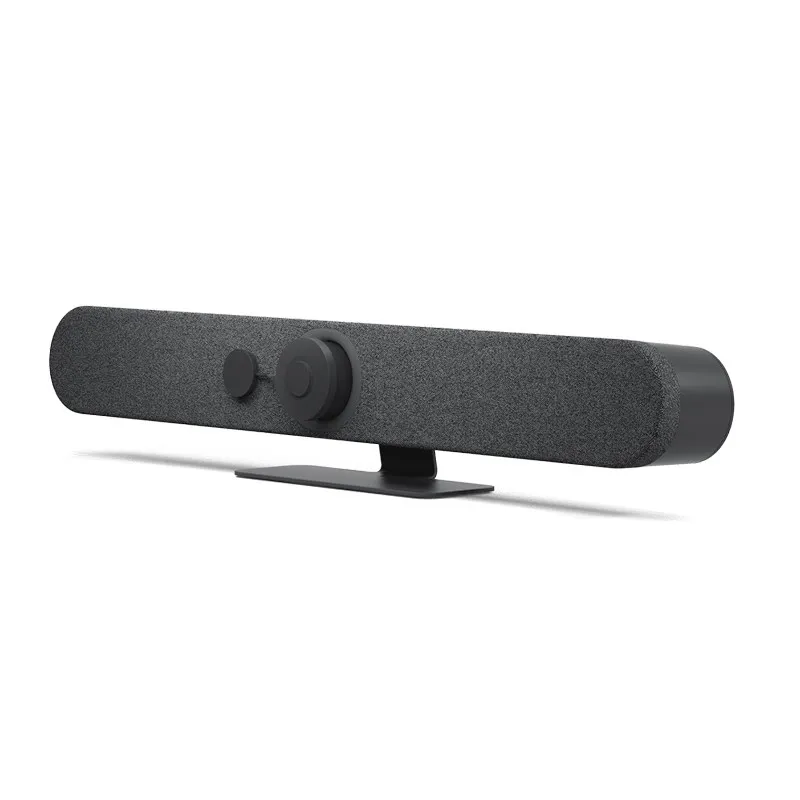

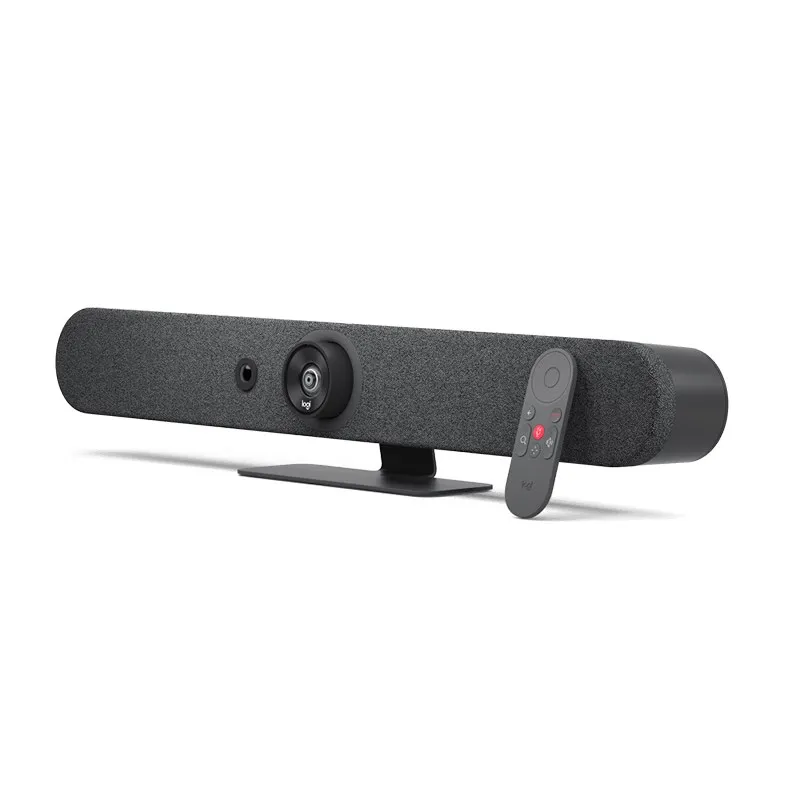

Logitech Rally Bar Mini 4K All-in-One Video Conference Camera – Graphite
Logitech Rally Bar Mini is an all-in-one video bar for small to medium meeting rooms. Discover remarkably simple, all-in-one video conferencing with built-in AI technology, brilliant optics, and powerful audio.
Key Features:
- ALL-IN-ONE VIDEO BAR FOR SMALL AND MEDIUM ROOMS
Uncover an exceptionally straightforward video conferencing solution featuring outstanding optics, AI-driven audio enhancements, seamless remote management through Logitech Sync, and additional advanced features.
- EXPAND THE CONVERSATION
Add up to three Rally Mic Pods to extend the audio pick up range and provide convenient access to mute controls.
- EVERYONE IS SEEN AND HEARD
AI video intelligence, advanced sound pickup, noise suppression, and continuous software improvements provide a clear and natural meeting experience for remote workers.
- MANAGE REMOTELY WITH SYNC
Monitor room and device health, deploy updates, and modify settings, all from a single cloud-based platform.
Specifications:
| Part Number | 960-001343 |
DIMENSIONS | |
| Height | 91.4 mm |
| Width | 719 mm |
| Depth | 101 mm |
| Lens Depth | 18.5 mm |
| Weight | Â 4.03 kgs |
GENERAL SPECIFICATION | |
| Built-in Components | 6 beamforming microphones, PTZ camera, 3 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform |
| Enclosure | All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference |
| Device Management | Logitech Sync |
| Displays Supported | 2 |
| Display Resolution | Up to 1080p |
| Network Protocol Support | IPv4, IPv6 |
| Proxy Support | IP based Proxy, FQDN based Proxy, Proxy using PAC file |
CAMERA | |
| Resolution | 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps |
| Pan | Motorized ±25° |
| Tilt |  Motorized ±15° |
| Zoom | 4X HD digital zoom |
| Diagonal Field of View |  120° |
| Horizontal Field of View | 113° |
| Vertical Field of View | 80.7° |
| Total Room Coverage (field of view + pan and tilt) |  163° horizontal x 110° vertical |
WOOFER SPEAKER | |
| Driver | 70 mm |
| Sensitivity | 92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter |
| Rated Power | 8W |
| THD | 1kHz < 2% at 1W |
| Speaker Sampling Rate | 48KHz |
| Impedance | Â 4 Ohms |
MIDRANGE SPEAKERS | |
| Drivers | 2 x 43mm |
| Sensitivity | 84 dB SPL @ 1W/1M |
| Rated Power | 4W |
| THD | 1kHz < 2% at 1W |
| Speaker Sampling Rate | 48KHz |
| Impedance | 4 Ohms |
MICROPHONES | |
| Frequency Response | 90Hz– 16kHz |
| Sensitivity | >-36dBFS +/-1 dB @ 1Pa |
| Microphone data rate output | 48 kHz |
| Pickup Range | Up to 7 m |
| Beamforming Elements | 6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams |
| Audio processing | AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector) |
| Noise suppression | AI based de-noising algorithm |
| Add-on Mics | Supports up to 3 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms |
RIGHTSENSE TECHNOLOGIES | |
| Right Light | Renders natural skin tones for each participant |
| Right Sight | Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room |
| Right Sound | Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo |
| Grid View | Detects and frames all meeting participants in order to create equitable hybrid meeting experiences |
INTERFACES | |
| HDMI Out | 2 (up to 1080p) |
| HDMI In | 1 |
| USB | 3x Type A, 1x Type C |
| Network | 10/100/1G Ethernet |
| WiFi | 802.11a/b/g/n/ac |
| External Mic Input | Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable) |
| Remote Control | Bluetooth® Low Energy |
POWER AND CABLES | |
| Power supply | Auto-sensing |
| Operating Voltage/Power | 100-240V, 19V, 4.74A |
| Power Supply Dimensions | 127 mm x 51 mm x 30 mm |
| DC Cable | 1.5 m |
| AC Cable | 1 m |
| HDMI 1.4 Cable | : 2 m |
| USB A to USB C 3.0 Cable | : 2.2 m |
ENVIRONMENTAL | |
| Operating Temperature | : 0 to 40°C |
| Storage Temperature | -40 to 70°C |
| Humidity | 10 to 95% |
| BTU/hr | 57 idle, 64 in meeting |
SECURITY | |
| Full Disk Encryption | AES-128 |
| Data Encryption | Symmetric Keys, PKI |
| Device Identity | Protected by device attestation |
| Device Access | Authenticated using API |
| Key Protection | Arm TrustZone, RPMP |
ACCESSORIES | |
| Mounts | Wall Mount for Video Bars, TV Mount for Video Bars |
| Audio | Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable |
| Connectivity | Logitech Strong USB (10m, 25m, 45m) |
| Touch Controller | Logitech Tap and Tap IP |
COMPATIBILITY | |
| Internet Connection | Wired or wireless |
| USB Mode | Windows 11, Windows 10, the two most recent versions of macOS |
| Appliance Mode | Room solution software license (not included) |
IN THE BOX | |
| In The Box |
|
Additional information
| Brand | |
|---|---|
| Web Camera Type |
All-In-One Video Conference Camera |
| Color |
Graphite |
| Warranty |
2 Years |
