MICRON 16GB DDR4 ECC REG MEMORY, PC4-25600, 3200MHz, DRx8, 3YR WTY

MICRON 16GB DDR4 ECC REG MEMORY, PC4-25600, 3200MHz, DRx8, 3YR WTY

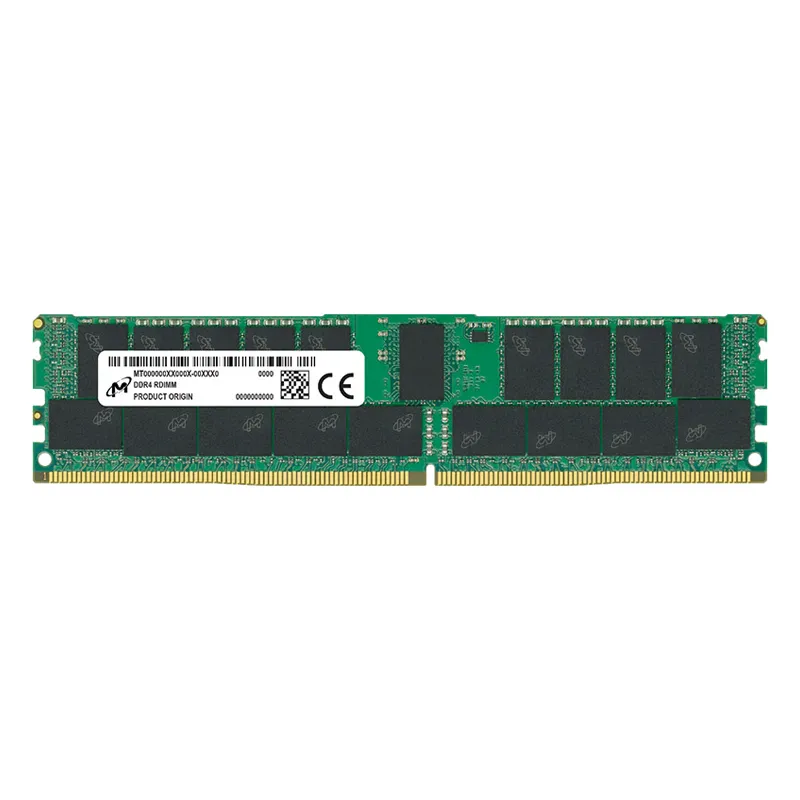

The Micron MTA18ASF2G72PDZ-3G2R is a DDR4 Registered DIMM (RDIMM) designed for server and high-performance computing environments. It has a capacity of 16 GB, uses a 288-pin DIMM form factor, supports error-correcting code (ECC), and is geared for reliability and high throughput.

Key Feature

• Technology: DDR4

• Module Type: RDIMM

• Density: 16 GB

• Voltage: 1.20 V (nominal)

• 288-pin registered dual in-line memory module (RDIMM)

• 2 Gig × 72 (i.e., 16 GB with 72-bit width including ECC)

• Supports ECC error detection and correction

• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals

• Low-power auto self refresh (LPASR)

• Data bus inversion (DBI) for data bus

• On-die VREFDQ generation and calibration

• Dual-rank

• On-board I²C temperature sensor with integrated serial presence-detect (SPD) EEPROM

• 16 internal banks; 4 groups of 4 banks each

• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)

• Gold edge contacts, fly-by topology

• Module height: 31.25 mm (1.23 in)

Technical Specification
