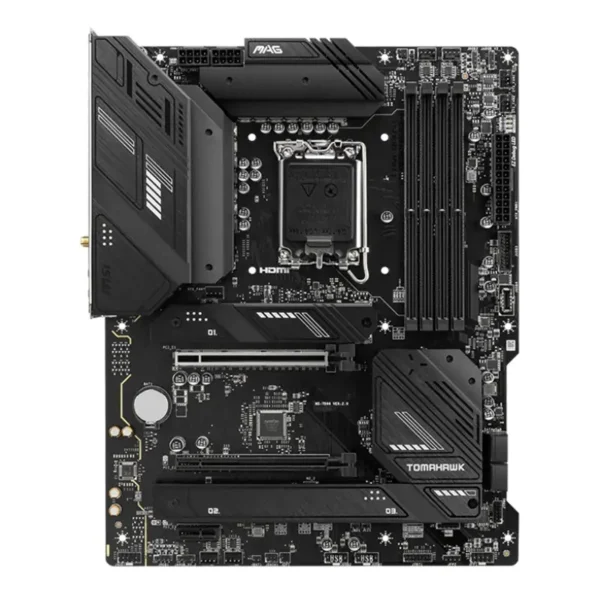

MSI MAG B760 Tomahawk WiFi DDR5 LGA 1700 ATX Motherboard (MAG B760 TOMAHAWK WIFI)
Original price was: $499.00.$430.00Current price is: $430.00. 'inc. GST'
MSI MAG B760 TOMAHAWK WIFI ATX motherboard with Intel B760 chipset, LGA1700 support for 14th/13th/12th Gen Intel CPUs, DDR5 memory up to 7000+ MHz (OC), triple M.2 slots, Wi‑Fi 6E, Bluetooth 5.3, 2.5Gb LAN, and extensive USB connectivity for gaming and high‑performance builds.
In stock
Vendor Code:
Description
MSI MAG B760 TOMAHAWK WIFI ATX Motherboard, 4x DDR5~192GB, 2x PCI-E x 16, 1x PCI-E x 1, 3x M.2, 4x SATA, 4x USB 3.2 , 4x USB 2.0, 1x USB Type C
The MSI MAG B760 TOMAHAWK WIFI is a high‑performance ATX motherboard designed for Intel’s 12th, 13th, and 14th Generation processors using the LGA1700 socket. Built on the Intel B760 chipset, it supports DDR5 memory with high overclocking speeds, PCIe 5.0 graphics, and extensive storage including three M.2 slots. The board features integrated Wi‑Fi 6E and Bluetooth 5.3 for fast wireless connectivity, 2.5Gb Ethernet for wired networking, rich USB connectivity including USB 3.2 Gen2x2 Type‑C, and premium audio for immersive gaming and multimedia use. With robust power design, enhanced cooling, and MSI’s BIOS and performance utilities, it’s ideal for gaming, content creation, and mainstream enthusiast builds.
Key Features
- Intel B760 Chipset
Delivers balanced performance and connectivity options for Intel 14th, 13th, and 12th Gen processors.
- LGA1700 CPU Support
Compatible with Intel Core, Pentium Gold, and Celeron processors to suit varied user needs.
- DDR5 Memory Support
Four DDR5 DIMM slots support up to 256 GB memory with high‑speed overclocking up to 7000+ MHz (OC) for responsive multitasking and gaming.
- PCIe 5.0 Graphics Slot
Provides a high‑bandwidth PCIe 5.0 x16 slot for next‑generation GPUs and graphics performance.
- Triple M.2 Storage with RAID
Three M.2 PCIe 4.0 slots plus four SATA 6 Gb/s ports offer flexible storage options with RAID 0/1/5/10 support.
- Integrated Wi‑Fi 6E and Bluetooth 5.3
Built‑in Intel Wi‑Fi 6E and Bluetooth deliver fast wireless networking and broad peripheral compatibility.
- 2.5Gb Ethernet LAN
Realtek 2.5Gb LAN ensures stable and high‑speed wired network performance.
- Robust USB Connectivity
Multiple USB ports including USB 3.2 Gen2x2 Type‑C and USB 10Gbps/A, perfect for peripherals and fast external storage.
- Premium Audio
Realtek ALC897 audio codec with 7.1‑channel support and S/PDIF output enhances gaming and media experiences.
SPECIFICATIONS:
| Chipset | INTEL B760 |
| CPU support |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA1700 |
| Memory | 4x DDR5, Maximum Memory Capacity 128GB
Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz
Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile |
| Onboard graphics | 1x HDMI™
1x DisplayPort Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Expansion slot | 2x PCI-E x16 slot
Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Storage | 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Rear)
4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN | Realtek® 2.5Gbps LAN |
| Wireless / Bluetooth | Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. |
| Audio | Realtek® ALC897 Codec
7.1-Channel USB High Performance Audio Supports S/PDIF output |
| Internal I/O | 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
| LED feature | 4x EZ Debug LED |

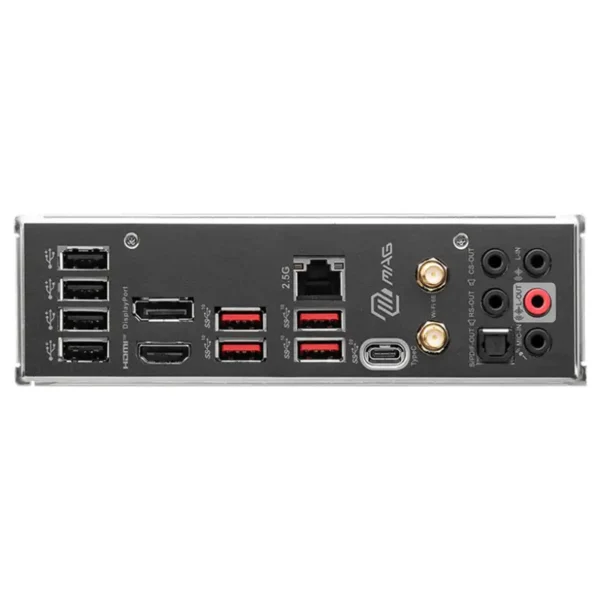

| Back panel ports | USB 2.0
DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI™ 2.1 Port USB 3.2 Gen 2×2 20Gbps Type-C Optical S/PDIF OUT |
| Operating system | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB dimension | ATX
243.84mmx304.8mm |
Additional information
| Brand | |
|---|---|
| PC Components Type |
Motherboard |
| Memory Size |
192 GB |
| Memory Type |
DDR5 |
| Operating System |
Windows 10 64-bit ,Windows 11 64-bit |
