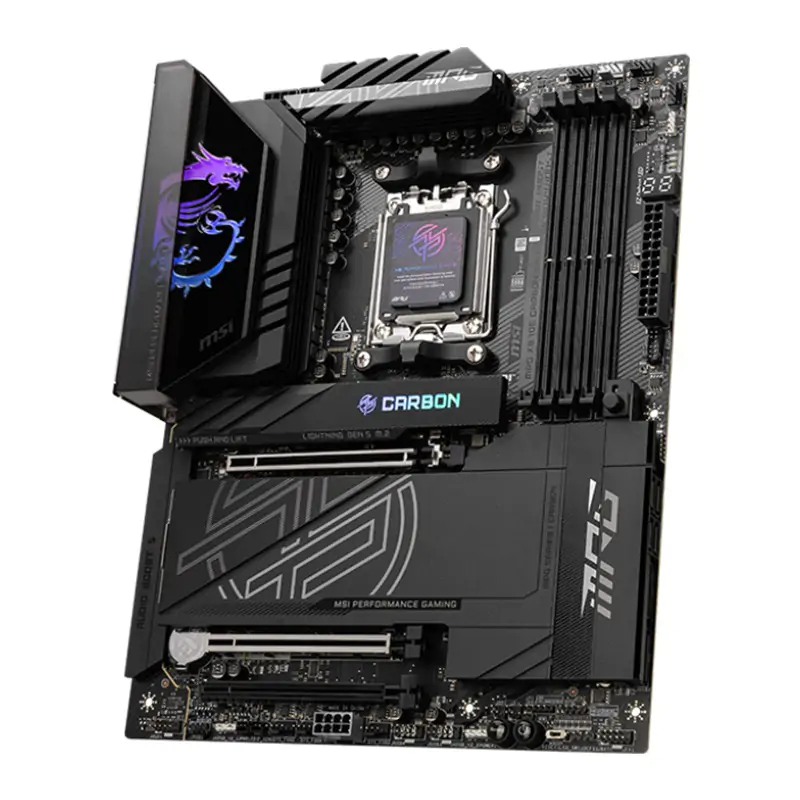

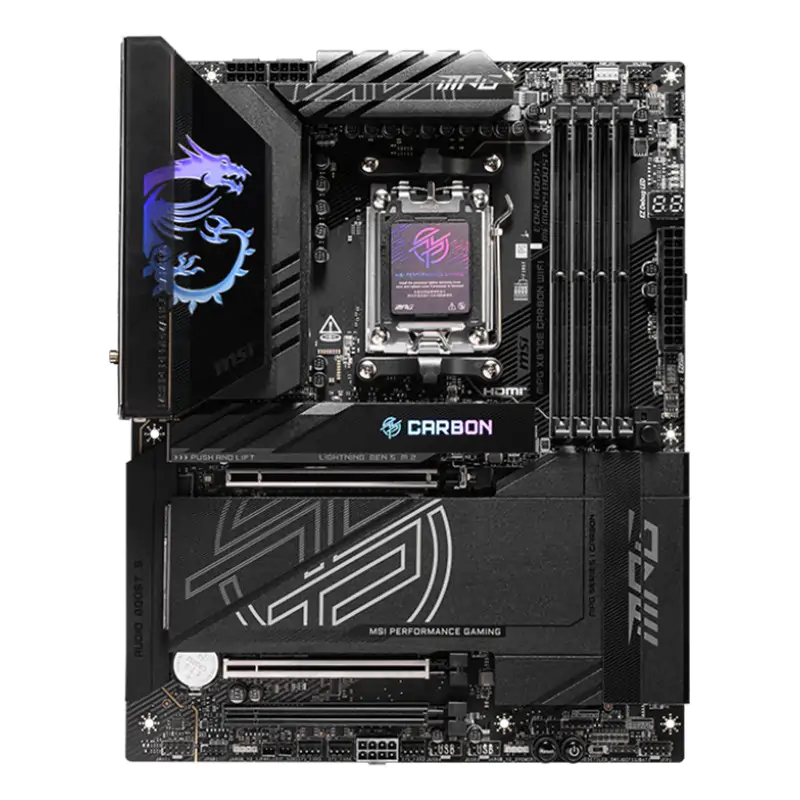

MSI MPG X870E CARBON WIFI, AMD AM5 ATX Motherboard 4x DDR5~256GB, 3x PCIe x16, 4x M.2, 9x USB 3.2, 4x USB-C
The MSI MPG X870E CARBON WIFI is a high-end ATX gaming and enthusiast motherboard built around the AMD X870E chipset and supporting AM5-socket Ryzen™ 9000, 8000, and 7000 Series processors. It combines flagship-class power delivery with extensive connectivity, including PCIe 5.0, USB4, Wi-Fi 7 wireless networking, and dual high-speed LAN (5 GbE + 2.5 GbE), making it ideal for next-generation gaming, content creation, and high-performance desktop builds.
Key Features
- AMD X870E Chipset Support
Designed for AMD AM5 platforms with advanced I/O and performance enhancements. - AM5 Socket for Ryzen Processors
Supports AMD Ryzen™ 9000, 8000, and 7000 Series desktop CPUs for cutting-edge performance. - High-Speed DDR5 Memory Support
Four DDR5 DIMM slots support up to 256 GB memory with overclocking up to DDR5-8400+ (OC). - Multi-GPU & PCIe 5.0 Expansion
Three PCIe x16 slots including PCIe 5.0 for GPU and expansion cards. - Advanced Storage Options
Four M.2 slots support PCIe 5.0 x4 and PCIe 4.0 x4 SSDs alongside four SATA 6 Gb/s ports. - Dual LAN Networking
1 × Realtek® 8126 5 GbE and 1 × Realtek® 8125 2.5 GbE LAN provide robust wired networking. - Wi-Fi 7 & Bluetooth 5.4 Wireless
Latest Wi-Fi 7 solution for ultra-fast wireless network speeds with Bluetooth 5.4. - Extensive USB Connectivity
Multiple USB ports including USB 40 Gbps Type-C, USB 20 Gbps Type-C, USB 10 Gbps and USB 5 Gbps for high-speed peripherals. - Premium Audio with Realtek® ALC4080
High-performance 7.1-channel HD audio with S/PDIF for immersive sound. - EZ Debug & User-Friendly Design
Includes EZ debug LEDs, Flash BIOS Button, Clear CMOS Button, and smart ergonomic headers for easy setup.
SPECIFICATIONS:| Chipset | AMD X870E | | CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5 | | Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/sSupports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only** CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. | | Onboard Graphics | 1x HDMI™
Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | | Slot | 3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E1 & PCI_E2 slots
• Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor)
PCI_E3 slot
• Supports up to PCIe 4.0 x4* PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details. | | Audio | Realtek® ALC4080 Codec
7.1-Channel USB High-Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Supports S/PDIF output | | Storage | 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G* PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details. | | RAID | •Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices
•Supports RAID 0, RAID 1 and Raid 10* for M.2 NVMe storage devices* RAID 10 for M.2 NVMe storage devices is only supported by AMD Ryzen™ 9000/7000 series CPU. | | USB | 4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
9x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
2x USB 40Gbps Type C (Rear) | | LAN | 1x Realtek® 8126 5G LAN
1x Realtek® 8125 2.5G LAN | | Internal IO | 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports | | Wireless LAN & Bluetooth | Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. | | LED Feature | 4x EZ Debug LED
1x EZ Digit Debug LED
1x EZ LED Control switch | | Back panel ports | USB 10Gbps Type-A Flash BIOS Button Clear CMOS Button Smart Button 2.5G LAN 5G LAN Audio Connectors HDMI™ USB 40Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A USB 10Gbps Type-C Wi-Fi / Bluetooth Optical S/PDIF Out | | Operating system | Support for Windows® 11 64-bit | | Box content | MPG X870E CARBON WIFI Motherboard EZ Wi-Fi Antenna EZ M.2 Clip II EZ M.2 Clip II Remover 1 to 3 EZ Conn-Cable (V2) USB Drive 2 x SATA Cables ARGB Extension Cable 1 to 2 RGB Extension Cable EZ Front panel cable European Union Regulatory Notice Quick Installation Guide Cable Sticker Shout out flyer | | PCB Info | ATX 243.84mmx304.8mm |
|
