Name: MSI GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS Graphics Card
Brand: MSI
SKU: GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS
Availability: InStock

MSI GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS Graphics Card

$719.00 'inc. GST'

MSI GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS — 4608 CUDA cores, 8 GB GDDR7, 128‑bit bus, 448 GB/s memory bandwidth, dual‑fan cooling, PCIe 5.0, 3× DisplayPort 2.1b & HDMI 2.1b, Boost ~2602 MHz, supports DLSS 4, ray tracing, 4K/8K output. Ideal for 1080p/1440p gaming and creative workloads.

In stock

Vendor Code:

SKU: GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS Categories: Computer Peripherals, Graphic Cards, PC Components

Supplier ID: LEA-GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS

MSI nVidia GeForce RTXâ„¢ 5060 Ti 8G VENTUS 2X OC PLUS, PCI ExpressÂ® Gen 5 x16, Boost: 2602 MHz, CUDA 4608 Units, 8GB GDDR7, HDMIâ„¢ x 1

The MSI GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS is a mid‑range graphics card built on the latest NVIDIA Blackwell architecture. With 4608 CUDA cores, GDDR7 memory, and a dual‑fan “VENTUS 2X” cooling system, this GPU balances performance, efficiency, and compact size. It is suitable for 1080p and 1440p gaming, creative workloads, video editing, and GPU‑accelerated applications. Its PCIe 5.0 interface, modern display outputs, and ray‑tracing / AI‑features make it a versatile choice for both gamers and content creators.

Key Features

Blackwell Architecture + Powerful GPU Engine

This card uses the Blackwell‑series GPU (code GB206) from NVIDIA. It includes 4608 CUDA cores, ensuring strong rasterization, compute, and shading performance.

8 GB GDDR7 Memory with High Bandwidth

Equipped with 8 GB of GDDR7 memory over a 128‑bit memory bus and 28 Gbps effective memory speed, delivering up to 448 GB/s bandwidth — sufficient for modern games, textures, GPU workloads, and moderate 3D rendering.

Factory Overclocked for Extra Boost

The OC PLUS variant offers a boosted GPU clock (boost clock ~ 2602 MHz) giving extra performance over reference configurations.

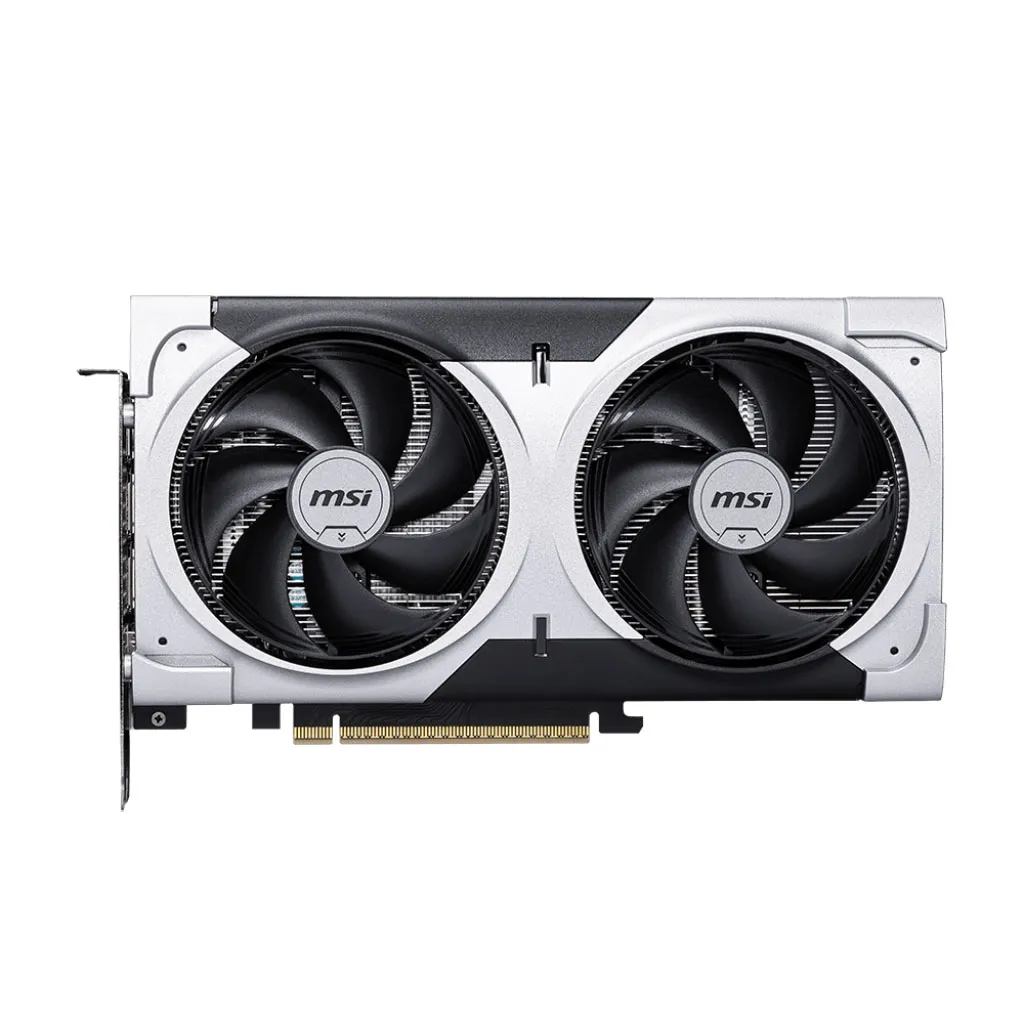

Efficient Dual‑Fan VENTUS 2X Cooling

The dual‑fan cooling solution keeps the GPU thermals under control while remaining relatively compact. This supports stable performance under long gaming sessions or sustained workloads, while maintaining manageable noise levels.

Modern Connectivity and Display Support

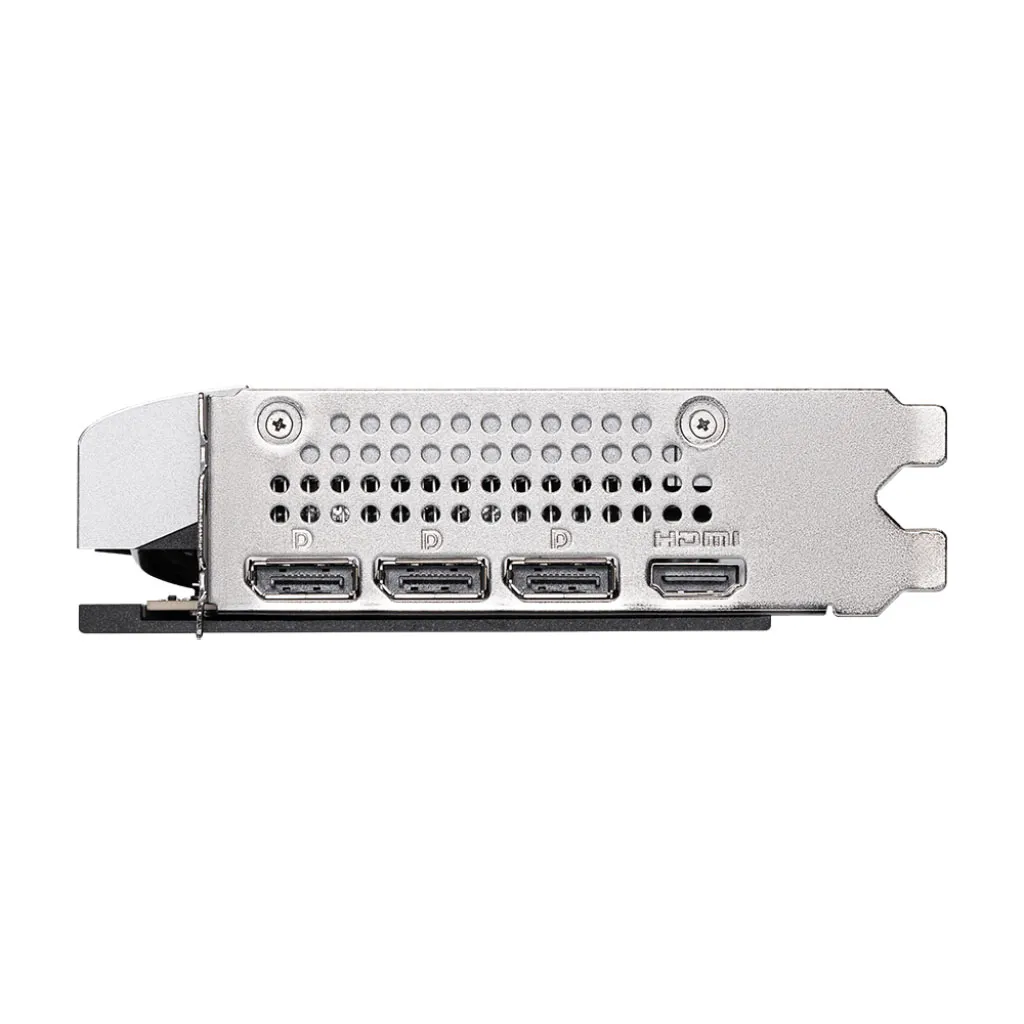

Offers 3 × DisplayPort 2.1b and 1 × HDMI 2.1b outputs. Supports up to 4 displays simultaneously and up to 8K (7680 × 4320) resolution output — making it a flexible option for gaming, video editing, multi‑monitor productivity setups, or media consumption.

Balanced Power Consumption & Compatibility

With a power draw (TDP) of ~180 W and a single 8‑pin PCIe power connector, the card is compatible with mainstream PSUs (recommended ≈ 600 W). Its dual‑slot, 227 mm length design fits most mid‑tower and standard ATX cases.

Technical Specifications

Specification	Details
Graphics Processor (GPU)	NVIDIA GeForce RTX 5060 Ti (GB206)
CUDA Cores	4608
Memory Size	8 GB GDDR7
Memory Type	GDDR7
Memory Bus Width	128 bit
Effective Memory Clock / Speed	28 Gbps (1750 MHz) effective memory clock
Memory Bandwidth	448.0 GB/s
Base Clock	2407 MHz
Boost Clock	~2602 MHz (OC)
Architecture	Blackwell (generation)
PCIe Interface	PCI Express Gen 5 x16 (operates on x8)
Display Outputs	3 × DisplayPort 2.1b, 1 × HDMI 2.1b
Maximum Digital Resolution	7680 × 4320 (8K)
Multi‑Monitor Support	Up to 4 displays
Supported APIs	DirectX 12 Ultimate, OpenGL 4.6, Vulkan, CUDA 12.0
TDP / Power Consumption	180 W typical
Power Connector	1 × 8‑pin PCIe
Recommended PSU	600 W (or higher)
Cooling System	Dual‑fan VENTUS 2X with STORMFORCE fans, heat‑pipes, metal backplate
Form Factor / Slot Size	Dual‑slot, approx. 227 × 127 × 41 mm
Supported Features	Real‑time ray tracing (4th‑gen RT cores), AI acceleration (Tensor cores), DLSS 4, NVIDIA G-SYNC, HDCP, HDR, VR Ready
