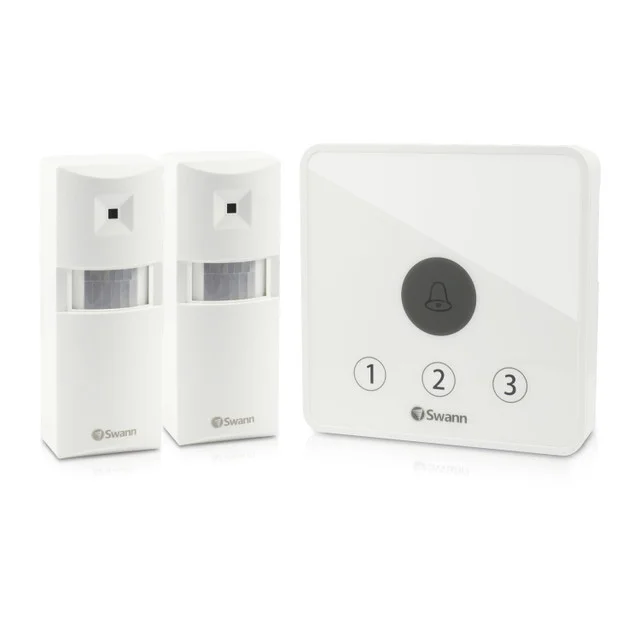

Wireless Home Doorway Alert Kit - SWADS-ALARMS-GL
Request For Price

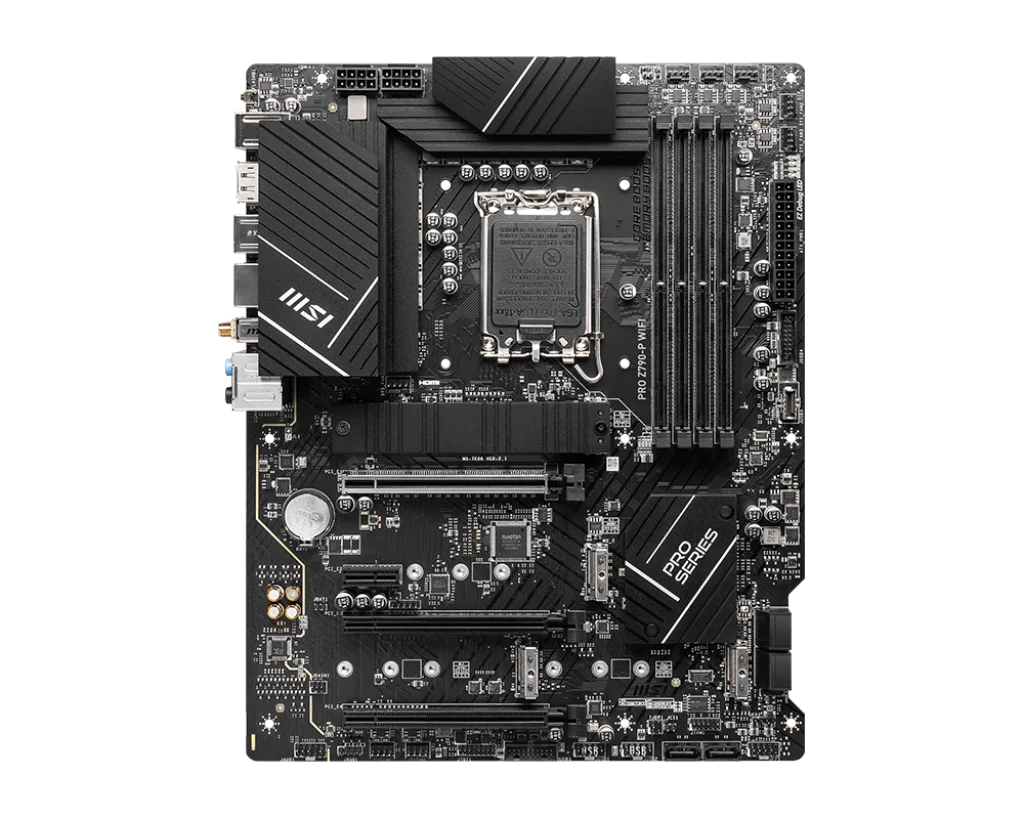

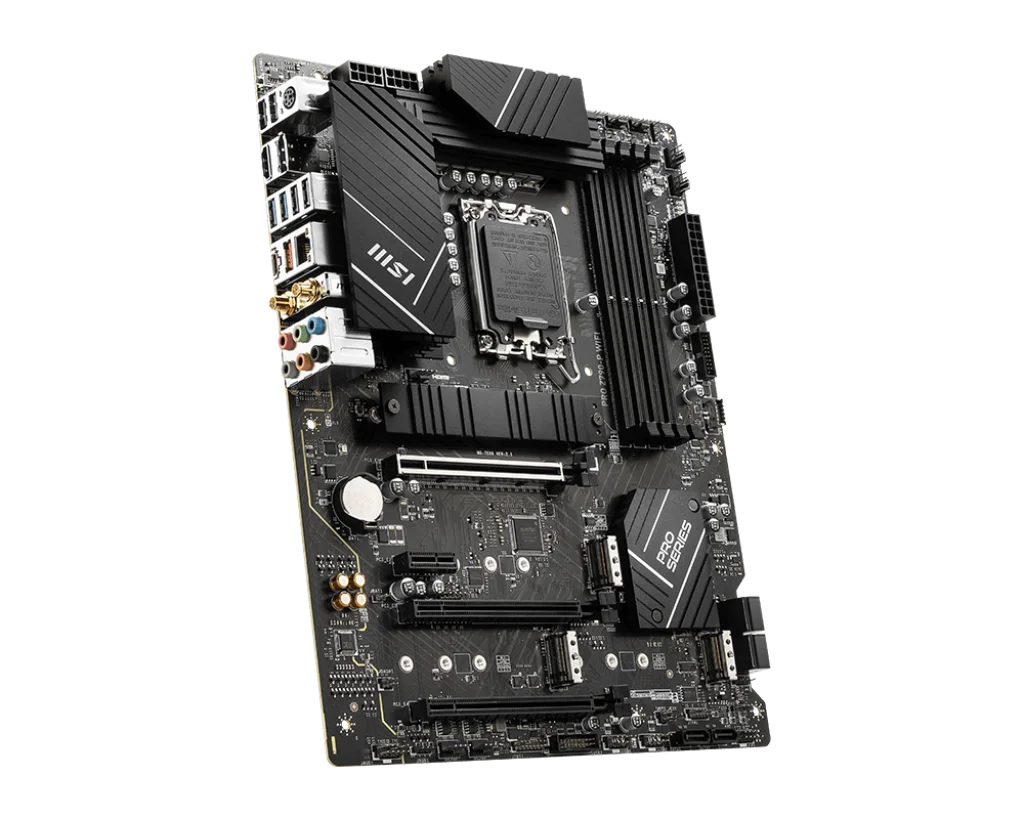

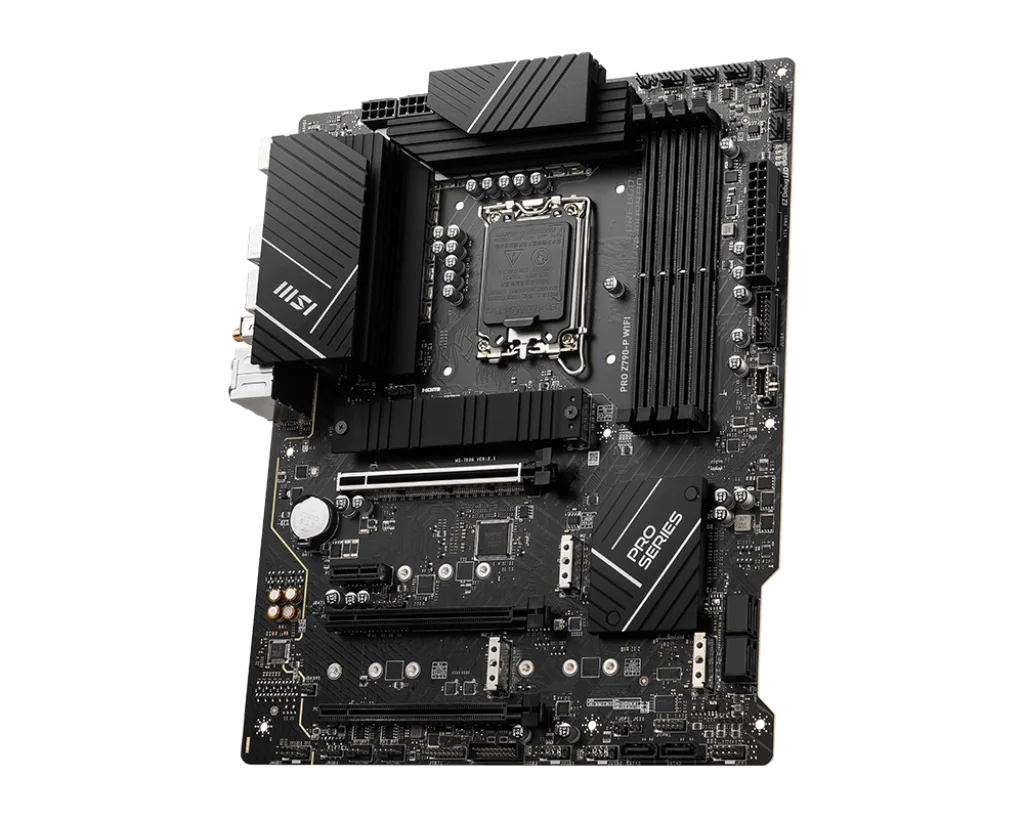

MSI PRO Z790-P WIFI Intel LGA 1700 ATX Motherboard, 4x DDR5 256GB – PRO Z790-P WIFI
$462.00 'inc. GST'
MSI PRO Z790-P WIFI ATX motherboard with Intel Z790 chipset, LGA 1700, DDR5 up to 256GB, PCIe 5.0, 4× M.2 slots, WiFi 6E, Bluetooth 5.3, and USB 20Gbps Type-C support.
In stock
Vendor Code:
Description
MSI PRO Z790-P WIFI Intel LGA 1700 ATX Motherboard, 4x DDR5 256GB – PRO Z790-P WIFI
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)
- Enhanced Power Design: 14+1+1 DRPS with 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Key Features:
PRO Z790-P WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.
PRO Z790-P WIFI
PRO Z790-P WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
PREMIUM THERMAL SOLUTION
HIGH-SPEED TRANSMISSION
EXCLUSIVE FEATURES
COOLING OVERVIEW
1 – Extended Heatsink: Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
2 – M.2 Shield Frozr: Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
3 – Heavy Plated VRM Heatsink: The VRM heatsink covers the upper MOS and helps dissipate the heat.
4 – 7W/mK Thermal Pad & Additional Choke Pad: High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
5 – Chipset Heatsink: The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
LIGHTNING GEN 5 PCI-E WITH STEEL ARMOUR
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED, HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.
The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.
EASY OVERCLOCKING WITH XMP PROFILE
The XMP (Extreme Memory Profiles) in MSI BIOS is tested and certified by MSI OC LAB, and it is easy for users to get the higher memory performance and great stability.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI’s premium network solution provides incredible data transfer speed for demanding users.
– Wi-Fi 6E
– Bluetooth 5.2
– 2.5G LAN
Specifications:
| Chipset | Intel® Z790 |
| CPU Support | Supports Intel® Core™ 14th / 13th / 12th Gen ProcessorsSupports Intel® Pentium® Gold and Celeron® Processors |
| CPU Socket | LGA 1700 |
| Memory | 4 × DDR5 DIMM slotsMaximum memory capacity: 256 GB Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Memory Speed Support | 7000+(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC) MHz |
| Max Overclocking Frequency | 1DPC 1R: up to 7000+ MHz1DPC 2R: up to 6600+ MHz2DPC 1R: up to 6400+ MHz2DPC 2R: up to 5600+ MHz |
| Memory Features | Supports Intel® XMP 3.0 OCDual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory |
| Onboard Graphics | 1 × HDMI™ (HDMI 2.1, HDR, up to 4K @ 60Hz)1 × DisplayPort (DP 1.4, up to 4K @ 60Hz)*Requires CPU with integrated graphics |
| Expansion Slots | 3 × PCI-E x16 slots1 × PCI-E x1 slot |
| PCI-E Configuration | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 Codec7.1-Channel High Definition Audio |
| Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G |
| RAID Support | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| USB Ports | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 2.0 ports (Rear) 4x USB 2.0 ports (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
| LAN | Intel® 2.5Gbps LAN |
| Wireless & Bluetooth | Intel® Wi-Fi 6E (pre-installed M.2 Key-E)Supports 2.4 / 5 / 6 GHz (160MHz), up to 2.4Gbps802.11 a/b/g/n/ac/axBluetooth® 5.3 |
| Internal I/O Connectors | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| LED Features | 4 × EZ Debug LEDs |

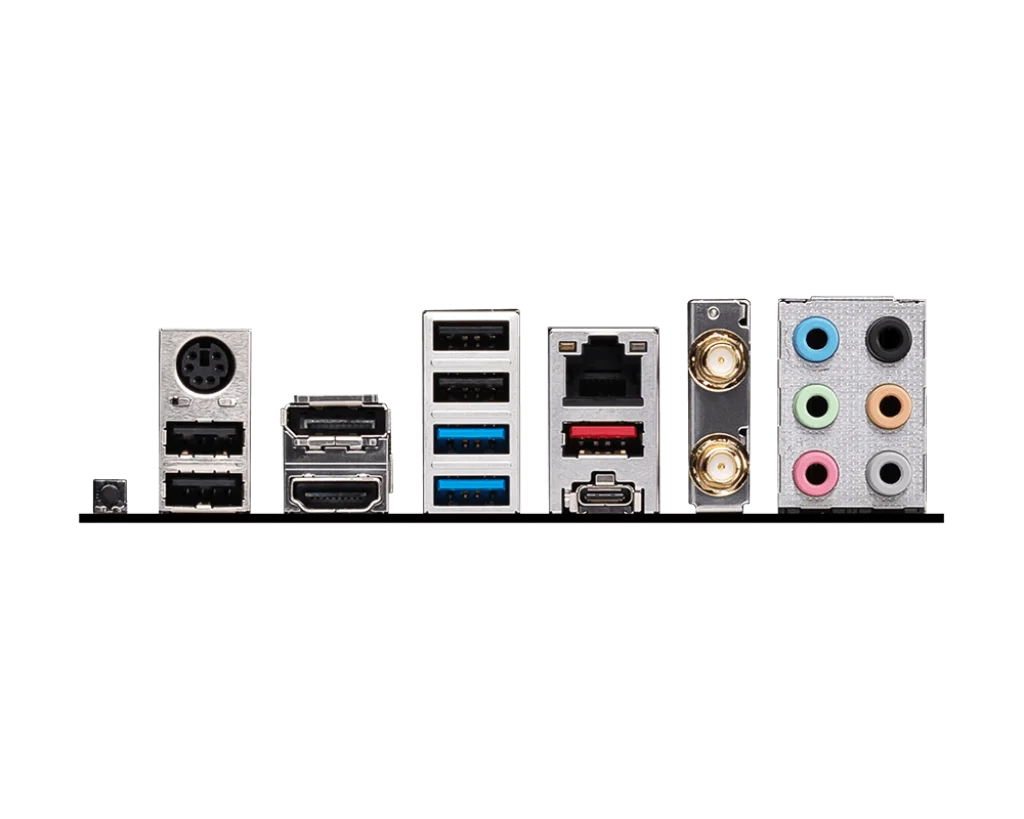

| Back Panel Ports |
|
| Operating System | Windows® 11 64-bit Windows® 10 64-bit |
| Form Factor | ATX |
| Dimensions | 243.84 mm × 304.8 mm |
Additional information
| Brand | |
|---|---|
| PC Components Type |
Motherboard |
| Memory Size |
256 GB |
| Memory Type |
DDR5 |
| Operating System |
Windows 10 64-bit ,Windows 11 64-bit |
