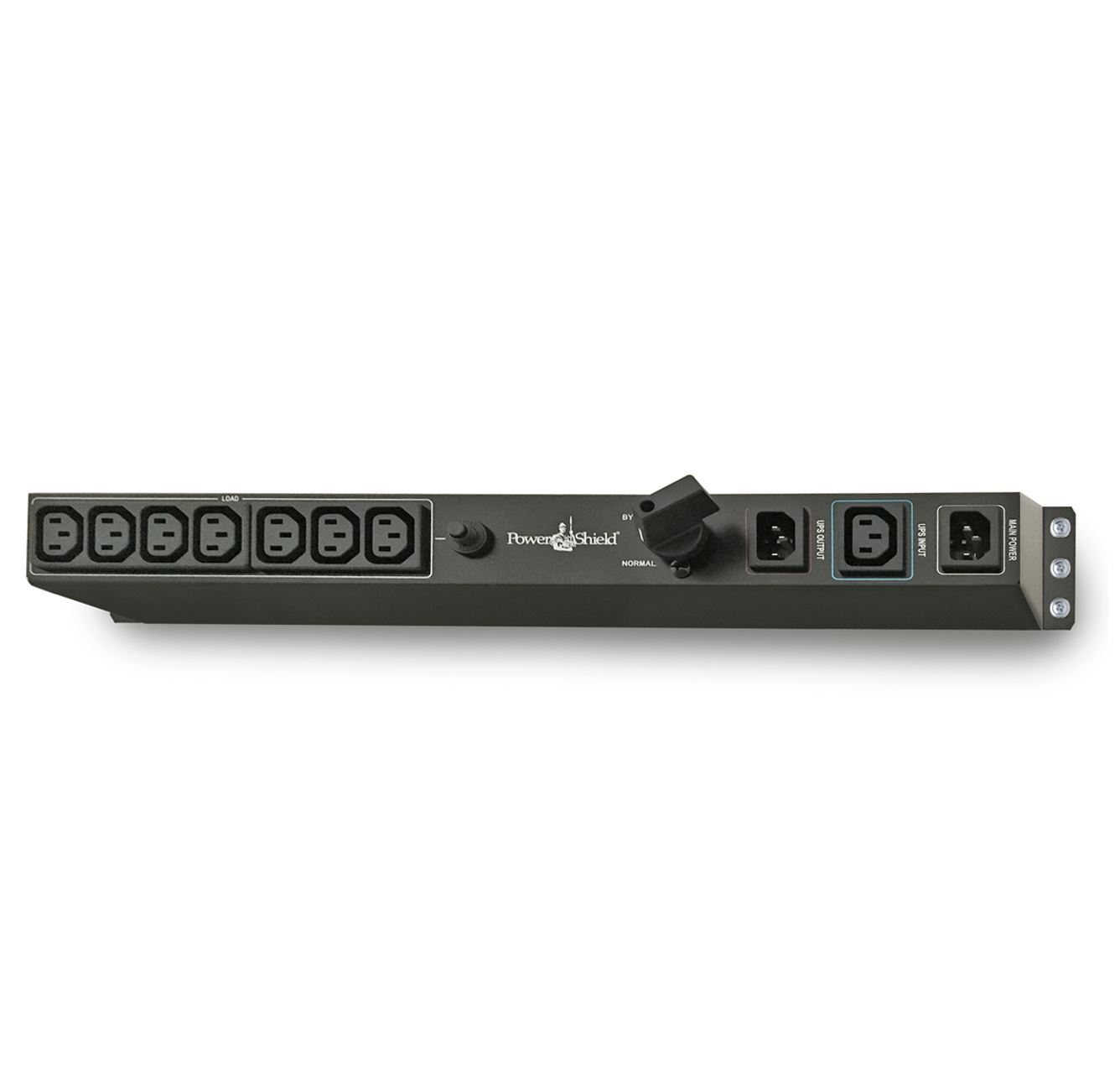

Powershield External Maintenance Bypass Switch For 1000Va And 2000Va UPS - PSMBS2K
Original price was: $481.00.$352.00Current price is: $352.00. 'inc. GST'
Ubiquiti POE-24-24W-G 24V DC POE Adapter – POE-24-24W
$29.70 'inc. GST'
UUbiquiti POE-24-24W-G 24V DC PoE Adapter delivers reliable 24W power with Gigabit connectivity. Ideal for Ubiquiti wireless and networking devices. Compact, efficient, and easy to install.
In stock
Vendor Code:
Description

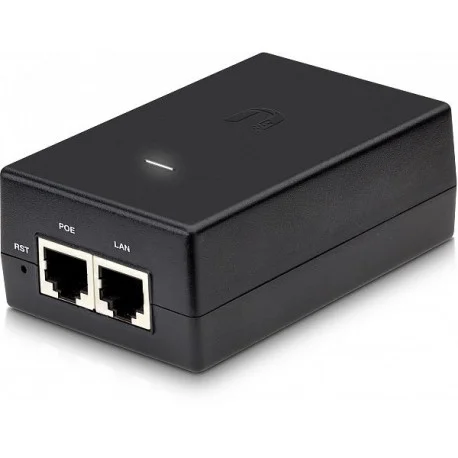

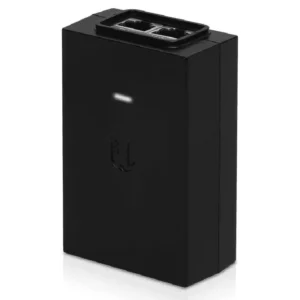

Ubiquiti POE-24-24W-G 24V DC POE Adapter

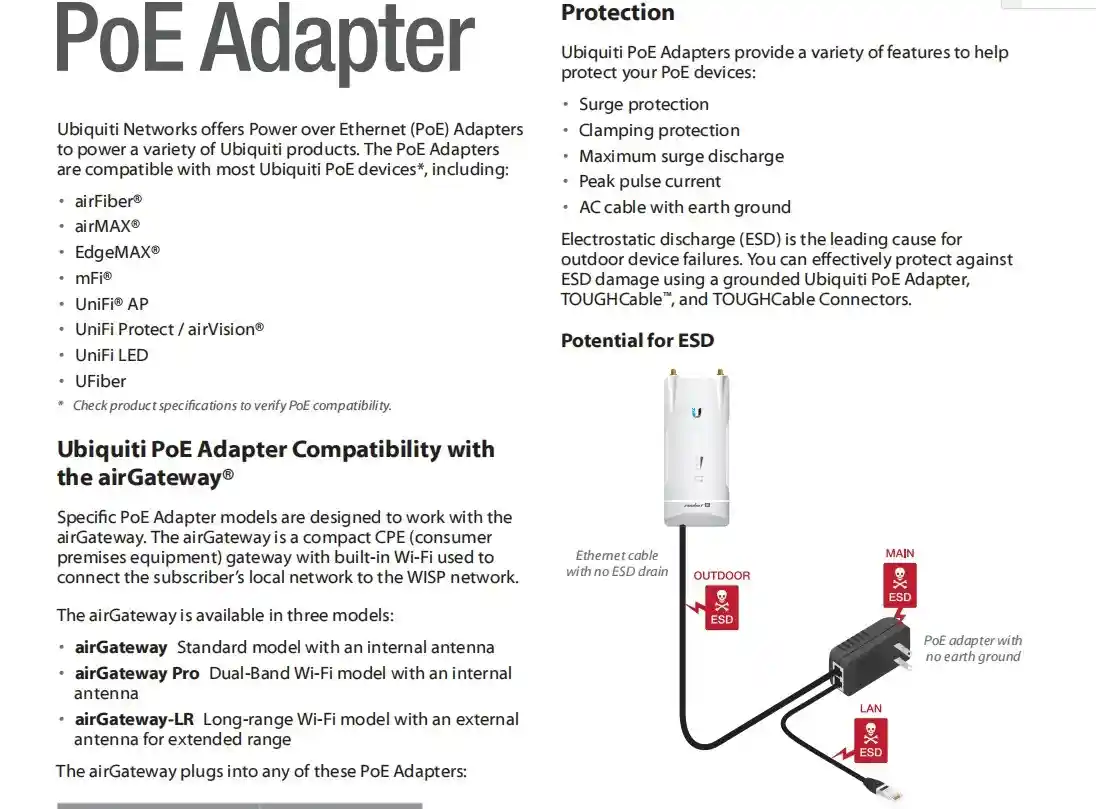

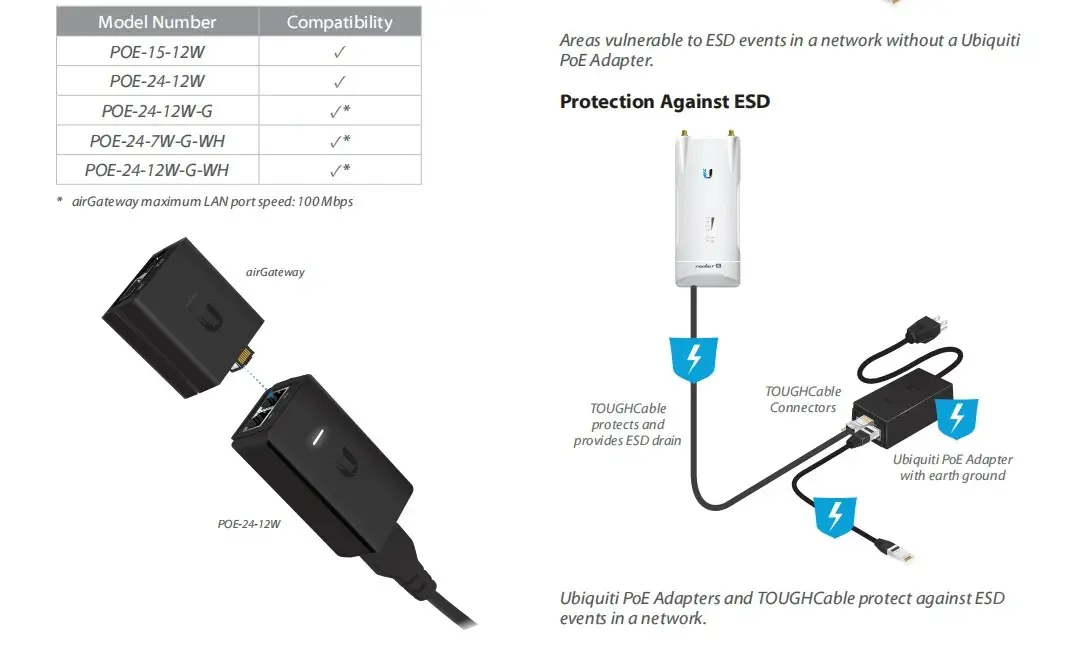

The Ubiquiti POE Adapter is a compact and reliable Power over Ethernet (PoE) Injector designed to provide both data and 24 V DC power (up to 24 W) over a single Ethernet cable for compatible Ubiquiti devices. It enables simple plug-and-play deployments for network devices that require passive PoE, eliminating the need for separate power supplies and simplifying installations.
Key Features:
- Ubiquiti 24 V DC PoE Adapters providing a variety of features to help protect your PoE devices.
- Surge and clamping protection
- Maximum surge discharge
- Peak pulse current
- AC cable with earth ground
Specifications:
| Model | POE-24-24W-G |
| Output Voltage / Power | 24 V DC @ 1.0 A (24 W) |
| Input Voltage | 100-240 V AC, 50/60 Hz |
| Input Current | 0.6 A @ 120 V AC / 0.4 A @ 240 V AC |
| Dimensions (L×W×H) | 88 × 57 × 33 mm (3.5 × 2.2 × 1.3 in) |
| Weight | ~159 g (5.6 oz) |
| Gigabit LAN Port | Yes |
| LAN Activity Indicator | No |
| Remote Reset Capability | Yes |
| Reset Button | Yes |
| Powering Pairs | 2-pair PoE (Pins 4,5 + and 7,8 −) |
| Efficiency | > 80 % |
| Output Ripple | ≤ 1 % |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3 % |
| Load Regulation | ≤ 5 % |
| Surge Protection | Difference & common mode |
| Clamping Protection | 11 V data / 60 V power |
| Max. Surge Discharge | 1500 A (8/20 µs) |
| Peak Pulse Current (Data) | 36 A (10/1000 µs) |
| Shunt Capacitance (Data) | < 5 pF |
| Response Time | < 1 ns |
| Operating Temp. | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temp. | −30 °C to 70 °C (−22 °F to 158 °F) |
| Operating Humidity | 35 % to 95 % non-condensing |
| AC Connector | IEC-320 C6 |
| Data IN / PoE Port | RJ45 shielded socket |
| Certifications | CE, FCC, IC, UL |
Additional information
| Weight | 0.135 kg |
|---|---|
| Dimensions | 88 × 57 × 33 cm |
| Brand | |
| Adaptor Type |
Ethernet Adaptor ,Power Adaptor |
| Color |
Black |
