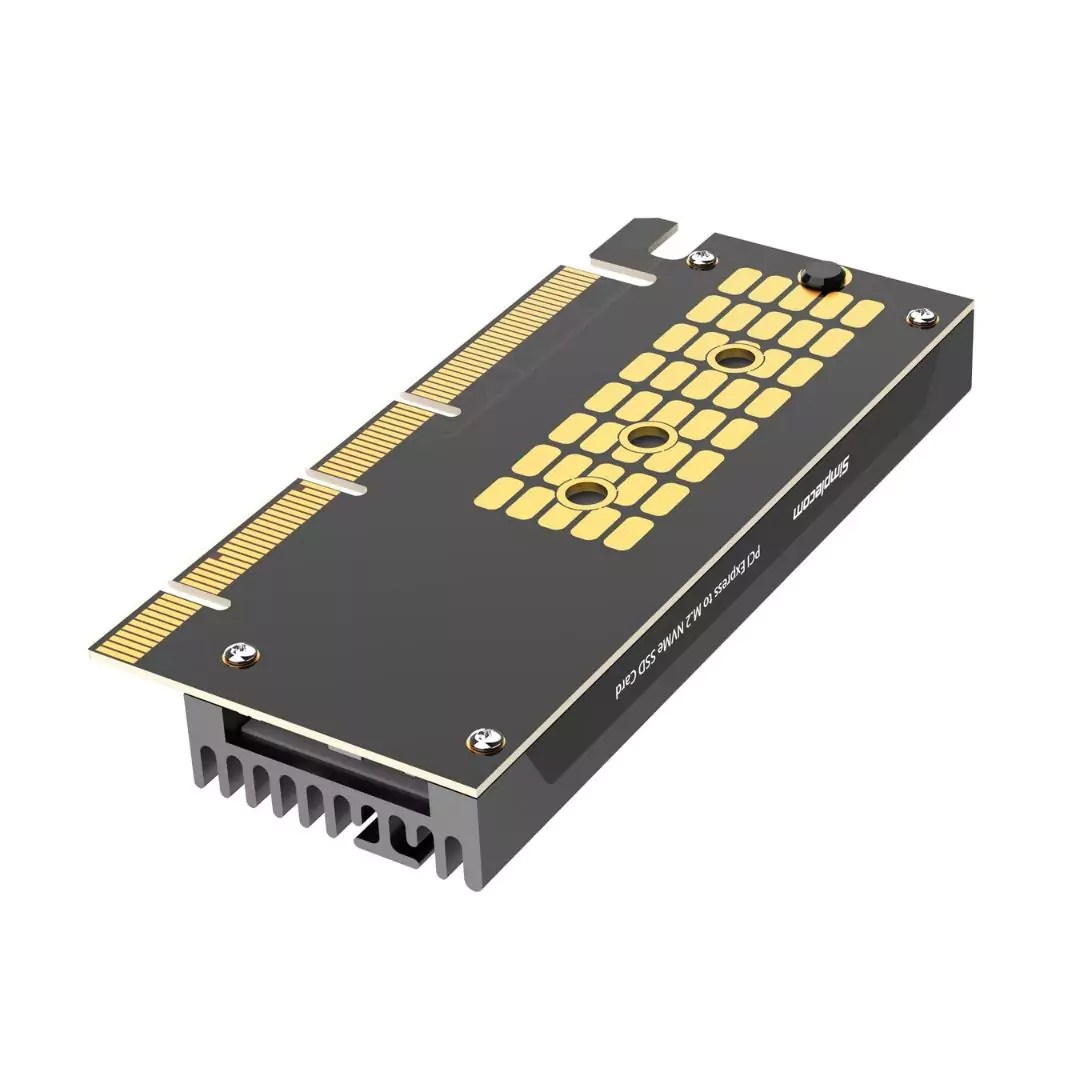

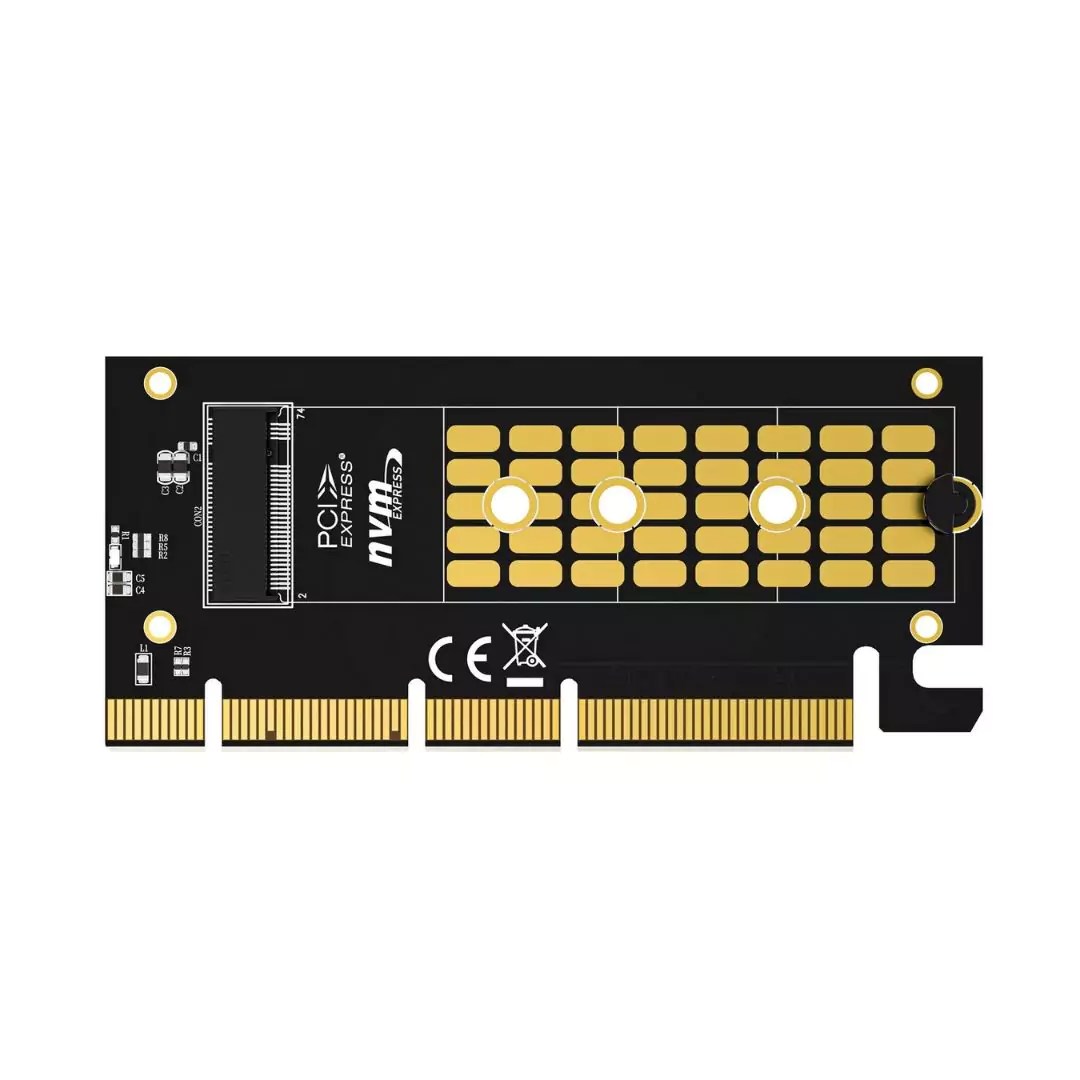

Simplecom EC415B NVMe M.2 SSD to PCIe x4/x8/x16 Expansion Card Black

Simplecom EC415B NVMe M.2 SSD to PCIe x4/x8/x16 Expansion Card with Aluminium Heat Sink – Black

The Simplecom EC415B is a high-performance PCI Express expansion card designed to seamlessly integrate an NVMe M.2 SSD into your desktop PC. Whether you’re upgrading your system for faster boot times, improved data access, or enhanced overall performance, this expansion card offers a reliable and efficient solution. With its sleek black finish and robust aluminium heat sink, the EC415B combines functionality with thermal efficiency, ensuring your SSD operates at optimal temperatures even under heavy workloads.

Built specifically for NVMe M.2 SSDs, the EC415B supports PCIe x4, x8, and x16 physical slots, allowing users to maximize throughput and take full advantage of the SSD’s speed capabilities. The included silicone thermal pad enhances heat transfer between the SSD and the heat sink, promoting stable performance and longevity. Installation is straightforward, with no need for external power—just plug it into your motherboard and you’re ready to go.

This expansion card is ideal for users with legacy motherboards that lack native NVMe support, offering a practical way to add high-speed storage without replacing the entire system. It supports Windows 8 and above, and is compatible with a wide range of M.2 SSD sizes including 2230, 2242, 2260, and 2280.

Key Features

• Add NVMe M.2 Slot Instantly expand your PC’s storage capabilities with support for one NVMe M.2 SSD.

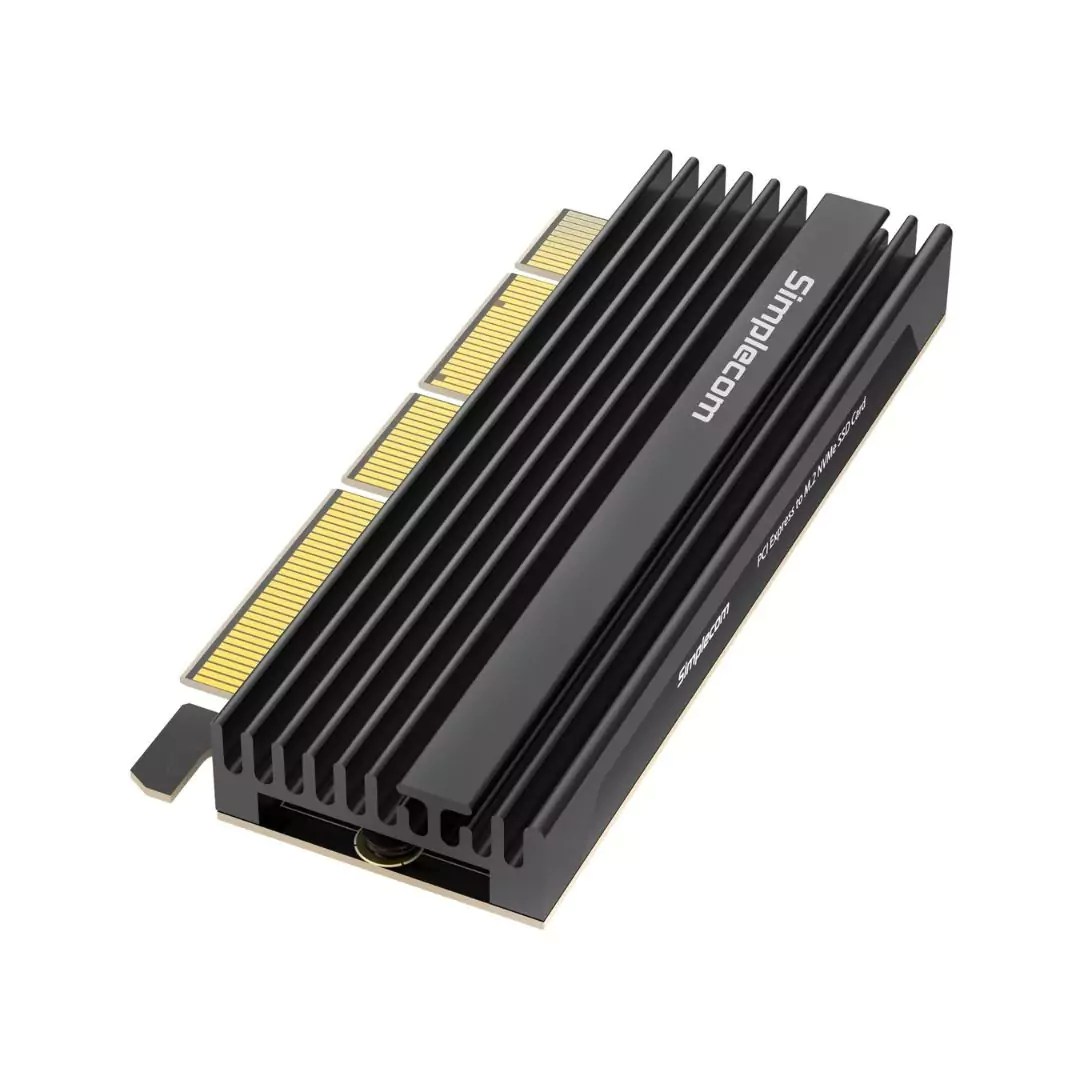

• Aluminium Heat Sink Provides effective heat dissipation to maintain SSD performance and reliability.
• Silicone Thermal Pad Enhances thermal conductivity between SSD and heat sink for better cooling.
• PCIe Slot Powered No additional power cables required—powered directly from the motherboard.
• Wide Slot Compatibility Supports physical PCIe x4, x8, and x16 slots for flexible installation.
• High-Speed Bandwidth Delivers up to 7.8Gbps throughput on PCIe 4.0 interface.
• OS Compatibility Works with Windows 8 and above for modern system integration.

Technical Specifications

Package Contents

• 1 × NVMe M.2 to PCIe Expansion Card
• 1 × Aluminium Heat Sink with Thermal Pad
• 1 × Standoff and Screw Set

Important Notes

• NVMe SSD only – SATA M.2 SSDs are not supported.
• Requires PCIe x4, x8, or x16 slot—PCIe x1 is not supported.
• Booting from NVMe via PCIe may not be supported on legacy motherboards.
• Ensure your system uses an Intel 9 series chipset or newer for full compatibility.
• If a yellow exclamation mark appears in Device Manager, check for drivers from your SSD manufacturer.

Whether you’re building a high-speed workstation or upgrading an older system, the Simplecom EC415B offers a powerful and efficient way to unlock the full potential of NVMe storage—delivering speed, stability, and simplicity in one compact expansion card.
