Simplecom SA207 mSATA + M.2 (NGFF) to SATA 2 In 1 Combo Adapter

Simplecom SA207 mSATA + M.2 (NGFF) to SATA 2-in-1 Combo Adapter

The Simplecom SA207 is a versatile 2-in-1 SSD adapter designed to convert either mSATA or M.2 (NGFF) SATA-based SSDs into a standard SATA 3 interface, making it easy to access, upgrade, or repurpose your storage. Whether you’re performing data migration, backups, or simply reusing older SSDs, the SA207 offers a reliable and plug-and-play solution for both internal and external SATA setups.

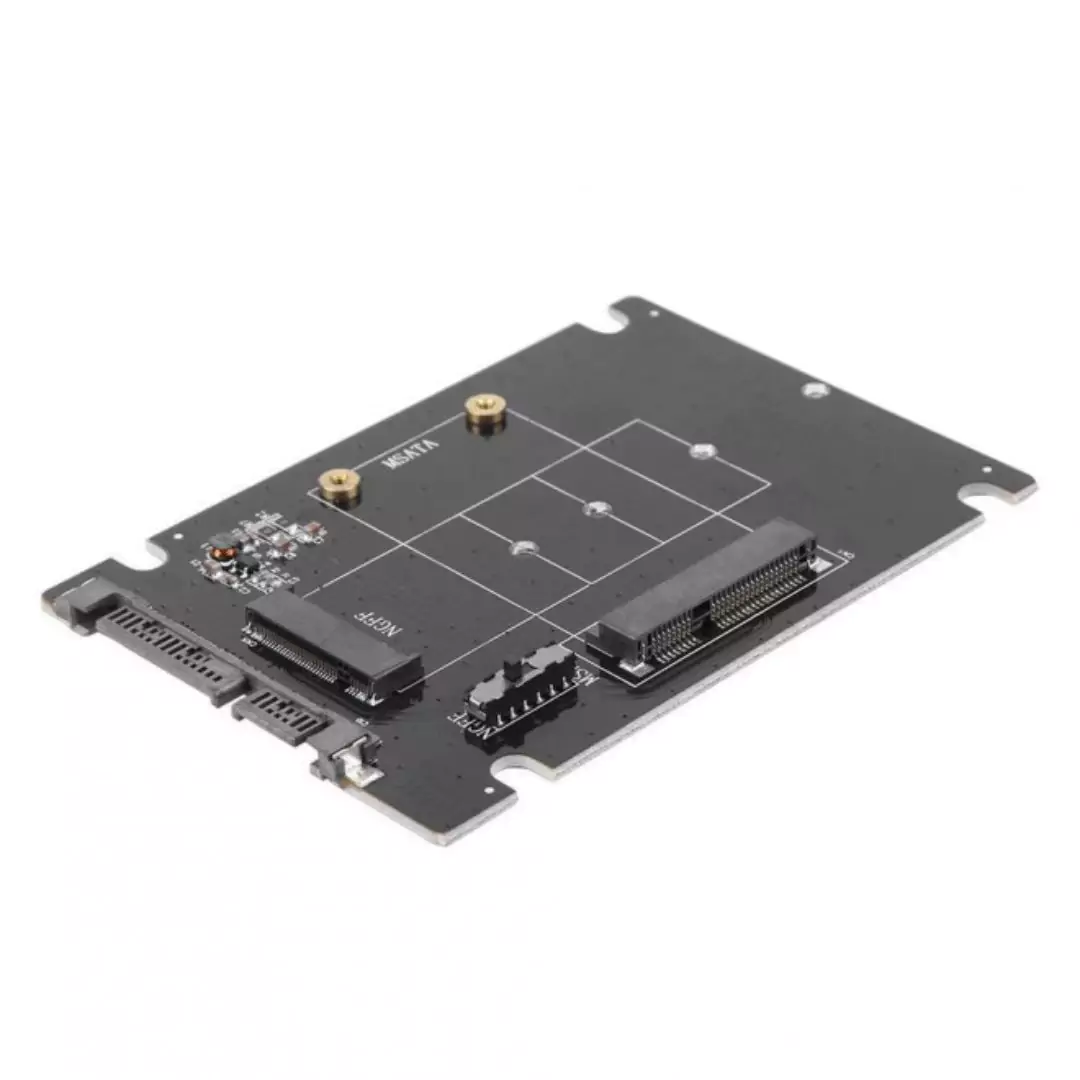

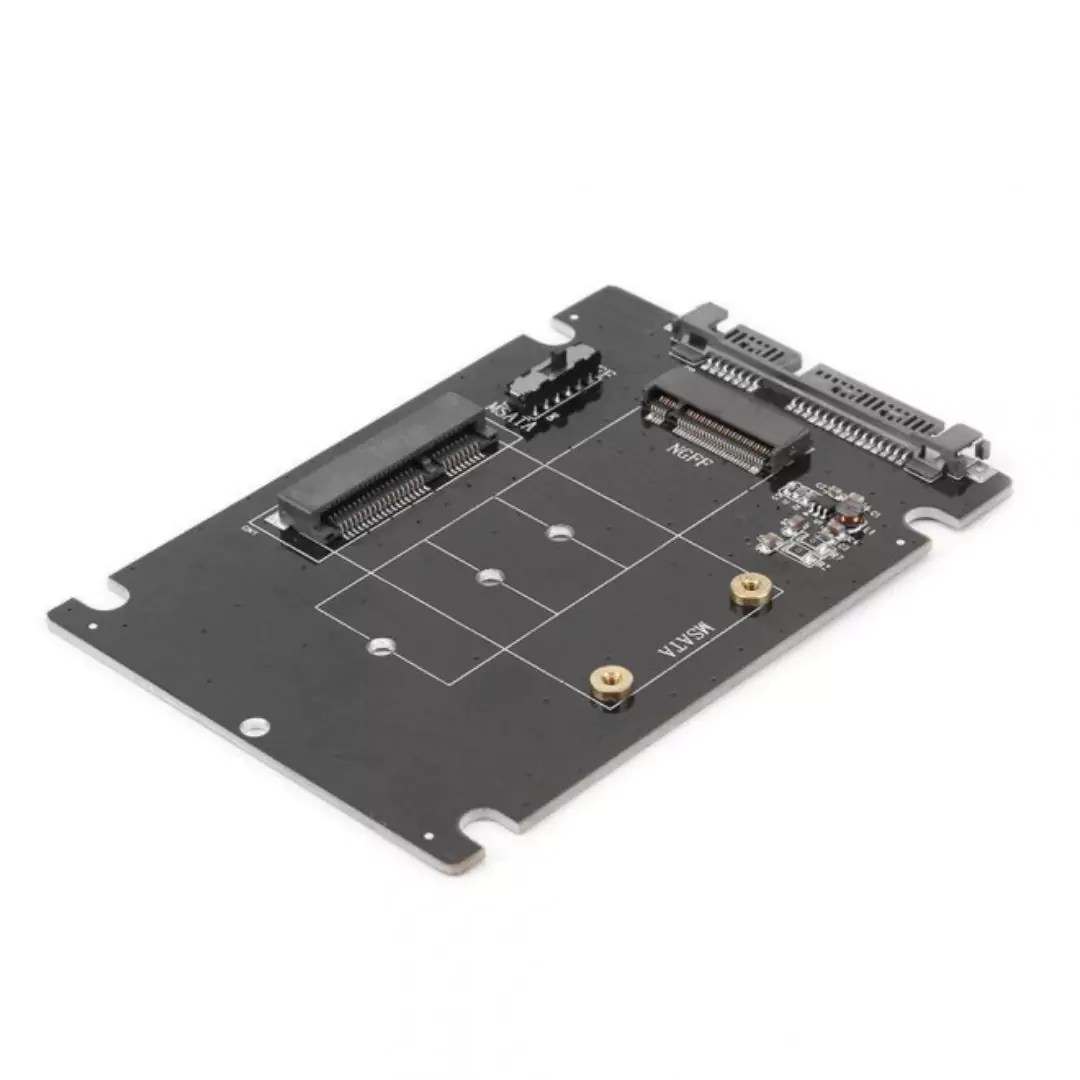

With onboard switching between mSATA and M.2 slots, users can choose which SSD type to use without needing multiple adapters. Its compact circuit board fits easily into standard SATA enclosures or desktop configurations, and no drivers are required—just connect and go.

Key Features

• 2-in-1 SSD Compatibility Supports both mSATA and M.2 (NGFF) SATA SSDs in one adapter.
• SATA 3 Interface Conversion Converts mSATA or M.2 SSDs to SATA III (6Gbps) for fast data access.
• Onboard Switch Easily toggle between mSATA and M.2 SSDs depending on your setup.
• Plug-and-Play Design No drivers or software needed—just install and start using.

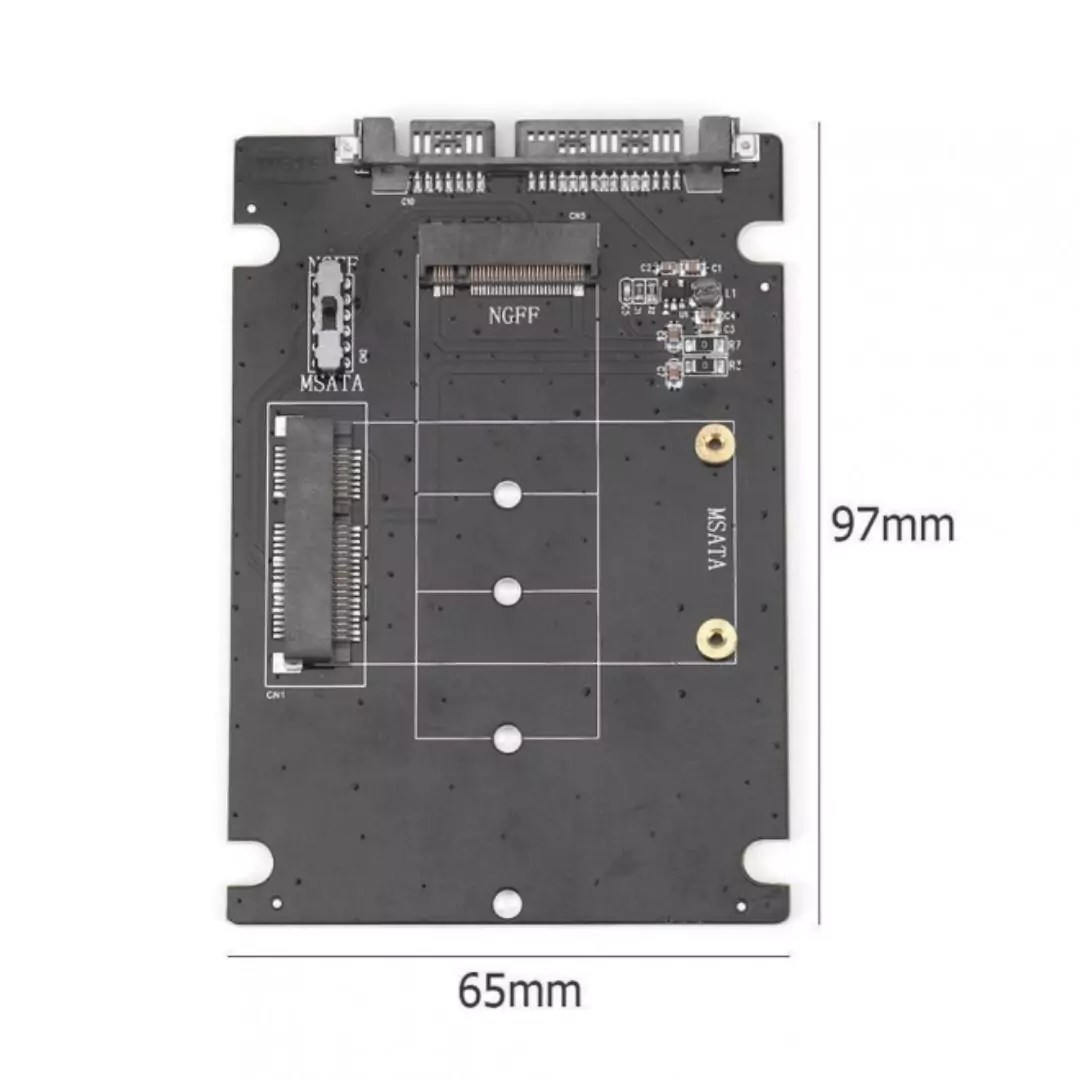

• Compact Form Factor Circuit board size: 97 × 65 × 5 mm, ideal for tight spaces or enclosures.
• Wide SSD Support Compatible with multiple M.2 and mSATA form factors for flexible use.

Supported SSD Form Factors

M.2 (NGFF) SATA SSDs

• 2230 — 30 × 22 mm
• 2242 — 42 × 22 mm
• 2260 — 60 × 22 mm
• 2280 — 80 × 22 mm (Supports B Key and B+M Key only)

mSATA SSDs

• Full Size — 50.95 × 30 mm

Package Contents

• 1 × SA207 mSATA + M.2 SSD to SATA Combo Adapter
• 1 × Screwdriver
• Screws with Washer

Important Note

This adapter is not compatible with NVMe PCIe M.2 SSDs or M Key-only modules. It supports SATA-based SSDs with B Key or B+M Key configurations only. Always verify your SSD’s interface type before installation.

Whether you’re a technician, DIY builder, or everyday user looking to streamline your storage setup, the Simplecom SA207 delivers flexibility, speed, and simplicity in one compact solution.
