STARTECH 1M DP TO VGA ADAPTER CABLE, 3YR

STARTECH 1M DP TO VGA ADAPTER CABLE, 3YR

The StarTech DP2VGAMM3B is a 3‑foot (≈ 0.91 m) active DisplayPort‑to‑VGA adapter cable. It allows you to connect a computer, laptop, or docking station with a DisplayPort output directly to a monitor or projector that only supports VGA — without needing additional adapters or dongles. The converter is active, so it digitally converts the DisplayPort signal to analog VGA. It is plug‑and‑play and works with common operating systems, making it a simple and reliable solution for bridging modern DisplayPort sources with legacy VGA displays.

Key Features

• Active DisplayPort → VGA conversion, so digital DP output is properly converted for analog VGA displays.

• Supports output resolutions up to 1920×1200 (WUXGA) and standard HDTV 1080p.

• Plug‑and‑play — no driver or software installation required.

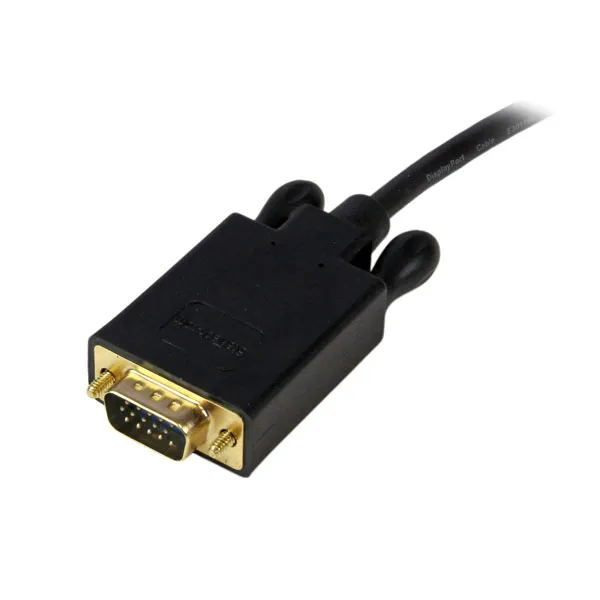

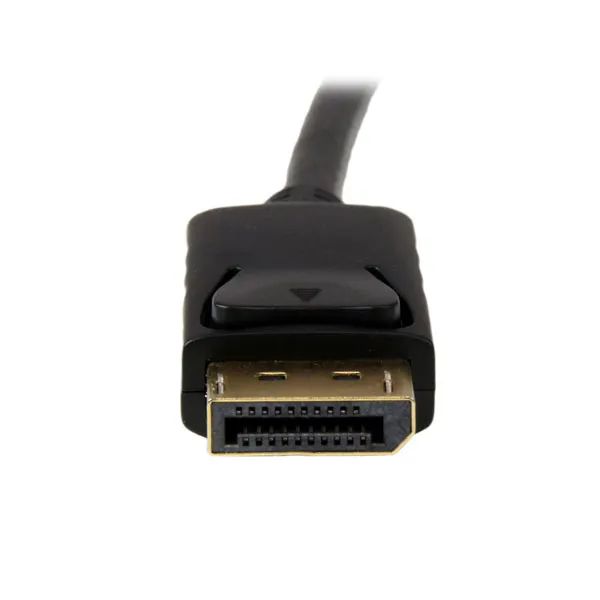

• Latching DisplayPort connector (for secure connection at source) and standard male VGA connector.

• Active converter chip integrated (Chipset: Analogix 9832) to ensure signal integrity.

• Compact, short‑cable design — ideal for desk setups with limited distance between PC and monitor.

• Compatible with any DisplayPort or DP++ source (desktops, laptops, workstations, docking stations).

Technical Specification
