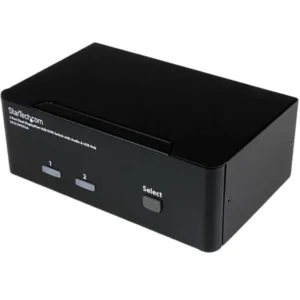

StarTech 2 Port Dual DisplayPort KVM Switch, USB, Audio, Hotkey, No Cable- SV231DPDDUA
Request For Price
StarTech.com 2-Port Dual DisplayPort USB KVM Switch enables control of two dual-head DisplayPort computers with one keyboard, mouse, and dual monitors. Supports high resolutions up to 2560 × 1600 @ 60 Hz and integrated USB hub plus audio switching, 3 year warranty.
Vendor Code:
Description
StarTech 2 Port Dual DisplayPort KVM Switch, USB, Audio, Hotkey, No Cable
The 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560×1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840×2400 is supported at reduced refresh rates.
Applications
- Multimedia design, multimedia post-production and video editing using Mac or PC computers
- High resolution medical imaging and Health care display, such as MRI and Xray display
- Stock trading stations with dual displays
- Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
- Dual system control for a single workstation increasing productivity in the office
- Leverage DisplayPort’s high resolution capabilities for Satellite Topography equipment
- Perfect for high-res Digital Signage server control, simplifying access to multiple systems
The StarTech.com Advantage
- Versatile audio support via digital DisplayPort HD multi-channel audio or 3.5mm stereo analog audio
- Integrated USB 2.0 hub provides peripheral sharing to eliminate the expense of duplicate devices (printers, scanners, etc.)
- Versatile KVM solution works well with Mini-DisplayPort, DisplayPort to DVI or HDMI adapters; perfect for Dual DisplayPort or DisplayPort + DVI or HDMI video output, including Macbook® connectivity
Key Features:
- Native dual DisplayPort connections – no adapter required
- Supports 2560×1600 @ 60Hz resolutions; beyond 1080p
- Maximum resolutions of 3840×2400 at lower refresh rates
- 7.1 Channel High Definition Digital Audio supported via the DisplayPort interface
- 3.5mm 2-channel stereo audio and microphone
- Integrated 2 port hub for USB 2.0 peripheral sharing
- No driver or software installation required
- OS Independent
- Hotkey and push-button switching
- Full plug-and-play support with USB console interfaces
- User-defined scan time intervals
- Audio can be switched independently
- Supports hot-plug, un-plug and link status-failure detection
- Supports DDC2B for monitor detection
- VESA and CEA compliant
- Small form factor design with rear connection ports
Specifications:

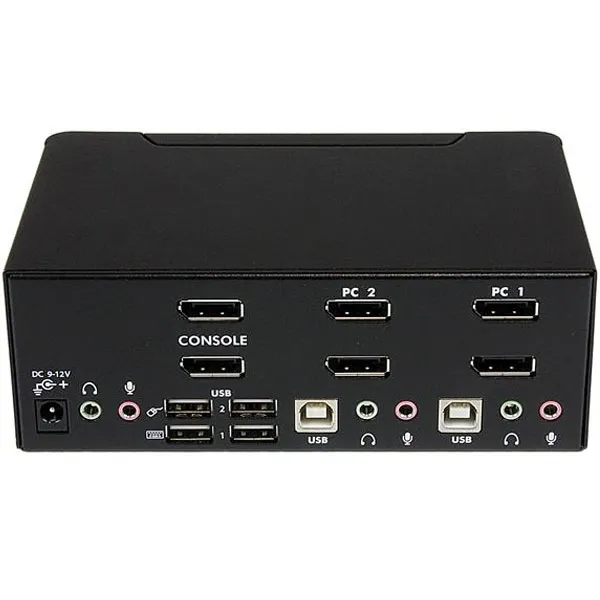

CONNECTOR(s) | |
| Console Interface(s) | 2 – 3.5 mm Mini-Jack (3 Position) 2 – DisplayPort (20 pin) 4 – USB 2.0 Type-A (4 pin, 480Mbps) |
| Host Connectors | 4 – 3.5 mm Mini-Jack (3 Position) 4 – DisplayPort (20 pin) 2 – USB B (4 pin) |
ENVIRONMENTAL | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0~80% RH |
HARDWARE | |
| Audio | Yes |
| KVM Ports | 2 |
| PC Interface | USB |
| PC Video Type | DisplayPort |
| Number of Monitors Supported | 2 |
| Rack-Mountable | No |
| Cables Included | No |
| Daisy-Chain | No |
INDICATOR | |
| LED Indicators | 2 – Green – On-Line 2 – Red – Selected PC |
PACKAGING INFORMATION | |
| Package Height | 3.9 in [10.0 cm] |
| Package Length | 7.4 in [18.8 cm] |
| Shipping (Package) Weight | 2.6 lb [1.2 kg] |
| Package Width | 9.9 in [25.2 cm] |
| Package Quantity | 1 |
PERFORMANCE | |
| On-Screen Display | No |
| IP Control | No |
| Hot-Key Selection | Yes |
| Maximum Number of Users | 1 |
| Maximum Digital Resolutions | WQXGA – 2560 x 1600 |
| Port Selection Support | Push Button and Hotkeys |
| MTBF | 138000 hours |
PHYSICAL CHARACTERISTICS | |
| Weight of Product | 25.9 oz [734 g] |
| Color/Material | Black/Steel |
| Product Length | 6.3 in [16.0 cm] |
| Product Width | 1.6 in [4.0 cm] |
| Product Height | 3.9 in [9.9 cm] |
POWER | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 – 240 AC |
| Input Current | 0.8A |
| Output Voltage | 12V DC |
| Output Current | 1.5A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption (In Watts) | 18 |
SOFTWARE | |
| OS Compatibility | OS independent; No software or drivers required |

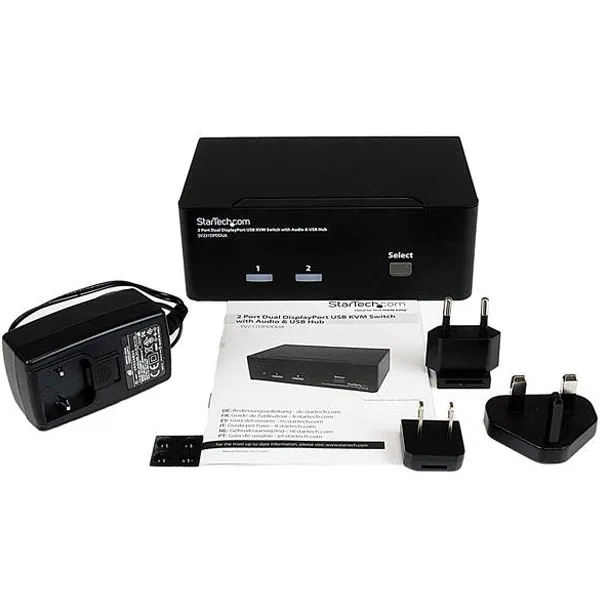

IN THE BOX | |
| Included in Package | 1 – 2-port dual display DisplayPort KVM 1 – universal power adapter (NA/EU/UK/AU) 1 – instruction manual |
Additional information
| Brand | |
|---|---|
| Switch type |
USB Cable KVM Switch |
| Warranty |
3 Years |
