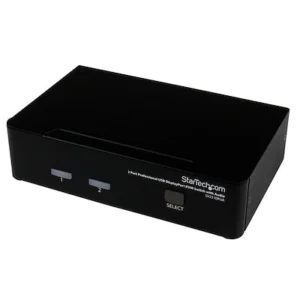

StarTech 2 Port Single DisplayPort KVM Switch, USB, Audio, No Cable-SV231DPUA
Request For Price
StarTech.com 2-Port DisplayPort USB KVM Switch lets you control two DisplayPort-equipped computers with a single monitor, keyboard, and mouse — supports up to 2560 × 1600 @ 60 Hz, audio switching, and shared USB peripherals, 3year warranty.
Vendor Code:
Description
StarTech 2 Port Single DisplayPort KVM Switch, USB, Audio, No Cable
The 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.

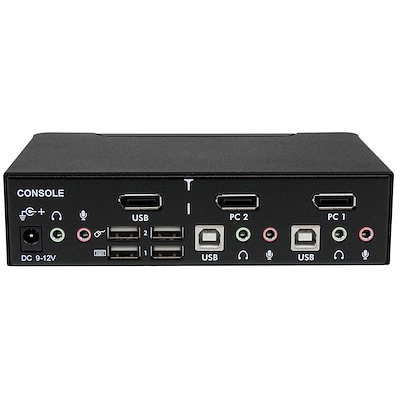

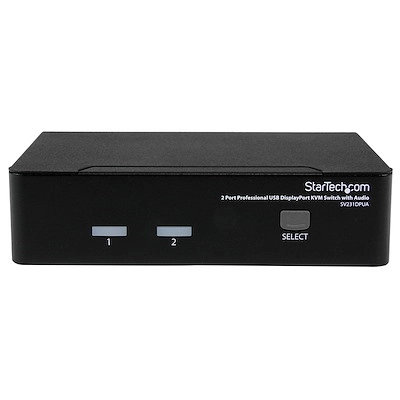

A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.
A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.
Applications
- Multimedia design, multimedia post-production and video editing using Mac or PC computers
- High resolution medical imaging and Health care display, such as MRI and Xray display
- Manufacturing line computer control
- PC test/burn-in computer control
- High-res Digital Signage server control
- Satellite Topography
- Dual system control for a single work terminal
The StarTech.com Advantage
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple MacBook® connectivity
- Support for both analog and digital audio sources provides the versatility to use either connection depending on preference/availability
- USB peripheral sharing eliminates the expense of duplicate devices (printers, scanners, etc.)
Key Features:
- Supports native DisplayPort computer connections – no adapter required
- Native resolution: 2560 x 1600 @ 60Hz, beyond 1080p
- VESA and CEA compliant
- Supports a maximum resolution of 3840 x 2400 at lower refresh rates
- Supports 3.5mm Stereo analog audio; Supports 7.1 Channel High Definition Digital Audio through the DisplayPort connection
- USB 2.0 peripheral sharing
- No driver or software installation required
- Hotkey and push-button switching
- Full plug-and-play support with USB keyboards, mice, and connected peripherals
- Platform Independent – Supports Mac and PC operating environments
- Supports DDC2B for monitor detection
- Supports hot-plug, un-plug and link status-failure detection
- User-defined scan time intervals
Specifications:
CONNECTOR(s) | |
| Console Interface(s) | 4 – USB 2.0 Type-A (4 pin, 480Mbps) 2 – 3.5 mm Mini-Jack (3 Position) 1 – DisplayPort (20 pin) |
| Host Connectors | 2 – USB B (4 pin) 4 – 3.5 mm Mini-Jack (3 Position) 2 – DisplayPort (20 pin) |
ENVIRONMENTAL | |
| Operating Temperature | a0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0~80% RH |
HARDWARE | |
| Audio | Yes |
| KVM Ports | 2 |
| PC Interface | USB |
| PC Video Type | DisplayPort |
| Number of Monitors Supported | 1 |
| Rack-Mountable | No |
| Cables Included | No |
| Daisy-Chain | No |
INDICATOR | |
| LED Indicators | 2 – Green – Online indicator (One LED per port)
2 – Red – Select indicator (One LED per port) |
PACKAGING INFORMATION | |
| Package Height | 3.9 in [9.9 cm] |
| Package Length | 7.4 in [18.7 cm] |
| Shipping (Package) Weight | 2.4 lb [1.1 kg] |
| Package Width | 10.1 in [25.6 cm] |
| Package Quantity | 1 |
PERFORMANCE | |
| On-Screen Display | No |
| IP Control | No |
| Hot-Key Selection | Yes |
| DVI Support | No |
| Maximum Number of Users | 1 |
| Maximum Digital Resolutions | 2560 x 1600 @ 60Hz |
| Wide Screen Supported | Yes |
| Port Selection Support | Push Button and Hotkeys |
| MTBF | 127000 hours |
PHYSICAL CHARACTERISTICS | |
| Weight of Product | 1.4 lb [0.6 kg] |
| Color/Material | Black/Steel |
| Product Length | 6.3 in [16.0 cm] |
| Product Width | 1.6 in [4.0 cm] |
| Product Height | 3.9 in [9.9 cm] |
POWER | |
| Power Source | AC Adapter Included |
| Input Voltage | 100 – 240 AC |
| Input Current | 0.8A |
| Output Voltage | 12V DC |
| Output Current | 2A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption (In Watts) | 24 |
SOFTWARE | |
| OS Compatibility | OS independent; No software or drivers required |

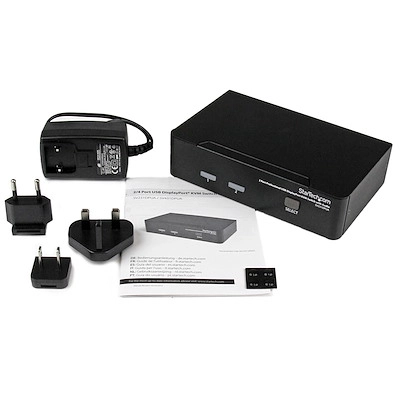

IN THE BOX | |
| Included in Package | 1 – 2-port DisplayPort KVM switch 4 – foot pads
1 – universal power adapter (NA/UK/EU/AU)
1 – instruction manual |
Additional information
| Brand | |
|---|---|
| Switch type |
USB Cable KVM Switch |
| Warranty |
3 Years |
