Name: TP-Link 5-Port Unmanaged Gigabit Desktop Switch-TL-SG1005LP | Fast IT Solutions Australia
Brand: TP-Link
SKU: TL-SG1005LP
Price: 75.90 AUD
Availability: InStock

TP-Link 5-Port Unmanaged Gigabit Desktop Switch-TL-SG1005LP

$75.90 'inc. GST'

TP-Link 5-Port Gigabit PoE+ Switch with 4 PoE+ Ports and 40 W Power Budget — unmanaged plug-and-play networking with QoS and IGMP Snooping for efficient, silent Gigabit and PoE deployment, 5year warranty.

In stock

Vendor Code:

SKU: TL-SG1005LP Categories: Network & Connectivity, Switches & Hubs, Unmanaged Switch Brand: TP-Link

Supplier ID: DIC-TL-SG1005LP

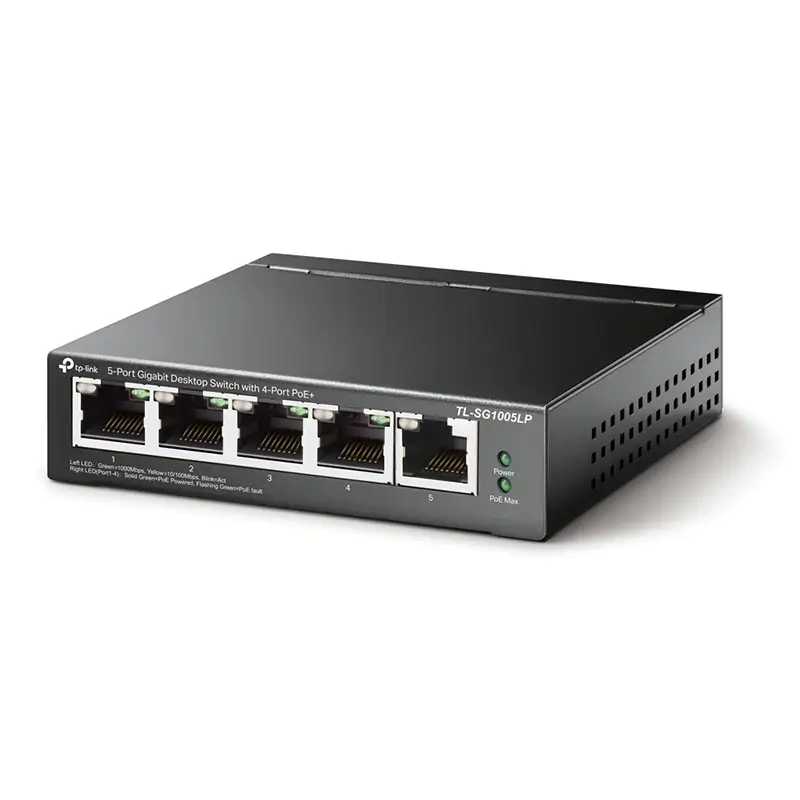

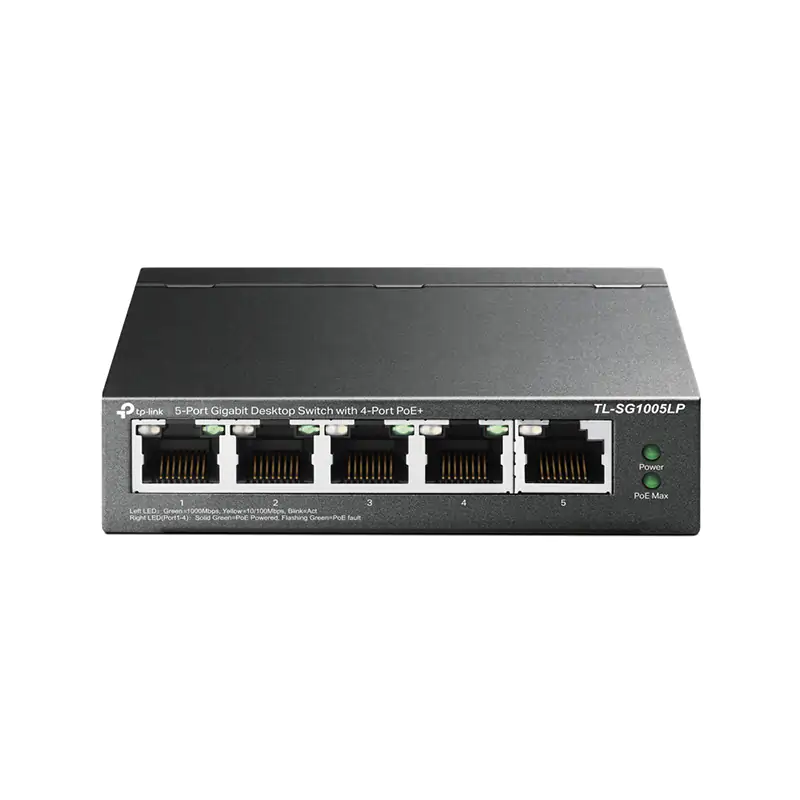

TP-Link 5-Port Unmanaged Gigabit Switch, POE(4), 40w, Metal Case

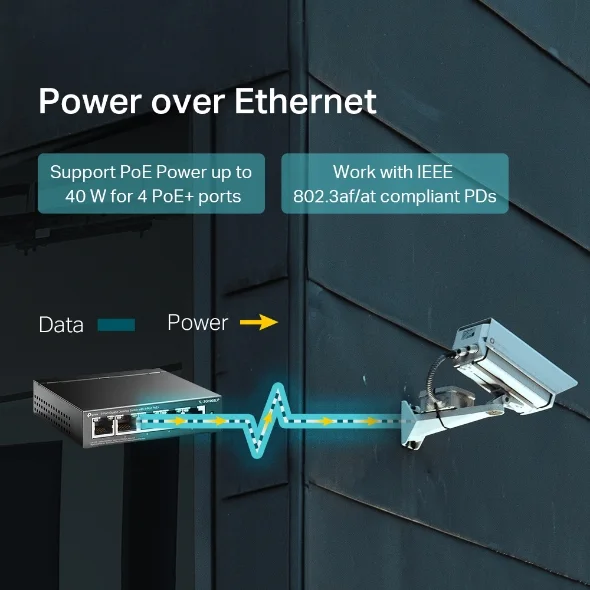

The TP-Link 5-Port Gigabit Unmanaged Ethernet Switch with 4 PoE+ ports, purpose-built to simplify and power network devices using a single cable. Delivering four IEEE 802.3af/at-compliant PoE+ ports with up to 30 W per port and a total 40 W PoE budget, it enables seamless deployment of IP cameras, wireless access points, VoIP phones, and other PoE-powered devices without separate power adaptors

Key Features:

5× 10/100/1000 Mbps RJ45 ports
With four PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 40 W for all PoE ports
Plug and play, no configuration and installation required

Specifications:

HARDWARE FEATURES
Interface	5× 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 53.5 VDC / 0.81 A)
Packet Forwarding Rate	7.44 Mpps
PoE Ports (RJ45)	Standard: 802.3 af/at compliant PoE Ports: Ports 1–4 Power Supply: 40 W
Mac Address Table	2K
Jumbo Frame	16 KB
Switching Capacity	10 Gbps
Dimensions ( W x D x H )	3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption	4.12 W (220/50 Hz. no PD connected) 47.5 W (220/50 Hz. with 40 W PD connected)
Max Heat Dissipation	14.05 BTU/h (no PD connected) 161.98 BTU/h (with 40 W PD connected)
SOFTWARE FEATURES
Advanced Features	Compatible With IEEE 802.3af/at Compliant PDs Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping
Transfer Method	Store-And-Forward
OTHERS
Certification	FCC, CE, RoHS
Package Contents	TL-SG1005LP Power Adapter Installation Guide
Environment	Operating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing
