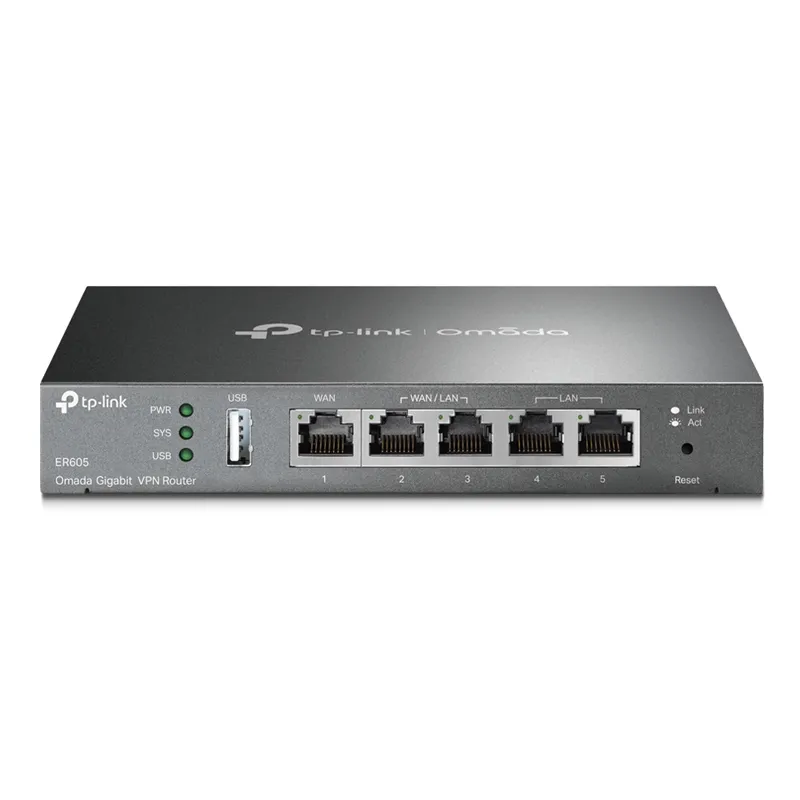

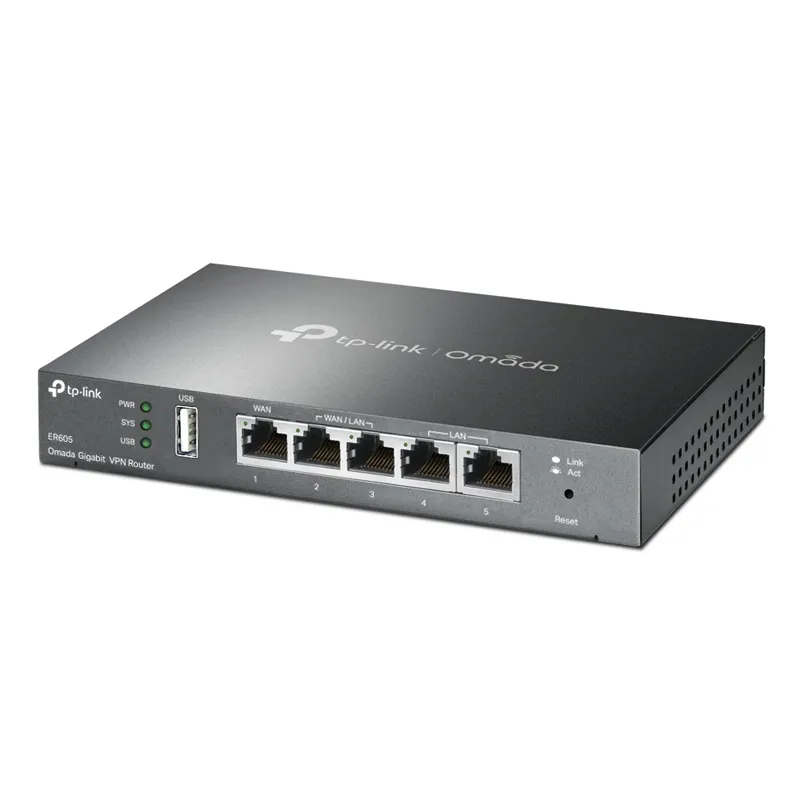

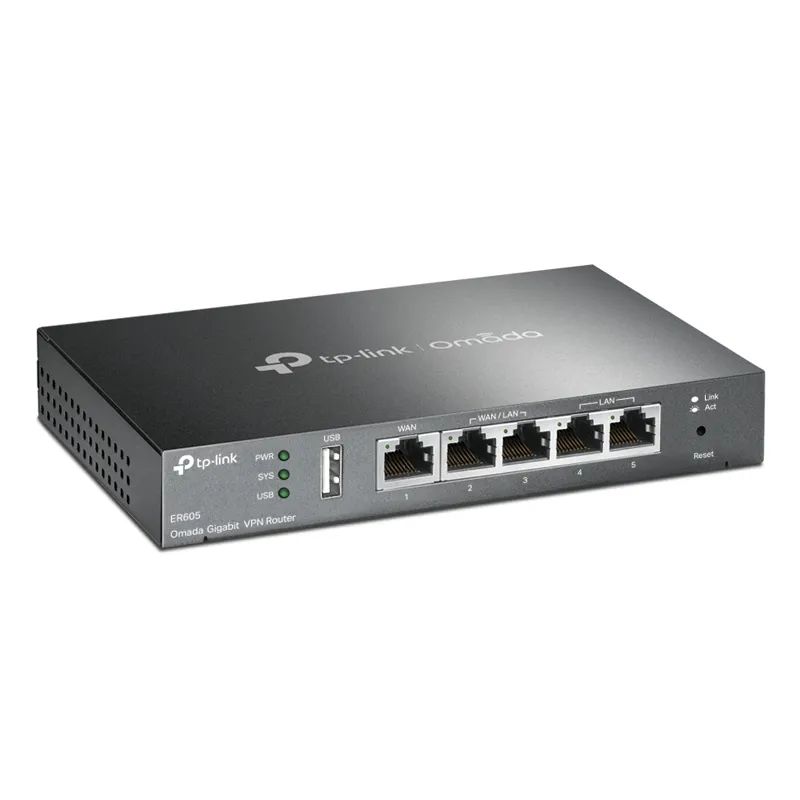

TP-Link Omada Gigabit VPN Router-ER605
$108.90 'inc. GST'
TP-Link Omada Gigabit VPN Router with multi-WAN load balancing, advanced VPN security, centralized Omada SDN management, and robust firewall features — ideal for offices and branch networks, 5year warranty.
In stock
Vendor Code:
Description
TP-Link Omada Gigabit VPN Router-ER605
The TP-Link VPN router engineered for small to medium offices, branch networks, and remote sites that demand secure connectivity, multi-WAN internet access, and centralized management. As part of the TP-Link Omada SDN platform, the ER605 integrates with cloud or local controllers to offer unified monitoring, zero-touch provisioning, and easy configuration. It features multiple WAN/LAN ports with load balancing and failover support, robust VPN capabilities, and advanced security tools — making it a reliable gateway for business networks and secure remote access environments
Key Features:
- Integrated into Omada SDN: Zero-Touch Provisioning Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for convenience and easy management.
- Five Gigabit Ports: High-speed wired connectivity.
- Up to 3 WAN Ethernet Ports: 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.
- One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.
- Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.
- Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.
Specifications:
HARDWARE FEATURES | |
| Standards and Protocols | • IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
| Interface | • 1 Fixed Gigabit WAN Port • 2 Fixed Gigabit LAN Ports • 2 Changeable Gigabit WAN/LAN Ports • 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup) |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) |
| EIA/TIA-568 100Ω STP (Max 100m) | • 100BASE-TX: UTP category 5, 5e cable (Max 100m) |
| EIA/TIA–568 100Ω STP (Max 100m) | • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Button | Reset Button |

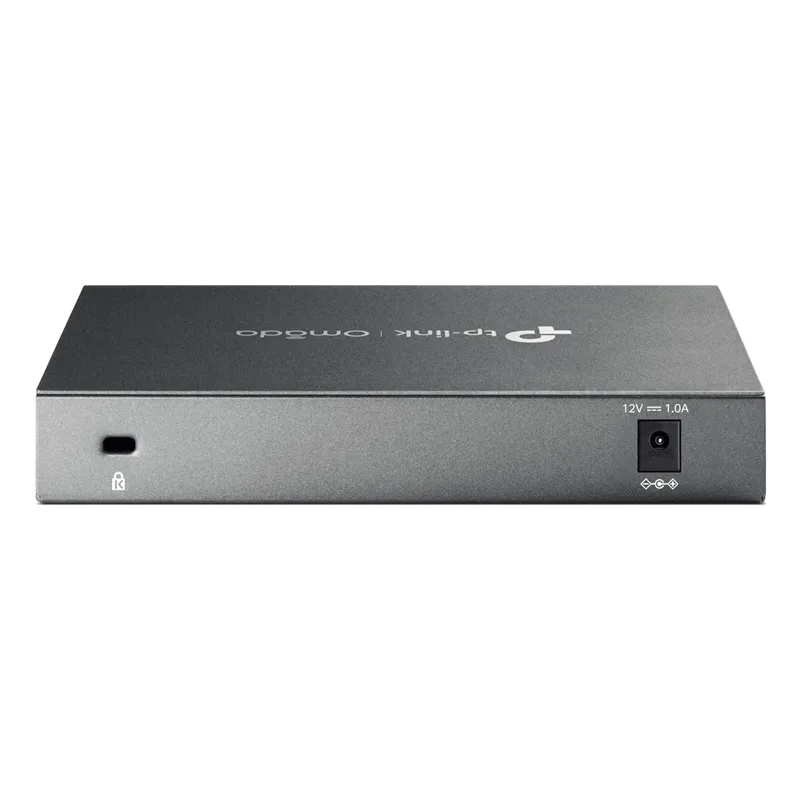

| Power Supply | External 12V/1A DC Adapter |
| Flash | 128 MB NAND |
| DRAM | 256 MB DDR |
| LED | PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm) |
| Max Power Consumption | 7.94 W |
PERFORMANCE | |
| Concurrent Session | 150,000 |
| New Sessions /Second | 2,600 |
| NAT (Static IP) | • Upload: 945.77 Mbps • Download: 945.56 Mbps • Bi-Directional: 1808.29 Mbps |
| NAT(DHCP) | • Upload: 945.93 Mbps • Download: 945.43 Mbps • Bi-Directional: 1808.11 Mbps |
| NAT(PPPoE) | • Upload: 940.44Mbps • Download: 940.52 Mbps • Bi-Directional: 1804.27 Mbps |
| NAT (L2TP) | • Upload: 845.64 Mbps • Download: 802.65 Mbps • Bi-Directional: 931.96 Mbps |
| NAT (PPTP) | • Upload: 771.66 Mbps • Download: 874.81 Mbps • Bi-Directional: 999.54 Mbps |
| 64 Byte Packet Forwarding Rate | • Upload/Download: 1,402,238 pps • Bi-Directional: 1,681,548 pps |
| IPsec VPN Throughput | • ESP-MD5-AES256: 171.26 Mbps • ESP-SHA1-AES256: 224.86 Mbps • ESP-SHA2-AES256: 248.04 Mbps |
| OpenVPN | • 21.70 Mbps |
| L2TP VPN Throughput | • Unencrypted: 864.65 Mbps • Encrypted: 47.11 Mbps |
| PPTP VPN Throughput | • Unencrypted: 703.20 Mbps • Encrypted: 76.65 Mbps |
BASIC FUNCTIONS | |
| WAN Connection Type | • Static/Dynamic IP • PPPoE • PPTP • L2TP • Mobile Broadband: 4G/3G modem for backup via USB port |
| MAC Clone | Modify WAN/LAN MAC Address |
| DHCP | • DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP* • Multi-IP Interfaces* |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
ADVANCED FUNCTIONS | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing • Policy Routing |
| Bandwidth Control | IP-based Bandwidth Control |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing§, Failover) • Online Detection |
| NAT | • One-to-One NAT§ • Multi-Net NAT • Virtual Server • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| Security | • SPI Firewall • VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local Management |
| Session Limit | IP-based Session Limit VPN |
| IPsec VPN | • 20 IPsec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • 10 PPTP VPN Clients** • 16 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • 10 L2TP VPN Clients** • 16 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server* • 10 OpenVPN Clients*△ • 16 OpenVPN Tunnels* |
SECURITY | |
| Filtering | • WEB Group Filtering§ • URL Filtering • Web Security§ |
| ARP Inspection | • Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding§ |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| Access Control | Source/Destination IP Based Access Control |
AUTHENTICATION | |
| Web Authentication | • No Authentication • Simple Password* • Hotspot（Local User / Voucher* / SMS* / Radius*） • External Radius Sever • External Portal Sever* • Facebook* |
MANAGEMENT | |
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)§ • NTP Synchronize§ • Syslog Support |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • Gigabti VPN Router ER605 V2 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
