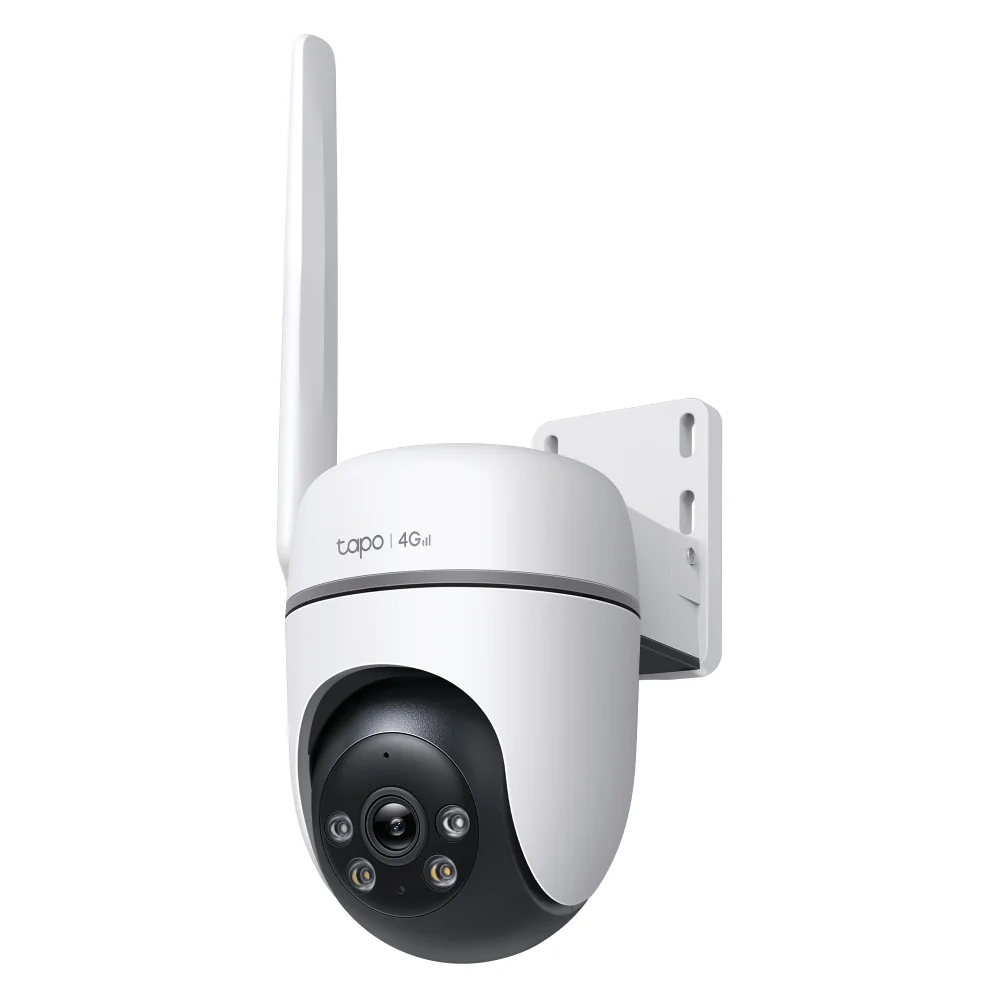

TP-Link Outdoor Pan/Tilt 4G LTE Camera,1080P,Night Vision, Ip66, 2 Years Warranty-TC40GW

TP-Link Outdoor Pan/Tilt 4G LTE Camera,1080P,Night Vision, Ip66

• No Wi-Fi, No Limit: Connects through 4G LTE networks, ideal for places where constant Wi-Fi is not available.
• 360° All-Round Protection: Provides 360° horizontal & 130° vertical viewing range, eliminating blind spots.
• Free AI Detection: Smart AI identifies people, pets, and vehicles, sending instant notifications through the Tapo app.
• 1080P Full HD: Reveals sharp images and vivid details with 1920 × 1080 pixels.
• Starlight Colour Night Vision: Captures vibrant images in low light up to 20 meters away.
• IP66 Weatherproof: Works well in rain, dust, and heat, offering excellent waterproof and dustproof performance for outdoor scenarios.
• Sound and Light Alarm: Craft your own audio alarm to deter unwelcome intruders and tailor the intensity of the dual spotlights.
• Local and Cloud Storage: Save all your important moments to a microSD card (up to 512GB) or subscribe to Tapo Care for cloud service.
• Dual Mode Flexibility with 4G or PoE: Power your camera with a DC adapter or Ethernet cable featuring PoE technology.

No Wi-Fi, No Limits

Backed by TP-Link’s 4G networking expertise, TC40GW reliably connects through 4G LTE networks, ideal for locations like garages, vacation homes, warehouses, and farms where constant Wi-Fi is unavailable. Simply plug in a 4G SIM card (not included) for an easy, hassle-free internet setup.

1 hour of live view in 1080p will use about 594 MB of data.
Event detection, cloud storage, and firmware upgrades will consume more data.
Frequency Bands: LTE-FDD: B1/3/5/7/8/20/28, LTE-TDD: B38/40/41

360° All-Round Protection

Track the motion with 360° horizontal & 130° vertical viewing range, or turn on the patrol mode to keep the camera cruising among multiple customised points.

Starlight Colour Night Vision

Capture vibrant images in low light up to 20 meters (65.6 feet) away. Enhance security with an F1.6 lens, starlight sensor, and spotlights. Smart mode activates starlight colour night vision when detecting a person.

1080P Full HD Live View

Enjoy clarity with full HD live view, revealing sharp images and vivid details with 1920 × 1080 pixels.

Multiple AI Detection for All Scenarios

Smart AI identifies people, pets, and vehicles and detects tampering and line crossing. It sends alerts only when necessary, ensuring you receive precise notifications about events as they occur.

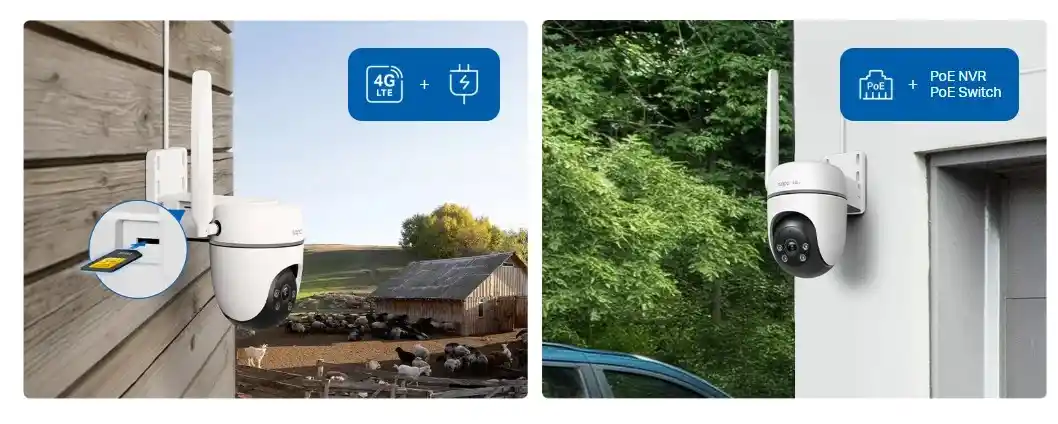

Dual Mode Flexibility with 4G or PoE

Option 1: Power your camera with a DC adapter and connect internet with 4G SIM card.

Option 2: Power your camera with Ethernet cable featuring PoE technology for safe power and stable internet, bypassing complex wiring and electrician calls.

PoE: 802.3 af/at

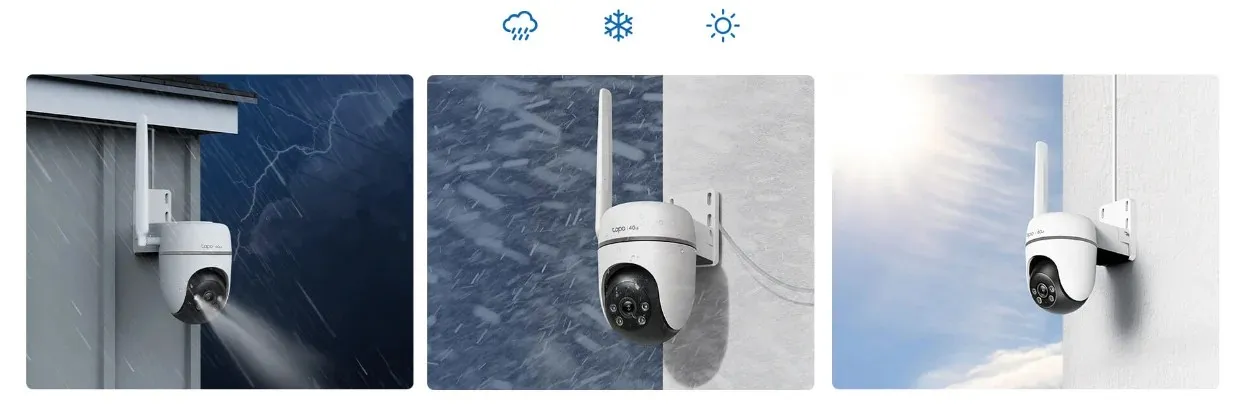

Designed to Resist Harsh Weather

With IP66 weatherproofing, TC40GW offers excellent waterproof and dustproof performance for outdoor scenarios. It works well in rain, dust, and heat, operating reliably in different environments.

Sound and Light Alarm

Deter unwelcomed intruders with customisable audio and tailor the intensity of the dual spotlights for fine-tuned illumination.

24/7 Secure Local Recording & Cloud Storage

Save all your important moments to a microSD card¹ (up to 512 GB) or subscribe to Tapo Care² for cloud service after a free trial.

Specification

Image Sensor	1/2.9” CMOS Sensor
Lens	Focal Length: 3.17 mm Aperture: F1.65 Field of View: 122° (Diagonal), 105°(Horizontal), 59°(Vertical)
Motion Range	Pan Mechanical Range: 340° (360° Pan Coverage) Tilt Mechanical Range: 90°(149° Tilt Coverage)
Night Vision	850 nm IR LED (98 ft / 29.9 m), starlight color night vision
Interface & Button	1× DC Port 1× Ethernet Port, PoE 1× RESET Button 1× MicroSD Card Slot (Up to 512GB) 1× Nano-SIM Card Slot



VIDEO & AUDIO
Maximum Resolution	1920 × 1080 px
Frame Rate	15/20/25/30 fps
Video Compression	H.264
Live View	Yes
Audio Input & Output	Built-in Microphone and Speaker
Audio Communication	Two-Way Audio with Noise Cancellation
Siren Volume	99 dB  (Level measured at 4-inch/10-cm distance)



STORAGE
Local Storage	MicroSD Card Slot on Camera (Up to 512 GB)
Cloud Storage	Tapo Care Cloud Storage Services (Subscription required)



DETECTION and NOTIFICATIONS
AI Detection	Motion Detection Person Detection Pet Detection Vehicle Detection Tamper Detection Line-Crossing Detection Meow Detection Bark Detection Glass-Breaking Detection
Activity Zones	Yes
Output Notification	System Notification System Notification with Snapshot (Tapo Care Services)



NETWORK
Network Connectivity	3G/4G LTE/LAN Cable
RTSP	Yes
ONVIF	YES (Only Available in Ethernet Mode)



4G
Frequency	LTE-FDD: B1/3/5/7/8/20/28, LTE-TDD: B38/40/41



POWER
Power Source	12V DC Power Adapter PoE: 802.3 af/at
Input Voltage	100-240 V, 50/60 Hz
Output Voltage	DC Power:12V, 1A



GENERAL
Smart Integration	Google Assistant, Amazon Alexa
Weather Resistance	IP66
System Requirements	Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher
Mounting Options	Ceiling-Mounted Wall-Mounted Pole-Mounted (Pole-Mounting loops required but not included)
Operating Temperature	-30℃~60℃
Storage Temperature	-40℃~60℃
Operating Humidity	10%~90% RH, Non-condensing
Storage Humidity	0~90% RH, Non-condensing
Dimensions ( W x D x H )	Camera Dimensions: 5.15× 3.31×4.57 in (130. 8× 84.0 × 116.1 mm) Camera Dimensions with included antennas and bracket 5.5 × 4.03 × 9.22 in (139.8 × 102.3 × 234.2 mm)
Package Content	TC40GW Camera Detachable Antenna DC Power Adapter Mounting Template Mounting Bracket Mounting Anchors Bracket Screws Mounting Screws Waterproof Seal Waterproof Cable Attachments Quick Start Guide
Certifications	CE,NTRA,RCM,VCCI,NCC,BSMI,ROHS
