TP-Link VIGI 4MP Full-Color Dome Network Camera-VIGI C240(4mm)

$89.00 'inc. GST'

TP-Link VIGI 4MP C240(4mm) Full-Color Dome Network Camera, 4mm Lens, Smart Detection, 3YW

In stock

Vendor Code:
SKU: VIGI C240(4mm) Categories: , , Brand:
Supplier ID: LEA-VIGI C240(4mm)
Description

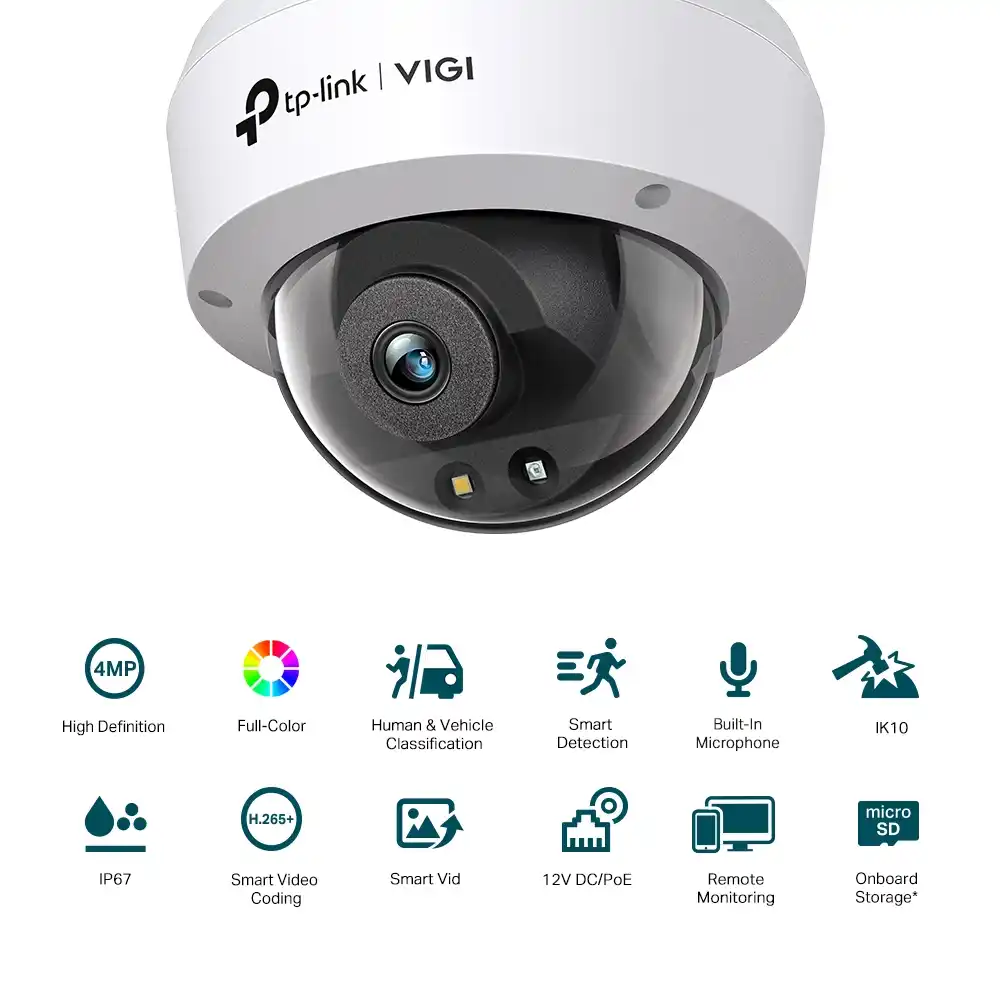

VIGI 4MP Full-Color Dome Network Camera

  • 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
  • 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.
  • Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.
  • IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.

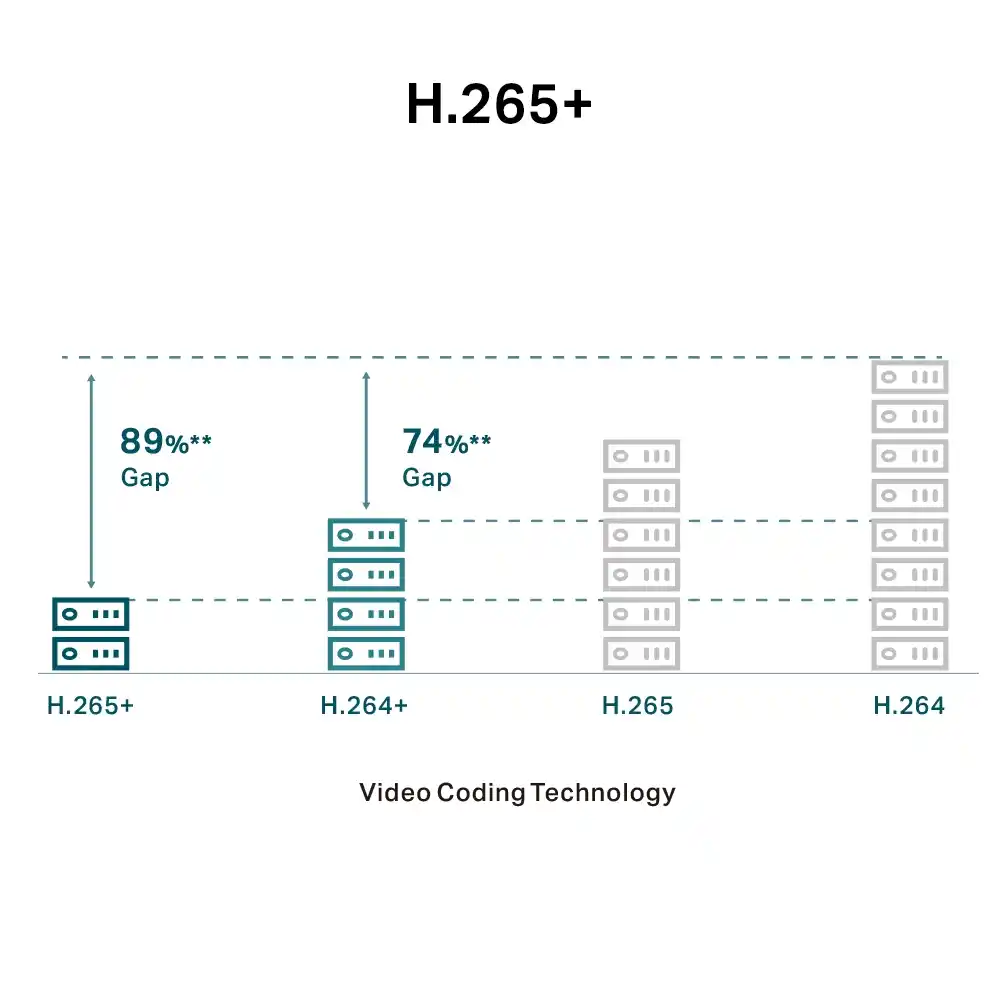

  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

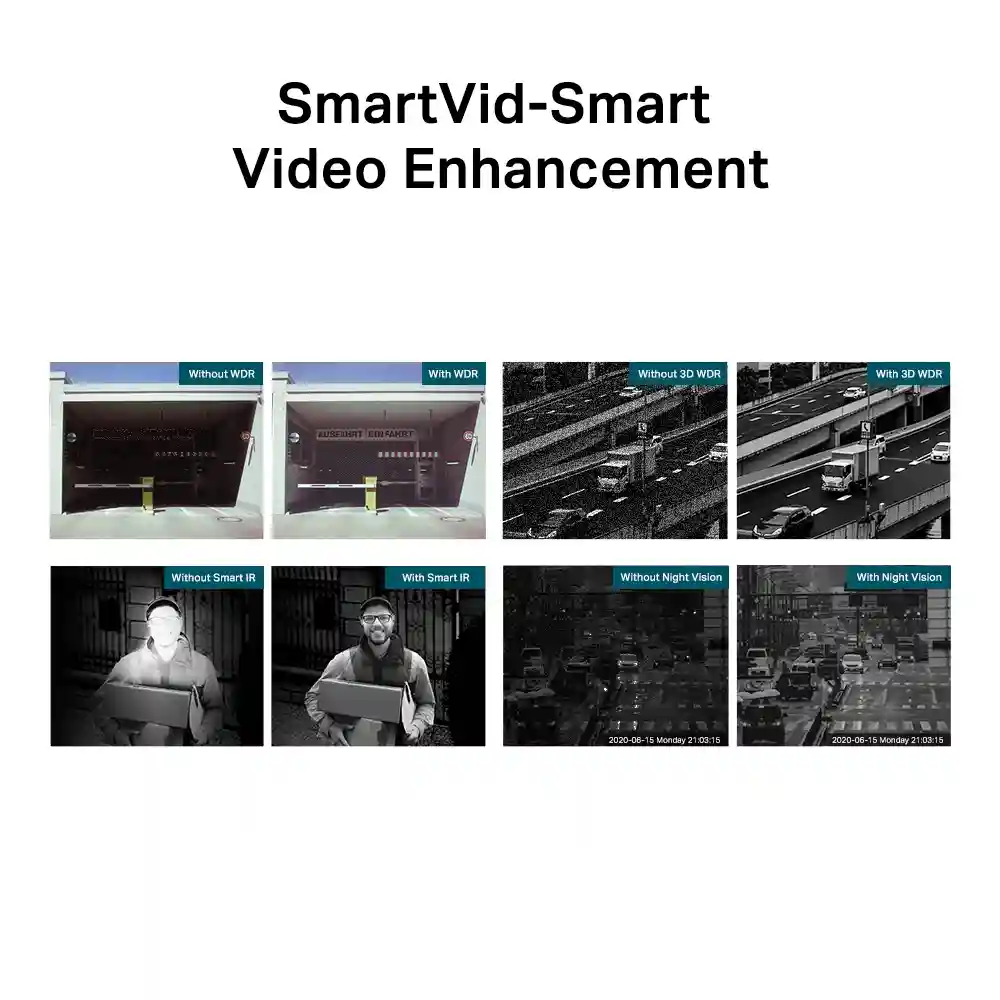

  • Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
  • PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
  • Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256 GB).

Specifications

CAMERA

Image Sensor1/3” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Aperture2.8 mm: F1.6
4 mm: F1.6
Lens2.8 mm/ 4 mm
Lens MountM12
Minimum IlluminationColor: 0.005 Lux; 0 Lux with IR/White Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
Digital Noise Reduction3D DNR
WDRDWDR
Weatherproof RatingIP67
Pan/Tilt RangePan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
Viewing Angle2.8mm:
Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0°
4mm:
Horizontal FOV: 79.7°, Vertical FOV:42.9°, Diagonal FOV: 93.9°

LENS

TypeFixed Focal Lens
Focal Length2.8 mm/4 mm
Aperture2.8 mm: F1.6
4 mm: F1.6
FOV2.8 mm:
Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0°

4 mm:
Horizontal FOV: 79.7°, Vertical FOV: 42.9°, Diagonal FOV: 93.9°

Lens MountM12
DORI Distance2.8 mm:
Detect: 64 m (209 ft)
Observe: 27 m (87 ft)
Recognize: 13 m (42 ft)
Identify: 6 m (21 ft)

4 mm:
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)

Angle Adjustment (Manual)

RangePan: 0° to 355°
Tilt: 0° to 75°

ILLUMINATOR

IR LEDQuantity: 1
Range: 30m
Wavelength: 850nm
White LEDQuantity: 1
Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off

VIDEO

Max. Resolution2560 × 1440
Main StreamFrame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2560×1440,2304×1296, 2048×1280, 1920×1080, 1280×720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-StreamFrame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
640×480,352×288, 320×240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps


Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic RangeDWDR
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes

AUDIO

Audio CommunicationN/A
Audio InputYes
Audio OutputN/A
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)

NETWORK

ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
ONVIFYes
APIONVIF
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, VIGI NVR, Web
Web BrowserGoogle Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM AND EVENT MANAGEMENT

Smart Event• Area Intrusion Detection
• Line-Crossing Detection
• People Detection
• Vehicle Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Abnormal Sound Detection
Basic Event• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception ( Illegal Login)
Alarm LinkageWhite Light Flashing, Message Push
Linkage MethodN/A
Output NotificationMessage Push

INTERFACES

Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port
AlarmN/A
Reset ButtonN/A
PowerDC Power Port
Button
Video Output
On-board StorageBuilt-in Memory Card Slot, Support MicroSD Card, Up to 512 GB
Built-in MicrophoneYes
Built-in SpeakerN/A
AudioN/A

GENERAL

Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
Package ContentVIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Dimensions( H X W X D )115 × 115 × 86 mm
MaterialPlastic
General FeaturesTwo Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight0.28 Kg
Gross Weight0.46 Kg
Max. Power Consumption12V DC: Max 5.4W
PoE: Class 0
Power Supply12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Vandal ResistantIK10
ProtectionIP67, IK10
Product Dimensions (L x W x H)115× 86× 115 mm
CertificationsCE/BSMI/VCCI/ONVIF

VIDEO/IMAGE

Video CompressionMain Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Frame Rate & ResolutionsMain Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560×1440,2304×1296, 2048×1280, 1920×1080, 1280×720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640×480,352×288, 320×240
Max. Resolution4MP (2560 × 1440)
Video StreamingMain Stream
Sub-Stream
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image EnhancementBLC/3D DNR/HLC/SmartIR
Video Bit Rate64 Kbps to 4 Mbps
Day/Night SwitchDay/Night/Auto/Schedule

SMART FEATURE-SET

Smart EventHuman & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic EventMotion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage MethodTrigger Notification: ONVIF, HTTPS
Region of Interest1 Region
Additional information
Weight 0.54 kg
Dimensions 19.6 × 15.4 × 12 cm
