VIDEO AND AUDIO
|
| IP Video Input |
16-Channel |
| Incoming Bandwidth |
80 Mbps |
| Outgoing Bandwidth |
60 Mbps |
| HDMI Output Resolution |
1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| VGA Output Resolution |
1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz |
| Video Output Mode |
HDMI/VGA Simultaneous Output |
| Multi-View Display |
1/4/6/8/9/16 |
DECODING
|
| Audio Compression |
G.711A/G.711U/G.726 |
| Video Compression |
H.265+/H.265/ H.264+/H.264 |
| Record Resolution |
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ |
2CIF/CIF/QCIF
|
| Synchronous Playback |
16-Channel |
| Capability |
25fps:
2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
30fps:
4-ch @ 3MP, 2-ch @ 5MP |
RECORD MANAGEMENT
|
| Record Mode |
Manual Recording, Scheduling Recording, Motion Detection Recording |
| Playback Mode |
Instant Playback, Regular Playback, Tag Playback, Event Playback |
| Backup Mode |
Regular Backup, Video Clip Backup |
| Playback Function |
Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off |
NETWORK
|
| Protocol |
UPnP (Plug and Play), NTP (Network Timing) |
| Interoperability |
ONVIF, CGI |
| Mobile Phone Access |
Android, iOS |
| Web Browser |
Chrome (57+), Firefox (52+), Edge (91+) |

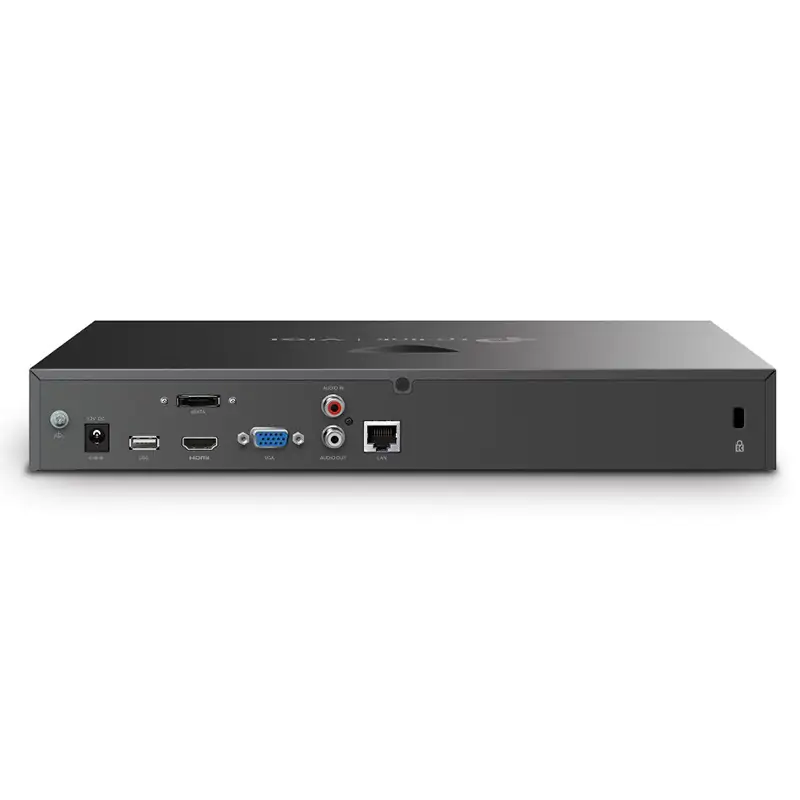

EXTERNAL INTERFACE
|
| Network Interface |
1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface |
1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
| Audio Interface |
1, Audio In; 1, Audio Out |
| Alarm In/Out |
N/A |
| Serial Interface |
N/A |
| Power |
1× DC Jack |
| Reset Button |
1 |
| Speaker |
N/A |
| eSATA |
1 |
| HDMI |
1 |
| VGA |
1 |
| HARD DISK |
|
| SATA |
2 SATA Interfaces |
| Capacity |
Up to 10 TB Capacity for Each HDD |
ALARM
|
| General Alarm |
Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame |
| Anomaly Alarm |
Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception |
| Alarm Linkage |
Recording, White Light Alarm, Buzzer, Log, Audible Alarm |
GENERAL
|
| Package Contents |

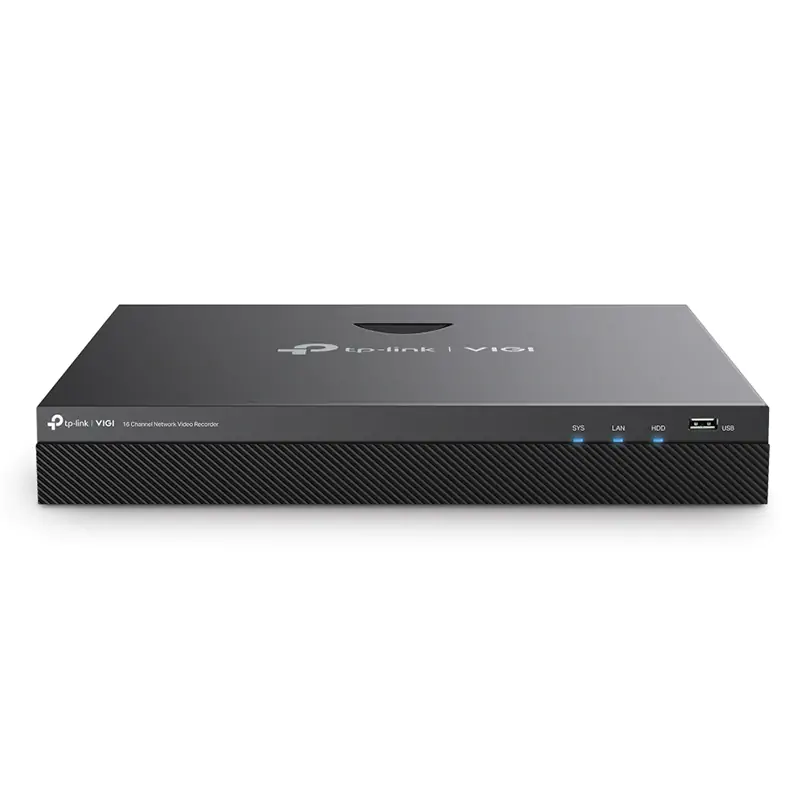

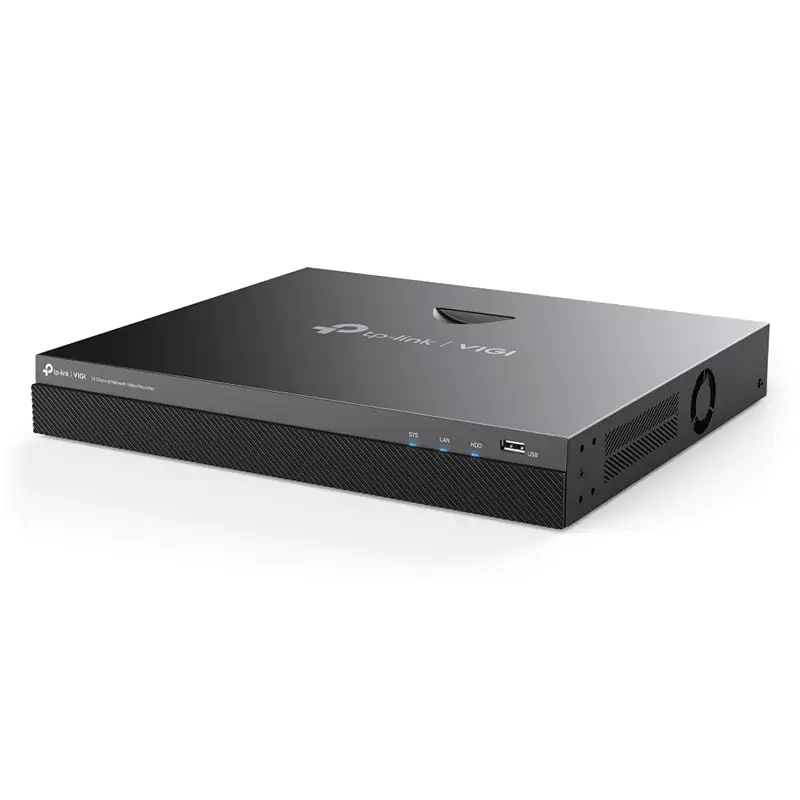

VIGI Network Video Recorder
Power Adapter
HDD Screws
Mouse
Quick Installation Guide |
| Storage Temperature |
-40–70 °C |
| Storage Humidity |
10%~90% RH Non-Condensing |
| Working Temperature |
NVR: -10–55 °C
Power Adapter: 0–40 °C |
| Working Humidity |
10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) |
330 × 285 × 45 mm |
| Net Weight |
1.9 Kg |
| Gross Weight |
3.2 Kg |
| Power Supply |
12V DC/3.3A |
| Power Consumption |
4.78 W (Without Disk)
24.16 W (With Disk) |
| Certifications |
CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
| Notes |
*The number of simultaneously playable channels may be fewer than 16, or none, if the total resolution exceeds 16MP.
**Calculations based on laboratory testing using VIGI cameras. Actual performance may vary according to the amount of activity recorded, resolution, and other variables.
The decoding capability reaches 16 MP only at 25fps.
Calculations based on laboratory testing using 1* VIGI 3MP camera with with the following settings: 25fps frame rate, H265+ encoding mode, 2048Kbps bit rate, and 24-hour continuous storage. And the results only for reference.
△Some features may operate sub-optimally due to compatibility issues. For best performance, we recommend using VIGI NVR with VIGI cameras.
§A hard disk drive (not included) must be installed for operation. |
