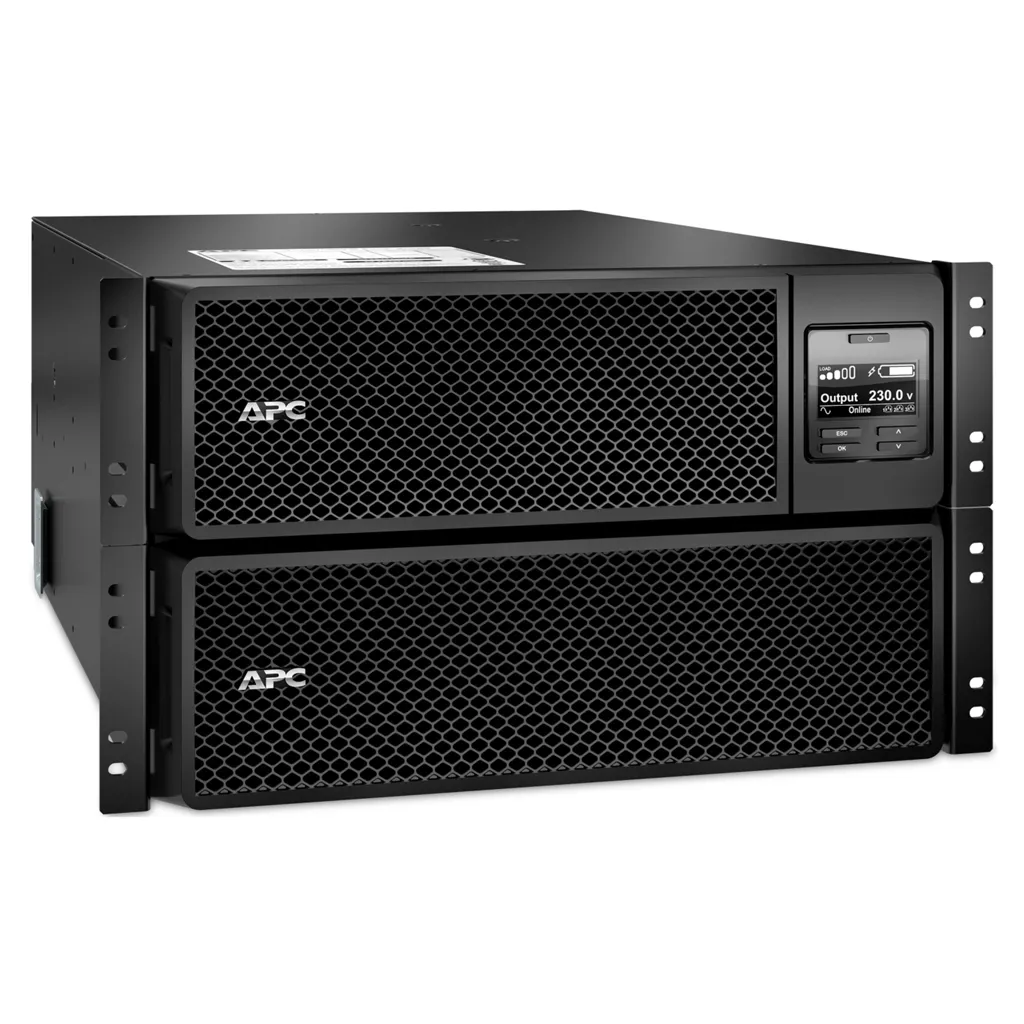

APC SMART-UPS (SRT), 10K VA, IEC(10), NETWORK, LCD, 2U RACK/TWR, 3YR & SETUP
The APC SRT10KRMXLI is a smart uninterruptible power supply that serves as a protection on high density, true double-conversion on-line with scalable runtime which is ideal for servers, voice/data networks, medical labs, and light industrial applications. It is capable of supporting loads from 1 to 10kVA in a rack/tower convertible form.
The SRT10KRMXLI is capable of including an integrated network management card that can be used for remote management. It also protects your devices against damaging power surges and spikes that travel along utility, phone and networks lines.
It provides a wide range of features for smart-UPS such as LCD graphics display that shows text and mimic diagrams that display modes of operation, system parameters and alarms, auto-shutdown software, Automatic self-test, Adjustable voltage sensitivity, cold-start capable, Battery failure notification, and Hot-swappable batteries.
In addition, the SRT10KRMXLI has intelligent battery management that maximizes battery performance, life, and reliability through intelligent, precision charging, and data-line protection via ethernet, coaxial and phone lines which ensures complete protection of your equipment from surges.
The APC WSTRTUP-SU-06 5 X 8 Power is a set of service options such as Installation, Project Management Support, and Technical service, enables designed to deliver the vital resources, expertise, and tools needed to quickly and efficiently implement your APC by Schneider Electric solution.
Features
APC Smart-UPS SRT 10000VA RM 230V Rack Mountable UPS SRT10KRMXLI
- Output: 10 kW / 10000 VA
- Input: 100-275 VAC @ 40-70 Hz
- 6 x IEC 320 C13 (Battery Backup)
- 4 x power IEC 320 C19
- 1 x hardwire 3-wire (HN + G)
- 3 x IEC connector
- Device Type UPS – rack-mountable
- Rack Size 6U
- Battery Lead Acid
- Run Time (Up To) 3.8 min at full load
- Networking Ethernet 10/100, USB
APC WSTRTUP-SU-06 5 X 8 Power
- Experienced Certified Field Service Engineer: Our factory trained Field Service Engineers are rigorously trained and tested on how to efficiently service our products, as well as on safety practices and electrical codes, offering our customers the highest level of service available in the industry today.
- Installation verification: Once the equipment is assembled, an APC Certified Field Service Engineer will verify all connections within the system have been made according to factory specification, and that it is functioning correctly in all modes of operation, ensuring optimal performance and extending the life of the product.
- Labor and travel expenses included: Travel and labor expenses are included in most service contracts. Please see the statement of work for the service specifics.
- 7×24 Upgrade option: If you are like most businesses, you want your systems up and running during your busiest hours. In order to accommodate your busy schedule, APC offers an option to schedule services off hours. We will work with you to find a time when servicing your system is least likely to impact your productivity, saving your business time and money.
- Multiple levels of service: With the option of packages or individual service components, our services are structured to allow you to pick and choose what you would like APC to do for you.
Specifications
| Product Description | APC Smart-UPS SRT 10000VA RM – UPS – 10 kW – 10000 VA |
| Device Type | UPS – rack-mountable |
| Rack Size | 6U |
| Weight | 111.82 kg |
| Input Voltage | AC 230 V |
| Output Voltage | AC 230 V 3% |
| Power Capacity | 10 kW / 10000 VA |
| Input Connectors | Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G) |
| Output connectors | 6 x power IEC 60320 C13 4 x power IEC 60320 C19 1 x hardwire 3-wire (HN + G) 3 x IEC connector |
| Battery | Lead Acid |
| Run Time (Up To) | 3.8 min at full load |
| Networking | Ethernet 10/100, USB |
| Colour | Black |
| Dimensions (WxDxH) | 43.2 cm x 71.5 cm x 26.3 cm |
| Manufacturer Warranty | 3-year warranty |
| Designed For | P/N: ACDC2513, AR2401, AR2487G, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3300G, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3350SP, AR3350W, AR3355SP, AR3355W, AR3357SP, NBWL0356A |
