ASUS nVidia GeForce GT730-SL-2GD5-BRK 2GB GDDR5 Low Profile Graphics Card with Bracket For Silent HTPC Build (With I/O Port Brackets)
$112.86 'inc. GST'
ASUS GT730‑SL‑2GD5‑BRK — 2 GB GDDR5, NVIDIA GeForce GT 730, 384 CUDA cores, 902 MHz core clock, 5.01 GHz memory speed, fanless 0 dB design, PCIe 2.0 x16 low‑profile card with HDMI / DVI‑D / VGA output, supports up to 3 displays and 4K resolution — ideal for silent HTPCs, compact PCs, multimedia, and office setups.
Out of stock
Vendor Code:
Description

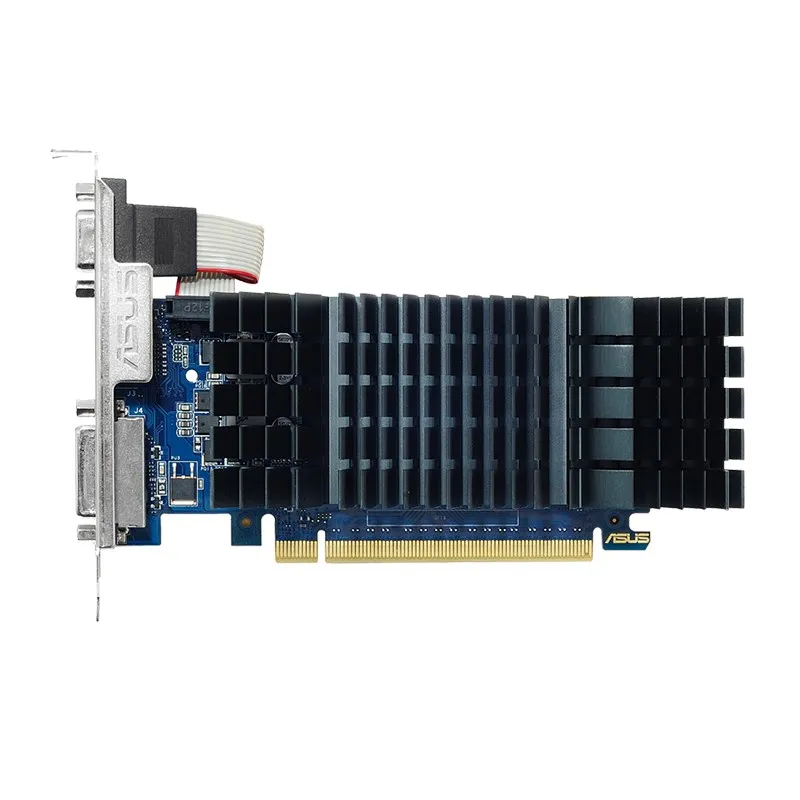

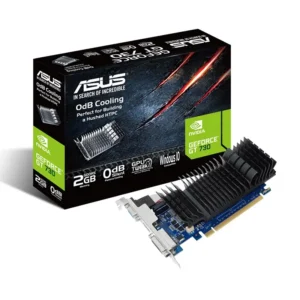

ASUS nVidia GeForce GT730-SL-2GD5-BRK 2GB GDDR5 Low Profile Graphics Card with Bracket For Silent HTPC Build (With I/O Port Brackets)
The ASUS GT730‑SL‑2GD5‑BRK is a budget‑focused, low‑profile graphics card built around the NVIDIA GeForce GT 730 GPU. Designed for compact PCs, silent HTPC builds, office desktops, or multimedia rigs, it combines modest 3D acceleration, dedicated video memory, and silent passive cooling to deliver reliable video output, basic gaming, multimedia playback, and multi‑display support. With 2 GB of GDDR5 memory, support for up to three displays, and multiple output ports including HDMI, DVI‑D, and VGA, it’s especially suited for home‑theater PCs (HTPC), media centers, or productivity machines where noise, size, and cost are more important than high-end gaming performance. The card uses a fanless cooling solution, ensuring 0 dB noise during operation — perfect for quiet environments.
Key Features
- Silent, Fanless Operation for Noise‑Sensitive Builds
This GT 730 variant uses a passive‑cooling heatsink design, producing true 0 dB noise. That makes it ideal for silent HTPC builds, living‑room media centers, or quiet workstations where sound‑less operation is a priority.
- Low‑Profile & Compact Form Factor — Fits Small / Slim Cases
The card is low‑profile and compact (approx. 16.5 cm long), and ships with I/O port brackets for flexibility. This makes it suitable for small form‑factor (SFF) PCs, slim desktops, or compact HTPC chassis where larger cards would not fit.
- Dedicated GDDR5 Memory for Smooth Multimedia & Basic Graphics Tasks
With 2 GB GDDR5 memory on a 64‑bit bus and an effective memory clock of 5.01 GHz, the card offers better performance and responsiveness than integrated graphics for tasks like video playback, photo editing, and light 3D workloads.
- Multi‑Display & Legacy + Modern Output Support

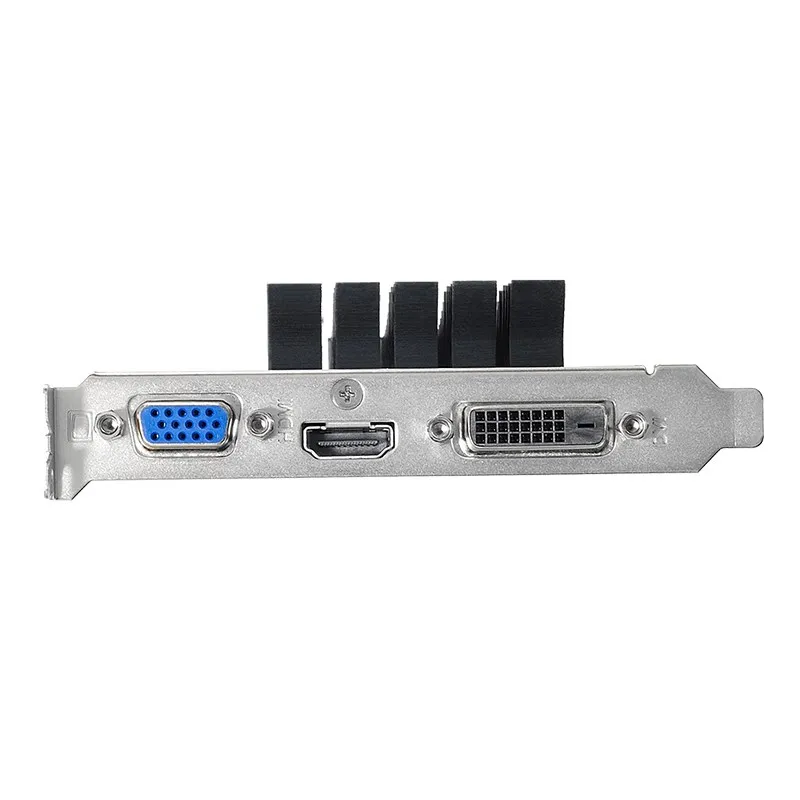

Equipped with HDMI, DVI‑D (dual‑link), and VGA (D‑Sub) outputs, this card supports up to three displays simultaneously — giving you flexibility to mix modern and older monitors/TVs. Useful for multi‑monitor productivity, video walls, or connecting to TVs for media playback.
- Easy Software Tuning and Reliability via Premium Manufacturing
Built using ASUS’s AUTO‑EXTREME Technology, the card is manufactured with an automated, single‑pass soldering process for better reliability and component stress reduction.
It also comes with GPU Tweak II — a software utility for real‑time monitoring, tuning (clock / memory / voltage), and streaming, giving flexibility for moderate overclocking or system adjustment as needed.
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | GT730‑SL‑2GD5‑BRK |
| Graphics Engine (GPU) | NVIDIA® GeForce® GT 730 (GK208B) |
| GPU Architecture | Kepler 2.0 |
| Manufacturing Process (Foundry / Node) | 28 nm (TSMC) |
| Transistor Count | ~1,020 million (≈ 1.02 B) |
| GPU Die Size | 87 mm² (for GK208B) |
| Chip Package | FCBGA‑595 |
| Release / Launch Date | June 18, 2014 |
| Bus Standard / Interface to Motherboard | PCI Express 2.0 x16 (electrical x8) |
| Memory Size | 2 GB GDDR5 |
| Memory Type | GDDR5 SDRAM |
| Memory Interface / Bus Width | 64‑bit |
| Memory Clock (actual / effective) | 1252 MHz actual / 5010 MHz effective (5.01 GHz) |
| Memory Bandwidth | ~40.1 GB/s |
| GPU Core Clock (Engine Clock) | 902 MHz |
| CUDA Cores (Shading Units) | 384 CUDA cores |
| Texture Mapping Units (TMUs) | 32 TMUs |
| Render Output Units (ROPs) | 8 ROPs |
| Shader / L1 / L2 Cache | L2 Cache: 512 KB |
| Theoretical Single‑Precision Compute Performance (FP32) | ~692.7 GFLOPS |
| Pixel Fill Rate | ~7.22 GPixel/s |
| Texture Fill Rate | ~28.86 GTexel/s |
| DirectX Support | DirectX 12 (Feature Level 11_0) |
| OpenGL Support | OpenGL 4.4 |
| OpenCL / Vulkan / Other API Support | OpenCL 3.0, Vulkan 1.2 (via driver support) |
| Supported Video Acceleration / Decoding / Encoding | NVDEC (1st gen), PureVideo HD (VP5), support for H.264, VC‑1, MPEG‑2/4, MVC, 3D Blu‑Ray decoding |
| Multi‑Display Support | Up to 3 displays simultaneously |
| Display Outputs / Ports | 1 × Dual‑link DVI‑D (native), 1 × HDMI 1.4a (native), 1 × VGA (D‑Sub) (native) |
| Maximum Digital Resolution | Up to 3840 × 2160 (4K) via appropriate port/driver |
| Analog Max Resolution (VGA) | Up to 1920×1200 (typical for D‑Sub), but limited by analog signal & display |
| HDCP Support | Yes (HDCP compliant) |
| Thermal Solution | Passive (fanless) — 0 dB silent operation, large heatsink for convection cooling |
| Slot / Form Factor | Low‑profile, dual‑slot bracket (comes with low‑profile I/O bracket) |
| Card Dimensions | 16.5 × 6.9 × 3.9 cm (6.5″ × 2.72″ × 1.54″) |
| Slot Width (PCB / Cooling) | 2‑slot width / dual‑slot heatsink design |
| Power Connectors Required | None (powered via PCIe slot alone) |
| Recommended System PSU (Minimum) | 300 W PSU (system) |
| Typical Power Consumption (TDP / Board‑level) | ~38 W GPU draw per independent benchmarks |
| Max GPU Temperature (Junction / GPU) | ~98 °C (per specification reference on similar GT730 variants) |
| Supported Operating Systems / Driver Compatibility | Windows (various), generic NVIDIA drivers; legacy support (driver support may end for newer OS) — check NVIDIA vendor site. |
| Feature / Technology Support | Nvidia PhysX‑Ready, HDCP, Adaptive V‑Sync, GPU Tweak II (for tuning and monitoring), AUTO‑EXTREME manufacturing technology for reliability, silent 0‑dB operation. |
| Intended Use‑Case / Target Audience | Silent HTPC builds, home multimedia centers, office desktops, compact/small-form-factor PCs, multi-monitor productivity, light 3D or video playback, basic video editing or GPU-accelerated tasks, legacy support builds. |
| Known Limitation / Positioning | Entry‑level GPU — not suited for heavy modern 3D gaming, modern AAA titles, or heavy GPU compute; limited VRAM (2 GB) and 64‑bit memory bus restrict high‑resolution textures or GPU‑heavy workloads; PCIe 2.0 x8 electrical affects throughput compared with newer GPUs. |
| Lifecycle Status | Production / availability may vary — original release 2014; many units considered legacy / end‑of‑life by vendor. |
Additional information
| Brand | |
|---|---|
| PC Components Type |
Graphics Card |
| Memory Size |
2 GB |
| Interface |
64-bit |
| Max Resolution |
3840 × 2160 (4K) |
