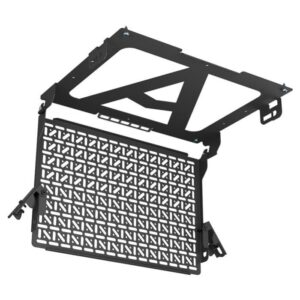

Atdec AD-AC-PH-B Device Storage Hinged Panel

This hinged media storage panel affixes to the underside of desks and meeting tables, to house mini PCs, video conference, connectivity, and similar devices.

Choose me for:

• Video conference & meeting rooms with local devices
• Suites with displays smaller than ~50″

Note: consider the sliding media panel where greater clearance is available behind a mounted display

AD-AC-PH-B is designed for use in meeting and video conference rooms with limited space behind a wall mounted display, because the display is small or has shallow clearance to the wall.

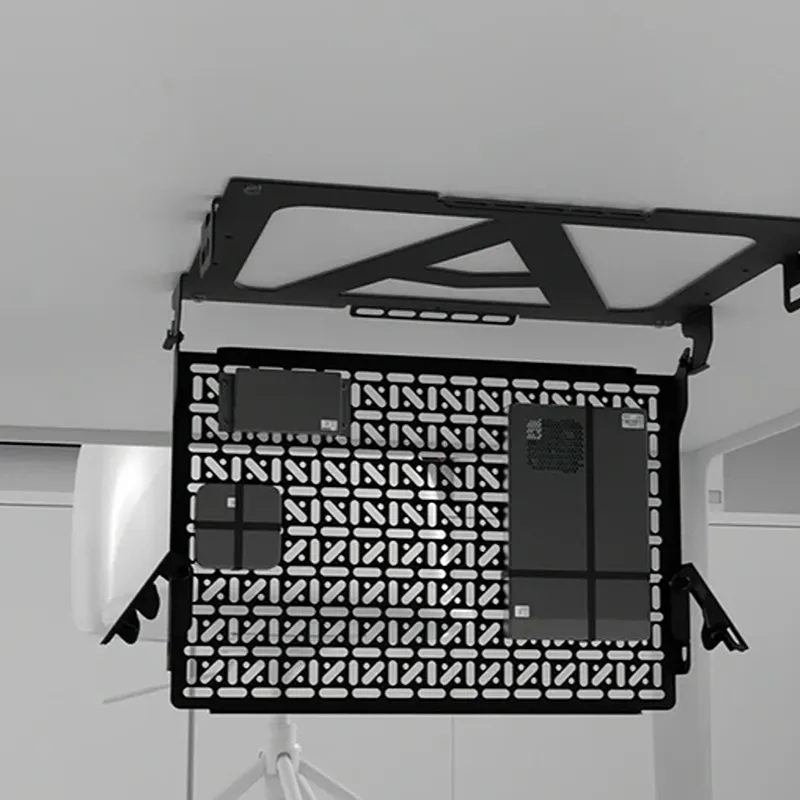

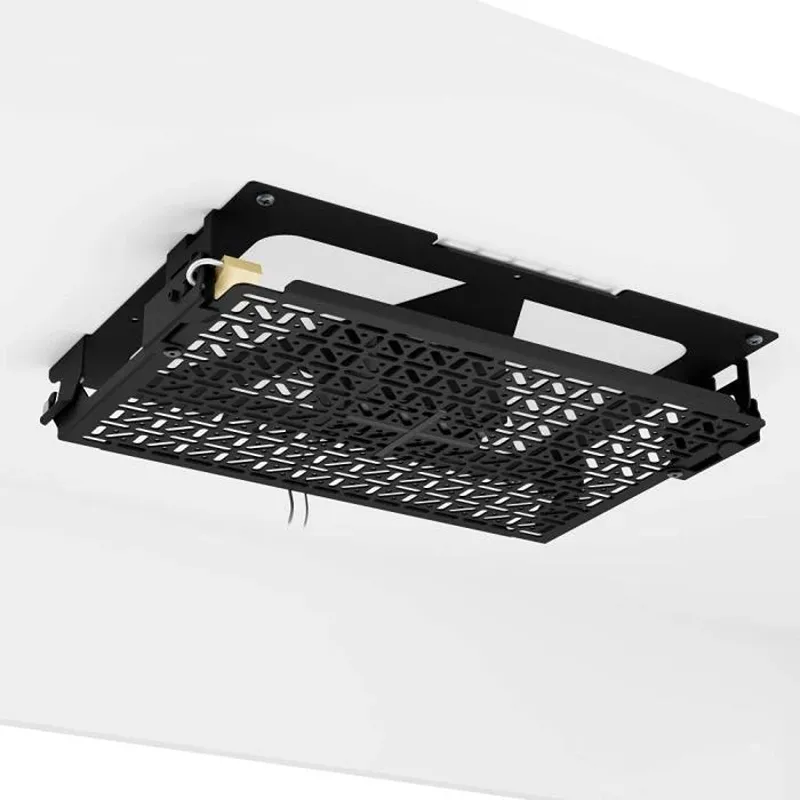

The AD-AC-PH-B mounting bracket fixes to the table underside. The connected mounting panel opens and closes neatly, to conceal and secure devices. A padlock hole is available for high device security. The mounting panel disconnects from the bracket so that devices may be attached or maintained above the desk, or even offsite.

In a standard configuration the panel closes to sandwich the devices within. The panel can be reversed, most likely when devices have depth greater than 54mm (2⅛”) and are secured to the unenclosed side of the panel. Devices can be attached to both sides of the mounting panel in standard configuration.

The storage panel has universal mounting patterns for devices to attach with screws, cable ties, or the hook & loop strips (eg, Velcro™) provided.

Specifications

• Capacity 8kg (17.5lb)
• 418mm x 311mm x 61mm (16.4″ x 12.2″ x 2.4″)
• Universal mounting
• Steel material
• 10-year warranty
