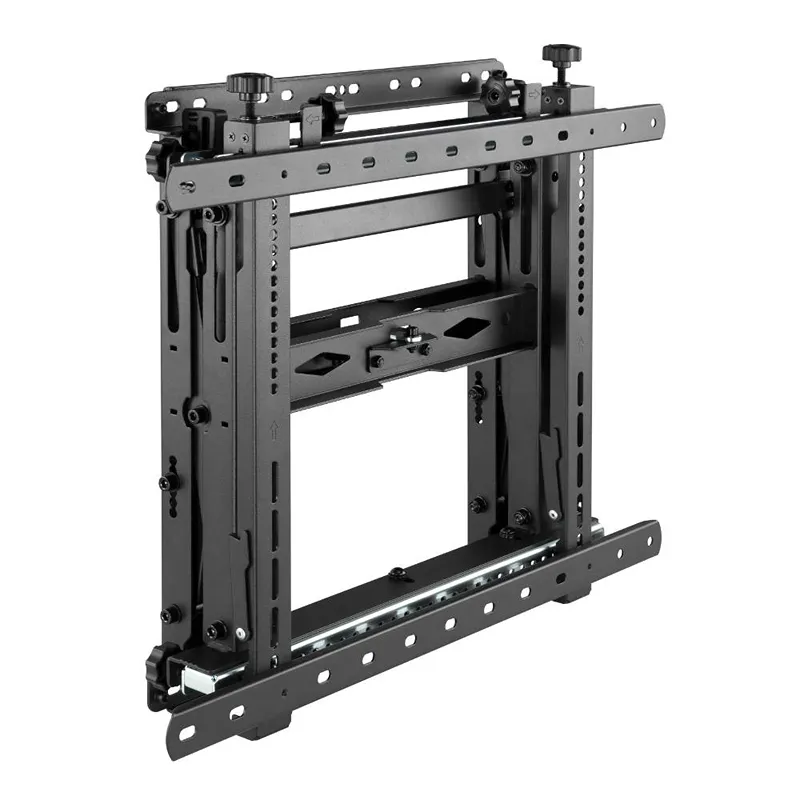

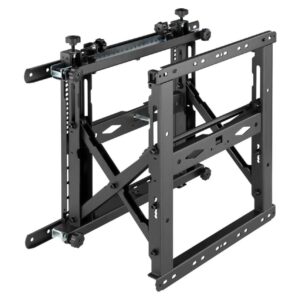

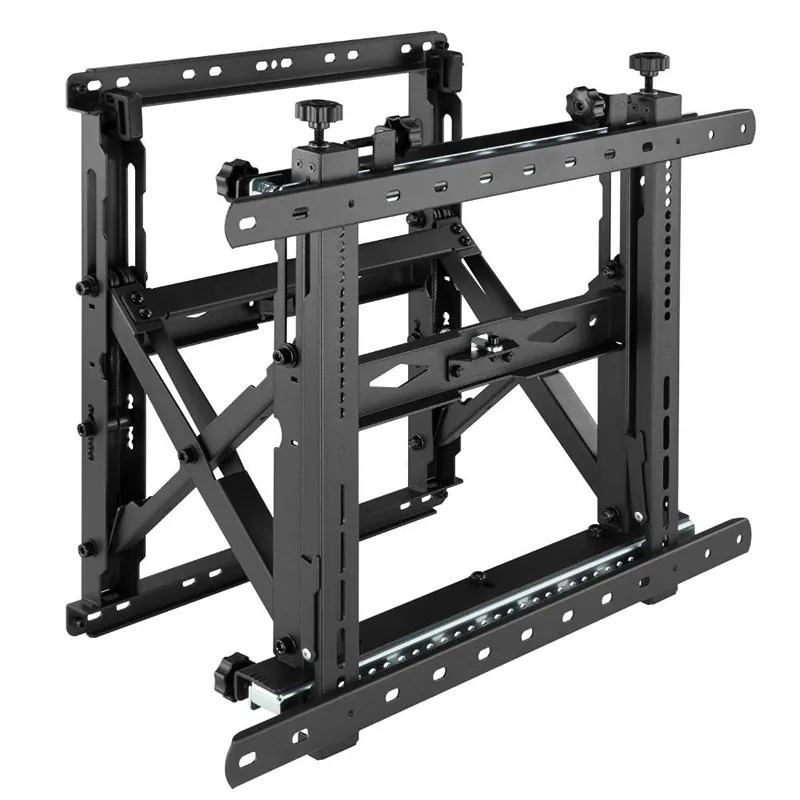

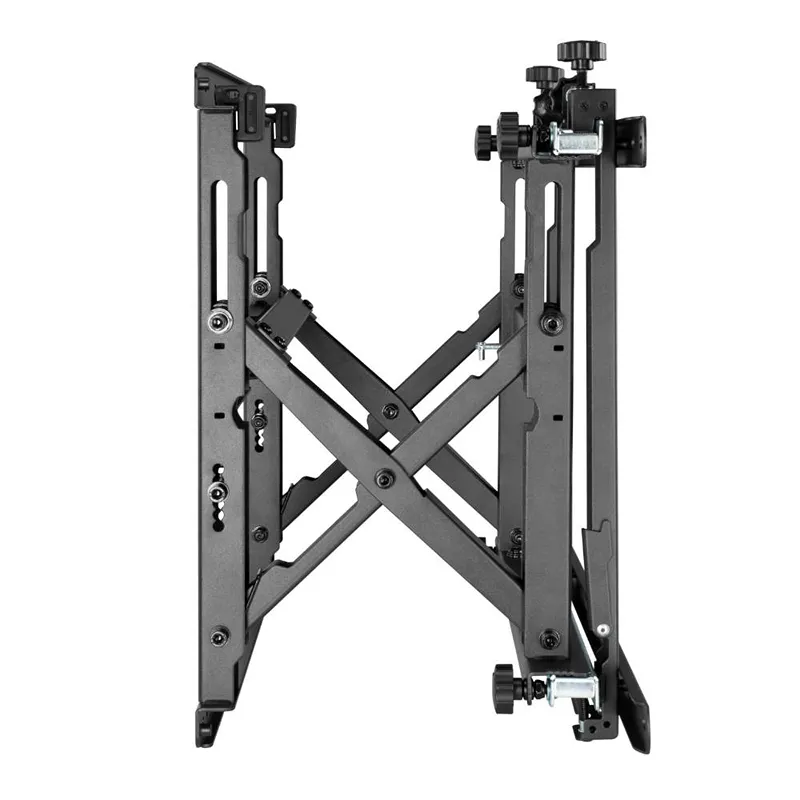

Atdec AD-VWPH Heavy Duty Pop-Out Video Wall Mount

AD-VWPH is a heavy duty pop out mount for video walls. The pop out functionality allows fast easy access to the display rear and rear-mounted media devices. Rear maintenance is kept easy regardless of display size with integrated ‘kickstands’ that hold the display out when required.

One mount is required per display and care must be taken to affix to the wall correctly for your displays. Post-installation fine tuning is available vertically, laterally, and in/out, to enable precise alignment of displays.

Choose Me For:

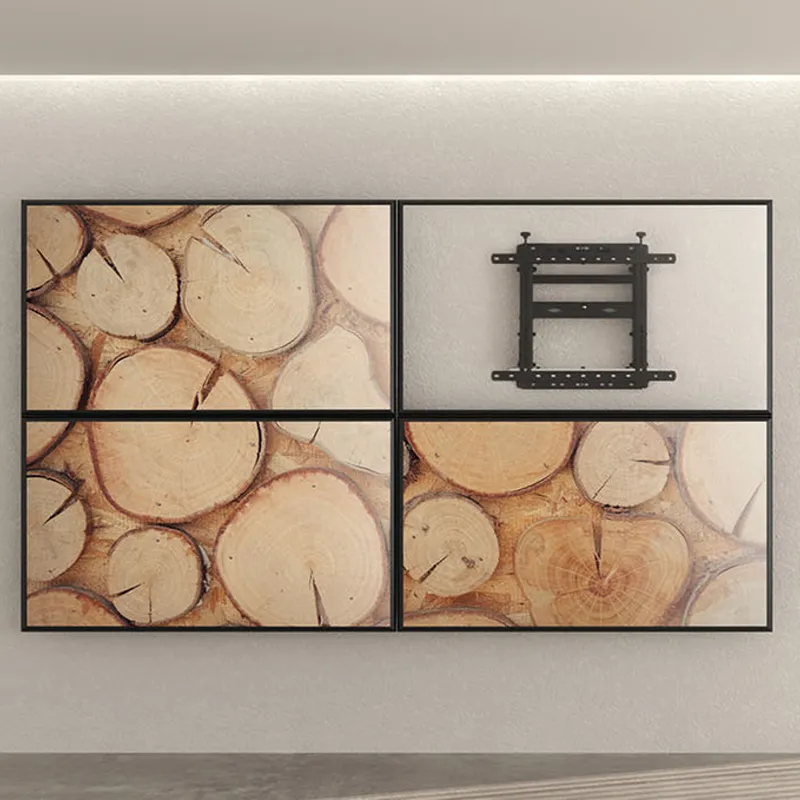

Video walls to achieve easy rear access
Perfectly flush video walls in recessed spaces

Features & Specifications:

• Display capacity 70kg (154lb)
• Pop out distance from wall
  Minimum 110mm (4.33″)
  Maximum 315mm (12.40″)
• Pop out lock included
• Pop out force control
  6 settings for varying screen weights
• Post-installation fine tune adjustment
  Vertical 13mm (0.51″)
  Lateral +/-15mm (0.59″)
• Post-installation toolless +/-7mm (0.28″) lateral adjustment
• VESA to 400×400
  to 600×400 or 400×600 with adaptor (included)
• Steel material with black finish
• Theft resistance features
• Lockable security point (requires padlock)
• 10 year warranty

This mount is part of Atdec’s digital signage range. The range includes standard products for popular applications, and modular solutions for multidisplay applications and custom spaces.
