Aten High Speed True 4K HDMI Black Cable With Ethernet 1m- 2L-7D01H
$10.38 'inc. GST'
Asus ROG Strix 27in QHD QD-OLED 280Hz G-Sync Gaming Monitor-90LM0B60-B01311
Original price was: $1,208.90.$1,174.91Current price is: $1,174.91. 'inc. GST'

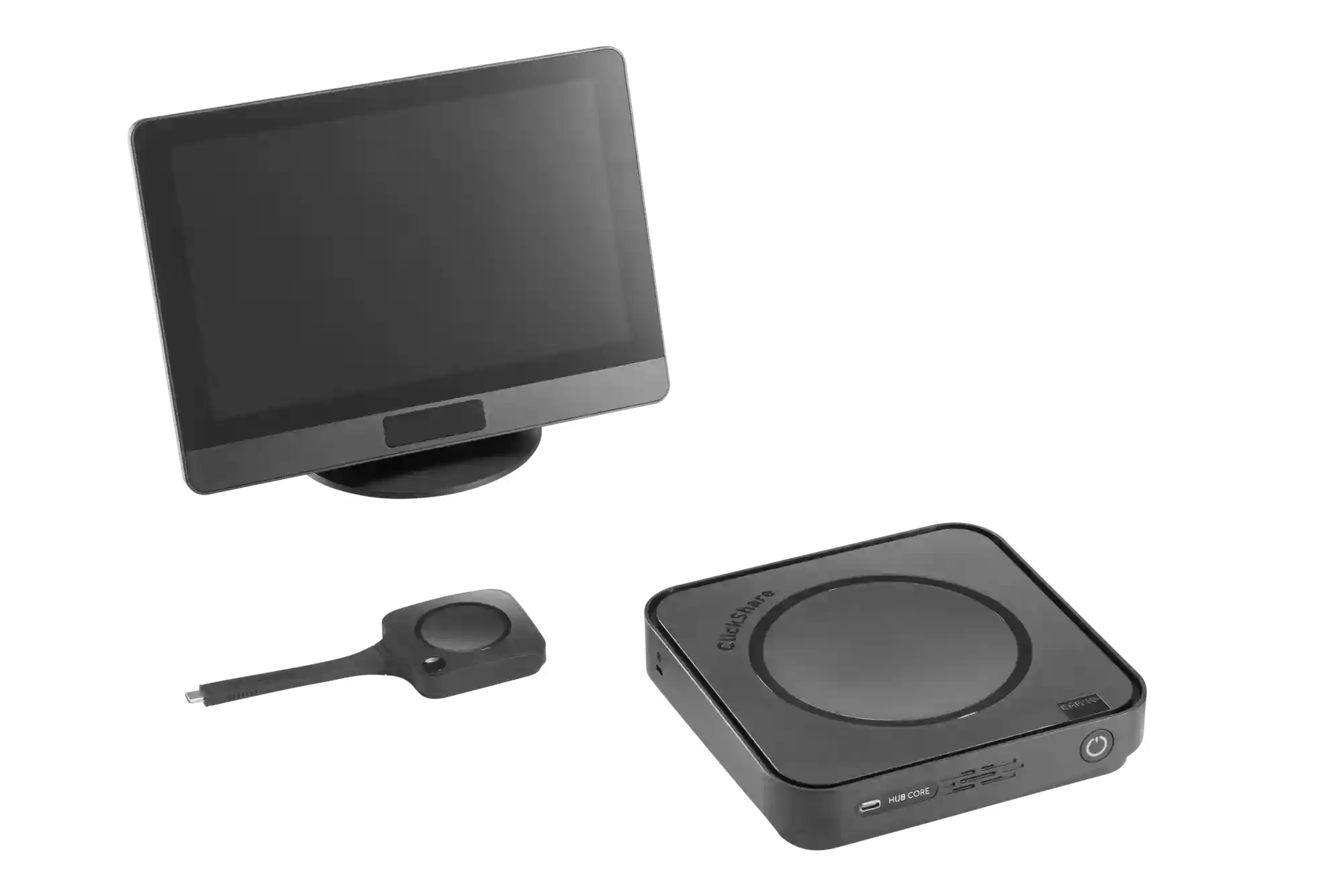

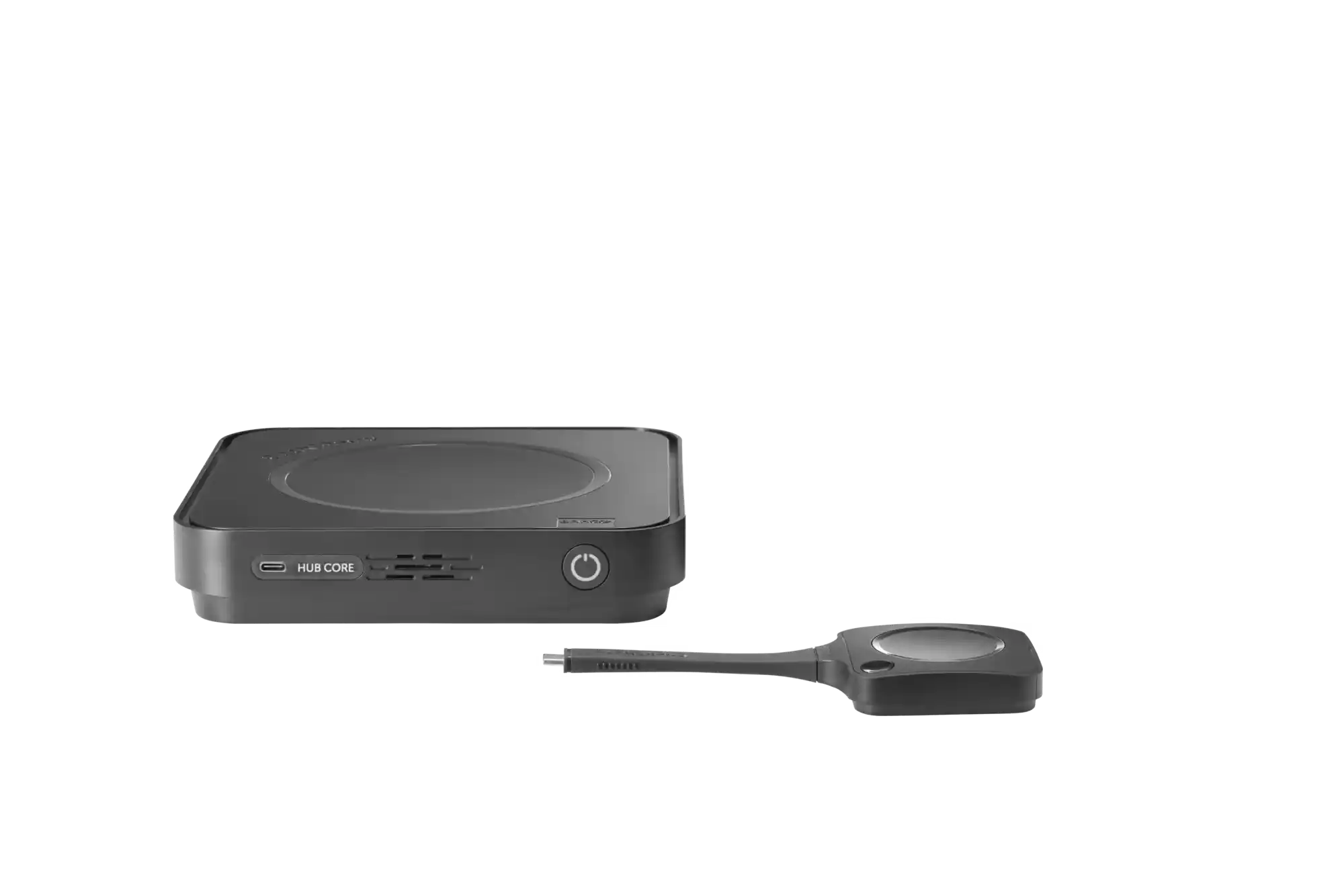

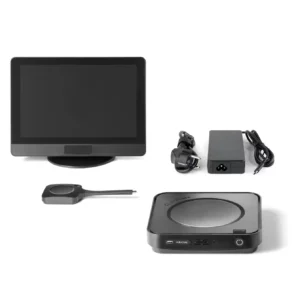

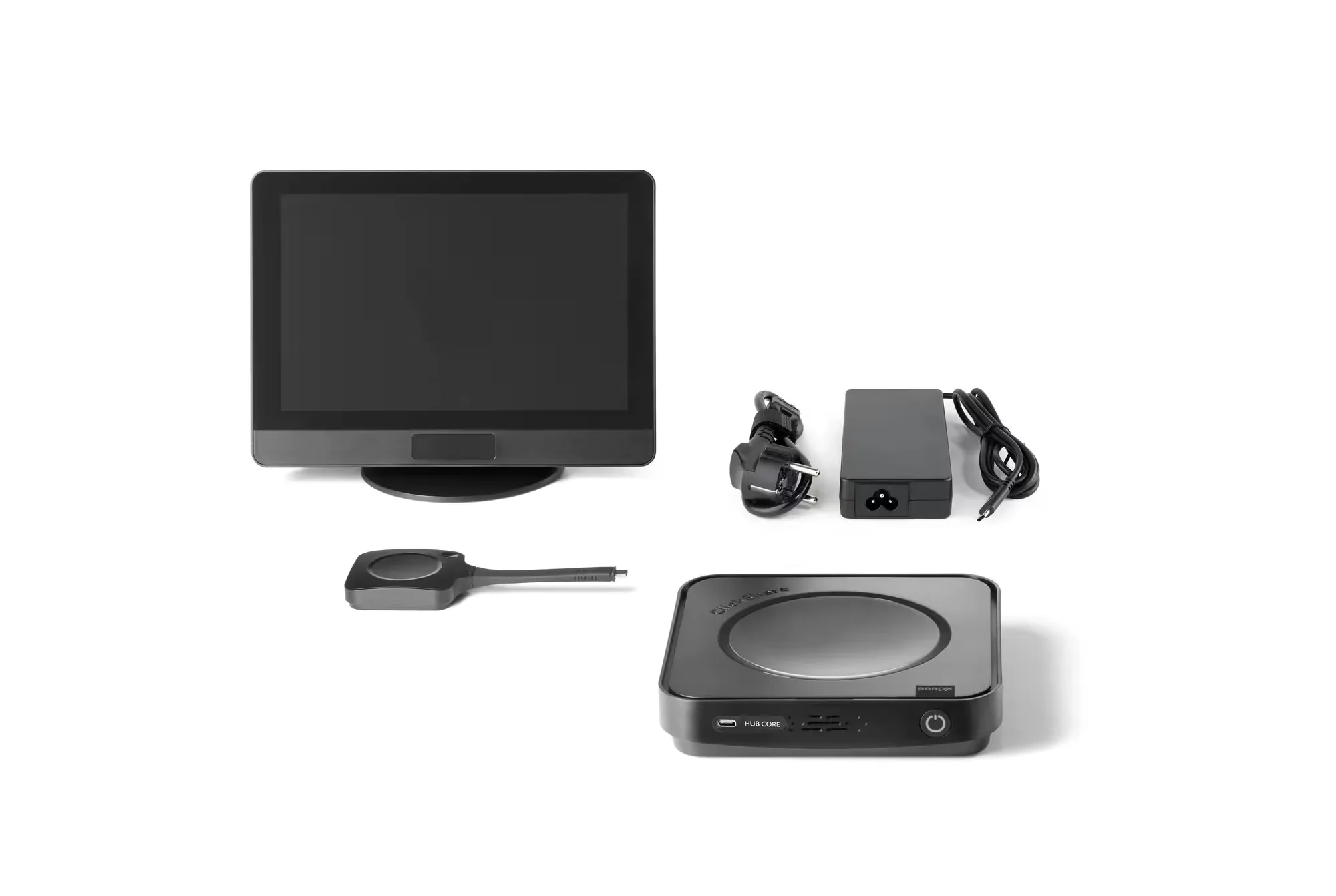

Barco Clickshare MTR Hub Core Kit W/1 Button USB Touch Panel+Wireless Present-R9461811EU
Original price was: $6,012.60.$4,619.73Current price is: $4,619.73. 'inc. GST'
Barco ClickShare Hub Core wireless conferencing system enables one-click meeting start and 4K wireless screen sharing with Wi-Fi 6E, enterprise security, and flexible room integration, 3year warranty.
In stock
Vendor Code:
Description
The Barco ClickShare Hub Core is a modular Wireless Video Conferencing Room System designed to simplify hybrid meetings and collaboration in modern workplaces. It enables users to start meetings with a single tap using the included control panel while sharing content wirelessly in high resolution.
ClickShare Hub Core is a modular, wireless video conferencing system designed for effortless hybrid meetings.
The Hub Core works with the ClickShare Control Panel and it enables participants to start their meeting with a simple tap. Sharing 4K content is just as easy thanks to the next-gen ClickShare Button.
For IT managers and integrators, ClickShare Hub Core offers a customizable solution for all room types. Built on the Microsoft Device Ecosystem Platform (MDEP), it guarantees enterprise-grade security and compliance.
Key Features:
- Wireless presentation: 4K content sharing with 1 Button
- Next-gen ClickShare Button with Wi-Fi 6E support and USB-C DisplayPort™
- Intuitive Control Panel for one-tap start to your hybrid meetings
- Secure by design, cloud-managed, and built on the Microsoft Device Ecosystem platform (MDEP)
- Sustainable product with Barco Eco label A+
- Works as part of a room system bundle certified for Microsoft Teams
Specifications:
| Operating system | Windows 10 or higher macOS 14 (Sonoma) and 15 (Sequoia) |
| System requirements | Minimum: Intel Core i3 or AMD Ryzen 5, 8GB RAM, Windows 10 20HS; Intel Core i3 or Apple Silicon M1, 8GB RAM, macOS 11 Big Sur Recommended: Intel Core i5/Ultra 5 or AMD Ryzen 7, 8GB RAM, Windows 11 latest build; Apple Silicon M3, 8GB RAM, macOS latest build |
| Video outputs | HDMI: UW5K WUHD (5120*2160) @30Hz HDMI 2.0 eDP (Control Panel): HD (1280*800) @60Hz DP 1.4 |
| Video inputs | 4K UHD (3840*2160) @30Hz HDMI 2.0 |
| Audio output | USB-A 2.0/3.0 USB-C 2.0/3.0 HDMI 2.0 |
| ClickShare Buttons | 1 ClickShare Button 5th Generation |
| ClickShare App | Desktop |
| Maximum sources simultaneously on screen | One |
| Noise Level | Maximum 25 dBA @ <30°C Maximum 30 dBA @ >30°C |
| Wireless transmission protocol | IEEE 802.11 a/b/g/n/ac/ax/be and IEEE 802.15.1 BT 5.3 |
| Reach | Max. 30m (100ft) between ClickShare Button and ClickShare Base Unit |
| Frequency band | 2.4GHZ, 5GHz and 6GHz DBS/HBS (DFS channels supported in select number of countries) |
| Connections | Back: 1x Ethernet LAN 1Gbit 1x USB-C Power delivery 3.1 EPR (for power adapter) 1x HDMI 2.0 output 1x USB-A 2.0/3.0 1x USB-C 2.0/3.0 1x USB-C 2.0/3.0 Device + USB-C DisplayPort™ output 1x USB-C 2.0 + USB-C DisplayPort™ output Front: 1x USB-C 2.0/3.0 |
| Temperature range | Operating: 0°C + 40°C (+32°F to +104°F) Max 35°C (95°F) at 3000m Storage: -20°C to +60°C (-4°F to + 140°F) |
| Humidity | Storage: 0 to 90% relative humidity, non-condensing Operation: 0 to 85% relative humidity, non-condensing |
| Anti-theft system | Kensington lock |
| Certifications | FCC/CE |
| Network connection | LAN |
| Management and reporting | Yes, XMS Cloud |
| Warranty | 3 years standard |
| Dimensions (HxWxD) | 37 * 180 * 180 (mm) |
| Power consumption | Operational: 140W (max) |
| Power supply | External USB-C charger 100W (PD3.0 SPR), 180W (PD3.1 EPR) |
| Weight | 720gr |
| Box content | ClickShare Hub Core Base Unit, 1 ClickShare Hub Button 5th Gen, Mounting disc, Safety manual, Quick setup guide, Control Panel, ClickShare 10M 20W USB-C AOC cable, L-Shape mounting plate, Round base, Screw pack, Quick setup guide, USB-C cable lock kit |
CLICKSHARE 10M 20W USB-C AOC CABLE (DIRECTIONAL) |
|
| Cable Length / Diameter | 10M / 6mm |
| Interface | USB Type-C 3.2 Gen1, DP 1.4 |
| Power Delivery | 20W |
| Bend Radius | 60mm/30mm (Fixed/Temporarily) While a minimum bend of 30mm is acceptable during handling or routing, it must not be maintained as a permanent fixture |
| Temperature range | Operating: -10°C + 60°C (+14°F to +140°F) Storage: -20°C to +70°C (-4°F to + 158°F) |
| Humidity | Storage/Operation: 0 to 85% relative humidity, non-condensing |
| Flame rated | VW-1 |
POWER SUPPLY |
|
| AC Input | 100-240V~50-60Hz 2.4A |
| DC Output | 180W max (36V 5A) / 140W (28V 5A) / 100W (20V 5A) / 45W (15V 3A) / 27W (9V 3A) / 15W (5V 3A) |
| Output Plug | USB Type-C |
POWER CORD |
|
| Input AC Type | IEC60320-C6 |
| Energy Efficiency Level | Comply with DOE standard Level VI |
| Altitude | 5,000 meters |
| DC cable length | 1.5m |
| Color | Black |
| Length | 0.5m |
| Plug Type | EU / US / UK / CN / CH / IN / ZA / ANZ |
| Connector Type | IEC60320-C5 |
CONTROL PANEL |
|
| Touchscreen | 10.1-inch projected capacitive touchscreen with anti-fingerprint and anti-glare coatings, supporting up to 4 touch points for enhanced visibility and durability |
| Resolution | 1280*800 @60Hz |
| Brightness | 300 nits |
| Contrast ratio | Automatically detects in-room human movement within a 2-meter range and 90° field of view to wake the system. |
| Viewing angle | USB Type-C 2.0, DisplayPort Alt Mode, PD3.0 Recommend using the included ClickShare 10M USB-C AOC cable for optimal performance |
| Human detection sensor | 80° (Up/Down/Left/Right) |
| Connections | USB Type-C 2.0, DisplayPort Alt Mode, PD3.0 Recommend using the included ClickShare 10M USB-C AOC cable for optimal performance |
| Viewing angle | USB Type-C 2.0, DisplayPort Alt Mode, PD3.0 Recommend using the included ClickShare 10M USB-C AOC cable for optimal performance |
| Anti-theft system | Kensington lock |
| Temperature range | Operating: 0°C + 40°C (+32°F to +104°F) Storage: -20°C to +60°C (-4°F to + 140°F) |
| Power consumption | Powered over USB from connected Base Unit Operational: 7.3W (max) Standby: <0.5W |
| Humidity |
|
| Dimensions (HxWxD) | 254.5 x 187.9 x 76.9 (mm) |
| Weight | 820gr |
Additional information
| Brand | BARCO |
|---|---|
| Video Conferencing Type | Wireless Video Conferencing Room System |
| Warranty | 3 Years |
