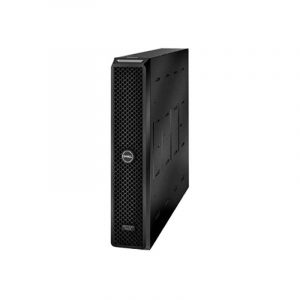

DELL SMART-UPS SRT 3000VA RM 2700W #DLRT3000RMXLI
Network-grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation, and zero transfer time to battery during power events.
- Avoids costly power problems
- Low operating and maintenance costs
- Reliability and intelligent battery management
Specifications
Controls/Indicators
| Status Indicators | LCD display |
Warranty
| Limited Warranty | 3 Year |
Battery Information
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Maintenance-free, Sealed |
Interfaces/Ports
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
General Information
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | A9255975 |
| Manufacturer Website Address | http://www.dell.com.au |
| Manufacturer | Dell Technologies |
| Product Name | Smart-UPS SRT 3000VA Rack-Mountable / External UPS |
| Product Line | Smart-UPS SRT |
| Brand Name | Dell |
Physical Characteristics
| Weight (Approximate) | 31.30 kg |
| Form Factor | Rack-mountable |
| External | |
| Rack Height | 2U |
| Height | 85 mm |
| Width | 432 mm |
| Depth | 635 mm |
Technical Information
| Dataline Protection | USB |
| RJ-45 | |
| RS-232 | |
| Plug/Connector Type | IEC 320 EN 60320 C20 |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| Receptacle Detail | 8 x IEC 60320 C13 |
| 2 x IEC 60320 C19 |
Power Description
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| 220 V AC | |
| 230 V AC | |
| Load Capacity | 3 kVA/2.70 kW |
| Waveform Type | Sine Wave |
| Input Voltage Range | 100 V AC – 275 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
