Gigabyte GeForce RTXâ„¢ 5060 Ti EAGLE OC 8G, 2617 MHz, CUDA TBD, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b *3 HDMI 2.1b *1
Original price was: $899.00.$811.00Current price is: $811.00. 'inc. GST'
Gigabyte GeForce RTX 5060 Ti EAGLE OC 8G (GV-N506TEAGLE OC-8GD) — 4608 CUDA cores, 2617 MHz boost clock, 8 GB GDDR7 128-bit memory (448 GB/s), PCIe 5.0, dual-fan WINDFORCE cooling, 3× DP 2.1 + HDMI 2.1, 8K output, ideal for 1080p/1440p gaming and modern GPU workloads.
In stock
Vendor Code:
Description
Gigabyte GeForce RTXâ„¢ 5060 Ti EAGLE OC 8G, 2617 MHz, CUDA TBD, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b *3 HDMI 2.1b *1
The Gigabyte GeForce RTX 5060 Ti EAGLE OC 8G (GV-N506TEAGLE OC-8GD 1.0) is a mid-range graphics card built on NVIDIA’s Blackwell architecture, offering a balance of performance, efficiency, and modern features. With 4608 CUDA cores and an 8 GB GDDR7 memory buffer, this GPU delivers capable 1080p and solid 1440p gaming performance, while supporting AI-powered features such as DLSS 4 and modern real-time ray tracing. The card’s WINDFORCE dual-fan cooling with Hawk fans and a reinforced design help maintain stable thermals, while a compact form factor (2-slot) and full-height design make it compatible with many PC builds. With PCIe 5.0 x8 interface, up to 8K display output support, and versatile connectivity, the RTX 5060 Ti EAGLE OC 8G is aimed at gamers and creators seeking a modern, value-oriented GPU.
Key Features
- Blackwell Architecture with 4608 CUDA Cores
Powered by the latest NVIDIA Blackwell GPU core (GB206-300-A1), the card delivers efficient shader performance and improved compute throughput. This makes it suited for modern games, GPU-accelerated workloads, and provides headroom for future titles.
- 8 GB GDDR7 Memory — Fast & Efficient Texturing
Equipped with 8 GB of GDDR7 memory on a 128-bit bus with 28 Gbps effective rate, achieving 448 GB/s memory bandwidth. This ensures quick texture loading, efficient asset streaming, and responsive performance in modern games and applications.
- Factory Overclock — Up to 2617 MHz Boost Clock
The card ships with a boost clock around 2617 MHz (vs reference 2572 MHz), giving extra performance out of the box. The overclock helps improve fps in games and performance in GPU-heavy workloads.
- WINDFORCE Dual-Fan Cooling with Reinforced Build
Featuring the WINDFORCE cooling system: dual Hawk fans, server-grade thermal conductive gel, composite copper heat pipes, and a robust build with reinforced structure — designed to keep temperatures manageable while maintaining stable long-term operation.
- Modern Connectivity, 8K Support & Multi-Display Ready
Includes 3 × DisplayPort 2.1b + 1 × HDMI 2.1b outputs; supports up to 4 displays simultaneously and a maximum digital resolution of 7680 × 4320 (8K). This makes the card suitable not just for gaming, but high-resolution media, editing workflows, and multi-monitor setups.

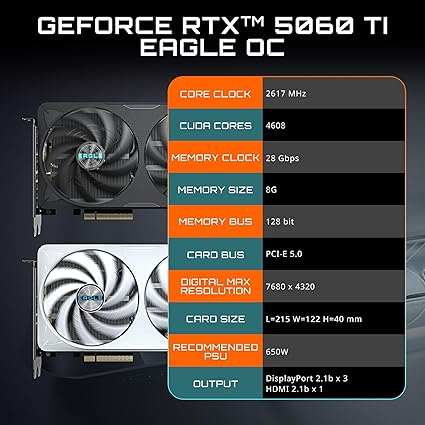

Technical Specification Table
| Specification | Detail |
|---|---|
| Product / Model | Gigabyte GeForce RTX 5060 Ti EAGLE OC 8G — GV-N506TEAGLE OC-8GD (rev 1.0) |
| GPU | NVIDIA GeForce RTX 5060 Ti (GPU code GB206-300-A1) |
| Architecture | NVIDIA Blackwell (5 nm, 4N FinFET) |
| CUDA / Shading Units | 4,608 CUDA cores (36 SM) |
| Texture Units (TMUs) | 144 TMUs |
| Render Output Units (ROPs) | 48 ROPs |
| Ray Tracing Cores (RT Cores) | 36 (4th-generation RT Cores) |
| Tensor Cores | 144 (5th-generation) |
| Base Clock | 2407 MHz |
| Boost / OC Clock | 2617 MHz (factory OC) |
| Memory Size | 8 GB |
| Memory Type | GDDR7 |
| Memory Bus Width | 128-bit |
| Memory Clock / Effective Data Rate | 1750 MHz physical / 28 Gbps effective |
| Memory Bandwidth | 448.0 GB/s |
| PCI Express Interface | PCIe 5.0 x8 (electrically x8) |
| Video Outputs | 3 × DisplayPort 2.1b, 1 × HDMI 2.1b |
| Maximum Digital Resolution | 7680 × 4320 (8K) |
| Max Simultaneous Displays | Up to 4 displays |
| Supported APIs & Features | DirectX 12 Ultimate, OpenGL 4.6, Vulkan (via Blackwell), NVIDIA DLSS 4, Ray Tracing, NVIDIA Reflex, NVENC / NVDEC (AV1 support), G-SYNC / VRR, HDCP 2.3 |
| Cooling System | WINDFORCE Dual-Fan (Hawk fans, alternate spinning, copper heat pipes, thermal conductive gel, reinforced structure) |
| Form Factor / Slot Size | Full-height, dual-slot, ~215 mm × 122 mm × 40 mm |
| Power Connector | 1 × 8-pin PCIe connector |
| Recommended System PSU | 650 W minimum |
| Typical Board Power / TDP (as reported) | ~180 W |
| Use-Case Suitability | 1080p / 1440p gaming, esports, ray-traced titles (with compromises), video editing, GPU-accelerated workloads, moderate creative workloads, budget-conscious builds. |
Additional information
| Brand | |
|---|---|
| PC Components Type |
Graphics Card |
| Memory Size |
8 GB |
| Memory Type |
GDDR7 |
| Max Resolution |
8 K ,7680 x 4320 |
| Interface |
PCIe 5.0 x8 |
