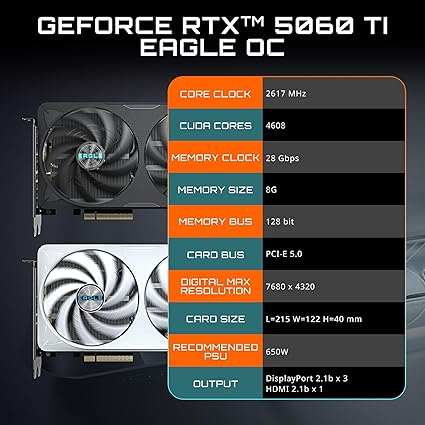

Gigabyte GeForce RTXâ„¢ 5060 Ti EAGLE OC 8G, 2617 MHz, CUDA TBD, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b *3 HDMI 2.1b *1

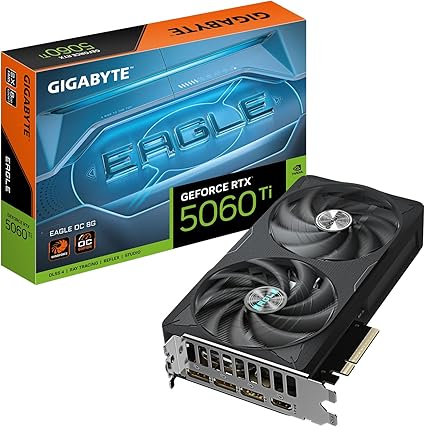

The Gigabyte GeForce RTX 5060 Ti EAGLE OC 8G (GV-N506TEAGLE OC-8GD 1.0) is a mid-range graphics card built on NVIDIA’s Blackwell architecture, offering a balance of performance, efficiency, and modern features. With 4608 CUDA cores and an 8 GB GDDR7 memory buffer, this GPU delivers capable 1080p and solid 1440p gaming performance, while supporting AI-powered features such as DLSS 4 and modern real-time ray tracing. The card’s WINDFORCE dual-fan cooling with Hawk fans and a reinforced design help maintain stable thermals, while a compact form factor (2-slot) and full-height design make it compatible with many PC builds. With PCIe 5.0 x8 interface, up to 8K display output support, and versatile connectivity, the RTX 5060 Ti EAGLE OC 8G is aimed at gamers and creators seeking a modern, value-oriented GPU.

Key Features

• Blackwell Architecture with 4608 CUDA Cores

Powered by the latest NVIDIA Blackwell GPU core (GB206-300-A1), the card delivers efficient shader performance and improved compute throughput. This makes it suited for modern games, GPU-accelerated workloads, and provides headroom for future titles.

• 8 GB GDDR7 Memory — Fast & Efficient Texturing

Equipped with 8 GB of GDDR7 memory on a 128-bit bus with 28 Gbps effective rate, achieving 448 GB/s memory bandwidth. This ensures quick texture loading, efficient asset streaming, and responsive performance in modern games and applications.

• Factory Overclock — Up to 2617 MHz Boost Clock

The card ships with a boost clock around 2617 MHz (vs reference 2572 MHz), giving extra performance out of the box. The overclock helps improve fps in games and performance in GPU-heavy workloads.

• WINDFORCE Dual-Fan Cooling with Reinforced Build

Featuring the WINDFORCE cooling system: dual Hawk fans, server-grade thermal conductive gel, composite copper heat pipes, and a robust build with reinforced structure — designed to keep temperatures manageable while maintaining stable long-term operation.

• Modern Connectivity, 8K Support & Multi-Display Ready

Includes 3 × DisplayPort 2.1b + 1 × HDMI 2.1b outputs; supports up to 4 displays simultaneously and a maximum digital resolution of 7680 × 4320 (8K). This makes the card suitable not just for gaming, but high-resolution media, editing workflows, and multi-monitor setups.

 Technical Specification Table
