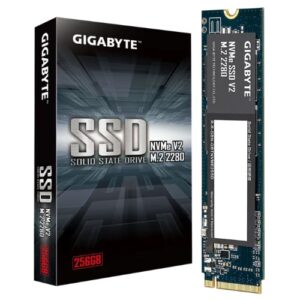

GIGABYTE Gen3 256GB NVMe PCIe 3.0 x4 M.2 2280 SSD

The GIGABYTE Gen3 256GB NVMe PCIe 3.0 x4 M.2 2280 SSD is a reliable and high-speed storage solution designed to boost system performance. Featuring read speeds up to 3200MB/s and write speeds up to 1200MB/s, it significantly improves boot times, application loading, and file transfer speeds compared to traditional storage drives. With a compact M.2 2280 form factor, 1.5 million hours MTBF, and a 3-year warranty, it is an excellent upgrade for desktops, laptops, and everyday computing.

Specification

Interface
PCI-Express 3.0 x4, NVMe 1.4

Form Factor
M.2 2280

Total Capacity
256GB

NAND
3D TLC NAND Flash

External DDR Cache
N/A

Sequential Read speed
Up to 3,200 MB/s

Sequential Write speed
Up to 1,200MB/s

Dimension
80 x 22 x 2.3 mm

Mean time between failure (MTBF)
1.5 million hours

Max. Operating Power
Read : 4.2W; Write : 3.0W

Power Consumption (Idle, PS3)
35mW

Power Consumption(PS4, L1.2)
5mW

Temperature (Operating)
0°C to 70°C

Temperature (Storage)
-40°C to 85°C
