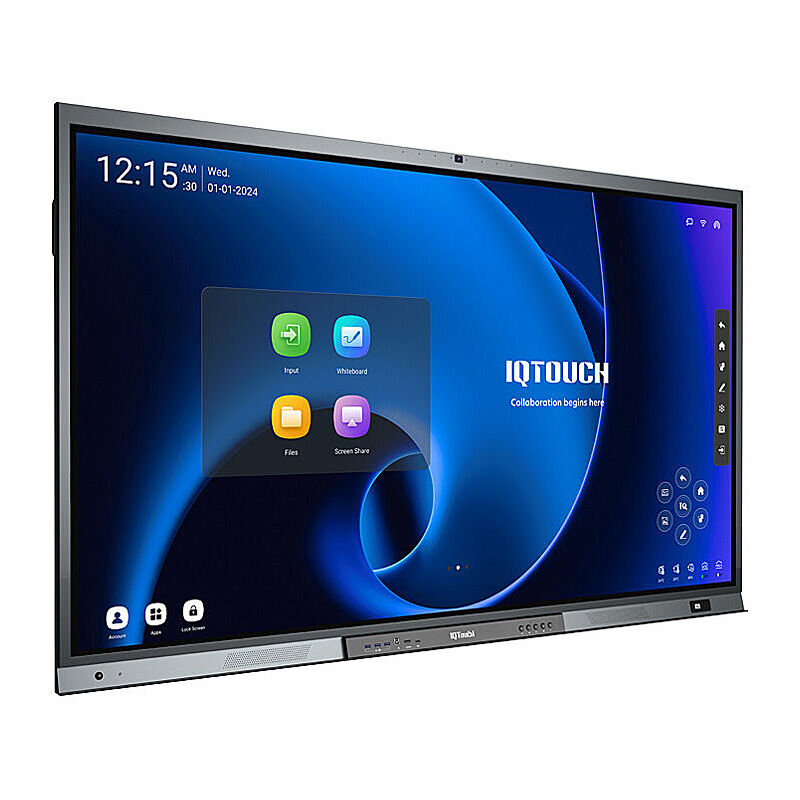

IQBoard QA 1310 Pro 75” Interactive Display-QA1310Pro75

IQBOARD QA 1310 Pro 75”

Features

• Large interactive display range designed for classrooms, meeting rooms, and collaborative spaces
• High performance system memory with 16GB RAM and 256GB ROM, ensuring fast operation, smooth multitasking, and ample storage for content and applications
• Advanced Android 13 with IQ OS, delivering smooth multitasking, customisable home screens, and powerful performance with 16GB RAM and 256GB storage
• Multi user interactive blackboard, supporting up to 9 users simultaneously with intuitive gesture based navigation
• AI powered 4K video conferencing, featuring a 48MP camera with auto framing, voice tracking, adaptive lighting, and noise cancellation
• Immersive audio system, with dual 20W speakers, a 20W subwoofer, and 8 array microphones providing clear pickup across large rooms
• Seamless wireless collaboration, enabling screen sharing for up to 16 devices, 4K casting, real time annotation, and cross network sharing

Specifications

Display

• Diagonal Size: 65″ / 75″ / 86″ / 98″
• Brightness: 350 cd/m²
• Contrast Ratio: 1200:1 (65″, 75″, 98″); 1600:1 (86″)
• Panel Type: TFT
• Backlight: Direct LED (DLED)
• Resolution: 4K UHD (3840 x 2160)
• Display Ratio: 16:9
• Response Rate: 8 ms (typ.)
• Refreshing Frequency: 60 Hz
• Viewing Angle: 178° (H), 178° (V)
• Backlight Life Time: 50,000 hours
• Display Colors: 10bit (D), 1.07 billion colors
• Glass: 4 mm Tempered Glass with Anti-Glare coating (8H)
• Dynamic Contrast Ratio: 5000:1

Interactivity

• Touch Technology: Infrared
• Touch Point: 40 point touch. 40 point writing under Windows. 20 Point writing under Android.
• Touch Resolution: 32768 x 32768 (px)
• Response Rate: <4 ms (single touch); <6 ms (max touch inputs)
• Touch Accuracy: 1 mm
• Recognition: Finger or pen
• Writing Height: 3 mm
• Minimum Touch Object: 2 mm
• Supported O.S.: HID Support & Win10 / Win8 / Win7 / macOS / Android / Chrome OS / Linux

Front Buttons

• Front Buttons: POWER, HOME, BACK, SETTING, CUSTOM

Connectivity

• USB 3.0 (Android & PC): 3
• HDMI IN 2.0: 1
• Touch-USB: 1
• TYPE-C (USB 2.0, Video & Audio & Touch & 65W): 1

Input

• RJ45 (10/100/1000 Mbit/s): 1
• HDMI 2.0 (4K@60fps): 2
• TYPE-C (USB 2.0, Video & Audio & Touch & 65W): 1
• USB 2.0 (Android) Type-A: 2
• USB 3.0 (Android & PC) Type-A: 2
• USB 2.0 (for Touch) Type-B: 2
• USB 2.0 (OTG): 1
• TF Card: 1
• MIC IN: 1
• RS232: 1
• DP: 1

Output

• HDMI 2.0 (4K@60fps): 1
• COAX SPDIF OUT: 1
• EARPHONE (3.5 mm Line Out): 1
• RJ45 (10/100/1000 Mbit/s): 1

Built-in Features

• Built-in Camera: 48M (Built-in 4K AI Camera with Auto Framing & Voice Tracking)
• Array Microphone: YES (8 Array microphone)
• Built-in Speaker: 20W x 2 + 20W
• Light Sensitivity: YES
• Temperature Monitor: YES
• Proximity Sensor: YES

Environment

• Working Temperature: 0 ~ 40
• Storage Temperature:20 ~ 60
• Working Humidity: 20% ~ 80% RH Non-Condensing
• Storage Humidity: 20% ~ 90% RH Non-Condensing

Android

• CPU Framework: Cortex-A73*4 + Cortex-A53*4
• CPU Processor Speed: 2.2GHz
• GPU: Arm Mali-G52 MP8 (BEE)
• RAM: 16G
• ROM: 256G
• Hotspot: IEEE 802.11 a/b/g/n/ac, IEEE 802.1x, WPA2, and station mode (2.4G/5G Dual-band)
• Bluetooth: 5.2
• NFC: YES
• WiFi: IEEE 802.11 a/b/g/n/ac/ax, IEEE 802.1x, WPA2, Wi-Fi 6 and station mode (2.4G/5G Dual-band)
• OS Version: Android 13.0
• Screensharing: EShare Pro
• Device Management: RDM
• Document Camera Software: IQView

OPS (Optional)

• Chipset: Intel
• CPU: Intel® Core i3 / i5 / i7
• Memory: 4GB / 8GB / 16GB
• HDD: 500GB / 1TB
• SSD (Optional): 128GB / 256GB / 512GB
• Pre-installed Software: IQCLASS ONE
• Interfaces (Subject to model):
  • USB 2.0 — 2
  • USB 3.0 — 2
  • LAN — 1
  • HDMI — 1
  • LINE-OUT — 1
  • MIC-IN — 1

Power

• Voltage: 100V ~ 240V AC 50 / 60Hz
• Maximum Power:
  • 65″: 350W
  • 75″: 400W
  • 86″:450W
  • 98″: 750W
• Standby Power:0.5W

Physical

• Screen Sizes: 65″ / 75″ / 86″ / 98″
• Net Weight (kg):
  • 65″: 40 ±1.5
  • 75″: 56 ±1.5
  • 86″: 66 ±1.5
  • 98″: 106 ±1.5
• Gross Weight (kg):
  • 65″: 46 ±1.5
  • 75″: 70 ±1.5
  • 86″: 81 ±1.5
  • 98″: 121 ±1.5
• Product Size (mm) (W x H x D):
  • 65″: 1501 x 930 x 116
  • 75″: 1723 x 1055 x 116
  • 86″: 1968 x 1194 x 116
  • 98″: 2233 x 1346 x 105
• Packing Size (mm) (W x H x D):
  • 65″: 1576 x 980 x 200
  • 75″: 1800 x 1125 x 200
  • 86″: 2044 x 1262 x 200
  • 98″: 2306 x 1520 x 200
• VESA Hole Position (mm):
  • 65″: 4-M8 screw hole 500—400
  • 75″: 4-M8 screw hole 600—400
  • 86″: 4-M8 screw hole 800—400
  • 98″: 4-M8 screw hole 1000—400

Accessories

• Power Cord: 1 (1.5m)
• HDMI Cable: 1 (1.5m)
• USB Cable: 1 (1.5m)
• Remote Controller: 1
• NFC Card: 1
• Colorless Writing Pen: 2
• Wall Mounting Brackets: 1

Language

• OSD Languages: English, French, German, Russian, Japanese, Korean, Polish, Portuguese, Vietnamese, Spanish, Italian, Arabic, Simplified Chinese, Traditional Chinese, Ukrainian

Certificate

• CE, FCC, ROHS, BIS, IEC, WEEEE, Energy Star, CB, IECEE, TUV Low blue light, ERP

Warranty

• Warranty term and upgrade options vary by region. Contact your local reseller or distributor for information.
