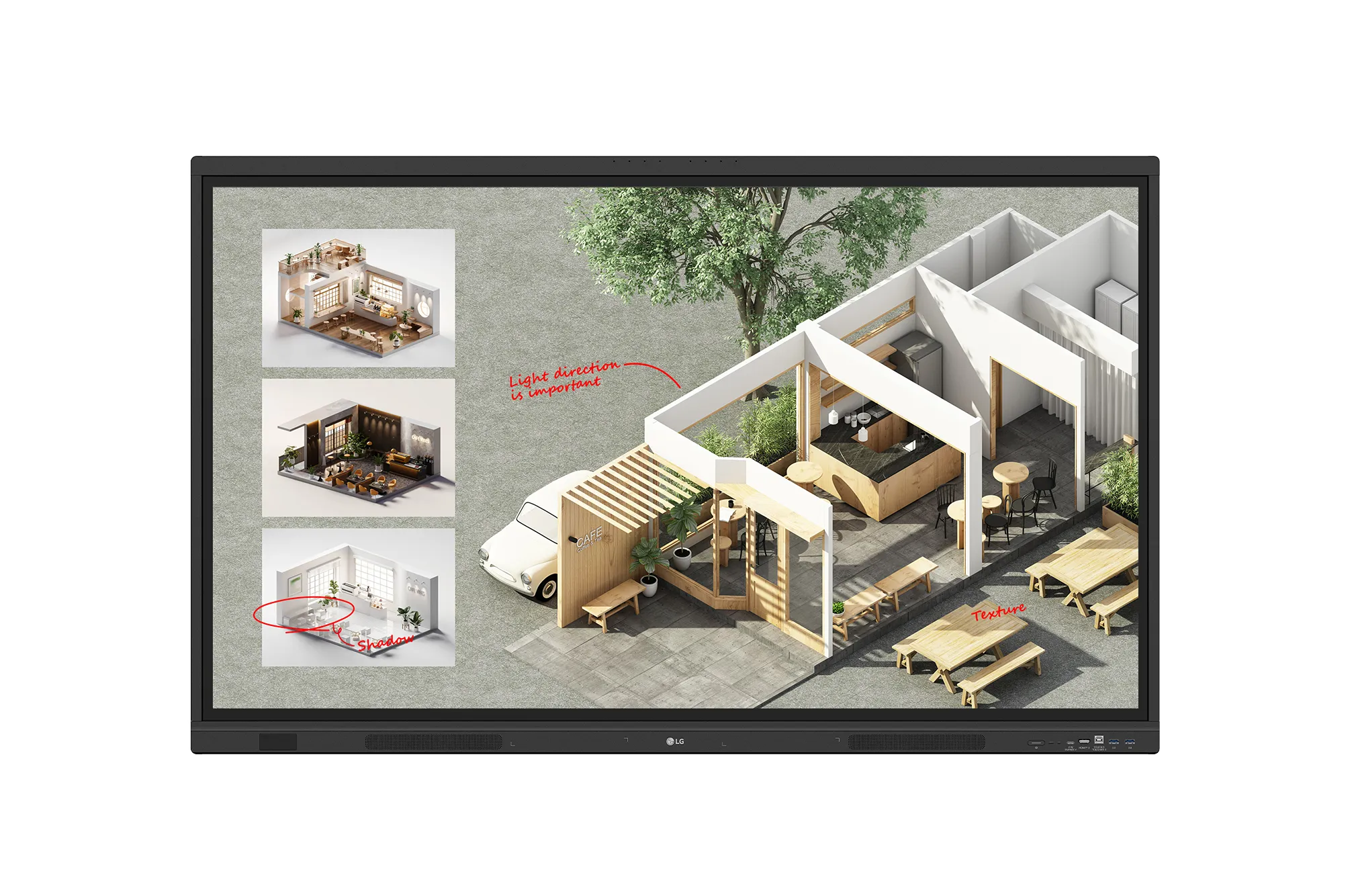

LG Interactive Display (TR3DQ) 55" UHD - 55TR3DQ-B
Original price was: $3,073.40.$2,644.07Current price is: $2,644.07. 'inc. GST'
HP Series 3 Pro 21.5 inch FHD Monitor - 322pf - 9U5B0UT
Original price was: $231.00.$196.68Current price is: $196.68. 'inc. GST'

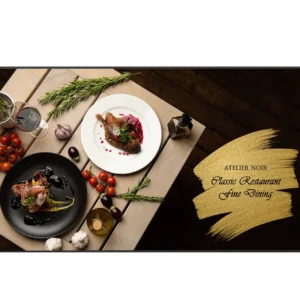

LG Digital Display (UH5Q) 86″ UHD – 86UH5Q-E
Original price was: $7,279.80.$6,231.04Current price is: $6,231.04. 'inc. GST'
The LG Digital Display (UH5Q) 86″ UHD – 86UH5Q-E features a 4K UHD ADS panel, 700 nits brightness, webOS 8.0, 24/7 operation, Wi-Fi, and professional signage features for business environments, 3year warranty.
In stock
Vendor Code:
Description
- Resolution: 3,840 × 2,160 (UHD)
- Brightness: 500 nits (Typ.)
- Bezel Width: 13.4 mm (Even)
- webOS Smart Platform
- LG Shield
Large UHD Signage Display With LG webOS Platform And Advanced Security
Superb Picture Quality With Ultra HD Resolution
With the resolution of UHD, it makes the colors and details of the content vivid and realistic. In addition, the wide viewing angle provides clear content.
Convenient webOS Platform
The UH5Q is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, and includes webOS partner apps to create an SI-friendly environment.
Durability That Provides Reliability
Optimized for business environments, the UH5Q is protected against salt, dust, iron powder and humidity thanks to conformal partial coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring, provide both reliability and satisfaction
Comprehensive Security
webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also, the webOS platform supports ETSI EN 303 645.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Specifications:
DISPLAY |
|
| Screen Size | 86″ |
| Panel Technology | ADS |
| Backlight Type | Edge LED |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840 × 2160 (UHD) |
| Refresh Rate | 60 Hz |
| Brightness | 700 nits (Typical) |
| Contrast Ratio | 1,200:1 |
| Dynamic Contrast Ratio | 1,000,000:1 |
| Color Gamut | BT.709 95% |
| Viewing Angle | 178° (H) × 178° (V) |
| Color Depth | 1.07 Billion Colors |
| Response Time | 8 ms (G to G) |
| Surface Treatment | 25% Haze |
| Panel Lifetime | 50,000 Hours (Typical) |
| Operation Hours | 24/7 |
| Orientation | Portrait / Landscape |
CONNECTIVITY |
|
| HDMI Input | 3 × HDMI |
| HDMI HDCP Version | HDCP 2.2 / 1.4 |
| DisplayPort Input | 1 × DisplayPort (HDCP 2.2 / 1.3) |
| RS232C Input | Yes |
| RS232C Output | Yes |
| RJ45 (LAN) | 1 × RJ45 |
| IR Input | Yes |
| USB | 2 × USB 2.0 Type-A |
| Audio Output | Yes |
MECHANICAL SPECIFICATIONS |
|
| Bezel Color | Black |
| Bezel Width | 13.4 mm (Even) |
| Weight (Head Only) | 53.0 kg |
| Packed Weight | 66.7 kg |
| Dimensions (W × H × D) | 1928.8 × 1099.8 × 29.7 mm (Without IR & Handle) |
| Carton Dimensions | 2100 × 1250 × 253 mm |
| Handle | Yes |
| VESA Mount | 600 × 400 mm |
HARDWARE FEATURES |
|
| Internal Memory | 16 GB eMMC |
| Built-in Wi-Fi / Bluetooth | Yes |
| Temperature Sensor | Yes |
| Auto Brightness Sensor | Yes (EU In-box / Others Accessory) |
| Acceleration (Gyro) Sensor | Yes |
| Local Key Operation | Yes |
SOFTWARE FEATURES |
|
| Operating System | webOS 8.0 |
| Local Content Scheduling | Yes |
| Group Manager | Yes |
| USB Plug & Play | Yes |
| Failover | Yes |
| Booting Logo Image | Yes |
| No Signal Image | Yes |
| RS232C Sync | Yes |
| Local Network Sync | Yes |
| Picture-in-Picture (PIP) | Yes |
| Picture-by-Picture (PBP) | Yes (4PBP) |
| Screen Share | Yes |
| Video Tag | Yes (4 Video Tag) |
| Play via URL | Yes |
| Screen Rotation | Yes |
| External Input Rotation | Yes |
| Gapless Playback | Yes |
| Tile Mode Setting | Yes |
| Setting Data Cloning | Yes |
| SNMP | Yes |
| ISM Method | Yes |
| Auto Set ID | Yes |
| Status Mailing | Yes |
| Control Manager | Yes |
| Cisco Certification | Yes |
| Crestron Connected | Yes |
| Smart Energy Saving | Yes |
| PM Mode | Yes |
| Wake on LAN | Yes |
| Network Ready | Yes |
| Beacon | Yes |
| HDMI-CEC | Yes |
| SI Server Setting | Yes |
| webRTC | Yes |
| Pro:Idiom | Yes |
ENVIRONMENTAL CONDITIONS |
|
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 80% |
POWER |
|
| Power Supply | AC 100–240V~, 50/60Hz |
| Power Type | Built-in Power |
| Typical Power Consumption | 205 W (TBD) |
| Maximum Power Consumption | 297 W (TBD) |
| BTU | 699 BTU/Hr (Typical), 1013 BTU/Hr (Maximum) (TBD) |
| Smart Energy Saving (70%) | 144 W (TBD) |
| DPM | 0.5 W |
| Power Off | 0.5 W |
AUDIO |
|
| Built-in Speakers | Yes (10 W × 2) |
CERTIFICATIONS |
|
| Safety | CB / NRTL |
| EMC | FCC Class B / CE / KC |
| ERP / Energy Star | NA / Yes |
| EPEAT (US Only) | Yes |
SOFTWARE COMPATIBILITY |
|
| SuperSign CMS | Yes |
| SuperSign Control+ | Yes |
| SuperSign WB | Yes |
| SuperSign Cloud | Yes |
| Mobile CMS | Yes |
| Connected Care | Yes |
LANGUAGES |
|
| OSD Languages | English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Traditional), Portuguese (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portuguese (Europe), Dutch, Czech, Greek, Turkish, Arabic |
ACCESSORIES |
|
| Included Accessories | Remote Controller (with 2 Batteries), Power Cord, Quick Setup Guide, Regulation Book, Phone to RS232C Gender Adapter, Cable Holder (6 pcs), 7-Pin Cable Holder (1 pc) |
| Optional Accessories | Wall Mount (LSW640A/B) |
SPECIAL FEATURES |
|
| Conformal Coating (Power Board) | Yes |
| IP Rating | IP5X |
Additional information
| Brand | LG |
|---|---|
| Commercial Display | Digital Signage Display |
| Screen Size | 86″ |
| Screen Resolution | 3840 x 2160 |
| Warranty | 3 Years |
