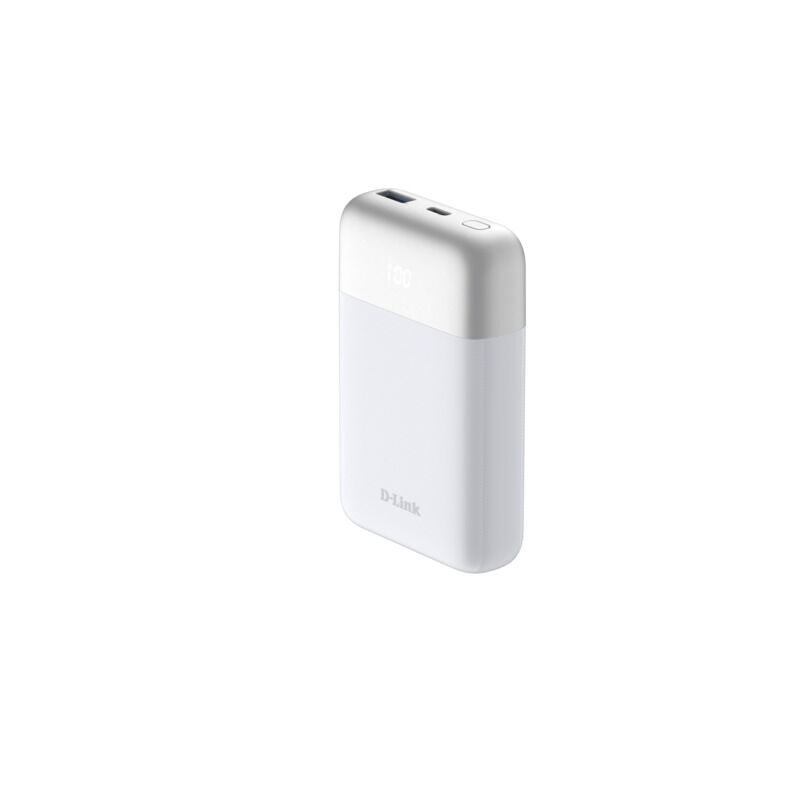

D-Link 10000mAh Portable Power Bank-DPP-101
$79.95 Original price was: $79.95.$69.41Current price is: $69.41. 'inc. GST'

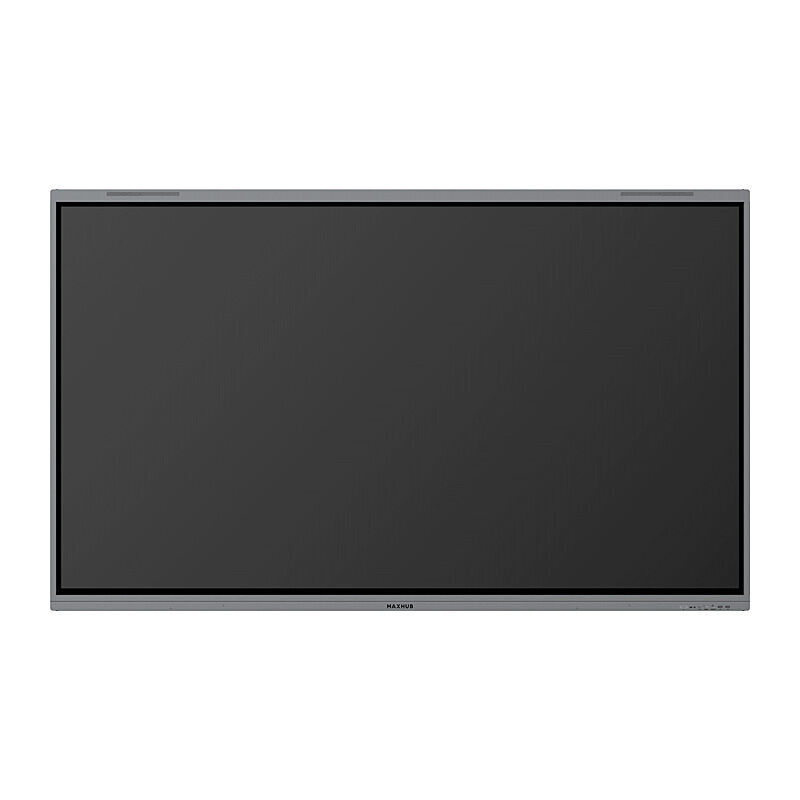

Maxhub E Series 86” Interactive Touch Display-E8630
$4,916.10 'inc. GST'
MAXHUB E series E8630 86”
In stock
Vendor Code:
SKU:
E8630
Categories: Interactive Displays, Interactive Panels, Monitors and Displays
Brand: Maxhub
Supplier ID: DYS-E8630
Description
MAXHUB E3 Series shines as an exceptional choice, tailored specifically for educational environments. It features
a secure operating system for seamless integration with Google apps and accounts. The AI-powered SoC ensures
smooth performance, while the advanced touchscreen allows for natural and precise writing. With versatile
connectivity options, teachers can easily share content from multiple devices. MAXHUB E3 Series enhances
classroom collaboration and engagement, making it the perfect choice for educators and students.
Features
- Prominent Display – 4K display, 10 bit color, high color accuracy
- SkyWave Sound System – 2.2 channel speaker, 2×8W + 2×18W output
- Peak Performance – Octa?core CPU, independent NPU, 8GB RAM, 128GB ROM
- Precious Touch – MAXHUB Think&Ink Technology, 40 touch points, ±1.5 mm touch accuracy
- Classroom Care – Hardware-grade eye care, TÜV Low Blue Light and Flicker Free certification
- Unparalleled Compatibility – Android 14 system, Google EDLA certificated
- Convenient Connectivity – Full-function USB?C integrating 65W PD, video, audio, touch, and internet access features
- Comprehensive Software Suite – MAXHUB EDU OS V4 with extensive education?tailored applications
Specifications
Display
- Model: E8630
- Diagonal Size: 86 inch
- Display Area: 1895.04 (H) × 1065.96 (V) mm
- Screen Level: A-Level
- Brightness: 400 nits (typ.), 450 nits (max.)
- Contrast Ratio: 3,000:1 (typ.), 50,000:1 (dynamic)
- Color Depth: 1.07B (10bit)
- Color Gamut (typ.): 98% sRGB
- Color Accuracy: ΔE ≤ 1
- Surface Technology: Anti-glare, 25% haze
- Aspect Ratio: 16:9
- Resolution: 3840 × 2160
- Panel Type: IPS
- Viewing Angle: 178° (H/V)
- Response Time: 8 ms
- Backlight Unit: DLED
- Backlight Life (typ.): ≥ 60,000 Hours
- Refresh Rate: 60Hz
- Glass: Zero parallax, 3 mm thickness, 9H tempered
- Sensors: Ambient light sensor, Ambient color temperature sensor
- Eyes Care: TÜV Flicker Free, TÜV Low Blue Light
Built-in System
- Operating System: Android 14.0
- Certification: Google EDLA
- RAM: 8GB
- ROM: 128GB
- SoC Process: 8 nm
- CPU: A72×4 + A53×4 octa-core, 2.2GHz
- GPU: Mali G52 MC3
- NPU: 6 TOPS
Touch System
- Technology: Infrared recognition
- Touch Points: 40
- Object Recognition Range: 3 mm
- Accuracy: ± 1.5 mm
- Response Time: ≤ 5 ms
- Writing Height: ≤ 2 mm
- System: MAXHUB Think&Ink (Touch Return)
- OS Compatibility: Windows7/8/10/11, Android, Linux, Mac OS X, Chrome
Connectivity
- OPS Slot — For system upgrades
- HDMI IN × 3 — Up to 4K@60Hz, HDCP 1.4/2.2/2.3, CEC
- DP IN × 1 — 4K@60Hz, HDCP 1.4/2.2/2.3
- USB 2.0 × 1
- USB 3.0 × 4
- Touch × 2
- AUDIO IN × 1 — 3.5 mm Jack
- VGA IN × 1 — Up to 1080P@60Hz
- RS232 × 1 — Baud rate 9600
- RJ45 IN × 1 — 10M/100M/1000Mbps
- TF Card Port × 1 — Expandable up to 1TB
- USB Type-C × 2 — Video/audio, touch, charging, LAN sharing (Front: 65W PD, Rear: 15W PD)
- HDMI OUT × 1 — Up to 4K@60Hz
- AUDIO OUT × 1 — 3.5 mm Jack
- SPDIF × 1 — PCM output format
- RJ45 OUT × 1 — 10M/100M/1000Mbps
- Front USB: 2 (USB 2.0 × 1, USB 3.0 × 1)
- Rear USB: 2 (USB 3.0 × 2)
- Wireless: Bluetooth, Wi-Fi 6 (802.11 ac/b/g/n/a/ax, 2.4GHz/5GHz)
- Module Slots: 2 (Wi-Fi Module SI07B supported)
Audio
- Audio System: SkyWave Sound System
- Sound Channel: 2.2
- Speaker Power: 2×8W + 2×18W (output), 2×12W + 2×25W (maximum)
- Sound Pressure Level: 88 dB (1W, 1m)
Physical Specification
- Dimension (L×H×D): 1959×1179×100 mm
- Shipping Dimension (L×H×D): 2110×1305×225 mm
- Thickness (Machine + Wall Mount): 129 mm (WIB9060H)
- Wall-hanging Screw: M4×14 mm VESA
- Net Weight: 52.45 kg
- Gross Weight: 69.00 kg
Power
- Power Supply: AC 100-240V~ 50/60 Hz 4.5A
- Standby Consumption: ≤ 0.5W
- Typical Consumption: 190W
- Power Saving: Energy Star Certification
Optional Modules
- USB Camera
- Video Bar
- OPS Module (OPS62A/OPS72A)
- Sensor Box UC W31 / UC S07
- WL10C
- Mobile Stand (ST33M, ST23G, EST09)
Environment
- Operating Temperature: 0°–40°
- Operating Humidity: 10%–90% RH
- Storage Temperature: -20°–60°
- Storage Humidity: 10%–90% RH
- Altitude: Below 5000 meters
- Dust Resistance: IP5X-rated
Software System
- OS: MAXHUB EDU OS V4
- Screen Sharing
- Whiteboard Tool
- Device Management
- MAXHUB Connect, MAXHUB Class Pro, MAXHUB Pivot
- Google Apps: Google Play, Google Drive, Google Meet, Google Maps, YouTube
- Other Apps: Browser, Cloud Drive, Note, Palette
Accessories
- Power Cord (3 m × 1)
- HDMI Cable (3 m × 1)
- Remote Control × 1
- Stylus × 2
- Display Bracket × 2
- Wall Mount Bracket WIB9060H × 1
- Wi-Fi Module SI07B × 1
Additional information
| Brand | Maxhub |
|---|---|
| Commercial Display | Interactive Panels |
| Screen Size | 86″ |
| Screen Resolution | 3840 x 2160 |
