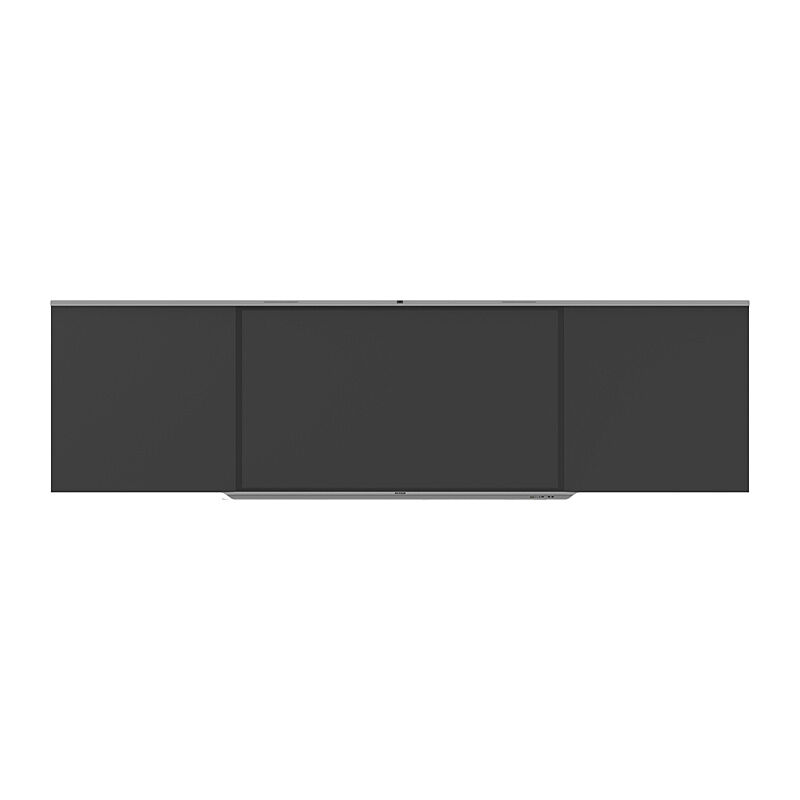

Maxhub Smart Blackboard 86” Interactive Display-B8620

$5,373.89 'inc. GST'

MAXHUB B Series B8620 Smart Blackboard Screen size: 86” 4K Res, 98% sRGB, Android 13 system, 8GB RAM, 128GB ROM, 50M camera, 4-mic array, IR Touch, 20 touch points, 2×12+2?25W speaker, camera, 50MP dual lens, 12 microphone array, 2*10W speaker

In stock

Vendor Code:
SKU: B8620 Categories: , , Brand:
Supplier ID: DYS-B8620
Description

Witness the marriage of aesthetics and function with the B8620 Smart Blackboard, the ultimate design masterpiece for
an optimal educational experience. Combining unparalleled visual appeal with integrated writing capabilities and
next-generation eye-care technology, this classroom innovation redefines modern teaching and learning. Equipped with
a built-in camera, microphone, and all-in-one functionality, the B8620 Smart Blackboard takes learning to new heights
while being easy on the eyes. Perfect for multimedia presentations, interactive lesson plans, or collaborative learning
activities, the B8620 Smart Blackboard is the all-in-one solution that raises the bar in every aspect.

Features

  • Prominent Display: High Color Accuracy, E≤1. Zero Bonding Technology
  • Professional security protection: Design with no sharp edges minimizes unintentional bumping
  • Eyes Care: TUV Eye Comfort, TUV Low Blue light, TUV Flicker-free
  • All-in-One Capability: 50M Wide-angle Camera. 4-Array Microphone
  • Powerful Configuration: Powerful 2.0GHz Quad-core CPU, 8GB RAM, 128GB ROM
  • Natural Writing Experience: Seamless integrated design, supports writing with chalk, dust-free chalk, and water-based pens
  • Convenient Connectivity: All-in-one Type-C interface, integrate 65W power charge, video, audio, touch and internet access features
  • Comprehensive Software Suit: MAXHUB EDU OS V3 based on Android 13, including extensive self-developed applications

Specifications

Display

  • Model: BB8620
  • Display Area: 1895.04 (H) × 1065.96 (V) mm
  • Diagonal Size (inch): 86
  • Aspect Ratio: 16:9
  • Resolution: 3840 (H) × 2160 (V)
  • Viewing Angle: 178° (H/V)
  • Brightness (typ.): 400 nits (Typ.)
  • 450 nits (Max.)
  • Contrast Ratio: 1,200:1 (Typ.)
  • 50,000:1 (Dynamic)
  • Color Depth: 107B (10bit)
  • Color Gamut (typ.): 98% sRGB
  • Color Accuracy: Delta E ≤ 1
  • Glass: Zero parallax, 3.2mm thickness, 9H Tempered
  • Surface Technology: Anti-glare, Etched AG Technology
  • Support writing with ordinary chalk, dustless chalk and liquid pens
  • Eyes Care:
  • TÜV Eye Comfort
  • TÜV Flicker Free
  • TÜV Low Blue Light
  • Refresh Rate: 60Hz
  • Response Time: 8ms
  • Backlight Unit: DLED
  • Backlight Life (typ.): ≥ 50,000 Hours

Touch System

  • Touch Technology: Infrared recognition
  • Touch Point: 20 Points touch
  • Object Recognition Range: 3mm
  • Accuracy: ± 2mm
  • Response Time: ≤ 9ms
  • Supported Operating System (Touch Return): Windows10 / Windows8 / Windows7 / WindowsXP / Android / Linux / Mac OS X / Chrome

Built-in System

  • Operating System: Android 13.0
  • RAM: 8GB
  • ROM: 128GB
  • CPU: 2.0GHz quad core ARM A55
  • GPU: Mali-G52 MP2

Connectivity

Input

  • HDMI IN × 3
  • USB 2.0 × 1
  • USB 3.0 × 4
  • USB Type-C × 1
  • VGA IN × 1
  • AUDIO IN × 1
  • RS232 × 1
  • RJ45 IN × 1

Output

  • HDMI OUT × 1
  • TOUCH OUT × 2
  • AUDIO OUT × 1
  • SPDIF × 1
  • RJ45 OUT × 1

Slots

  • OPS Slot: Module Slot × 1
  • Wifi Slot: Module Slot × 1

Camera / Audio / Microphone

  • Camera Resolution: 50M
  • FOV: HFOV: 135°, DFOV: 150°
  • Video Recording: 4K, 1080P, 720P
  • Built-in Microphone: 4–Array Microphone
  • Microphone pick up range: 0–8 m
  • Speaker Power: 2 × 8W + 2 × 18W Outputs, 2 × 12W + 2 × 25W Maximum
  • Sound Channel: 2.2

Power

  • Power Supply: AC 100–240V 50/60Hz
  • Power Consumption (standby): ≤ 0.5W
  • Power Consumption (maximum): 440W

Environment

  • Operating Temperature: 0°C ~ 40°C
  • Storage Temperature: -20°C ~ 60°C
  • Operating Humidity: 10%~90% RH
  • Storage Humidity: 10%~90% RH
  • Altitude: Below 5000 meters

Software

  • System OS: MAXHUB EDU OS V3
  • Account management: MAXHUB Account
  • Whiteboard Tool: MAXHUB Class Pro
  • Screen sharing: MAXHUB Connect
  • Device management: MAXHUB Pivot
  • Other Apps: Browser, Cloud Drive, Note, Palette, WPS Office, etc.

Physical Specification

  • Dimension (W x H x D):
    • Main screen: 1994 × 1200 × 109 mm
    • Blackboard: 1114 × 1200 × 112 mm
    • Assembled: 4200 × 1219 × 98 mm
  • Shipping Dimension (W x H x D):
    • Main screen: 2156 × 255 × 1335 mm
    • Blackboard: 1240 × 280 × 1257 mm
  • Thickness of machine and wall mount: 98 mm
  • Net Weight:
    • Main screen: 61.45 kg
    • Blackboard: 18.10 kg
  • Gross Weight:
    • Main screen: 80.20 kg
    • Blackboard: 25.12 kg

Accessories

  • Power Cord: 3 m x 1
  • Remote Control: x 1
  • Stylus: x 2
  • HDMI Cable: 3 m x 1
  • Wall Mount: x 1
  • Wireless Adapter: x 1

Optional Module

  • OPS: OPS62A, OPS72A
  • Mobile Stand: ST31
  • Board: Blackboard & Whiteboard
Additional information
Brand
Commercial DisplayInteractive Panels
Screen Size86″
Screen Resolution3840 x 2160
