MSI GeForce RTX 5060 Ti 16G Ventus 2X OC Plus Graphics Card (GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS)

MSI nVidia GeForce RTX™ 5060 Ti 16G VENTUS 2X OC PLUS, PCI Express® Gen 5 x16, Boost: 2602 MHz, CUDA 4608 Units, 16GB GDDR7, HDMI™ x 1

The MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS is a modern mid-to-upper-range graphics card built on NVIDIA’s latest Blackwell architecture. It’s designed to deliver strong performance for high-resolution gaming, creative workloads, and GPU-accelerated tasks. With 16 GB of high-speed GDDR7 VRAM, a factory-overclocked GPU, dual-fan cooling, and modern connectivity, this card offers a balanced mix of power, features, and efficiency — making it suitable for 1080p / 1440p gaming, 4K media, content creation, and future-proof PC builds.

The “VENTUS 2X OC PLUS” variant emphasizes compactness (dual-fan, dual-slot), a clean aesthetic, and efficient cooling — ideal if you want a well-rounded GPU for a mainstream or mid-tower build without needing a huge board or heavy cooling.

Key Features

Powerful Blackwell GPU with 4608 CUDA Cores + OC Boost

• The card uses NVIDIA’s Blackwell-series GPU (GB206) with 4608 CUDA cores, offering plenty of parallel compute power for gaming, rendering, video editing and other GPU-heavy tasks.

• Factory-overclocked: base/boost up to ≈ 2602 MHz (or up to 2617 MHz in “Extreme Performance” mode via MSI Center) — which gives extra headroom for demanding workloads compared to reference specs.

16 GB GDDR7 Memory — High VRAM & Bandwidth for Future-Proofing

• Equipped with 16 GB of GDDR7 on a 128-bit bus, with memory running at 28 Gbps (effective), resulting in ~448 GB/s memory bandwidth — enough for high-resolution textures, large game assets, video editing, 3D rendering, and GPU-accelerated workloads.

• The generous VRAM and bandwidth make this card more future-resistant than lower-VRAM options — useful for modern and upcoming titles, creative workloads, and heavy GPU tasks.

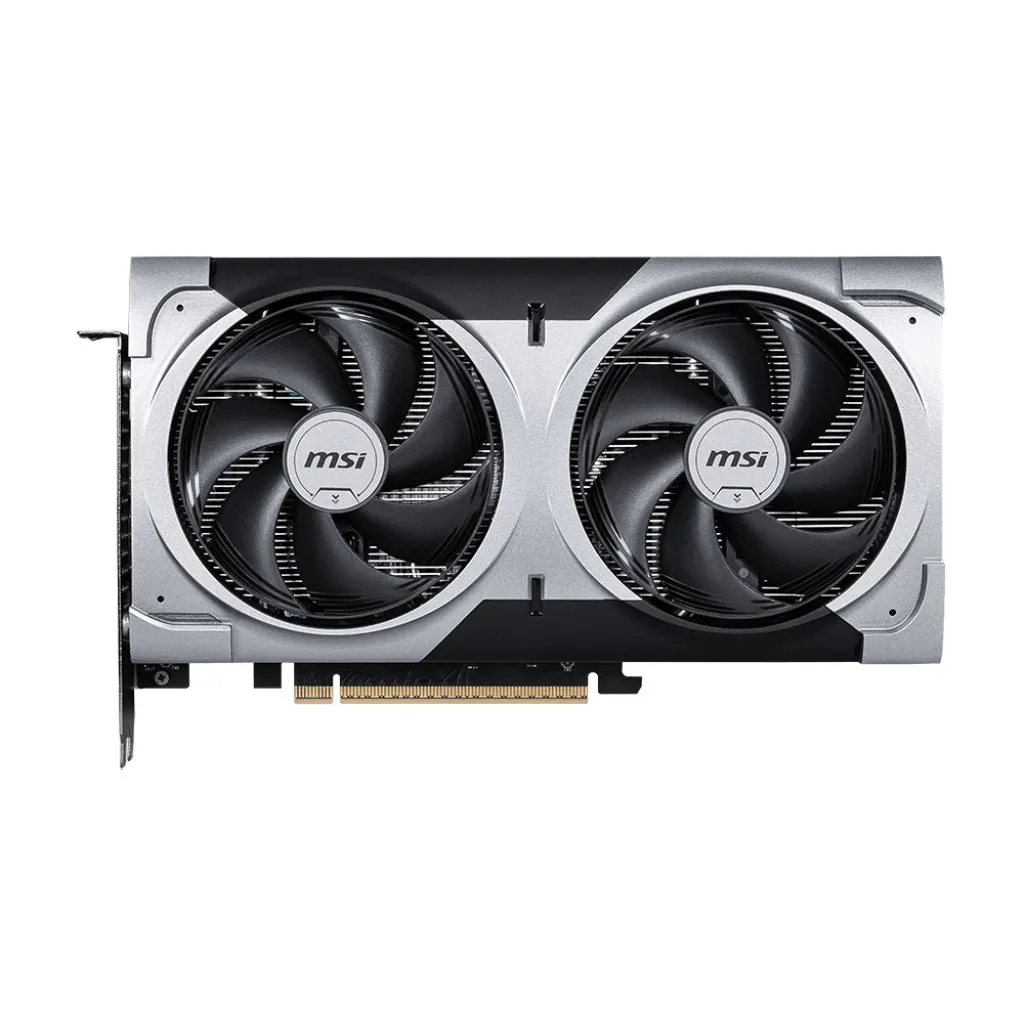

Dual-Fan VENTUS 2X Cooling & Compact Form Factor

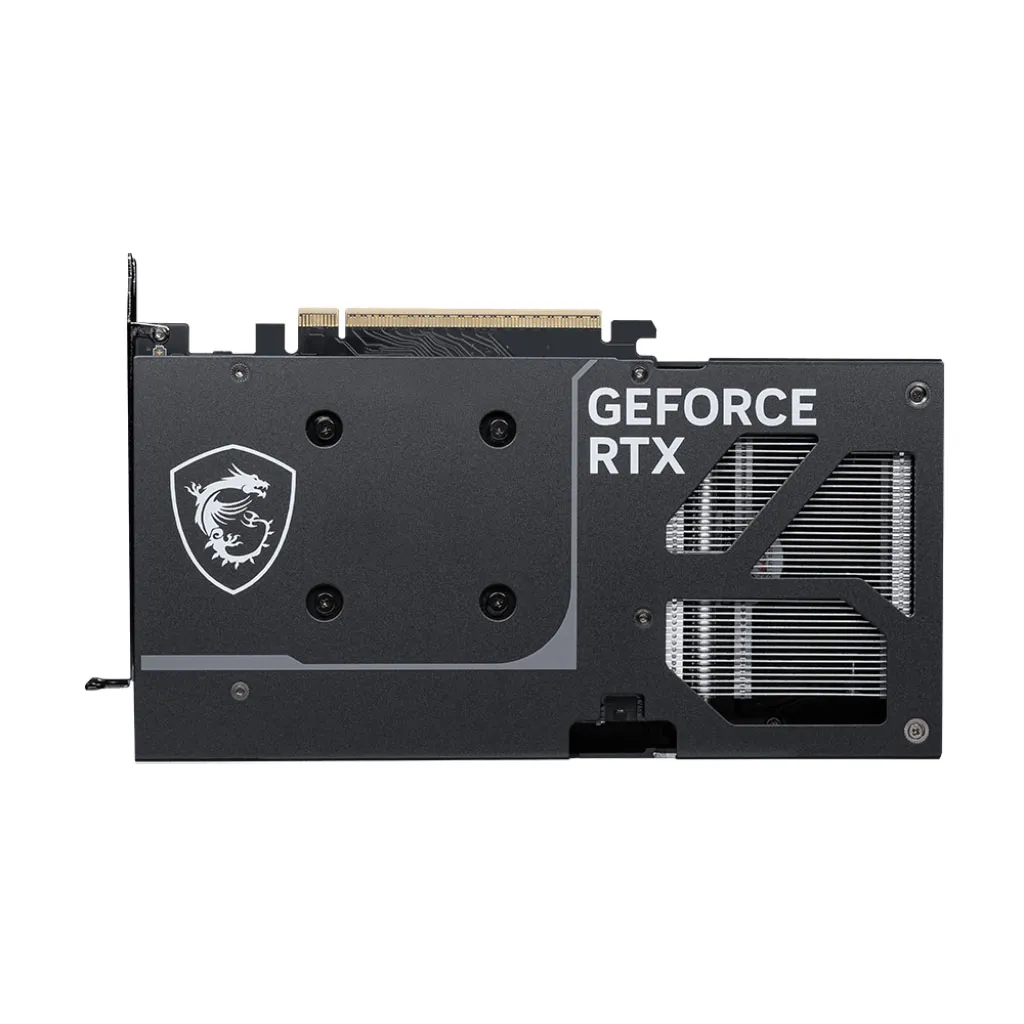

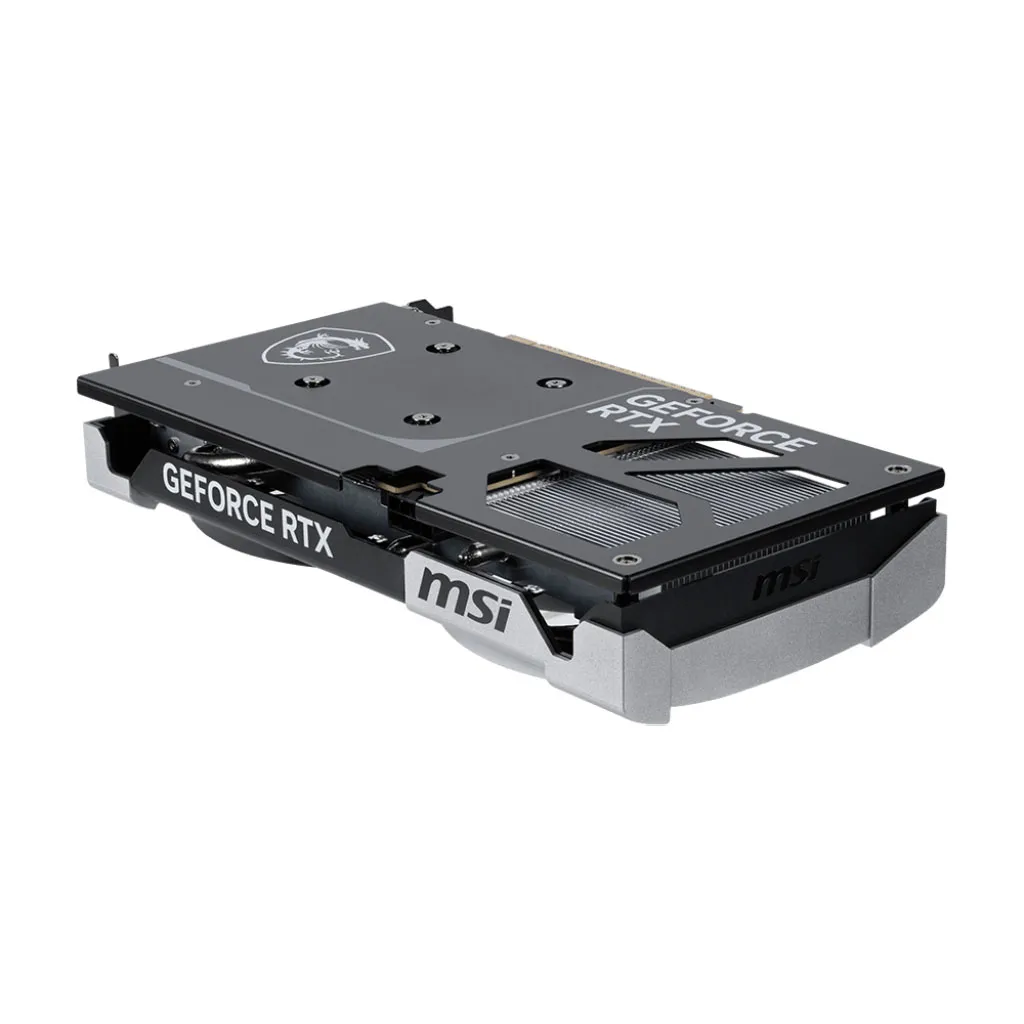

• The “VENTUS 2X” design uses two fans (Stormforce / TORX-style) and a well-designed heatsink with heat pipes and metal backplate, offering efficient cooling while keeping noise reasonable.

• The card is dual-slot, 227 × 127 × 41 mm, lighter and more compact than many triple-fan models — making it easier to fit in mid-tower or smaller cases

Modern Connectivity & Feature Support

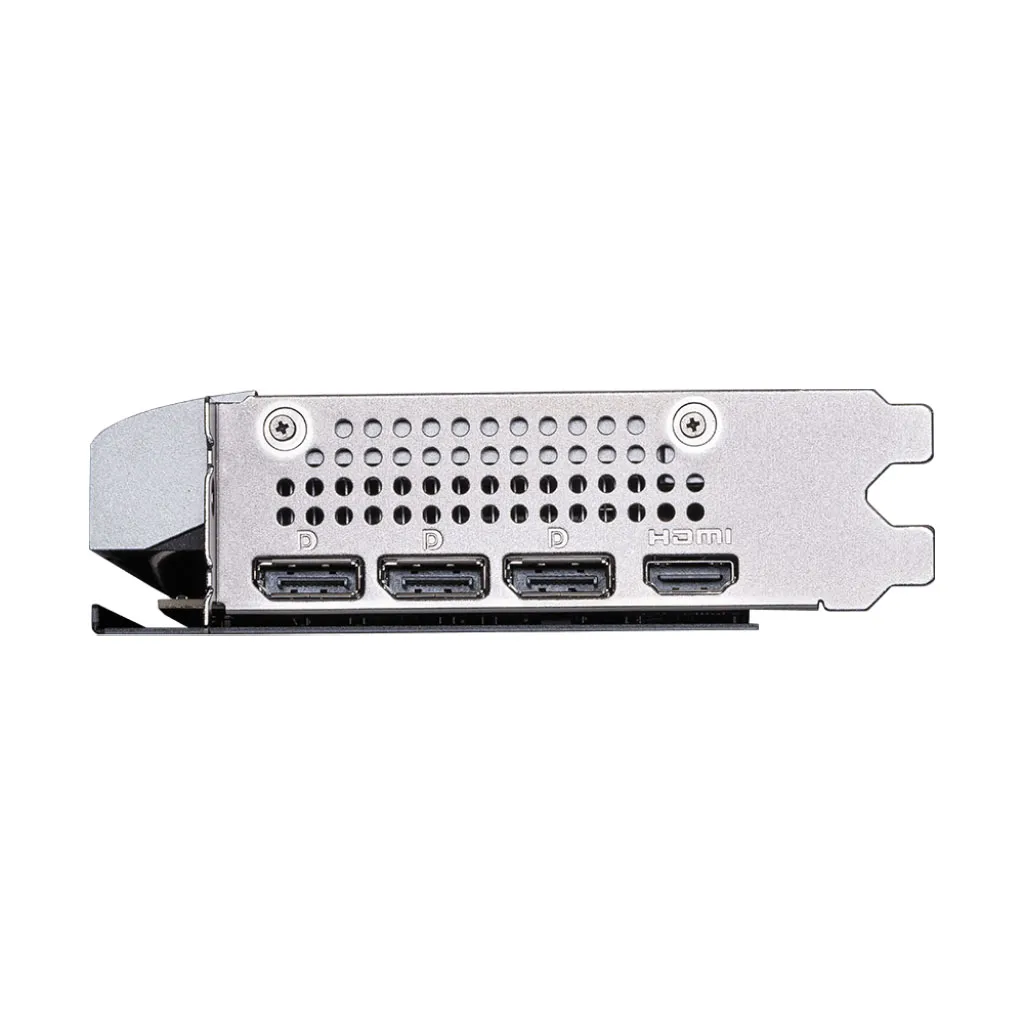

• Outputs: 3 × DisplayPort 2.1b + 1 × HDMI 2.1b — supports high-resolution, high-refresh displays; up to 7680 × 4320 (8K) resolution, and up to 4 simultaneous displays.

• Interface: PCI Express 5.0 x16 (operates at x8) — ensures compatibility with modern motherboards and high data throughput.

• Features support — full ray tracing (4th-gen RT cores), AI/Tensor-core acceleration, AI-enhanced rendering, NVIDIA DLSS 4, NVIDIA Reflex 2 + Frame-Warp (low-latency competitive gaming), NVIDIA Studio & encode/decode capabilities — making it versatile for gaming, creative workloads, and future-ready tasks.

Balanced Power Consumption & System Requirements

• Typical board power / TGP: 180 W — modest for a high-performance GPU of this class. 1

• Power connector: 1 × 8-pin PCIe; recommended PSU: 600 W — which is reasonable and compatible with many mid-range builds.

• Dual-slot, relatively compact design makes it easier to install in a wide variety of PC cases (mid-tower, airflow-focused, smaller ATX, etc.).

Technical Specification
